Price Includes $8,900 Instant Rebate. Offer is valid through December 31, 2024.

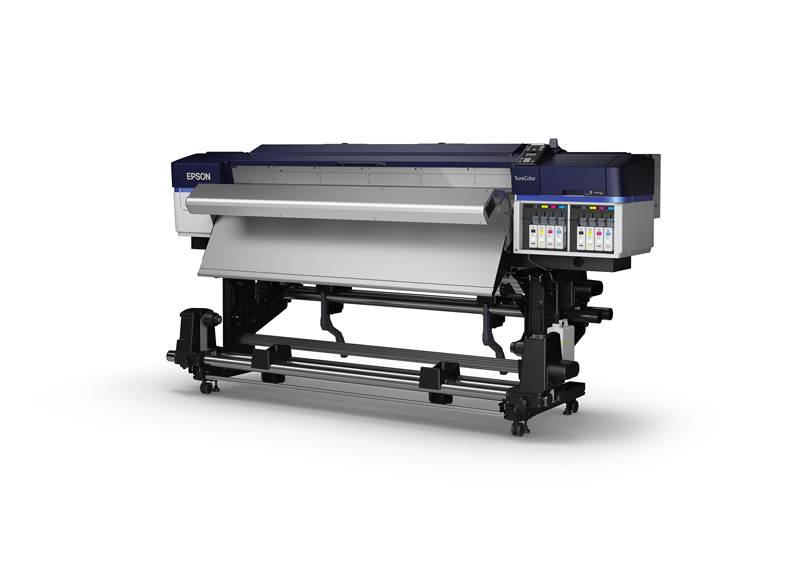

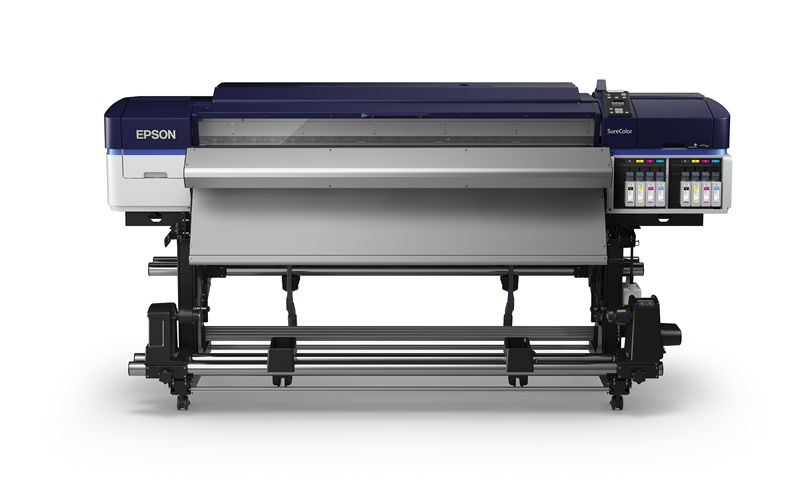

The 64-inch SureColor S60600 features newly-developed Epson UltraChrome® GS3 4-color solvent ink for outstanding print quality, durability, and media compatibility.
When combined with an all-new precision media feeding system and a high-performance Dual-Array PrecisionCore® TFP print head, the SureColor S60600 is capable of producing sellable quality banner at an astonishing 550 ft2 per hour, while also producing adhesive vinyl output at up to 310 ft2 per hour – making the new SureColor S60600 one the most productive sign printers ever developed.

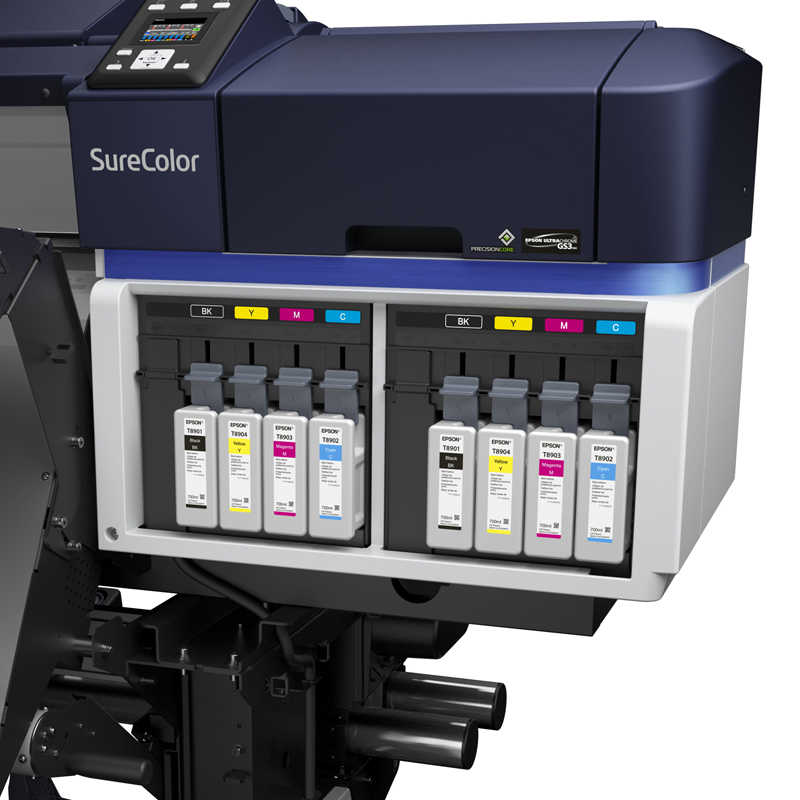

New UltraChrome GS3 Solvent Inks: Formulated for extremely fast drying and delivers outstanding print quality, durability and superior media compatibility than previous SureColor S-Series printers. 8-cartridge (Cx2,Mx2,Yx2,Kx2)
New Epson Dual-Array PrecisionCore TFP Print Head: Offers high performance and consistency along with variable size ink droplet technology and a robust head carriage allowing for more protection from potential head strikes, leading to increased production with less downtime. Includes the Epson Precision Dot™ screening technology to provide high-speed printing with minimal banding.
New Precision Media Feeding System: Robust motorized roll-to-roll media handling with Automatic Tension Control technology that is sensor based to provide extremely accurate media feed and take-up resulting in less media feed errors and skewing. Automated Maintenance Technology includes a newly developed fabric print head wiper system to allow more reliable continuous printing and less manual user maintenance.
Software: Includes a full copy of ONYX® GamaPrint Pro with free profile installation for the most popular signage media types
Fourth Generation Solvent Ink Chemistry from Epson
- Improved Outdoor Durability
- Superior Media Compatibility
- Full Room GreenGuard Gold Certified
- No special venitlation or air purification required
Newly Developed Red Ink Technology
- Unique Red solvent ink for significant color gamut improvements
- Reach up to 98.2% Pantone coverage with UltraChrome GS3 Red ink set
Superior Print Head Reliability
- Developed in partnership with the PrecisionCore TFP print head for better reliability
Print. Finish. Ship.
- Same day lamination - just 6 hours after printing
- Extremely fast drying and efficient inks
- Tested by Epson and Avery
Unique Epson Advantage
- Only available on Epson SureColor S-Series vs other solvent competitors
- Four times faster than the previous recommended standard of 24 hours
- Allows for same day delivery - providing more opportunities to increase revenue
Article: Epson S-Series Eco-Solvent vs. Latex Printers
View Sales Reference Guide PDF
| Base Printing Technology |
|
||||||||||||
| Printer Nozzle Configuration |
Color and Monochrome 720 nozzles per Color |
||||||||||||
| Resolution |
1440 x 1440 dpi; 1440 x 720 dpi; |
||||||||||||
|

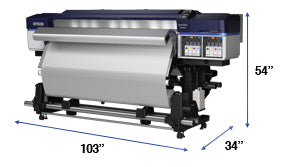

Dimensions Printer (includes printer, stand, print dryer, take-in & take-up) |
103"(W) x 34"(D) x 53"(H) |
||||||||||||
| Print Engine Speeds |
|
||||||||||||
| Media input |
Single roll-to-roll, minimum 12" wide up to 64" wide |
||||||||||||
| Cut-sheet size |
17" x 22" up to 64" wide |
||||||||||||
| Media core compatibility | 2" or 3" cored media | ||||||||||||
| Input roll media diameter | Up to 9.8" | ||||||||||||
| Input roll media weight | Up to 95 lbs. | ||||||||||||
| Media Weight/Thickness |
From 45 gsm up to 1.0 mm thick |
||||||||||||
| Roll media take-up reel |
Fully automatic "wind in" or "wind out" with tension bar |
||||||||||||
| Output roll media weight | Up to 95 lbs. | ||||||||||||
| Acoustic Noise Level | Approximately 59 dB(A) according to ISO 7779 | ||||||||||||
| Front-End RIP Workflow by ONYX |
GamaPrint Pro PANTONE licensed PostScript Language Level 3 Compatible RIP by ONYX. Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality. The Epson SureColor S60600 is also supported by most leading third-party RIPs and workflows. |
||||||||||||
| ONYX GamaPrint Pro RIP Requirements: | |||||||||||||
| Server Workstation: |
Windows 7, 8, Vista® or XP (32-bit or 64-bit) |
||||||||||||
| Client Workstation: | Macintosh® 10.5+, Windows 7, 8, Vista or XP (32-bit or 64-bit) | ||||||||||||
| Printer Interfaces |
Includes as standard one Hi-Speed USB 2.0 |
||||||||||||
| Printable Area: | |||||||||||||
| Maximum paper width | 64-inch | ||||||||||||
| Minimum paper width | 12-inch |
||||||||||||
| Left and right margins | 0.20" (0.40" total) | ||||||||||||
| Maximum printable width | 63.6-inches Maximum printable length limited by software |
||||||||||||
| Media Heating System | Independently controlled via control panel or front-end RIP | ||||||||||||
| Pre Heater | Off or 86° to 122° F (off or 30° to 50°C) | ||||||||||||
| Platen Heater | Off or 86° to 122° F (off or 30° to 50°C) | ||||||||||||
| Post Heater | Off or 86° to 131° F (off or 30° to 55°C) | ||||||||||||
| Epson Intelligent Ink CartridgeB | The printer is designed exclusively for use with EPSON cartridges for greater reliability. | ||||||||||||
| Cartridge fill volume | 700 ml each x 4 colors total | ||||||||||||
| Ink cartridge shelf life |
2 years from printed production |
||||||||||||
| Image Permanence Ratings | |||||||||||||
| Full Color |
Up to 3 Years Test results based upon Epson Testing Labs using the ISO 18930 print durability standard. |
||||||||||||
| Epson does not warrant durability | Please visit 3M and Avery web sites for laminated durability claims using their warranty programs. | ||||||||||||
| Environmental Characteristics: | |||||||||||||
|
Temperature Operating Storage |
50° to 95°F (10° to 35°C) |
||||||||||||
|
Relative Humidity Operating |
20 to 80% (40 to 60% recommended) |
||||||||||||
| Recommended storage | 5 to 85% (no condensation) | ||||||||||||
| Installation requirements |
Virtually any location with a typical air conditioning or other air ventilation system. No forced ventilation or air purification systems requiredC. |
||||||||||||
| Electrical Requirements | |||||||||||||
| Printer | Requires Two 110v Outlets | ||||||||||||
| Voltage | AC 100-120 V, AC 200-240 V | ||||||||||||
| Frequency | 50-60 Hz | ||||||||||||
| Current |
20A at AC 110-120 V or |
||||||||||||
| Optional Dryer | Requires One 110v Outlet | ||||||||||||
| Power consumption | |||||||||||||
| Printer Operating | Approx. 650W or Less | ||||||||||||
| Standby Heaters ON | Approx. 520W | ||||||||||||
| Standby Heaters OFF | Approx. 30W or less | ||||||||||||
| Sleep | Less than 3.5W | ||||||||||||
| Power Off | Less than 0.6W or less | ||||||||||||
| Optional Dryer | |||||||||||||
| Operating | Approx. 45W | ||||||||||||
| Sleep | Approx. 0.3W | ||||||||||||
| Power Off | Less than 0.6W |
