For a limited-time receive an additional 1-year warranty on a qualifying SureColor® S-Series and R-Series Printers!
Purchase a select qualifying printer and connect your printer to Epson Cloud Solution PORT to qualify for an additional year of limited warranty at no additional cost. The Additional Year Limited Warranty program extends the qualified R-Series or S-Series printer's 1-Year limited warranty coverage to 2 years from the date of purchase and covers all parts and labor costs for qualified repairs or replacements.
Register at Epson Cloud Solution PORT
Offer is valid through October 31, 2024
Price Includes $5,000 Instant Rebate. Offer is valid through November 30, 2024.

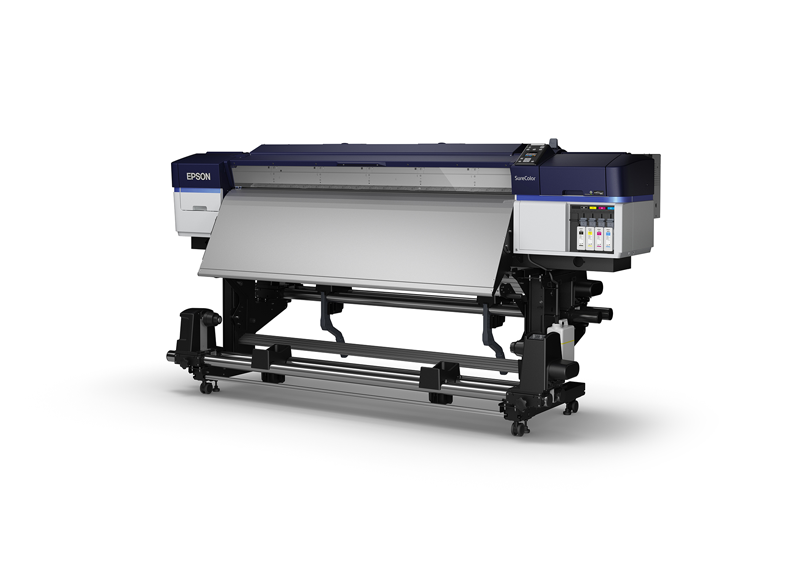

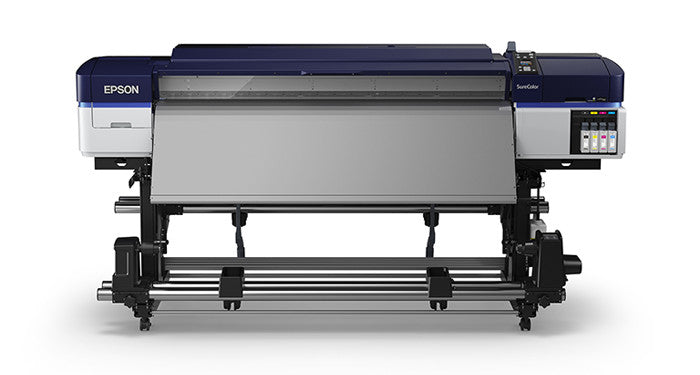

The 64-inch SureColor S40600 features newly-developed Epson UltraChrome® GS3 4-color solvent ink for outstanding print quality, durability, and media compatibility.
When combined with an all-new precision media feeding system and a high-performance PrecisionCore® TFP print head, the SureColor S40600 is capable of producing sellable quality banner at 215 ft2 per hour, while also producing adhesive vinyl output at up to 170 ft2 per hour – making the new SureColor S40600 the ideal entry-level sign printer for any size print shop.
New UltraChrome GS3 Solvent Inks: Formulated for extremely fast drying and delivers outstanding print quality, durability and superior media compatibility than previous SureColor S-Series printers. 4-cartridge (C,M,Y,K)
New Epson PrecisionCore TFP Print Head: Offers high performance and consistency along with variable size ink droplet technology and a robust head carriage allowing for more protection from potential head strikes, leading to increased production with less downtime. Includes the Epson Precision Dot™ screening technology to provide high-speed printing with minimal banding.
New Precision Media Feeding System: Robust motorized roll-to-roll media handling with Automatic Tension Control technology that is sensor based to provide extremely accurate media feed and take-up resulting in less media feed errors and skewing. Automated Maintenance Technology includes a newly developed fabric print head wiper system to allow more reliable continuous printing and less manual user maintenance.
Software: Includes a full copy of ONYX® GamaPrint Pro with free profile installation for the most popular signage media types
Fourth Generation Solvent Ink Chemistry from Epson
- Improved Outdoor Durability
- Superior Media Compatibility
- Full Room GreenGuard Gold Certified
- No special venitlation or air purification required
Newly Developed Red Ink Technology
- Unique Red solvent ink for significant color gamut improvements
- Reach up to 98.2% Pantone coverage with UltraChrome GS3 Red ink set
Superior Print Head Reliability
- Developed in partnership with the PrecisionCore TFP print head for better reliability
Print. Finish. Ship.
- Same day lamination - just 6 hours after printing
- Extremely fast drying and efficient inks
- Tested by Epson and Avery
Unique Epson Advantage
- Only available on Epson SureColor S-Series vs other solvent competitors
- Four times faster than the previous recommended standard of 24 hours
- Allows for same day delivery - providing more opportunities to increase revenue
Article: Epson S-Series Eco-Solvent vs. Latex Printers
View Sales Reference Guide PDF
Base Printing Technology
- Advanced PrecisionCore TFP Print HeadA
- 4-channel, drop-on-demand, ink jet head

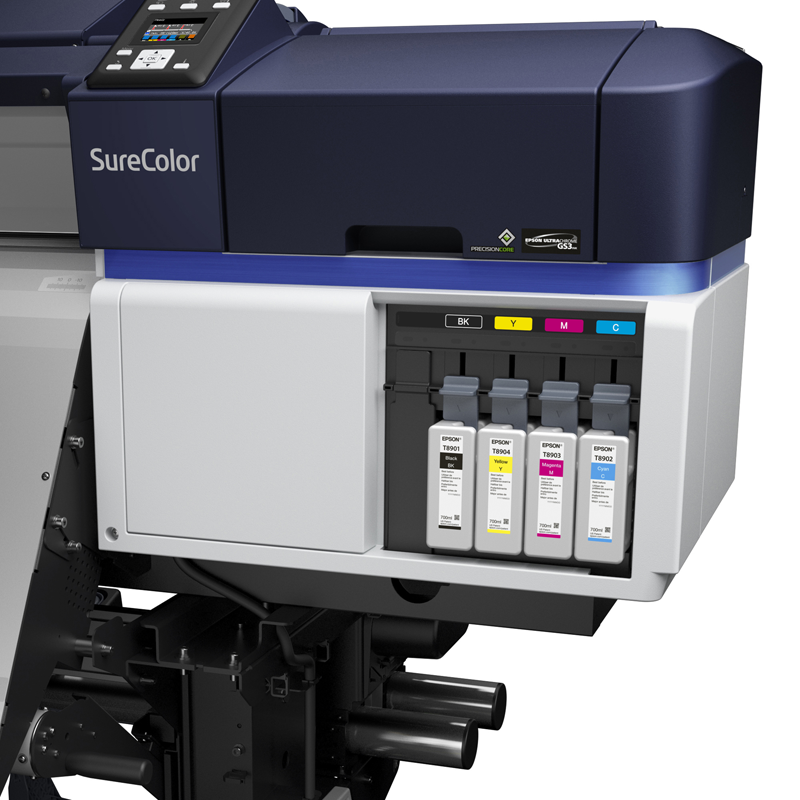

- 4-cartridge (C, M, Y, K)
- Epson UltraChrome GS3 ink
- Professional-level solvent-based ink technology
Printer Nozzle Configuration
Color and Monochrome 720 nozzles per Color
Smallest droplet size is 4.2 picoliters
Resolution
1440 x 1440 dpi; 1440 x 720 dpi;
720 x 720 dpi; 720 x 360 dpi

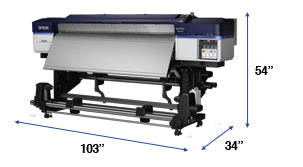

Dimensions
Printer (includes printer, stand, take-in & take-up)
103"(W) x 34"(D) x 53"(H)
Printer weight: 615 lbs
Print Engine Speeds
| Printer Speed | Banner | Vinyl |
|---|---|---|
| Draft: | 610 sq ft/hr | N/A |
| Production: | 215 sq ft/hr | 170 sq ft/hr |
| Quality: | 170 sq ft/hr | 140 sq ft/hr |
Media Handling
| Media input |
Single roll-to-roll, minimum 12" wide up to 64" wide |
|---|---|
| Cut-sheet size |
17" x 22" up to 64" wide |
| Media core compatibility | 2" or 3" cored media |
| Input roll media diameter | Up to 9.8" |
| Input roll media weight | Up to 95 lbs. |
| Media Weight/Thickness |
from 45 gsm up to 1.0 mm thick |
| Roll media take-up reel |
Fully automatic "wind in" or "wind out" with tension bar |
| Output roll media weight | Up to 95 lbs. |
Acoustic Noise Level
Approximately 59 dB(A) according to ISO 7779
Front-End RIP Workflow by ONYX
GamaPrint Pro PANTONE licensed PostScript Language Level 3 Compatible RIP by ONYX. Includes full workflow software with layout, nesting, tiling, custom spot color management, custom media support and RIP queue functionality.
The Epson SureColor S40600 is also supported by most leading third-party RIPs and workflows.
ONYX GamaPrint Pro RIP Requirements
Server Workstation:
Windows 7, 8, or 10 (64-bit only)
3.2 GHz Intel® i7 or better 8 GB memory
recommended
Client Workstation:
Macintosh® 10.5+, Windows 7, 8, or 10 (64-bit only)
Printer Interfaces
Includes as standard one Hi-Speed USB 2.0
(1.1 compatible) and one Gigabit Ethernet port
Printable Area
| Maximum paper width | 64-inch |
|---|---|
| Minimum paper width | 12-inch |
| Left and right margins | 0.20" (0.40" total) |
| Maximum printable width | 63.6-inches |
Maximum printable length limited by software
application, OS, media length, and RIP
Media Heating System
| Pre Heater | Off or 86° to 122° F (off or 30° to 50°C) |
|---|---|
| Platen Heater | Off or 86° to 122° F (off or 30° to 50°C) |
| Post Heater | Off or 86° to 131° F (off or 30° to 55°C) |
Independently controlled via control panel or front-end RIP
Image Permanence Ratings
| Full Color | Up to 3 Years |
|---|
Test results based upon Epson Testing Labs using the ISO 18930 print durability standard.
All print results are based upon un-laminated prints printed on adhesive backed vinyl.
Durability numbers above are estimates of maximum image permanence.
Your actual results may vary depending upon media type used, environmental display conditions and other factors.
Epson does not warrant durability.
Please visit 3M and Avery web sites for laminated durability claims using their warranty programs.
Environmental Characteristics
|
Temperature Operating Storage |
50° to 95°F (10° to 35°C) -4° to 104°F (-20° to 40°C) |
|---|---|
|
Relative Humidity Operating |
20 to 80% (40 to 60% recommended) |
| Recommended storage | 5 to 85% (no condensation) |
| Installation requirements |
Virtually any location with a typical air conditioning or other air ventilation system. No forced ventilation or air purification systems requiredC. |
Electrical Requirements
| Printer | Requires Two 110v Outlets |
|---|---|
| Voltage | AC 100-120 V, AC 200-240 V |
| Frequency | 50-60 Hz |
| Current |
20A at AC 110-120 V or 10A at AC 200-240 V |
| Voltage | AC 100-120 V, AC 200-240 V |
| Frequency | 50-60 Hz |
| Current |
1A at AC 110-120 V or 0.5A at AC 200-240 V |
|
Power consumption |
|
| Printer | |
| Operating | Approx. 650W or Less |
| Standby Heaters ON | Approx. 520W |
| Standby Heaters OFF | Approx. 30W or less |
| Sleep | Less than 3.5W |
| Power Off | Less than 0.6W or less |
| Operating | Approx. 45W |
| Sleep | Approx. 0.3W |
| Power Off | Less than 0.6W |
