This item has been discontinued by manufacturer. Please see Epson SureColor F9570H 64" Sublimation Printer.

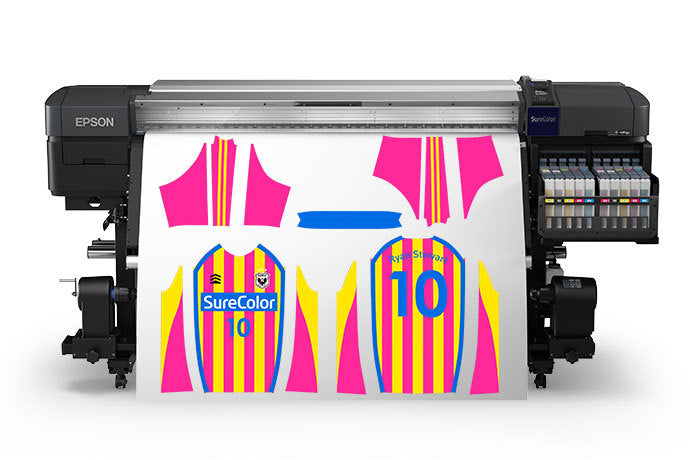

Produce vibrant apparel, soft signage, décor and more with the high-performance SureColor F9470H 64-inch printer.
Purposefully designed for high-visibility dye-sublimation printing, the F9470H features the full spectrum of brilliant UltraChrome® DS6 ink, including Fluorescent Pink and Fluorescent Yellow, for exceptional color saturation and brightness. The perfect choice for high-volume, industrial environments, the F9470H includes dual PrecisionCore® TFP® printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour. A truly turnkey solution, the F9470H arrives with Epson Edge® workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks for seamless 24/7 production.
Epson SureColor F9470H Features
- Breakthrough productivity — dual printheads deliver industrial-level, roll-to-roll performance at speeds up to 1,169 square feet/hour1 Brilliant
- image quality — UltraChrome DS6 Ink2 Technology with fluorescent Yellow and Pink ink produces exceptional color saturation and high contrast
- True roll-to-roll support — high-accuracy take-up reel supports efficient calendar heat press transfer
- Turnkey solution, fully supported by Epson — includes Epson Edge Print and ICC profiles, for use with optimized Epson DS Transfer Papers
- Predictable, reliable performance — advanced auto paper-tension control and the fabric head wiper enable simple, continuous production
- More ink means less downtime — high-capacity ink tanks hold up to 3 L per color, for longer print runs without user intervention
- Epson Edge Dashboard — remotely run cleanings, check ink levels, update firmware and download new media profiles from your computer
- Exclusive Epson Rewards program available — accumulate points with every consumable purchase for discounts on extended service coverage; visit www.epson.com/SureColorRewards for more information
- Affordable, scalable solution — offers an excellent performance-to-price ratio; easily add printers to meet your business needs
- Printer is designed for use with Epson ink packs only, not third-party ink packs or ink*.
Epson PrecisionCore TFP Print Heads
Commercial Grade Reliability
- The PrecisionCore print chips have been co-developed with Epson UltraChrome DS ink technology for extreme reliability
- Capable of high-production, with little downtime for maintenance
Fast Print Speeds
- True 1,440 nozzles per inch dedicated to each CMYK channel and 720 nozzles for each Fluorescent Yellow and Pink channel
- One of the fastest dye-sublimation transfer printers in its class
Extreme Print Quality
- Print resolutions up to 1,440 x 720 dpi for amazing image quality
- Precision dot control for outstanding clarity and sharpness for garment imaging
Eco Features
- RoHS compliant
- Recyclable product
- Epson America, Inc. is a SmartWay™ Transport Partner
- Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies2
Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment
Finance Options
Print:
Printing Technology:
Dual advanced PrecisionCore® TFP® 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology
Minimum Ink Droplet Size:
Variable Droplet Technology
Maximum Print Resolution:
1440 x 720 dpi
Print Speed:
Speed: up to 1,169 sq ft/hr1
Sports apparel: up to 568 sq ft/hr1
Fashion/signage: up to 1,004 sq ft/hr1
Ink:
Ink Type:
UltraChrome DS6 ink technology; 5-color
Ink Configuration:
C, M, Y, HDK, Fy, Fp
Replacement Ink:
UltraChrome DS Ink
High Density Black Ink Packs (T46C820)
Cyan Ink Packs (T46C220)
Magenta Ink Packs (T46C320)
Yellow Ink Packs (T46C420)
Fluorescent Pink Ink Packs (T46C520)
Fluorescent Yellow Ink Packs (T46C620)
General:
Operating Systems:
Windows® 10 and 8.1
System Requirements:
Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection
Temperature:
Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C)
Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C)
Humidity:
Operating: 20 – 80% (no condensation)
Operating (recommended): 40 – 60% (no condensation)
Sound Level:
Less than 59 dB(A) according to ISO 7779
Dimensions:
103" x 37" x 53" (2,620 mm x 934 mm x 1,332 mm) (W x D x H)
Weight:
639 lb (290 kg)
Eco Features:
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay® Transport Partner
Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies.
Country of Origin:
China
Warranty:
Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage.
Ink Supply System:
Ink Supply Fill Volume:
3,000 mL each x CMYHDK2
2,000 mL each x FyFp2
In-box Ink Fill Volume:
2,000 mL each x CMYHDK2
1,000 mL each x FyFp2
Ink Shelf Life:
2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*.
Printable Area and Accuracy:
Maximum Paper Width:
64"
Minimum Paper Width:
11.8"
Maximum Printable Width:
Up to 63.6"
Sheet Media Handling:
Left/Right Margins:
0.20" (0.40" total)
Roll Media Handling:
Single Roll-to-Roll / Top-loading Roll:
64" wide
Media Core:
2" or 3" core diameter
Maximum Roll Diameter:
Up to 9.8"
Maximum Roll Weight:
Up to 100 lb
Media Thickness:
From 45 gsm to 1 mm thick
Take-up Reel:
Fully automatic “wind in” or “wind out” with tension control
Printer Details:
Printer Language:
Epson ESC/P® raster
Interfaces:
Hi-Speed USB 2.0 (1 port)
1000Base-T Ethernet (1 port)
Power:
Rated Voltage:
AC 100 – 120 V; 200 – 240 V
Rated Frequency:
50 / 60Hz
Power Consumption:
Printing: approx. 570 W or less
Standby Heaters On: 340 W
Power Off: approx 1.0 W
Sleep Mode: approx 17 W
Power Requirements:
Requires two outlets
Rated Current:
10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V
- SureColor F9470H Dye-sublimation Inkjet Printer
- UltraChrome DS Ink - 2,000 mL each color x 4 colors, and 1,000mL of fluorescent Yellow and fluorescent Pink
- Epson Edge Print Software
- Power Cords
- Product Warranty
