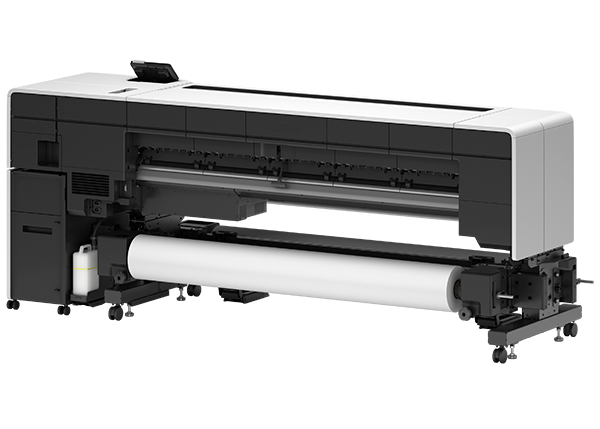

Epson SureColor F9570H 64" Dye-Sublimation Printer

Price includes $4,000 instant rebate. Offer is valid through June 30, 2026.

Now shipping in limited quantities, please call for current availability.

Business-boosting performance from Epson, the #1 dye-sublimation printer brand

The Epson SureColor F9570H 64" Sublimation Printer is a cutting-edge dye-sublimation solution designed for businesses that require top-tier print quality, speed, and versatility. This advanced large-format printer is ideal for producing high-impact apparel, textiles, soft signage, and promotional items. The F9570H introduces the option for fluorescent ink, allowing for the creation of bold, eye-catching designs that stand out in vibrant, neon colors.

Equipped with Epson’s PrecisionCore® TFP® dual printhead technology and the UltraChrome® DS6 ink set, which includes CMYK plus fluorescent yellow and fluorescent pink, the SureColor F9570H delivers exceptional color accuracy and a wider color gamut. The 64-inch print width offers the flexibility to produce large-scale, high-quality prints, making it an excellent choice for businesses looking to expand their product offerings.

The printer is engineered for maximum efficiency, featuring an integrated take-up reel for unattended printing and an advanced media handling system that supports various transfer papers and fabrics. With its user-friendly design, straightforward maintenance, and seamless workflow integration, the SureColor F9570H is a powerful tool for any business seeking to push the boundaries of dye-sublimation printing.

Epson SureColor F9470H Features

Print

Printing Technology
PrecisionCore Micro TFP drop-on-demand inkjet printhead with Nozzle Verification Technology

Ink Type
UltraChrome DS with Fluorescent Pink and Fluorescent Yellow, Orange and Violet, or Light Cyan and Light Magenta; 6-color

Ink Configuration Options
C, M, Y, HDK, plus Lc/Lm
C, M, Y, HDK, plus Or/Vi
C, M, Y, HDK, plus Fp/Fy

Nozzle Configuration
1,600 nozzles per color x 6 colors

Droplet Technology
Variable-Sized Droplet Technology

Maximum Resolution
600 x 1200 dpi

Ink

Ink Pack Fill Volume
Dual 1.6 L packs per color (hotswappable) x 6 colors
This printer is designed for use with genuine Epson packs only,
not third-party packs or ink*.

Roll Media Handling

Single Roll-to-Roll
Up to 64" wide

Roll Media Core
2" or 3" diameter

Maximum Roll Diameter
Up to 9.8"

Maximum Roll Weight
Up to 100 lb

Media Thickness
From 0.04 mm to 1 mm thick

Take-Up
Reel Fully automatic “wind in” or “wind out” with tension control

Printable Area and Accuracy

Maximum Paper Width
64"

Minimum Paper Width
11.8"

Left/Right Margins
0.20" (0.40" total)

Maximum Printable Width
Up to 63.6"

Printer Interfaces

SuperSpeed USB 3.0 (1 port)
1000Base-T Ethernet (1 port)

Operating Systems Supported

Windows® 11, 10 and 8.1
Minimum PC Specifications: 3 GHz or higher quad-core CPU, 8GB RAM, 50GB SSD and high-speed Internet connection
For the latest drivers, visit www.epson.com/support

General

Temperature
Operating: 59˚ F to 95˚ F (15˚ C to 35˚ C)
Operating (Recommended): 59˚ F to 77˚ F (15˚ C to 25˚ C)

Relative Humidity
Operating: 20% – 80% (no condensation)
Operating (Recommended): 40% – 60% (no condensation)

Power Consumption
Printing: 1,040 W
Idle: 360 W
Sleep: 3.2 W

Country of Origin
China

Weight and Dimensions (W x D x H)
Dimensions: 103" x 37" x 40" (2,620 mm x 929 mm x 1,020 mm)
Weight: 721 lb (327 kg)

Electrical Requirements
Printer: Requires two outlets
Voltage: AC 100 V – 120 V / 200 V – 240 V
Frequency: 50 Hz/60 Hz
Current: 3.2 A – 6.8 A / 10 A – 12 A

• SureColor F9570H Printer
• Maintenance Kit
• Media Lifter
• Wiper Roll
• Dryer Unit
• Ink Supply Unit
• Epson Edge Print Pro Software
• Power Cord (x 2)
• User Guide
• (Ink packs sold separately; required for printer setup.)
