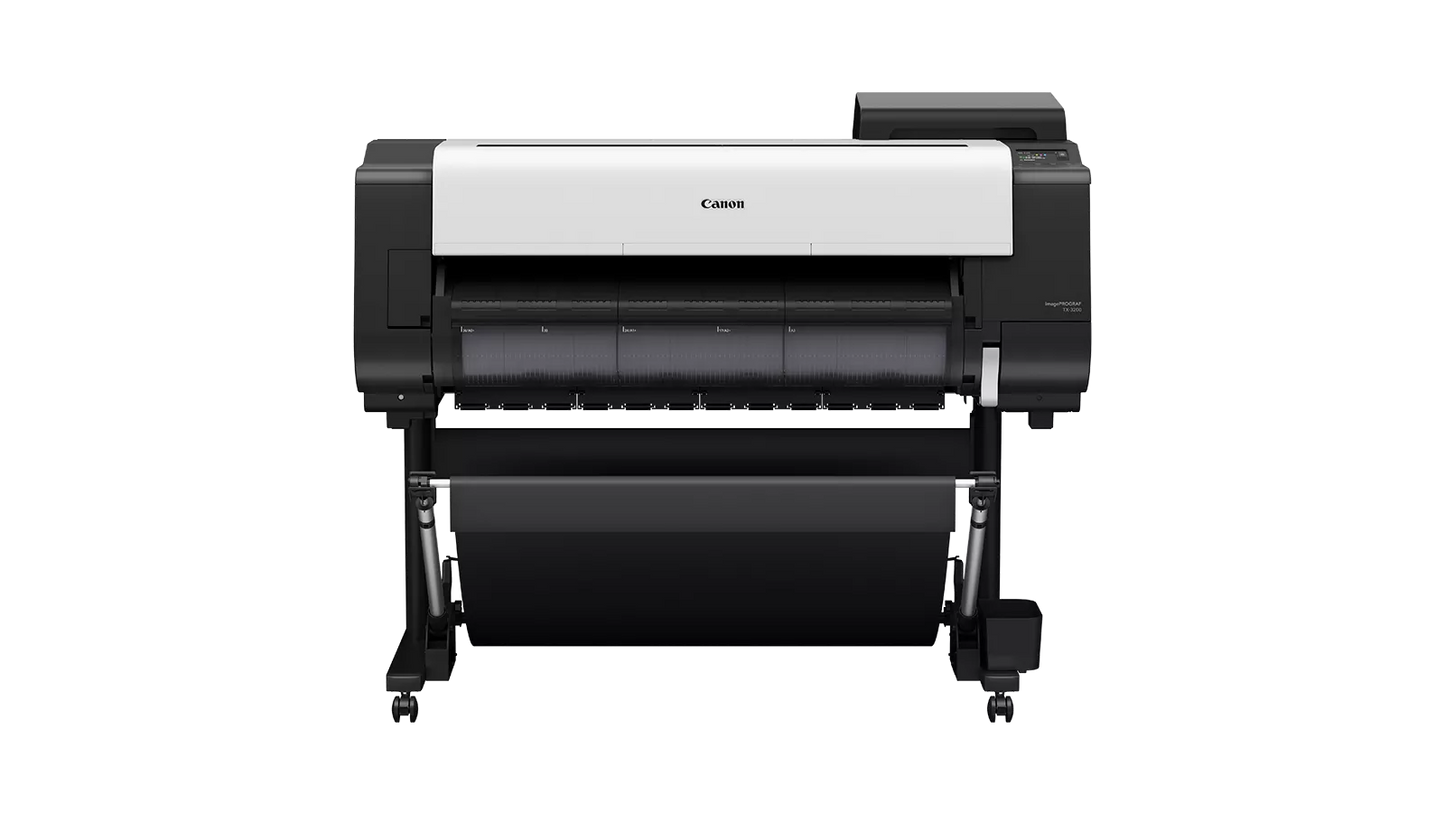

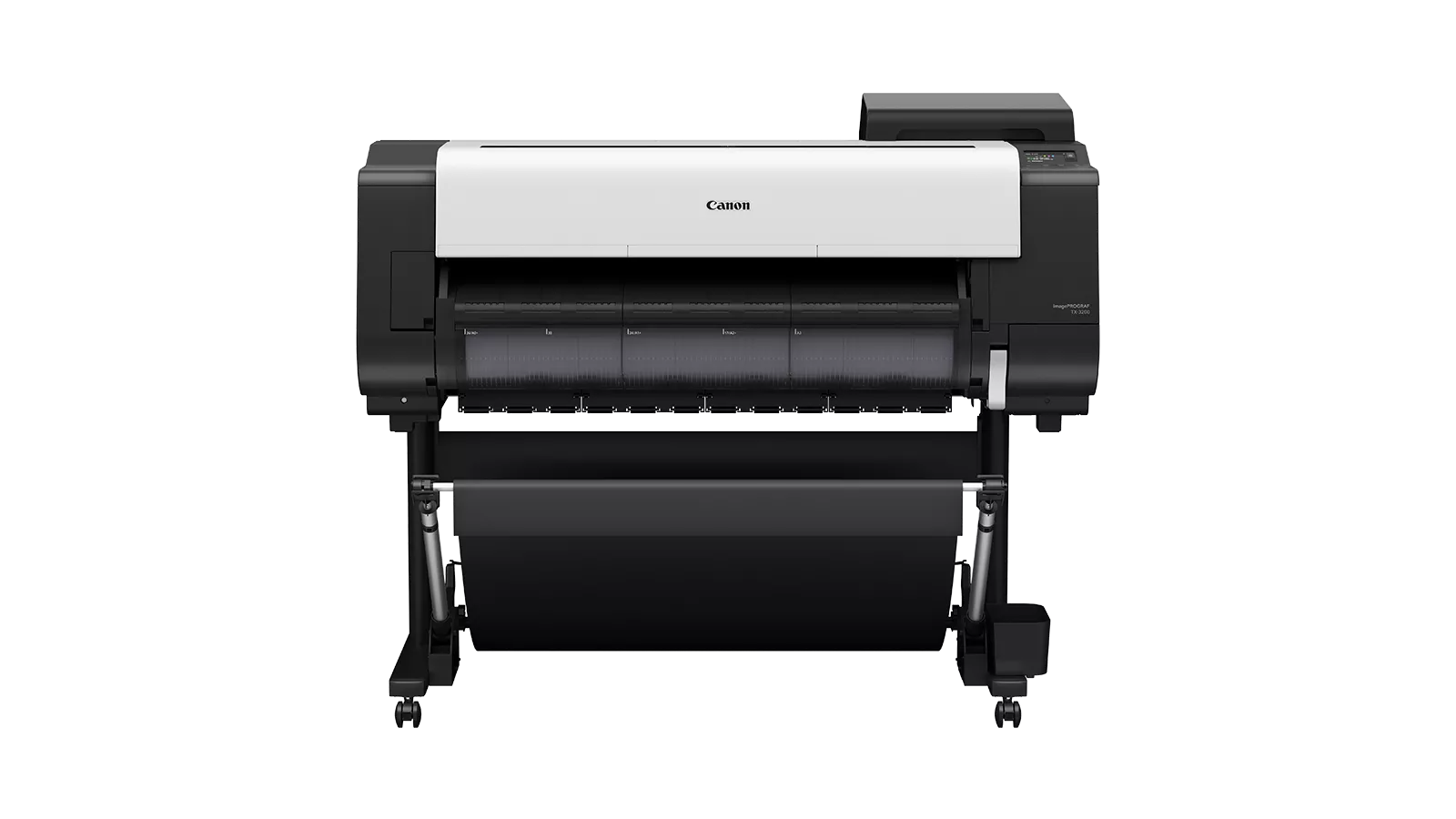

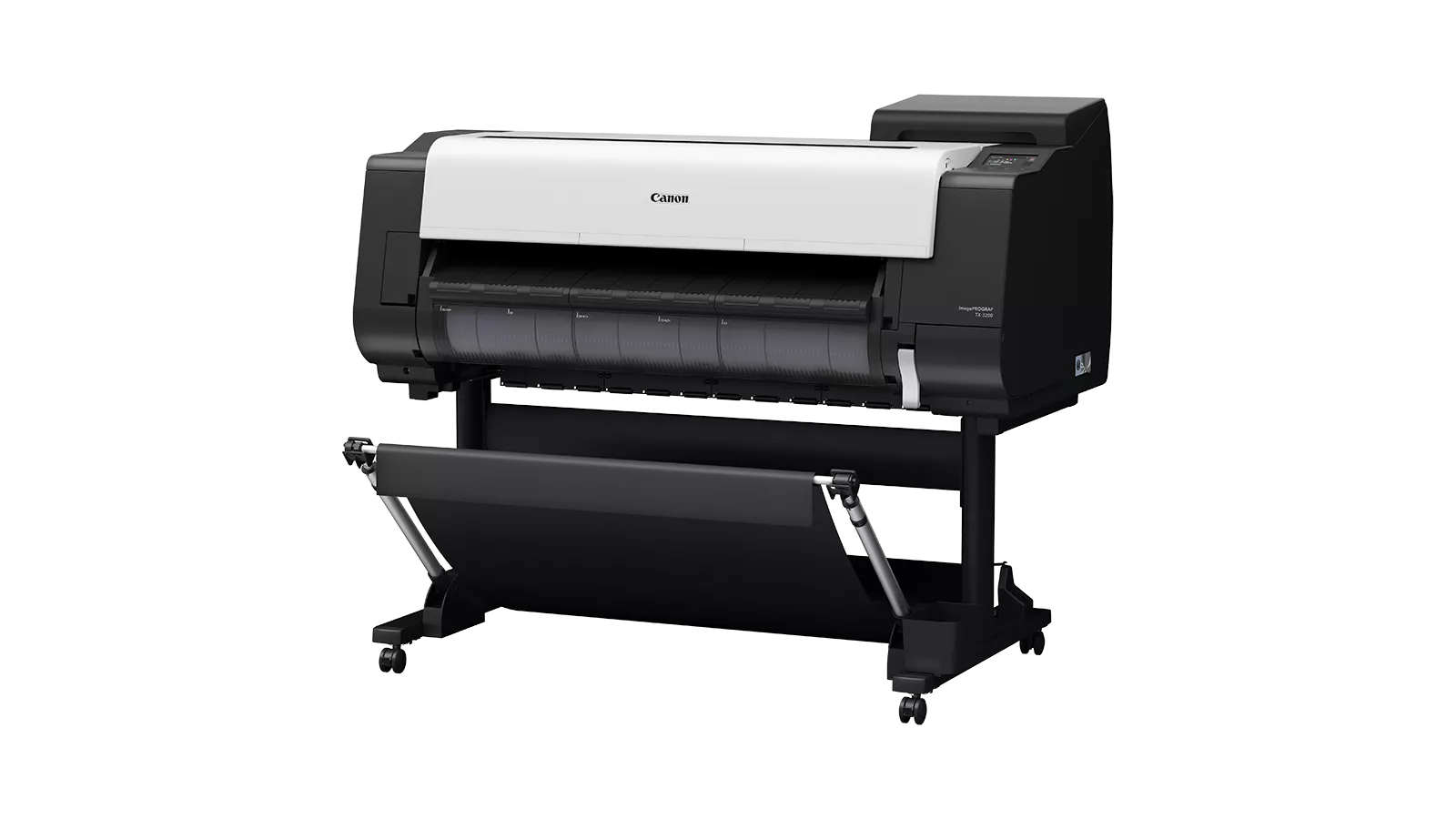

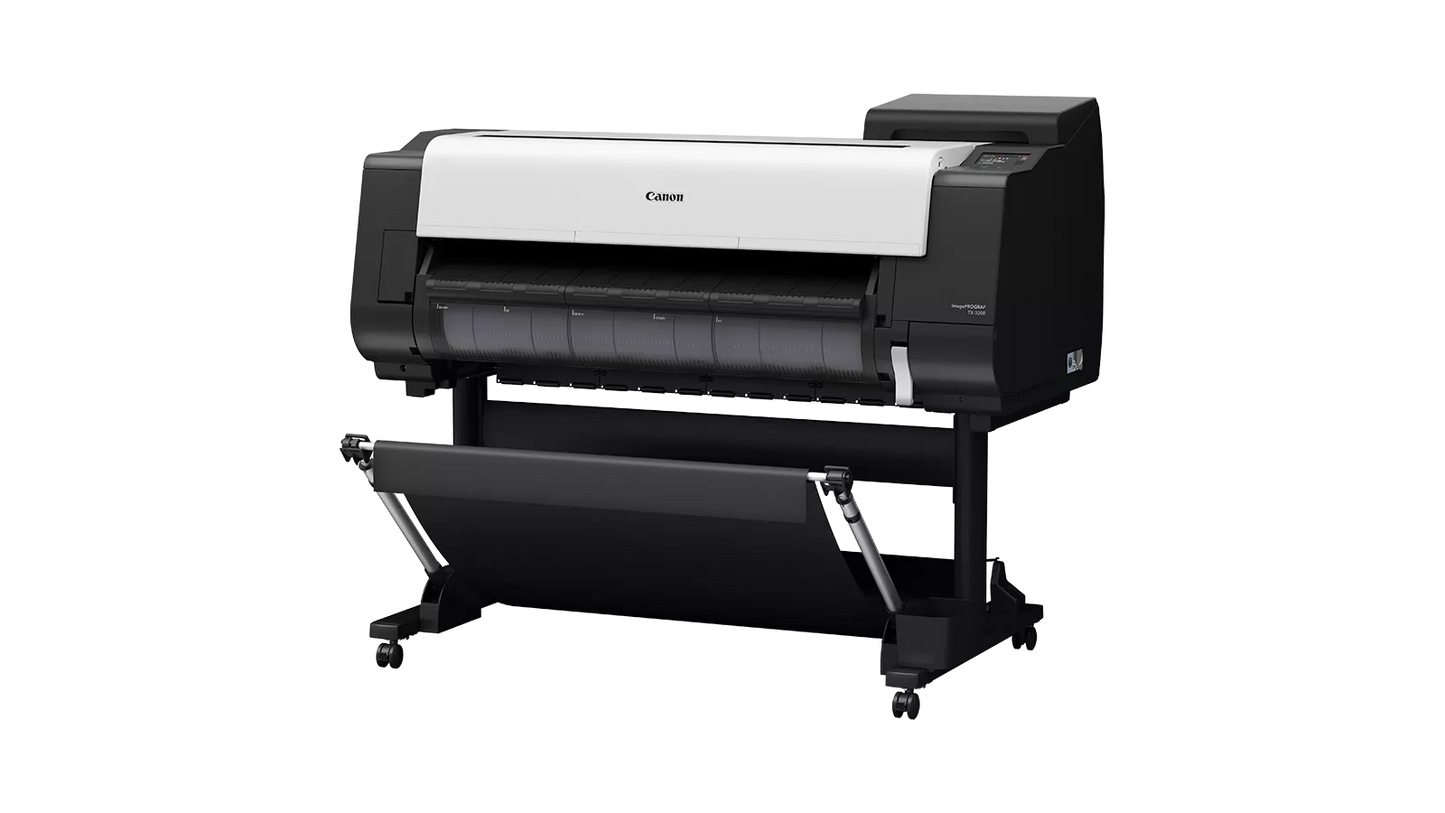

Canon imagePROGRAF TX-3200 36” Large Format Printer w/ Stand & Catch Basket
The Canon imagePROGRAF TX-3200 is a high-performance 36-inch large-format printer designed to meet the demands of professionals in architecture, engineering, construction, and graphic design. Combining speed, precision, and reliability, this printer delivers exceptional results for CAD drawings, GIS maps, posters, and more.
Key Features:
- Superior Print Quality: Equipped with Canon’s LUCIA TD pigment ink system, the TX-3200 ensures sharp lines, vibrant colors, and excellent durability, even on uncoated media.
- High Productivity: Experience fast print speeds and continuous operation with the optional dual roll system, perfect for high-volume workflows.
- User-Friendly Operation: The 4.3-inch color touchscreen makes navigation simple, while intuitive controls streamline printing tasks.
- Compact and Practical Design: The included stand and catch basket keep your prints organized and ready for use, all within a sleek and space-saving design.
- Flexible Connectivity: With built-in Wi-Fi, Ethernet, and USB compatibility, the TX-3200 supports seamless integration into your work environment and cloud-based workflows.
Why Choose the Canon imagePROGRAF TX-3200?
This printer combines innovative technology with robust functionality to handle demanding projects with ease. Whether you’re printing detailed technical plans or large-scale visuals, the TX-3200 ensures accuracy, efficiency, and stunning output every time.
Upgrade your workflow with the Canon imagePROGRAF TX-3200, a trusted solution for large-format printing professionals.
Printer Type
5-Color 36-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy
±0.1% or Less
Minimum Line Weight
0.02 mm
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with Printer:
M: PFI-111(160ml)
BK/C/Y: PFI-110(160ml)
MBK: PFI-310(330ml)
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Ink Supply Method
Tubing System with Sub Tanks for Continuous Ink Supply
Printer Controller
L-COA PRO
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Droplet Size
5 picoliter
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet:
6"- 36" (152 mm - 917 mm)
Roll Feed:
6" - 36" (152 mm - 917 mm)
Printable Margins
Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless
Maximum Print Length (Single Page)
Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m)
Borderless Printing Widths (Roll Media Only)
Custom roll width 6” - 36” with Micro Margin Technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 - 0.8 mm
Media Core Sizes
2” with 3” Core Adapters Included
Maximum Roll Outer Diameter
6.7" (170 mm)
Media Output Options
TX Stacker or Multipositional Catch Basket
Media Method
Roll Feed:
One Roll, Front-loading, Front Output
Front Loading Manual Feed:
One Roll, Front Output
Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), MacOS v10.15.7- MacOS 14
Print Languages
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Interface
USB B Port
Type:
Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)
USB A Port:
Direct USB Thumb Drive Printing
Gigabit Ethernet
Type:
Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Acoustic Noise
Operation:
51 dB (A) or Less
Standby:
35 dB (A) or Less
Acoustic Power:
Approx 6.9Bels
Power Supply
AC 100 - 240 V (50 - 60 Hz)
Power Consumption
Maximum: Approx. 115 W
Standby: Approx. 2.0 W
Power Off: Approx. 0.3 W
Certifications
- Electrical Safety Regulations
- C TUVus (U.S.A.), C TUVus (Canada)
- Electromagnetic Interface Regulations
- FCC Part 15B (U.S.A.), IC (Canada)
- Radio Regulations
- FCC Part 15C (U.S.A.), IC (Canada)
- Environmental Certifications
- ENERGY STAR® (Worldwide) & EPEAT Gold
Operational Environment
Temperature:
59° F - 86° F (15° C - 30° C)
Relative Humidity:
10 - 80% (No Condensation)
Printer Dimensions (W x D x H) and Weight
With Basket Open
54.7" x 38.7" x 46"; 231.5 lb (Approx)
With Basket Closed
54.7" x 30.2" x 46"; 231.5 lb (Approx)
With Stacker Opened
54.7" x 46.8" x 46"; 258 lb (Approx)
With Stacker Closed
54.7" x 44.2" x 46"; 258 lb (Approx)
Package Dimensions (W x D x H) and Weight
Printer (Main Unit with Stand and Pallet)
64" x 35.6" x 40.7"; 337 lb (Approx.)
Basket
56" x 21.9" x 8.4"; 20 lb (Approx.)
Stacker
49.2" x 35.7" x 11.5"; 60 lb (Approx.)
Roll Unit
60" x 22.1" x 18.1"; 68.3 lb (Approx.)
TX-3200 Printer
- Includes Main Unit
- Multi-Positional Catch Basket
- Stand, (1) Printhead
- Starter Ink Tank Set
- Maintenance Cartridge (Installed)
- 2” Roll Holder with 3” Adapters
- Installation Guide
- User Registration Card
- Printer Warranty Statement
- Printhead Warranty Statement
- Call Center Notice
- Media Compatibility Flyer
- PosterArtist Web Notice Flyer
- iWR Service Terms Leaflet
- Safety and Environmental Information
- USB port (High Speed)
- Power Cable & Screw
- Gigabit Ethernet (Built-In)
