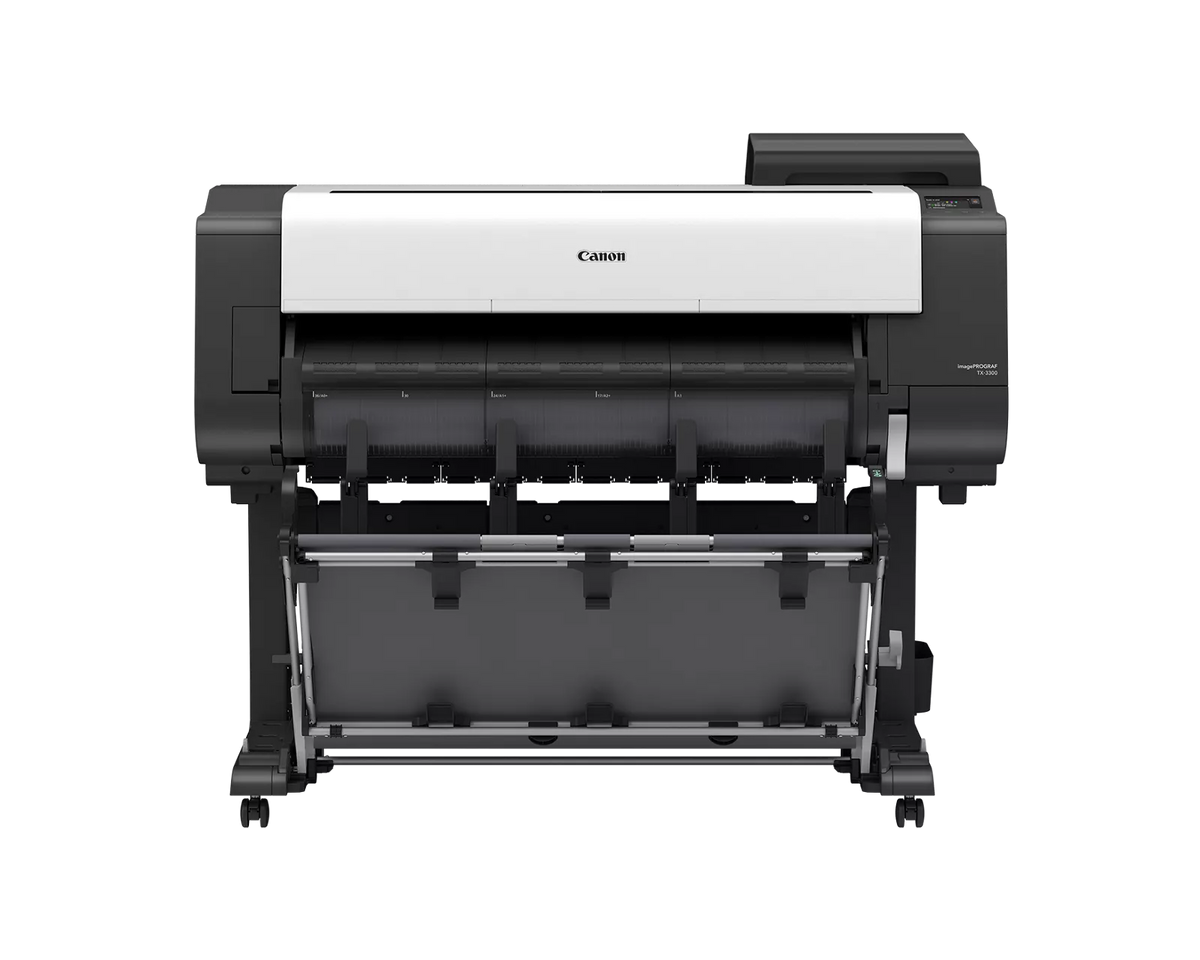

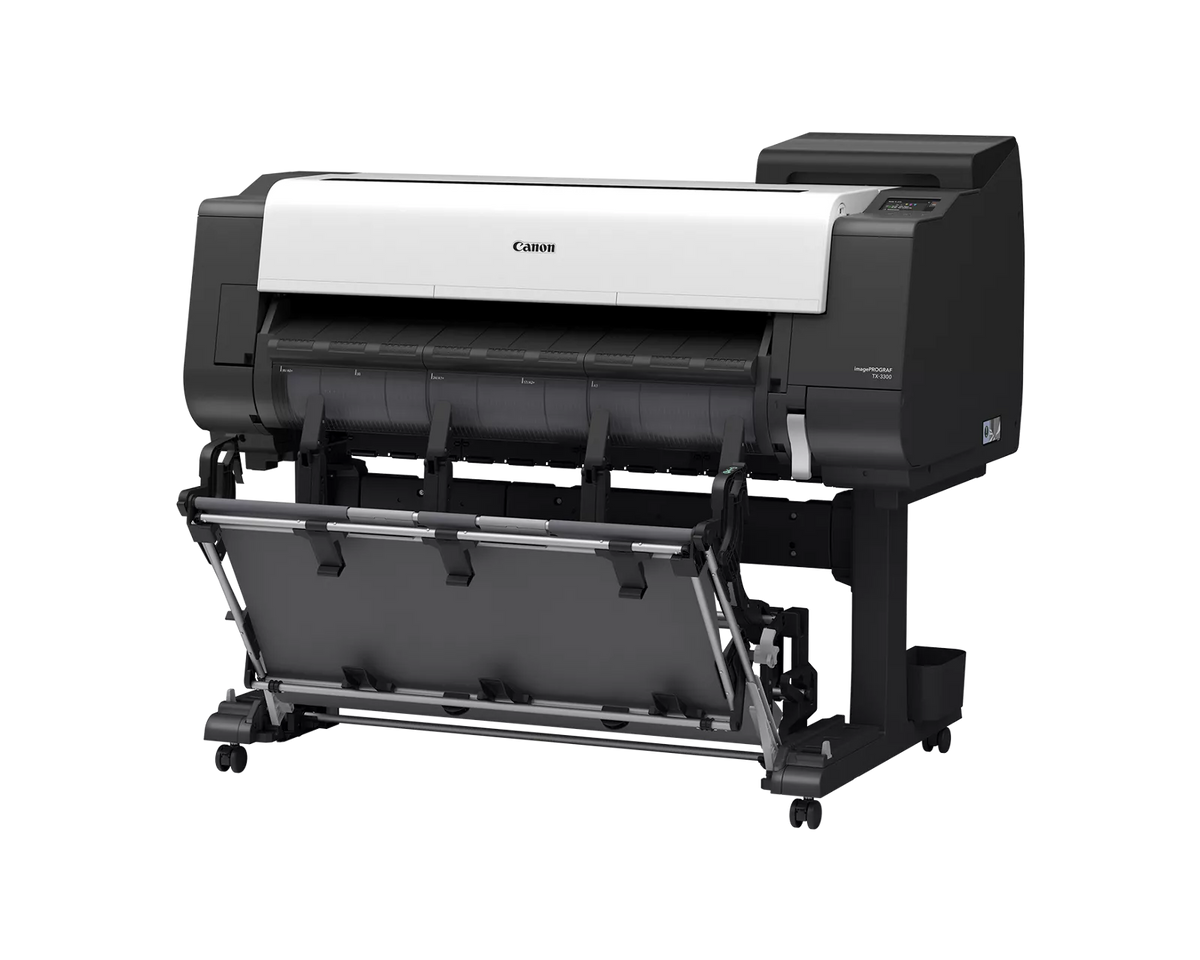

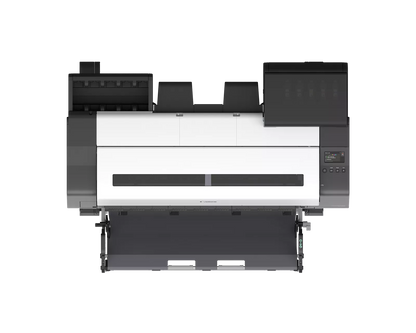

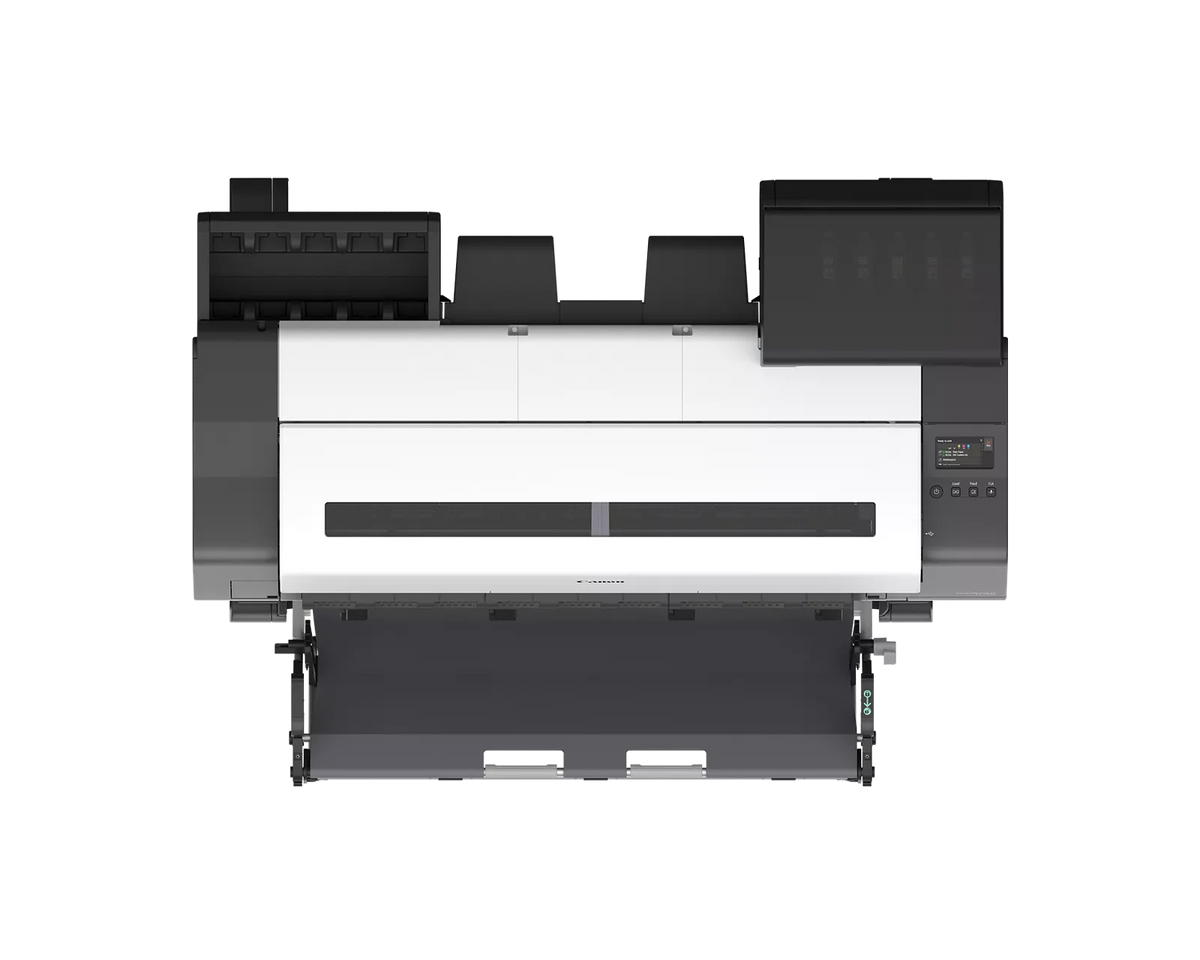

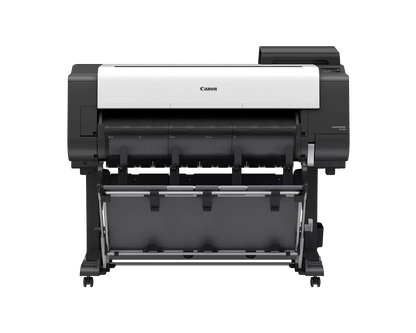

Canon imagePROGRAF TX-3300 36" Large Format Technical Documents Printer

Engineered for Productivity from the imagePROGRAF TX-1300 MFP Z36

This 36” technical documents large-format printer delivers enhanced productivity for compact spaces using 5-color LUCIA TD pigment ink and print speeds of up to 3.2 ppm. It features deep black and line clarity reproduction with the newly re-formulated matte black ink, built-in color calibration, and automatic paper detection. Designed for optimal comfort, the space-saving flat-top body includes a 4.3” tilt touchscreen for full-frontal operation. The 36” Z36 scanner allows for high volume scanning with intuitive editing capabilities from SmartWorks without sacrificing additional space. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TX Series has eliminated EPS packaging and increased the recycled material in the chassis. This printer comes standard with free powerful creative workflow software such as Direct Print Plus, Poster Artist, and Free Layout Plus.

Key Features

• 5-color LUCIA TD pigment ink with newly formulated matte black for sharp fine lines and small text
• Built-in color calibration and automatic media detection
• Semi-translucent covers, hot-swap ink tanks, and user-installable printheads and maintenance cartridges
• Optional multifunction roll unit for dual-roll or take-up reel printing
• Enhanced security to protect against unauthorized printing and network intrusion
• EPEAT Gold registered and ENERGY STAR certified; EPS-free packaging with increased recycled materials
• Free Direct Print Plus, PosterArtist and Free Layout Plus software

Printhead
PF-06

Technology
FINE (Photolithography Inkjet Nozzle Engineering)

Print Resolution (Max.)
2400 x 1200 dpi

Line Accuracy
±0.1% or Less

Minimum Line Weight
0.02 mm

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank
Shipped with Printer:
160ml C/Y/M/BK; 330ml MBK
Replacement:
MBK: PFI-113 (160ml)/PFI-313 (330ml)/PFI-713 (700ml)
M: PFI-111 (160ml)/PFI-311 (330ml)/PFI-711 (700ml)
BK/C/Y: PFI-110 (160ml)/PFI-310 (330ml)/PFI-710 (700ml)

Ink Supply Method
Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System
Non-firing Nozzle Detection and Compensation

Printer Controller
L-COA PRO

Printer RAM
128 GB (Virtual), 2 GB (Physical)

Hard Drive
256 GB (Encrypted)

Media Feed
Roll Feed: One Roll, Front-loading, Front Output

Media Width
Roll Feed: 6” – 36” (152 mm – 917 mm)
Cut Sheet: 6” – 36” (152 mm – 917 mm)

Printable Margins
Roll Feed: All Sides: 0.12” (3 mm) or 0” for Borderless

Maximum Print Length (Single Page)
Roll Feed: 59’ (18 m)
Cut Sheet: 63” (1.6 m)

Borderless Printing Widths (Roll Media Only)
Custom Roll Width 6” – 36” with Micro Margin Technology

Media Cutter
Automatic horizontal rotary cutter

Media Thickness
0.07 mm – 0.8 mm

Media Core Sizes
2” with 3” Core Adapters Included

Maximum Roll Outer Diameter
6.7” (170 mm)

Media Output Options
TX Stacker, Multipositional Flat Stacking Basket

Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, Driver, Media Configuration Tool, PosterArtist, Quick UtilityToolbox

Operating System
Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit),
Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), MacOS v10.15.7- MacOS 14

Print Language
SGRaster, HP-GL/2, HP RTL, PDF, JPEG, CALS G4

Interface
USB B Port: Hi-Speed USB (12 Mbit/sec, 480 Mbit/sec)
USB A Port: USB drive
Gigabit Ethernet: IEEE 802.3u/ab/x (100/1000Base-T,
Full Duplex), SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wi-Fi: IEEE 802.11n/g/b

Acoustic Noise
Operation Approx: 51 dB (A)
Standby Approx: 35 dB (A)
Acoustic Power: Approx 6.9 Bels

Power Supply
AC 100–240 V (50 – 60 Hz)

Power Consumption
Maximum: Approx. 83 W
Standby: Approx. 1.7 W
Power Off: Approx. 0.1 W

Certifications
ENERGY STAR® certified, EPEAT 1.0 Gold

Operational Environment
Temperature: 59°F – 86°F (15°C – 30°C)
Relative Humidity: 10% – 80% (No Condensation)

Printer Dimensions (W x D x H) and Weight (Approx.)
With Basket Open: 54.7” x 41.1” x 46”; 242.5 lbs.
With Basket Closed: 54.7” x 30.2” x 46”; 242.5 lbs.
With Stacker Opened: 54.7” x 46.8” x 46”; 253.5 lbs.
With Stacker Closed: 54.7” x 44.2” x 46”; 253.5. lbs.

Printer Package Dimensions (W x D x H) and Weight (Approx.)
Printer (Main Unit with Stand and Pallet):
62.9” x 35.5” x 44.2”; 352.7 lbs.
Basket: 52” x 34” x 241.4”; 59.5 lbs.
Stacker: 49.2” x 35.7” x 11.5”; 57.3 lbs.
Roll Unit: 60” x 22.1” x 18.1”; 66.1 lbs.

Options

• Multifunction Roll System (RU-34)
• 2"/3" Roll Holder Set (RH2-34)
• User-Replaceable Items
  • Ink Tank (PFI-110/111/113, PFI-310/311/313, PFI-710/711/713)
  • Printhead (PF-06)
  • Maintenance Cartridge (MC-30)
  • Cutter Blade (CT-07)

Z36 Scanner Specifications

Scan Speed
24-bit Color @ 200 dpi: 3” (Per Second)
8-bit Grayscale and Monochrome @ 200 dpi: 13” (Per Second)

Copy Speed
24-bit Color @ 200 dpi: 6” (Per Second)

Color Space
sRGB

Maximum Resolution
1200 dpi (Optical)

Scan Accuracy
+/- 0.1% : +/- 1 pixel

Maximum Scan Width/Maximum Media Width
36”/38”

Maximum Scan Length
164’ (PDF); 315” (JPEG); 598” (TIFF)

Maximum Media Thickness
0.003” – 0.04” (0.07 mm – 1.0 mm)

Digital Imaging Technology
Contact Image Sensor (CIS) Technology
(SingleSensor Assembly)
• 24-bit RGB
• 16-bit grayscale image capture
• Panchromatic monochrome and black-and-white
• Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability

Included Software
SmartWorks MFP Scan-to-Copy/File/Email with
Real-time Image Viewer; supports TIFF, JPEG, and PDF

Operating System
Windows 11 Enterprise LTSC (x64)

Scanner Interface Kit
3x USB 3.2 and 1x USB 2.0 rear and 1x USB 3.2 front, all type A

Operating Environments
10°C – 35°C, 10% – 90% RH, Non-condensing

External Power Supply
100–240 VAC Autosensing +/- 10%, 50–60 Hz

Scanner Power Consumption
• Controller Power: Approx. 35 W
• Sleep: Approx. 0.2 W
• Idle: Approx. 12.4 W
• Scanning Color/Grayscale at 200 dpi:
Approx. 22.7 W/23.3 W

Compliances
ENERGY STAR®, CB(62368-1), CE, FCC(EMC), Cul/UL, CCC,
NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL AR, WEEE,
REACH, RoHS, EU - Tier 3 of Lot 6

Scanner Package Dimensions (W x D x H) and Weight (With Stand, Pallet, and Scanner)
50” x 17” x 19.5”, 75 lb. (Approx.)

What’s In The Box (Printer)

• Includes Main Unit
• TX Stacker or Multi-Positional Flat Stacking Basket
• Stand
• (1) Printhead
• Starter Ink Tank Set
• (1) Maintenance Cartridge (Installed)
• 2” Roll Holder with 3” Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• iWR Service Terms Leaflet
• Safety and Environmental Information
• USB port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-In)

What’s In The Box (Z36 Scanner)

• Z36 Scanner with Power Cord
• USB 3.0 Cable (2 m), 15.6” System Controller
• 3:1 Trident Power Cord
• Power Supply
• Mount for Printer and System Controller
• (2) Paper Edge Guides
• (3) Document Return Guides
• Calibration target
• Assembly and Start Up Guide
• 3:1 Trident Power Cord
