Canon

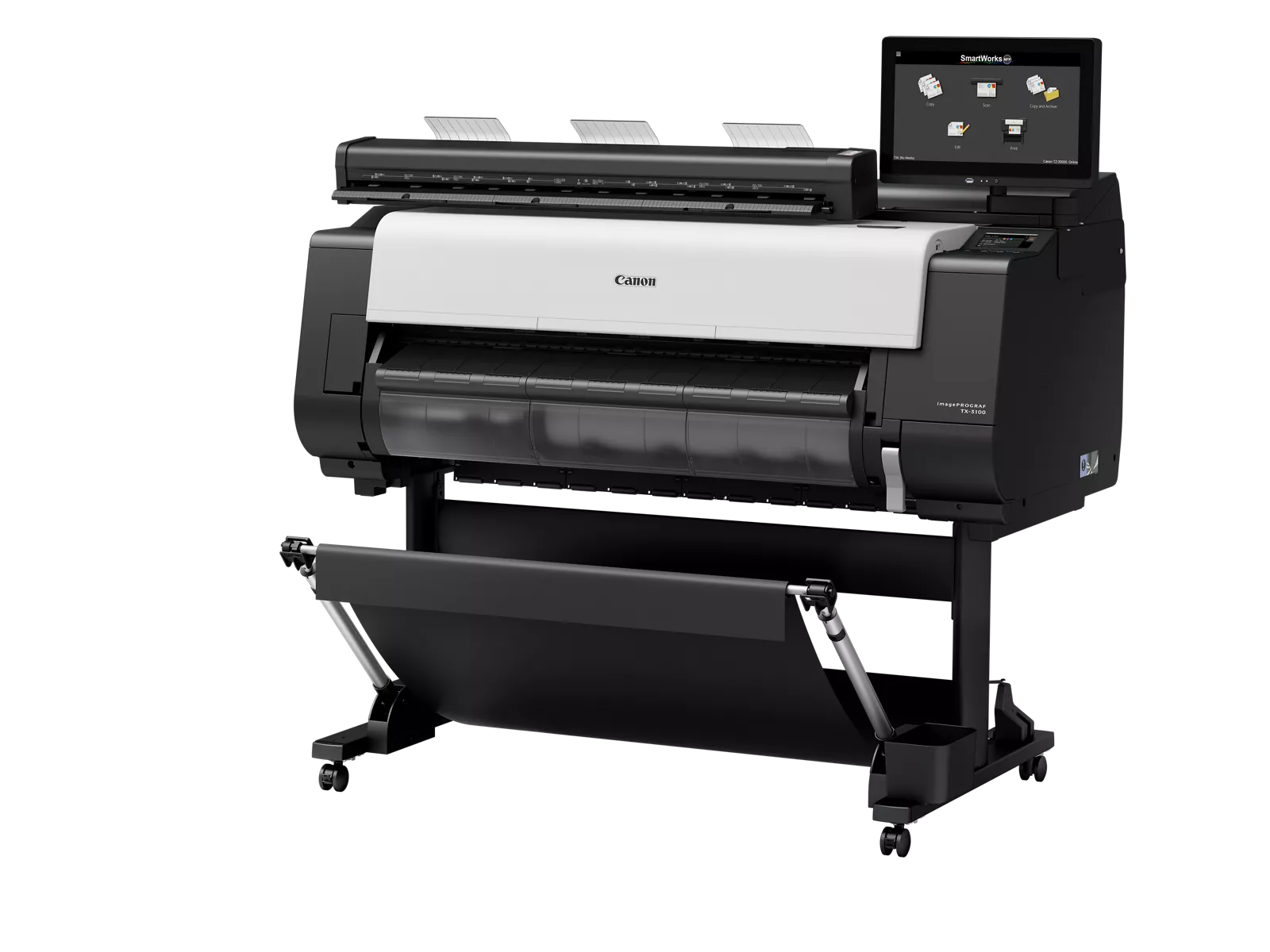

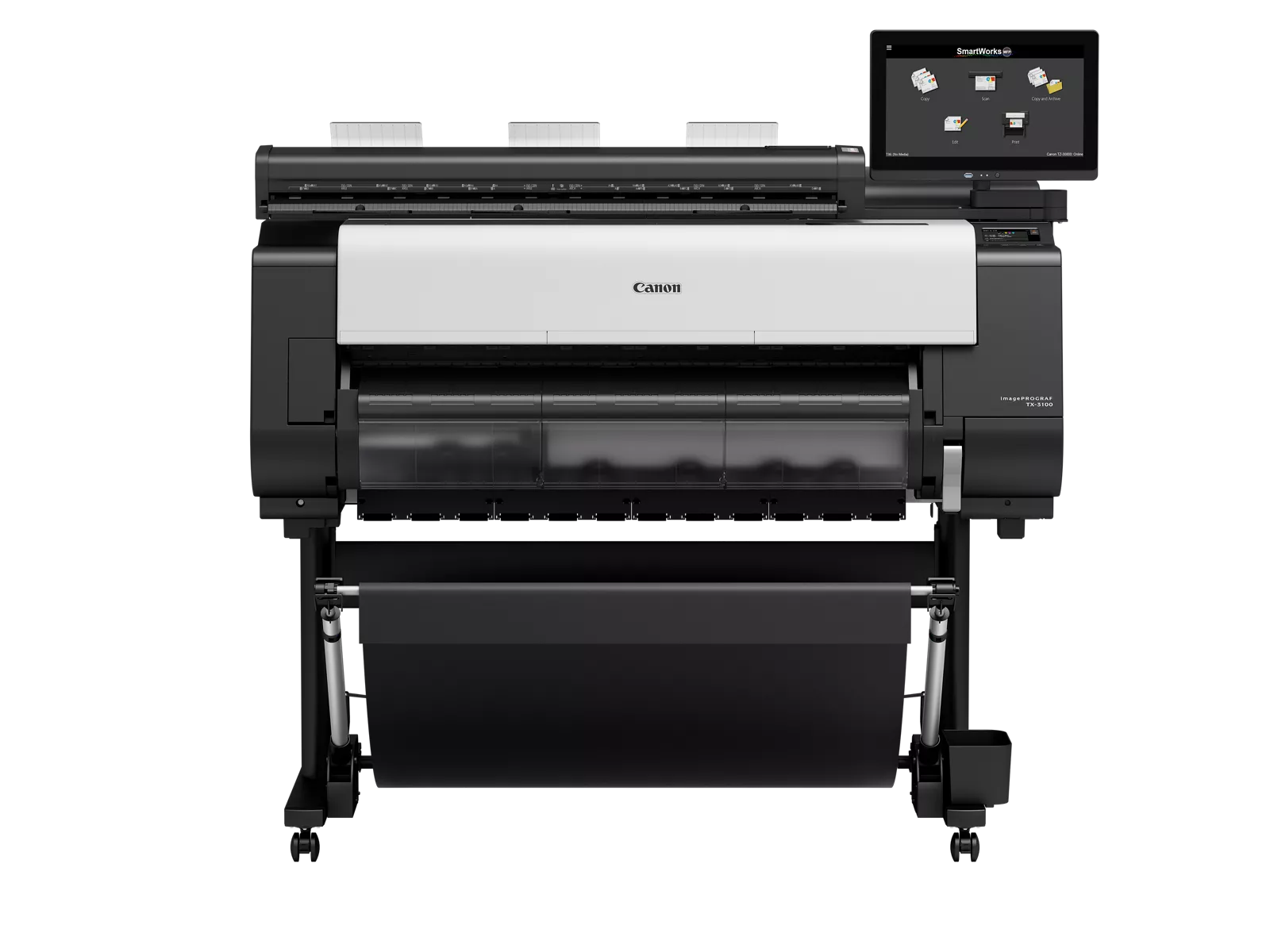

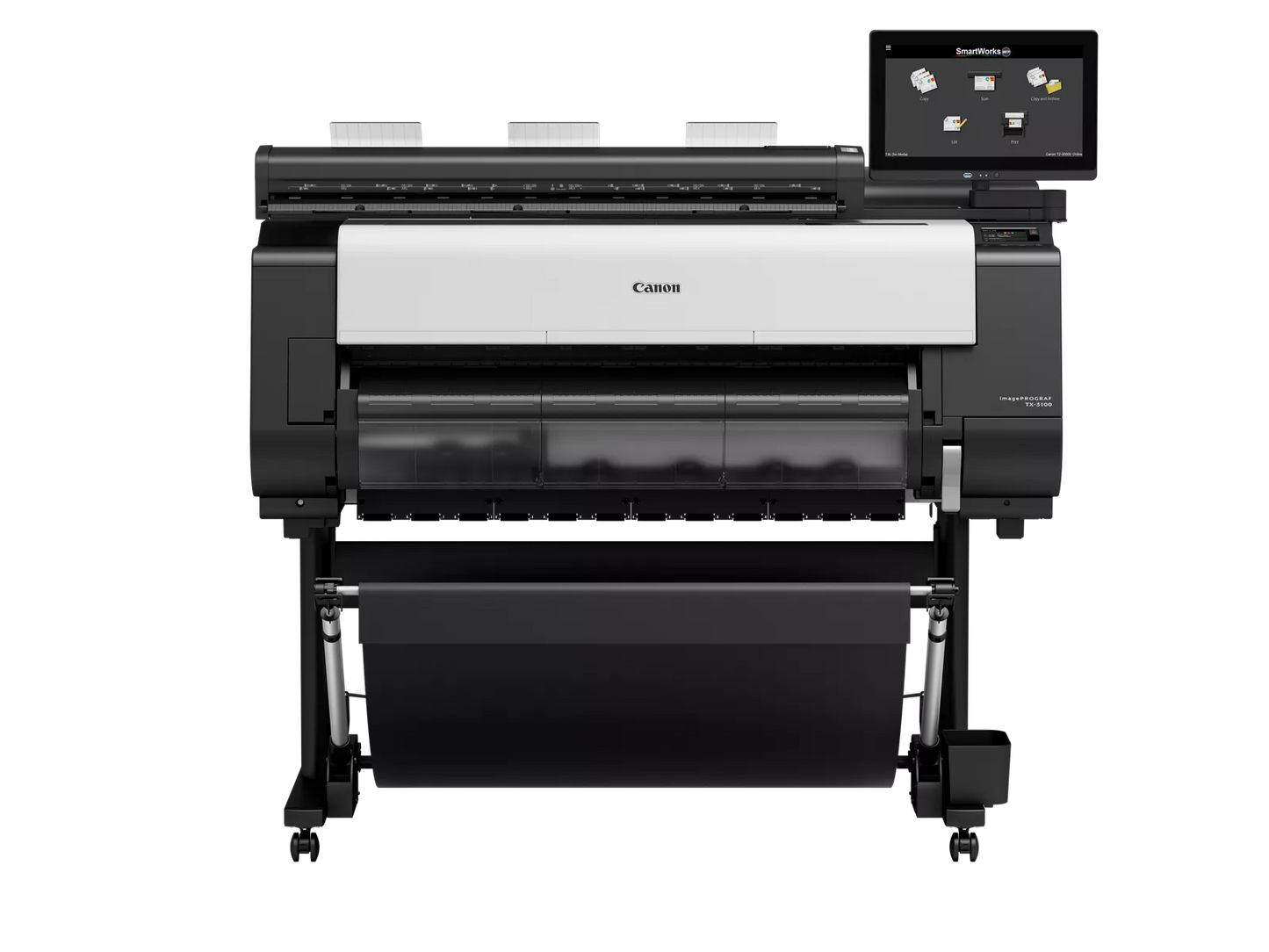

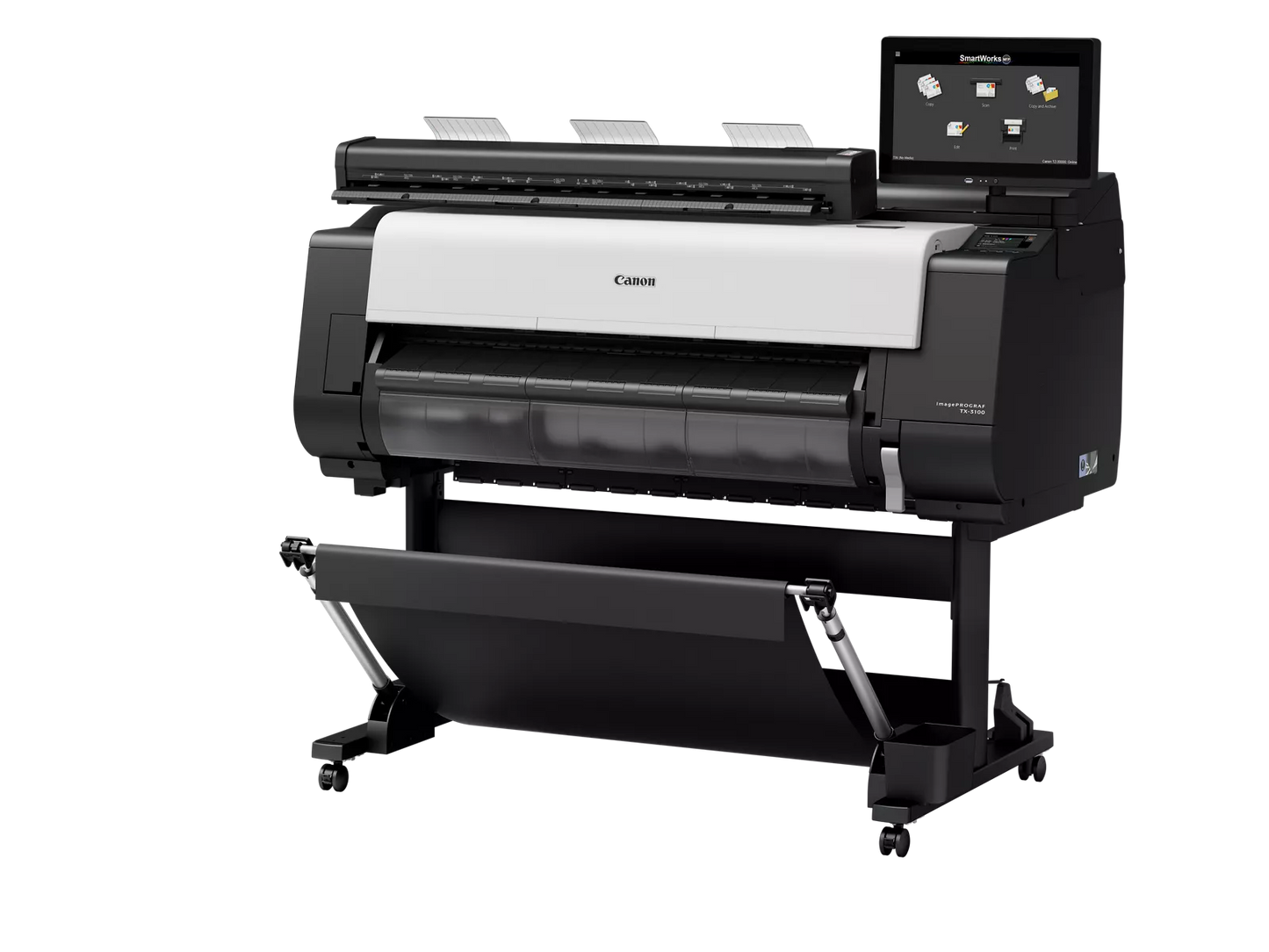

Canon imagePROGRAF TX-3100 36" MFP w/ Z36 Scanner, Stand & Catch Basket (5515C004AA)

Canon imagePROGRAF TX-3100 36" MFP w/ Z36 Scanner, Stand & Catch Basket (5515C004AA)

In Stock

SKU5515C004AA

Regular price $11,525.00
Regular price $11,412.00 Sale price $11,525.00
Sale Sold out
View full details
Description
Specifications
In The Box
Related products
Reviews
Customers Have Asked

Price includes $300 instant rebate. Offer is valid through October 31, 2024.


Canon imagePROGRAF TX-3100: Enhanced Speed and Efficiency for Large-Format Printing

The Canon imagePROGRAF TX-3100, a 36-inch large-format printer, has been upgraded to boost productivity and efficiency. With faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing, the TX-3100 is designed to meet the demands of high-volume printing environments.

  • 36" Large Format printer with Z36 scanner
  • Scan to copy/file/share solution
  • All-in-One 15.6" touchscreen computer
  • 5-Color LUCIA TD pigment based ink system
  • Print up to 190 D-sized prints per hour
  • Intelligent media handling
  • Optional Multifunction Roll System
  • TX stacker or multi-positional catch basket

This model includes a Z36 Scanner, Stand & Catch Basket

Key Upgrades:

  • Faster Printing Speeds: Achieve up to 3.2 pages per minute (ppm) for continuous printing on plain paper with detailed drawings, thanks to improved preprocessing technology between pages and a faster cutter speed.
  • Enhanced Automatic Roll Loading: Simplify media handling with an upgraded automatic roll loading function, ensuring smooth and efficient operation for various print jobs.
  • Free-Size Borderless Printing: Maximize your print media usage with free-size borderless printing, providing edge-to-edge prints for a seamless finish.

Comprehensive MFP Solution:

  • Production CAD Printer: Ideal for high-quality technical drawings and CAD applications, delivering precise line accuracy and vibrant color.
  • Z36 Scanner: Integrated Z36 scanner enables high-resolution scanning of maps, drawings, and renderings, streamlining your workflow.
  • Intuitive System Controller: User-friendly interface allows for easy operation and management of print jobs, enhancing overall productivity.

The Canon imagePROGRAF TX-3100 is a powerful addition to Canon's portfolio of large format printers, perfect for scanning and printing maps, technical drawings, and detailed renderings. Its advanced features and upgraded capabilities make it an essential tool for architects, engineers, and graphic designers.

Enhance your large-format printing with the Canon imagePROGRAF TX-3100 – where speed, efficiency, and precision meet.

Main Unit



Printer Type
5-Color 36-inch Printer



Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each



Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation



Print Resolution (Up to)
2400×1200dpi (Max)



OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
Macintosh® OS 10.12.6 and later



Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX



Ink Droplet Size
5 picoliter



Ink Capacity
160 ml, 330ml or 700ml per color



Ink Droplet Size
Pigment Ink



Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow



Buffer Ram
128 GB (Virtual)
2 GB (Physical)



Hard Drive
500 GB



Media Width
Cut Sheet - 6"- 36"
Roll Feed - 6" - 36"



Media Thickness
Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)



Maximum Roll Print Length
Roll Feed - 59' (18 meters)



Maximum Media Roll Diameter
6.7" (170mm)



Borderless Printing Width
All sizes



Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output Front Loading
Manual Feed: One Roll, Front Output



Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG



Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less



Physical Dimensions
46 x 55 x 47 (Main unit and TX Stacker; roll holder included, no inks, no print heads)
46" x 55" x 39" (Main unit and TX Catch Basket Opened)



Weight
approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 231 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)



Power Source
AC-100-240V (50-60Hz)



Power Consumption
Maximum: 115W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)



Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation) User-replaceable itemsPrint Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-110/PFI-310/PFI-710)



Software Included
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select


Scanner



Scanner Type
Contact Image Sensor (CIS) technology


Scan Accuracy
+/- 0.1%


Speed
13 ips monochrome, 6 ips color


Optical Resolutions
1200dpi (Adjustable from 100 dpi to 2,400 dpi)


Max. Resolutions
9600dpi interpolated


Max. Document Size
Width: 38 inch document width (36 inch image width)


Length
315" (JPG or PDF)
598" (TIFF)


Thickness
0.04in (1mm)


Standard Interface
USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)


  • imagePROGRAF TX-3100
  • TX Stacker or Catch Basket
  • Printer Stand
  • 2"/3" Core Media Spool (Adaptors Included)
  • US AC Power Cable
  • Tools and Screws
  • Print Head PF-06
  • Maintenance Cartridge (Installed)
  • 5 Ink Tanks (330 ml: MBK, 160 ml: C/M/Y/BK)
  • Ethernet Card (built-in)
  • USB 2.0 High-speed Interface
  • USB Connection Sheet
  • iWR Service Terms Leaflet
  • User Manual
  • Quick Setup Guide
  • User Software CD for Windows (Printer Driver Utilities)
  • PosterArtist Lite CD
  • User Registration Card
  • Warranty Statement

Z36 Scanner Box

  • Z36 Scanner with power cord
  • USB 3.0 Cable
  • 15.6" System Controller
  • 3:1 Trident Power Cord
  • Power Supply
  • Mount for system controller
  • (2) Paper Edge Guides
  • (3) Document Return Guides
  • Calibration Target
  • Assembly and Start-up Guide
