Price includes $300 instant rebate. Offer is valid through December 31, 2024.

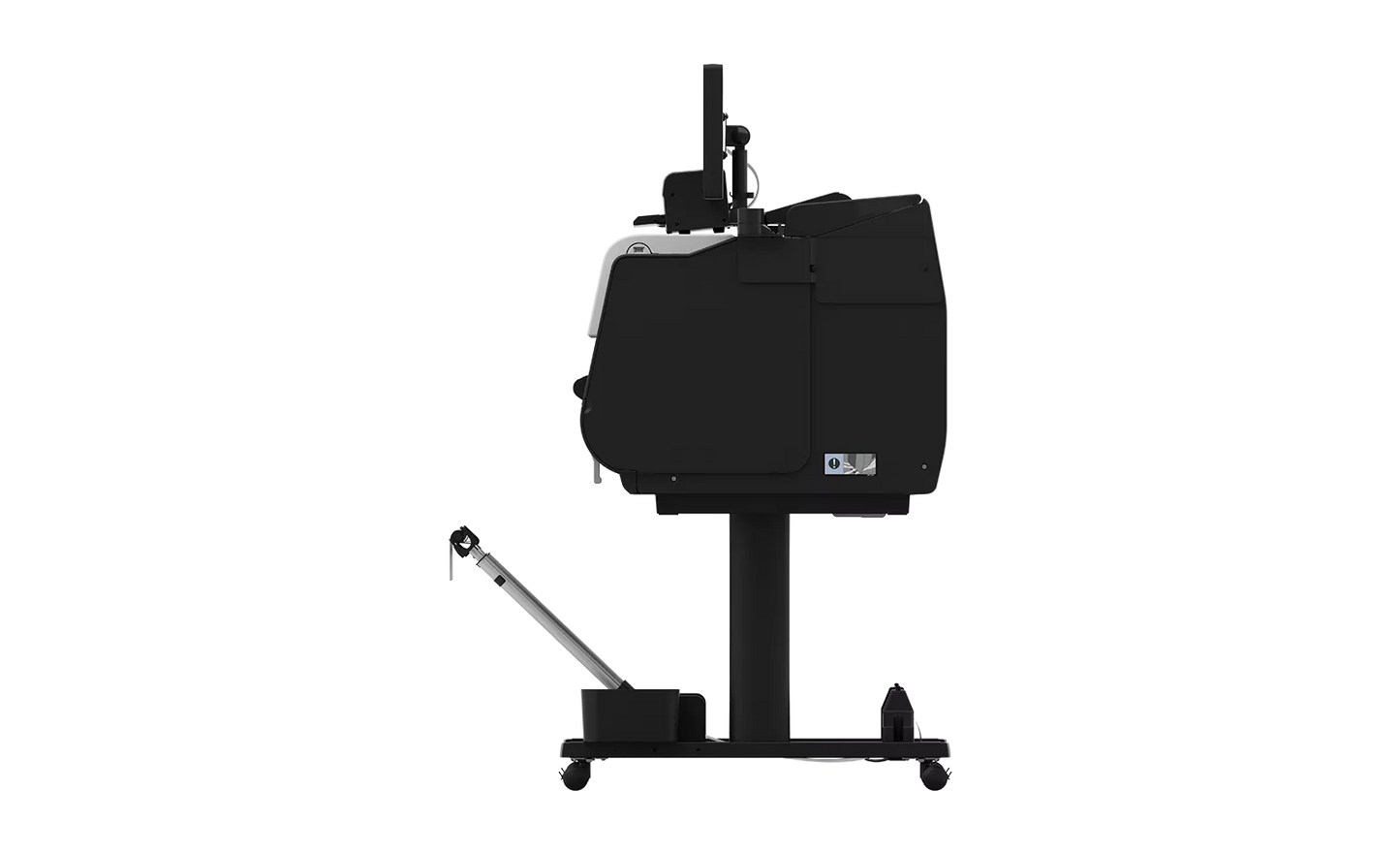

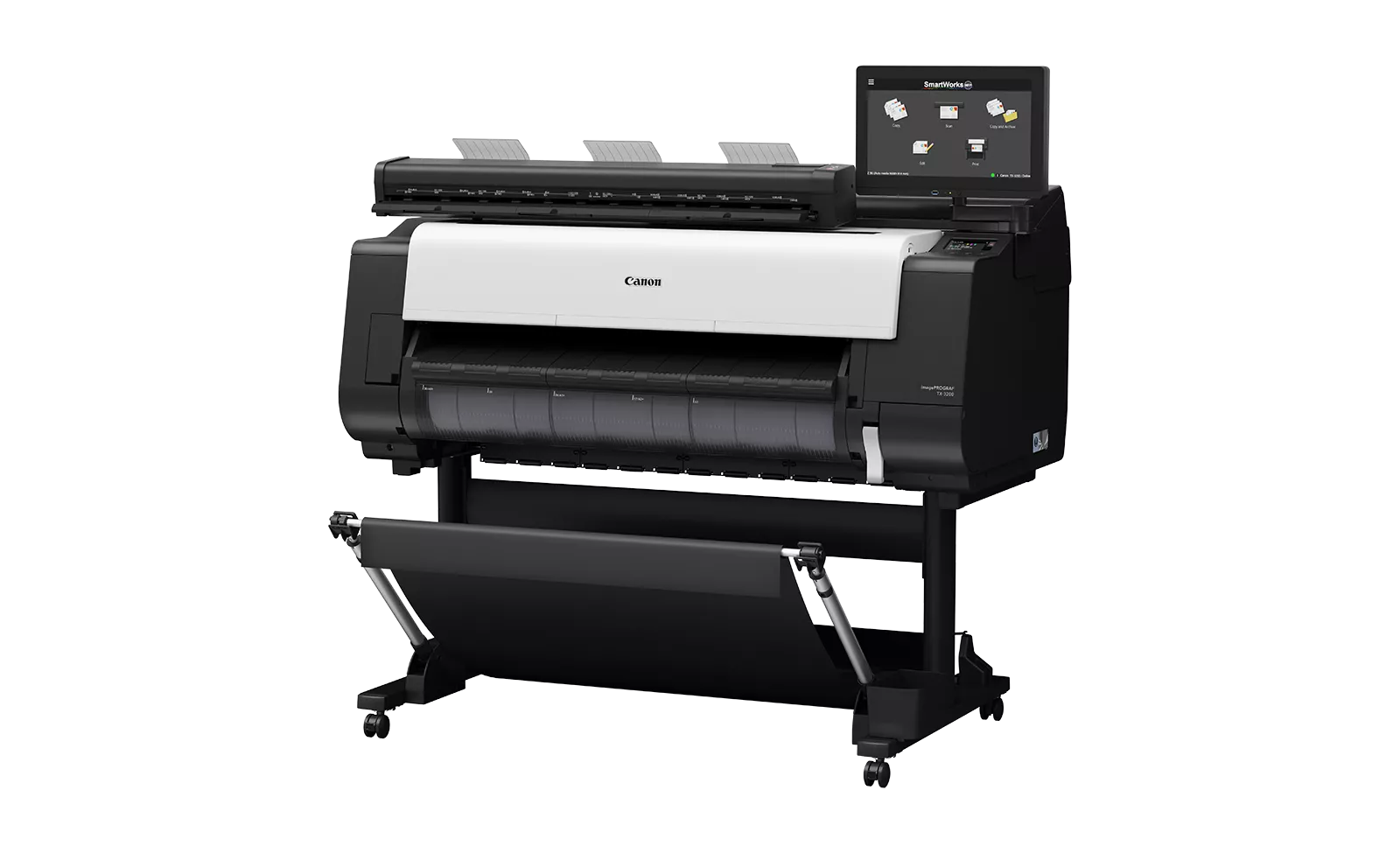

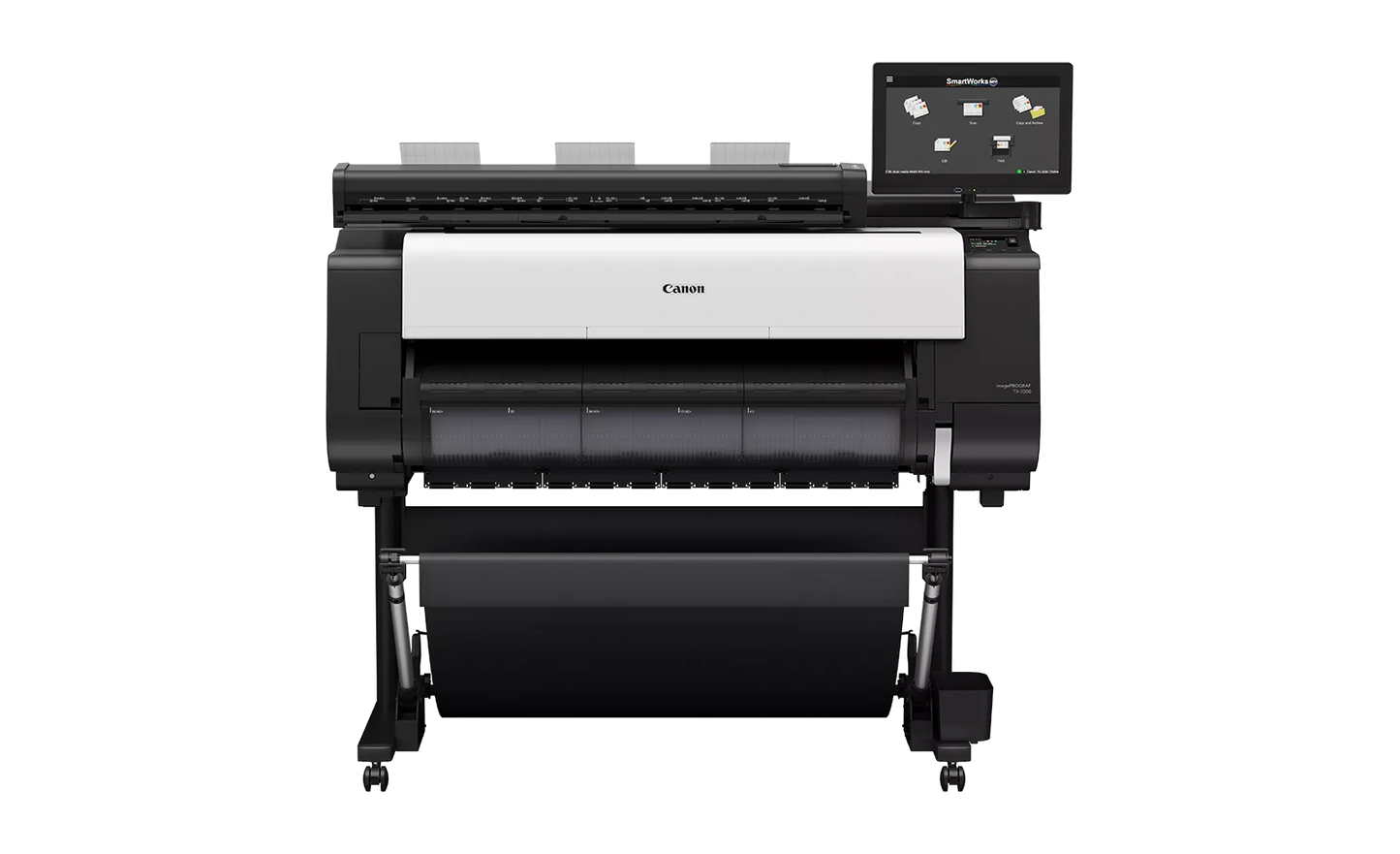

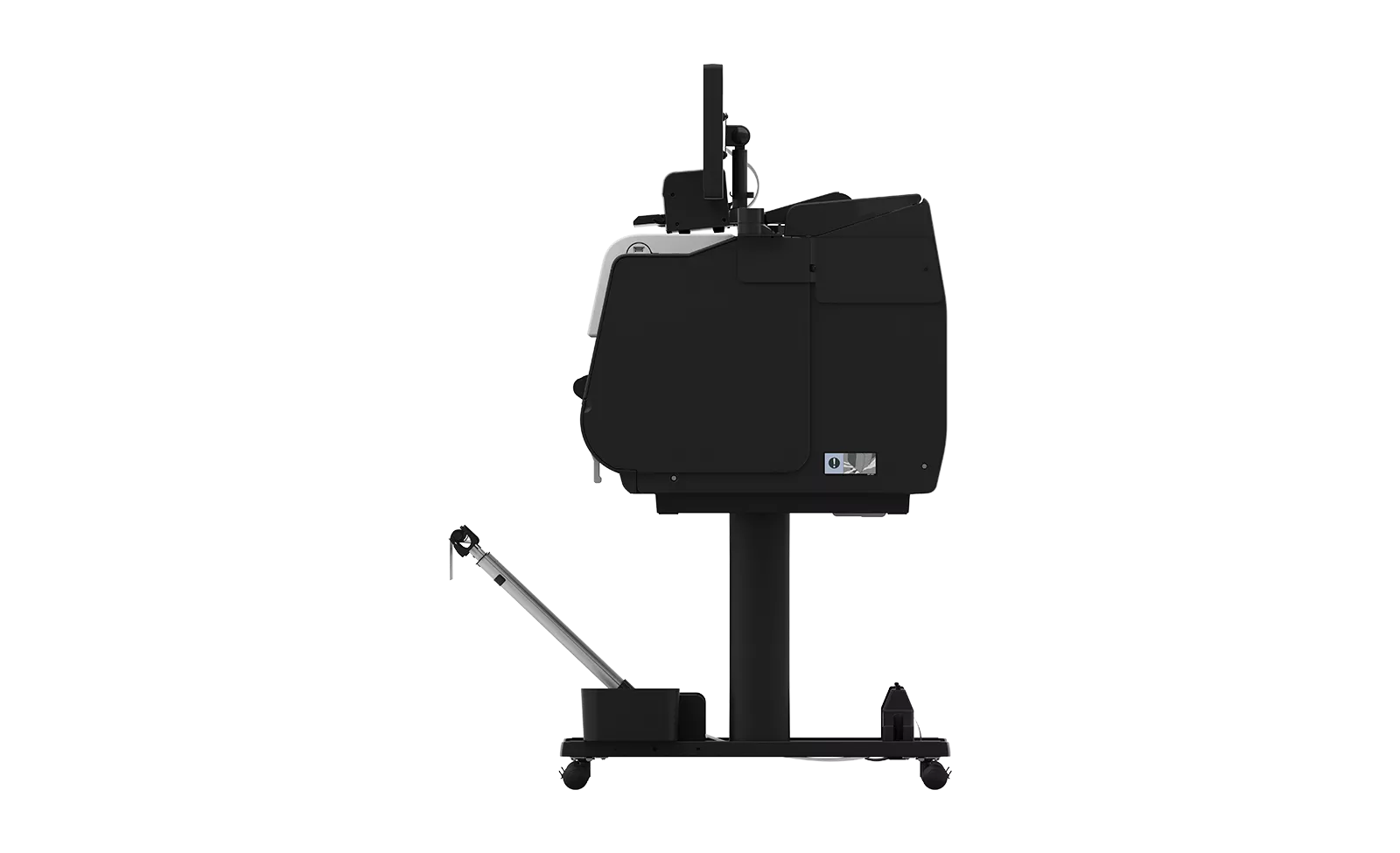

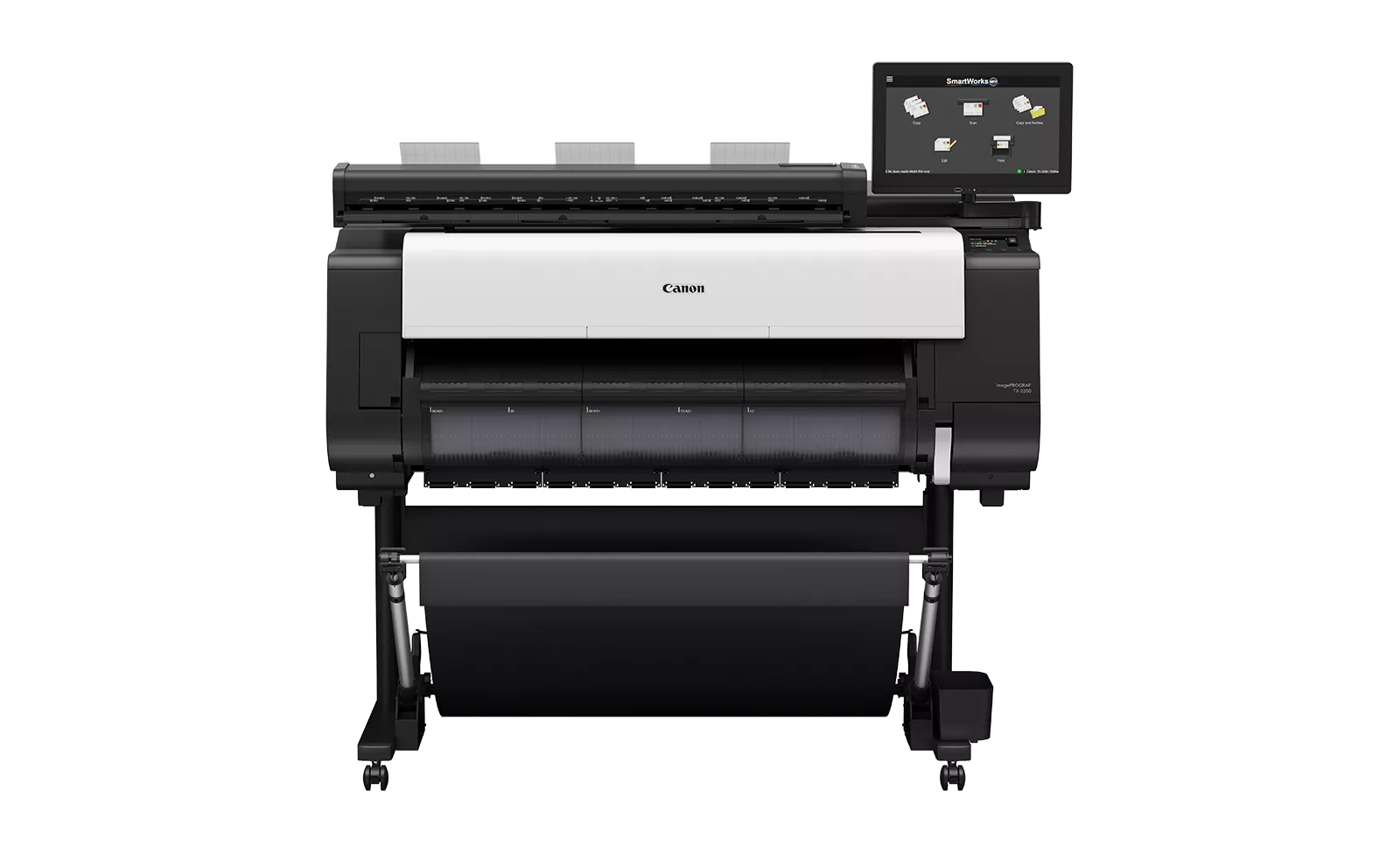

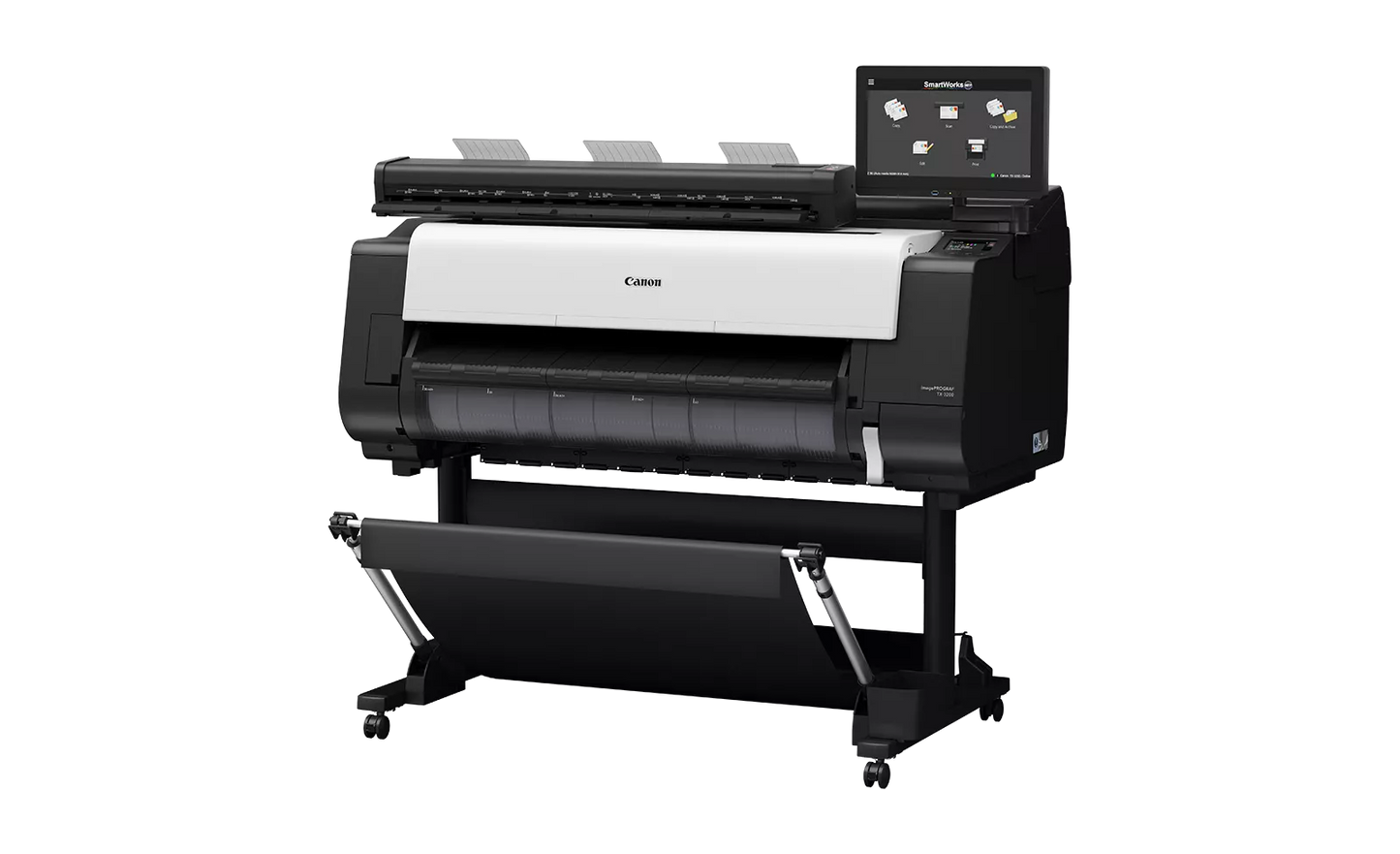

Canon imagePROGRAF TX-3200 36” Large Format Printer MFP w/ Z36 Scanner, Stand and Catch Basket
Elevate your large-format printing with the Canon imagePROGRAF TX-3200, a versatile 36-inch multifunction printer designed for superior productivity and professional-quality results. Engineered for architects, engineers, designers, and other professionals, this printer delivers exceptional performance for CAD, GIS, and poster applications.
Key Features:
- Precision Printing: Powered by Canon’s advanced LUCIA TD pigment ink technology, the TX-3200 produces vivid colors and sharp lines, even on economical uncoated paper, making it perfect for technical drawings and graphics.
- Integrated Z36 Scanner: The included Z36 scanner transforms your printer into a complete MFP system, enabling fast and accurate scanning and copying of large-format documents, from blueprints to maps.
- High-Speed Printing: Achieve high-volume output with unparalleled speed, thanks to the TX-3200’s dual roll system and continuous printing capability.
- Intuitive Operation: The user-friendly 4.3-inch touchscreen interface ensures seamless navigation and workflow efficiency.
- Space-Saving Design: Compact and sleek, the TX-3200 fits neatly into your workspace, and its sturdy stand and catch basket provide added convenience for managing prints.
- Enhanced Connectivity: Enjoy flexible printing options with built-in Wi-Fi, cloud printing compatibility, and direct USB support.
Why Choose the Canon imagePROGRAF TX-3200?
The TX-3200 redefines productivity and precision with its cutting-edge technology and robust features. Ideal for busy professionals, this multifunction system handles demanding workloads effortlessly, ensuring high-quality output every time.
Whether you're producing detailed technical drawings or eye-catching marketing materials, the Canon imagePROGRAF TX-3200 with Z36 Scanner is your go-to solution for professional-grade large-format printing and scanning.
Printer Type
5-Color 36-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy
±0.1% or Less
Minimum Line Weight
0.02 mm
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with Printer:
M: PFI-111(160ml)
BK/C/Y: PFI-110(160ml)
MBK: PFI-310(330ml)
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Ink Supply Method
Tubing System with Sub Tanks for Continuous Ink Supply
Printer Controller
L-COA PRO
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Droplet Size
5 picoliter
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet:
6"- 36" (152 mm - 917 mm)
Roll Feed:
6" - 36" (152 mm - 917 mm)
Printable Margins
Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless
Maximum Print Length (Single Page)
Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m)
Borderless Printing Widths (Roll Media Only)
Custom roll width 6” - 36” with Micro Margin Technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 - 0.8 mm
Media Core Sizes
2” with 3” Core Adapters Included
Maximum Roll Outer Diameter
6.7" (170 mm)
Media Output Options
TX Stacker or Multipositional Catch Basket
Media Method
Roll Feed:
One Roll, Front-loading, Front Output
Front Loading Manual Feed:
One Roll, Front Output
Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), MacOS v10.15.7- MacOS 14
Print Languages
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Interface
USB B Port
Type:
Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)
USB A Port:
Direct USB Thumb Drive Printing
Gigabit Ethernet
Type:
Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Acoustic Noise
Operation:
51 dB (A) or Less
Standby:
35 dB (A) or Less
Acoustic Power:
Approx 6.9Bels
Power Supply
AC 100 - 240 V (50 - 60 Hz)
Power Consumption
Maximum: Approx. 115 W
Standby: Approx. 2.0 W
Power Off: Approx. 0.3 W
Certifications
- Electrical Safety Regulations
- C TUVus (U.S.A.), C TUVus (Canada)
- Electromagnetic Interface Regulations
- FCC Part 15B (U.S.A.), IC (Canada)
- Radio Regulations
- FCC Part 15C (U.S.A.), IC (Canada)
- Environmental Certifications
- ENERGY STAR® (Worldwide) & EPEAT Gold
Operational Environment
Temperature:
59° F - 86° F (15° C - 30° C)
Relative Humidity:
10 - 80% (No Condensation)
Printer Dimensions (W x D x H) and Weight
With Basket Open
54.7" x 38.7" x 46"; 231.5 lb (Approx)
With Basket Closed
54.7" x 30.2" x 46"; 231.5 lb (Approx)
With Stacker Opened
54.7" x 46.8" x 46"; 258 lb (Approx)
With Stacker Closed
54.7" x 44.2" x 46"; 258 lb (Approx)
Package Dimensions (W x D x H) and Weight
Printer (Main Unit with Stand and Pallet)
64" x 35.6" x 40.7"; 337 lb (Approx.)
Basket
56" x 21.9" x 8.4"; 20 lb (Approx.)
Stacker
49.2" x 35.7" x 11.5"; 60 lb (Approx.)
Roll Unit
60" x 22.1" x 18.1"; 68.3 lb (Approx.)
TX-3200 Printer
- Includes Main Unit,
- Multi-Positional Catch Backet, Stand
- Printhead, Starter Ink Tank Set
- Maintenance Cartridge (Installed)
- 2” Roll Holder with 3” Adapters
- Installation Guide
- User Registration Card
- Printer Warranty Statement
- Printhead Warranty Statement
- Call Center Notice
- Media Compatibility Flyer
- PosterArtist Web Notice Flyer
- iWR Service Terms Leaflet
- Safety and Environmental Information
- USB port (High Speed)
- Power Cable & Screw
- Gigabit Ethernet (Built-In)
Z36 Scanner
- Z36 Scanner with Power Cord
- USB 3.0 Cable (2 m)
- 15.6” System Controller
- 3:1 Trident Power Cord
- Power Supply
- Mount for Printer and System Controller
- Paper Edge Guides
- Document Return Guides
- Calibration Target
- Assembly and Startup Guide
