Experience Unmatched Productivity with the TM Series Large Format Printers
Elevate Your Printing and Scanning Capabilities
- 5-Color LUCIA TD Pigment Ink
- Print Speed of approximately 2.4 ppm
- Color Calibration
- Automatic Paper Detection (Type/Length/Width)
- Fat-top body design with tilt touchscreen
- EPEAT Gold Registered

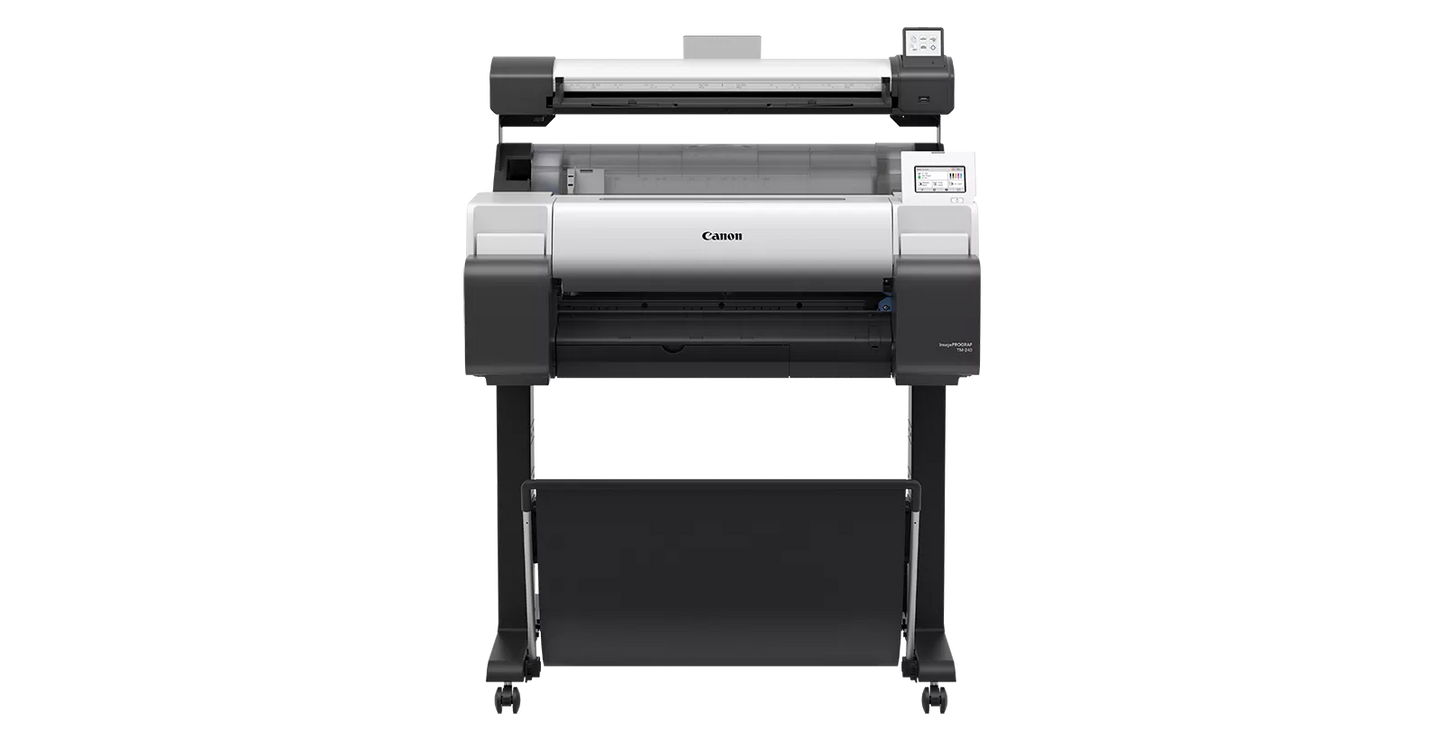

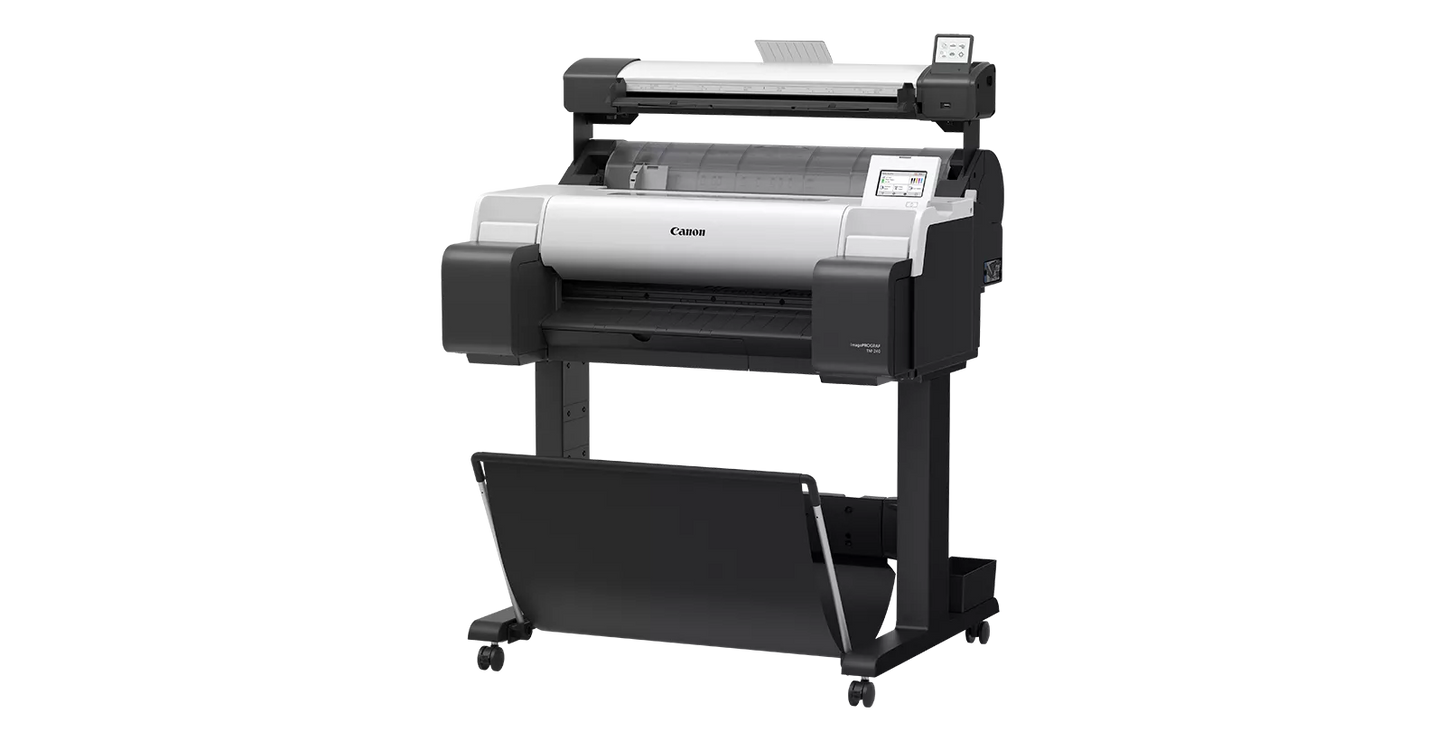

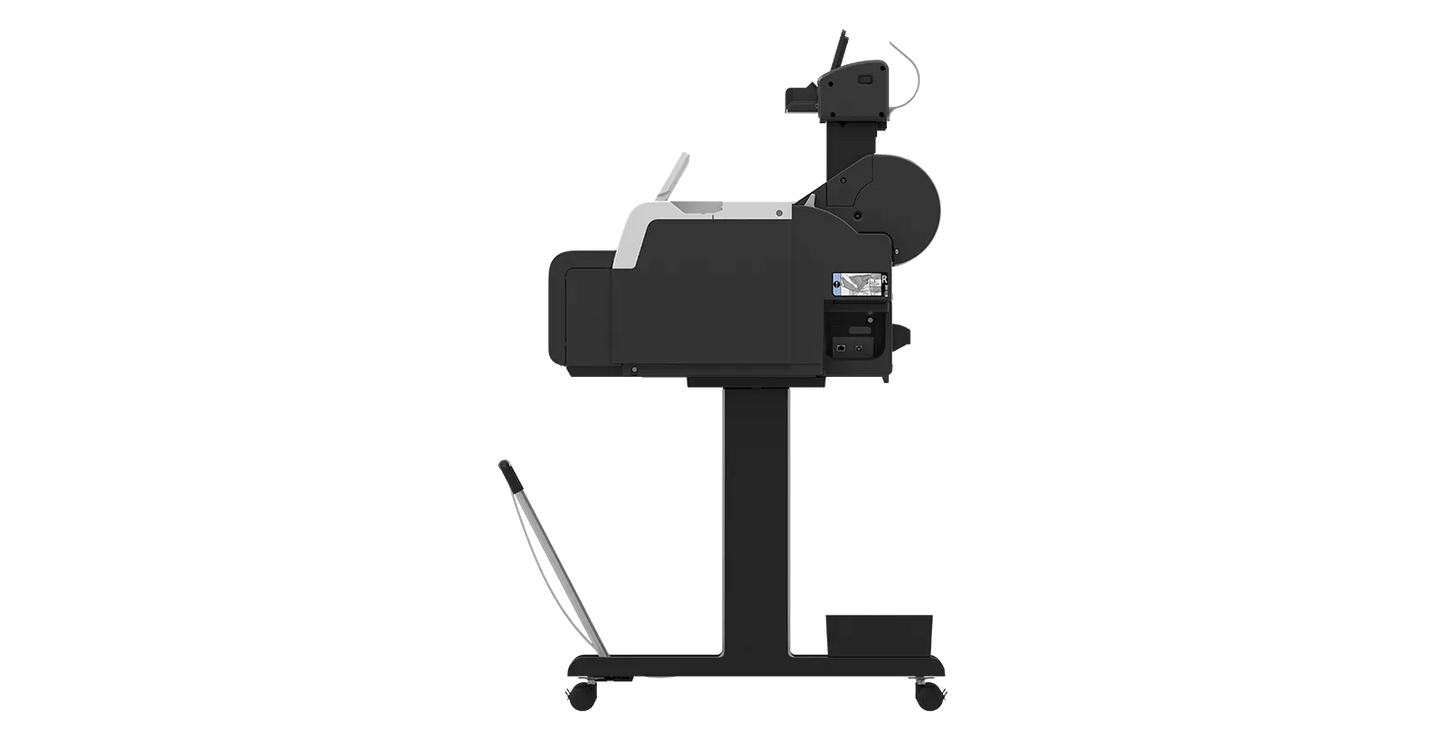

This model includes a Scanner Kit & Stand
Discover the future of large format printing with the TM Series printers. These advanced printers redefine productivity, efficiency, and usability, surpassing the previous generation of imagePROGRAF TM & TA series printers. The imagePROGRAF TM-240 MFP Lm24 is perfect for entry-level users in small spaces, offering vivid color reproduction with newly formulated magenta ink and precise color calibration, along with basic scanning capabilities for added convenience.
Innovative Design for Enhanced Efficiency
The new imagePROGRAF TM Series is designed for optimal efficiency and comfort. Its sleek flat-body design and full-frontal operation simplify usage, while the 4.3” adjustable user interface screen provides easy access to ink levels, sub-ink tank levels, automatic media detection, and more—all displayed conveniently on the home screen.
Eco-Friendly and Certified Excellence
The TM Series stands out for its eco-friendly features. Registered as EPEAT Gold—the first in the imagePROGRAF TM Series—and ENERGY STAR® certified, these printers are committed to sustainability by replacing EPS packaging materials with cardboard.
Comprehensive Creative Workflow Software
Enhance your creative projects with a suite of included software tools. The TM Series features PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, designed to meet your everyday personal and business printing needs.
Print Head
PF-06
Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color
Droplet Size
5 Picoliter
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with printer: MBK (80 ml), BK, C, M, Y (55 ml)
Replacement: MBK, BK, C, Y: PFI-030 (55 ml) and M: PFI-031 (55 ml)
Printer RAM
2 GB
Media Width
Roll Feed: 8”-24” (203.2 mm - 610 mm)
Cut Sheet: 8.26”-24” (210 mm - 610 mm)
Media Cutter
Automatic horizontal cutting (Rotary cutter): standard
Media Thickness
0” - 0.03” (0.07 mm - 0.8 mm)
Media Core Sizes
2” Core Standard. 2”/3” Core Roll Holder Set (RH2-28) Included
Maximum Roll Outer Diameter
5.9” (150 mm)
Printing Software Utilities
Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Canon PRINT Inkjet Selphy
Operating System
Windows 7 (32/64-bit),
Windows 8.1 (32/64-bit),
Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x
Print Language
Printer: SGRaster, HP-GL/2, HP RTL, JPEG, PDF, CALS G4
Interface
Standard (Built-in): USB 2.0 Hi-Speed, Direct USB Thumb Drive, 10/100/ 1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)
Power Supply
AC 100 – 240V (50 – 60 Hz)
Power Consumption
Max: Approx. 69W
Standby: Approx. 1.6W
Power Off: Approx. 0.1W
- Printer
- Stand
- Starter Ink Tanks BK/C/M/Y (55ml) MBK (80ml)
- 1 Print Head
- Maintenance Cartridge (Installed)
- 2" Roll Holder
- Installation Guide
- User Registration Card
- One Year Printer Warranty Statement
- Print Head Warranty Statement
- Call Center Notice
- Media Compatibility Flyer
- PosterArtist Web Notice Flyer
- Safety and Environmental Information
- iWR Service Terms Leaflet
- USB port (High Speed)
- Power Cable & Screw
- Gigabit Ethernet (Built-in)
