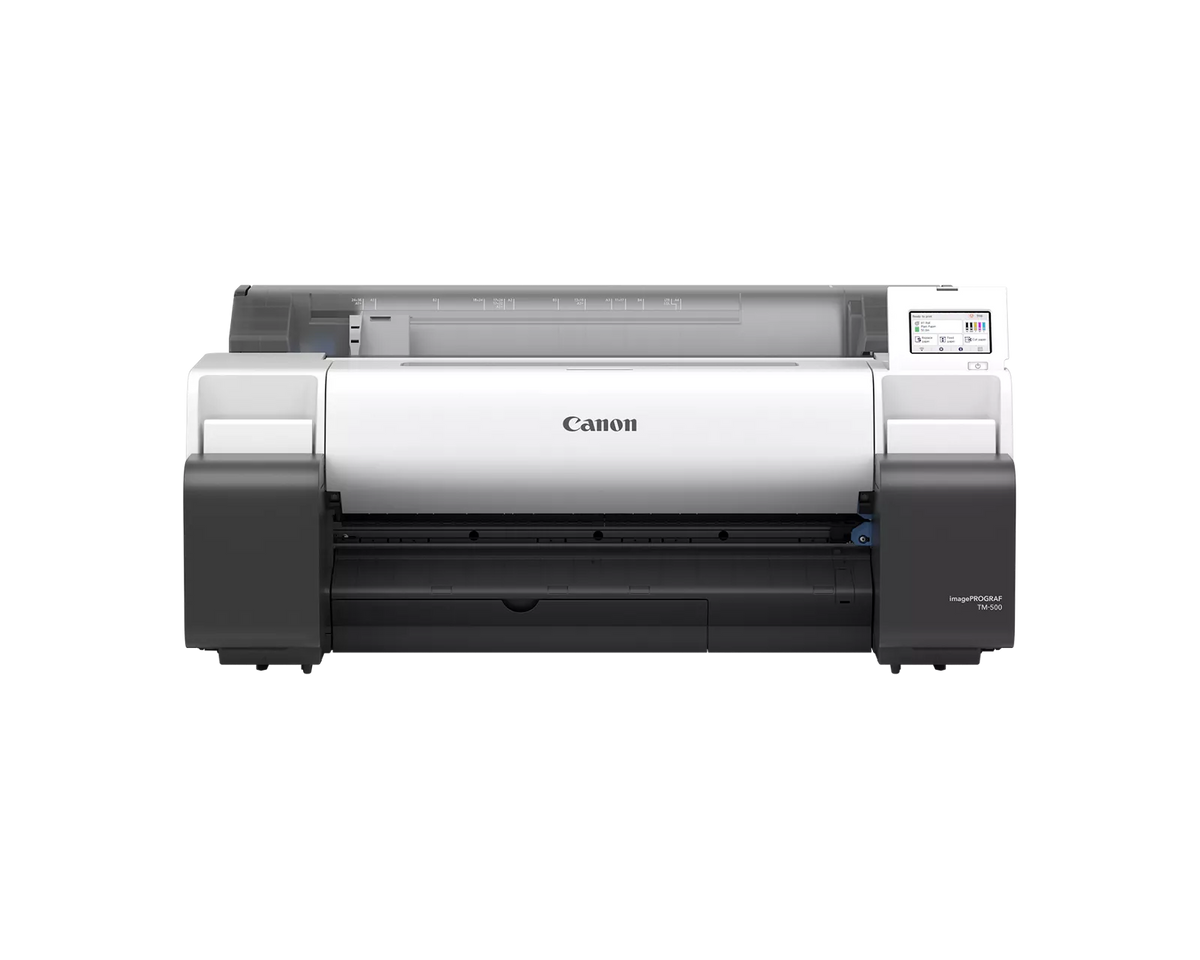

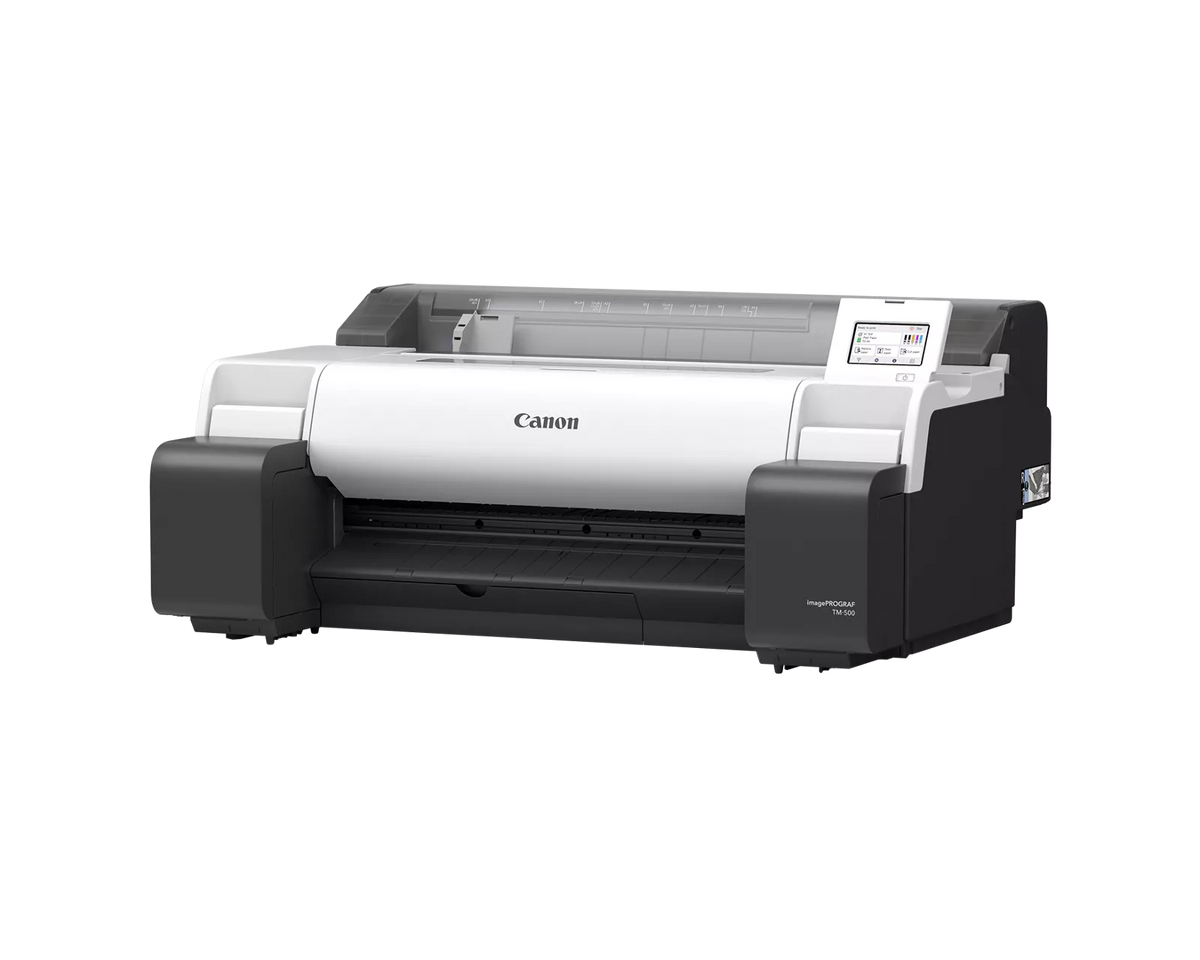

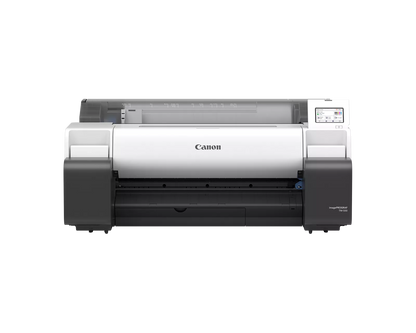

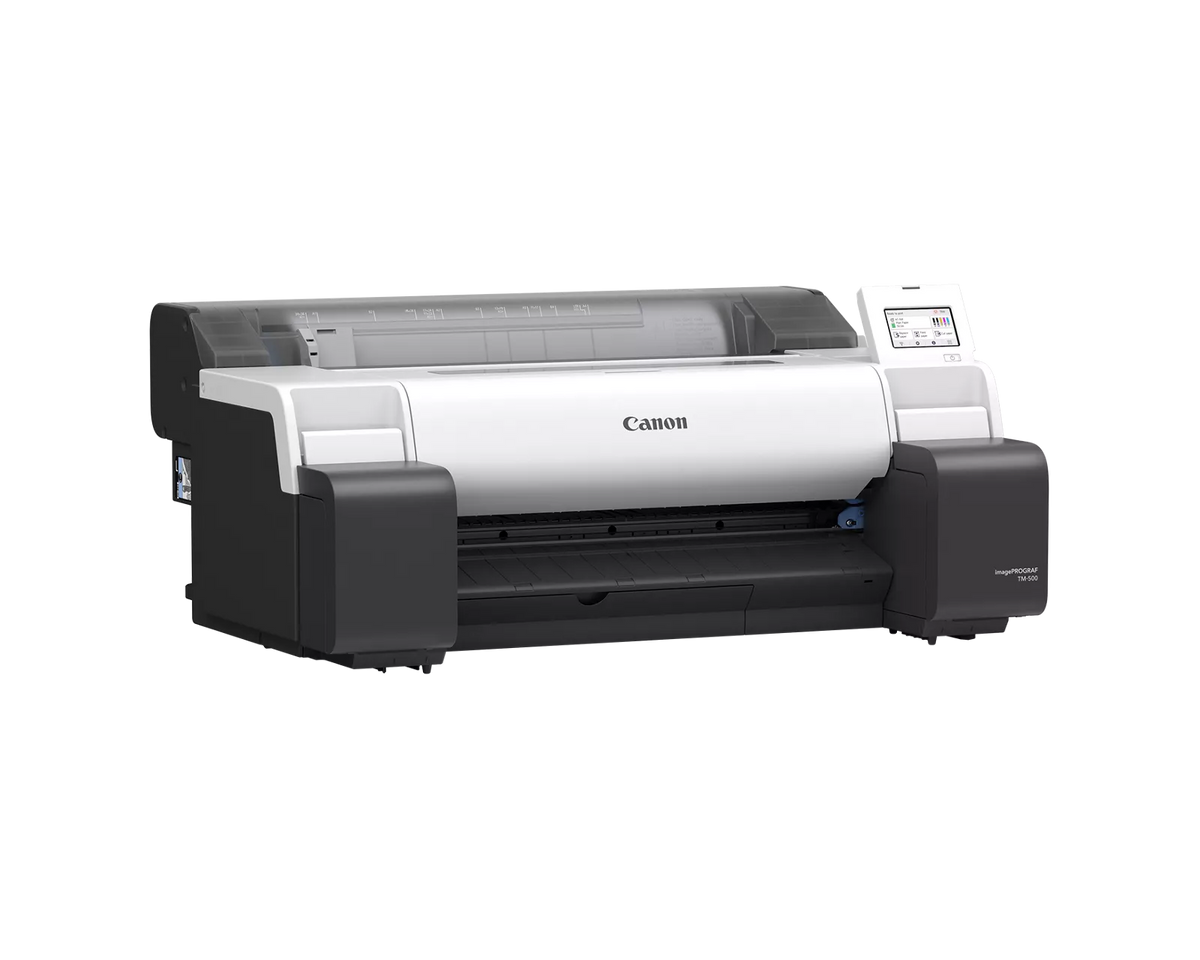

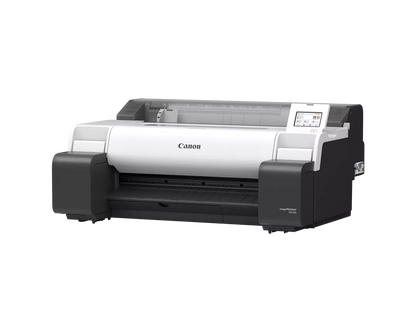

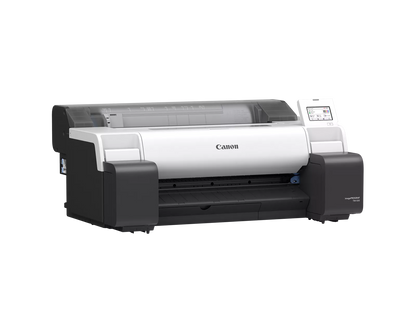

Canon imagePROGRAF TM-500 24" Large Format Technical Documents Printer

The Canon imagePROGRAF TM-500 is a 24" large format technical documents printer built for CAD, AEC and engineering workflows. It uses Canon's 5-color LUCIA TD pigment ink system with a reformulated matte black and delivers up to 2.4 D-size (24" × 36") prints per minute. An entry-level 24" model for compact spaces; ships without a stand.

Key Features

• 5-color LUCIA TD pigment ink with reformulated matte black for deep blacks and crisp, fade-resistant output
• Improved line clarity for AEC drawings, CAD output and posters
• Built-in color calibration for consistent output across devices and over time
• Automatic media type, width and roll-amount detection
• Space-saving flat-top body with full front access to ink, media and cartridges
• Enhanced security to protect against unauthorized printing and network intrusion
• Apple AirPrint and Mopria Print Service support; EPEAT Gold registered and ENERGY STAR certified
• Free Direct Print Plus, PosterArtist and Free Layout Plus software

Printhead
PF-06

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Ink Tank
Shipped with printer: MBK (80ml), BK, C, M, Y (55ml)
Replacement (55ml):
MBK: PFI-033
BK, C, Y: PFI-030
M: PFI-031

Printer RAM
2 GB

Media Feed
Roll Feed: One Roll, Top-loading, Front Output

Maximum Print Length (Varies according to the OS and application)
Roll Media: 59’
Cut Sheet: 5.2’

Media Width
Roll Feed: 8”-24” (203.2 mm - 610 mm)
Cut Sheet: 8”-24” (203.2 mm - 610 mm)

Media Cutter
Automatic horizontal cutting (Rotary cutter): standard

Media Thickness
0” - 0.03” (0.07 mm - 0.8 mm)

Media Core Sizes
2” Core Standard. 2”/3” Core Roll Holder Set (RH2-28) Optional.

Maximum Roll Outer Diameter
5.9” (150 mm)

Media Output
Catch Basket (optional), Desktop Basket (optional)

Printing Software Utilities
Accounting Manager, Device Management Console, Direct Print Plus, Free Layout
Plus, Driver, Media Configuration Tool, PosterArtist, AirPrint®1,
Mopria® Print Service2

Operating System
Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2,
2012, 2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6 - v13x

Print Language
Printer: SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4

Interface

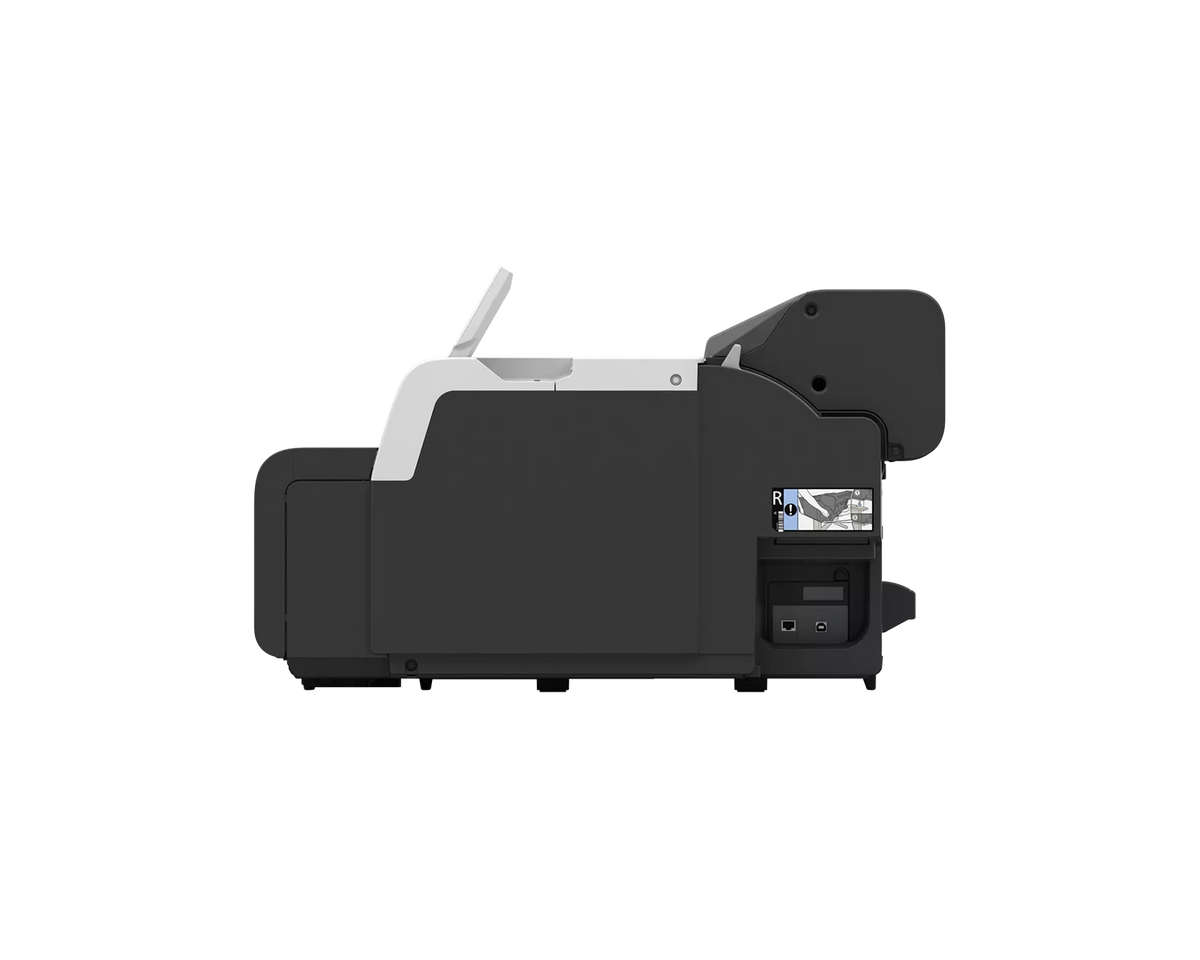

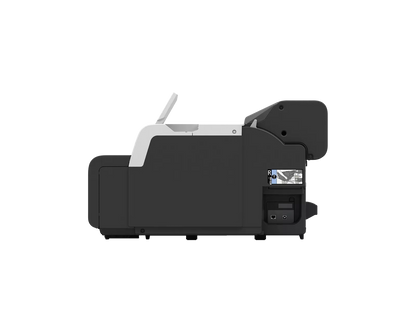

Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX,
Wireless LAN (IEEE 802.11 b/g/n)3

Power Supply
AC 100 – 240V (50 – 60 Hz)

Power Consumption
Max: Approx. 59W
Standby: Approx. 1.6W
Power Off: Approx. 0.06W

Certifications
ENERGY STAR® certified, EPEAT 1.0 Gold, Mporia® Certified

Operational Environment
Temperature: 59 – 86°F (15 – 30°C)
Relative Humidity: 10 – 80% (Non Condensation)

Printer Dimensions (W x D x H) and Weight: (Approx.)
(Without basket and stand) 38.5” x 28.3” x 16.6”, 88.2 lbs.
(With stand and basket) 38.5” x 34.2” x 41.0”, 112.4 lbs.

Package Dimensions (W x D x H) and Weight: (Approx.)
(Main unit with pallet) 45.4” x 35.9” x 25.6”, 160.9 lbs.

Options

• Stand (SD-24)
• 2”/3” Roll Holder Set (RH2-28)
• Desktop Basket (BU-07)
• User-Replaceable Items
  • Ink Tank (PFI-030/PFI-031/PFI-033)
  • Printhead (PF-06)
  • Maintenance Cartridge (MC-31)
  • Cutter Blade (CT-08)

What’s In The Box

• Printer, Starter Ink Tanks BK/C/M/Y (55ml) MBK (80ml)
• 1 Printhead, Maintenance Cartridge (Installed)
• 2” Roll Holder, Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• Safety and Environmental Information
• iWR Service Terms Leaflet
• USB port (High Speed)
• Power Cable and Screw
• Gigabit Ethernet (Built-in)
