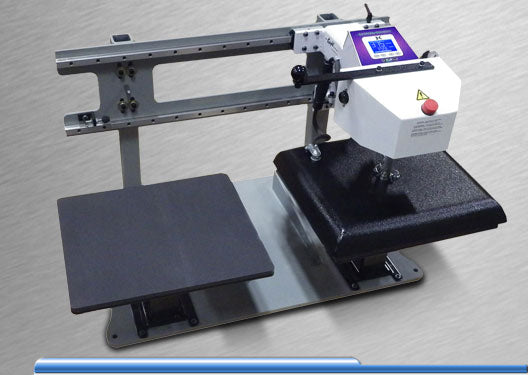

TWIN Automatic Digital Combo 14x16 Swing-Away Press

This item does not qualify for free shipping and a shipping surcharge of $275 will be added when your order is processed.

The Digital Combo DC16APT is an air-operated, Twin-Station, Automatic 14x16 heat press with optional interchangeable heat platens and tables. The smooth automatic pressing and pushbutton activation provides a productive, fatigue-free operation... in a DUAL-STATION High Production layout! With just a few fingers the top head effortlessly glides side-to-side, increasing throughput and operation productivity.

For all the same features and possibilities as the automatic DC16AP, with twin-station high-production layout, the DC16APT is the ideal high-volume pressing solution.

Note: This press is available with the 6"x8" label heat platen and bottom tables as well - the DC8APT. For a dedicated automatic twin-station cap press - the DC7APT.

Features

• Automatic air operated pressing
• Threadable, dual interchangeable bottom tables
• 14" left-to-right x 16"-deep orientation (opposite DC16AP)
• Fully digital temperature control 32°-600°F range
• Automatic digital timer & dual pre-press timer
• Air regulator and gauge 20-100 PSI range (compressor req)
• Total applied force of 800 lbs max
• Interchangeable Heat Platens & Tables
• Solid steel welded framework
• SuperCoil-Microwinding™ heater technology
• Accommodates materials up to 2" thick
• Temperature readout accuracy +-2°F - can show °C or °F
• 70 Programmable presets
• Records number of pressing cycles done
• Teflon-coated 3/4" thick heat platen


Warranty

• FREE LIFETIME Tech Support!
• Lifetime warranty on heat platen
• 5-year warranty on frame
• 3-year warranty on controller
• 1 year warranty on parts

Specs

• Air Compressor Required (min): 5gal, ½cfm, 100psi, 1/4" line
• Weight: 350 Lbs
• Electrical: 1500W / 12A / 120V
• Shipping Dims: 42"L x 32"W x 36"H
• (add $35 for 220V international)
