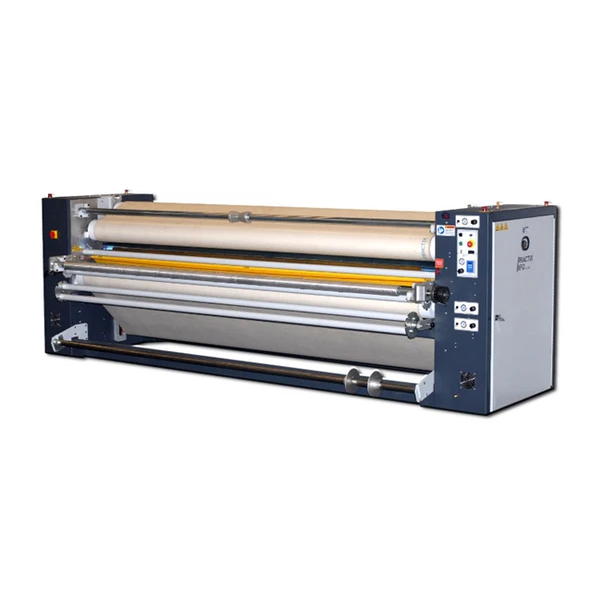

Practix Manufacturing’s OK-12 is one of the most advanced heat transfer machines currently available. With a heavy-duty unitized frame, 12” diameter drum, and varying belt widths that allow for printing on fabrics of all sizes, the OK-12 is a heat transfer press that is unlike anything else in its class. This model can be used for transferring on continuous or roll materials or an optional table is a feature for cut part or piece goods. Practix rotary product lines include high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.
The Practix OK-12 Commercial Heat Press Features
- 66”, 88”, 104″, and 128″ belt widths allow for printing on full-width fabrics
- 12” (300mm) diameter drum makes it the fastest small drum rotary transfer printing machine on the market
- A heavy-duty unitized frame with solid steel construction
- Oil-filled drum enables colors to print consistently from side-to-side, as well as job-to-job
- Standard triple unwind/rewind system for transfer printing from roll-to-roll
- Pneumatic brakes and clutches for precise tensioning of fabric and papers
- Ability to print banners, exhibit backdrops, sportswear, and casino felts with ease
Perfect for printing on a wide variety of materials, the OK-12 can produce beautiful, flawless designs for t-shirts, sportswear, display banners, awnings, floor mats, mouse pads, upholstery, and more. As an added bonus, Practix is one of the only heat transfer equipment manufacturers to offer fully customizable options for modified, colors, shapes, sizes, and more.
Belt Width | 66″ (1.67m) | 88″ (2.25m) | 104″ (2.64m) | 128″ (3.25m) |
Power Required | 18.6 KW | 24.8 KW | 31 KW (32 KW 3PH) | 37.2 KW (40 KW 3PH) |
Max Temp | 450F | 450F | 450F | 450F |
Weight | 3200LB (1451Kg) | 3400LB (1542Kg) | 3600LB (1632 Kg) | 3900LB (1775 Kg) |
Air Supply | 100 PSI 0.8 CFM | 100 PSI 0.8 CFM | 100 PSI 0.8 CFM | 100 PSI 0.8 CFM |
Dimensions | 58″ W 102″ L 63″ H | 58″ W 124″ L 63″ H | 58″ W 140″ L 63″ H | 58″ W 164″ L 63″ H |
