Call 214-342-9290 for special pricing.

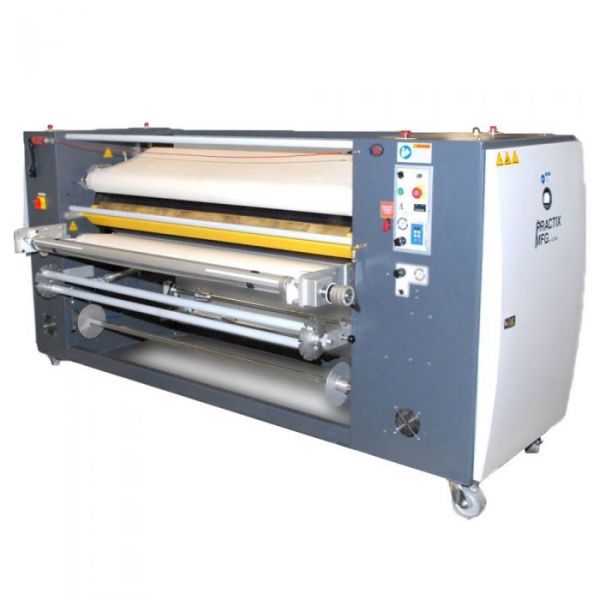

The Practix dye sublimation rotary heat model OK-10 is available in 48 inch or 66 inch wide printable widths. The oil filled heated drum is 10 inches (250 mm) in diameter and has 240 degrees of wrap achieving faster production speeds then most comparable models. This model can be used for transferring on continuous or roll materials. This heat transfer machine is small and affordable offering the Practix high quality innovative engineered design using a heavy duty frame, automation, and best quality electrical and pneumatic components like all Practix heat transfer equipment, including sublimation machines, lamination machinery and embossing equipment.
Maximum Productivity:
- 66″ Printable width
- Larger 10″ diameter drum for faster production speeds
- 240 degrees or 21″ of production contact
- Oil filled drum for consistent heat throughout the width of the drum
- Automatic belt tracking
- Quick heat up
Key Features:
- 4″ Touch screen control for all machine functions and programs for recipe setup
- Digital speed controller
- 2 unwinds/2 rewinds with independent pneumatic adjusting for more tension or brake
- 1 unwind/1 rewind to utilize tissue paper for protection of the belt for cut parts or mesh fabric
- 3″ chucks for all unwind and rewind shafts
- Reversing capability
- Safety systems (emergency stops and hand protection at entry)
- Automatic cool down
- Belt Width 48” (1200mm) / 66” (1700mm)
- Drum Diameter 10” (250mm)
- Max. Temperature 450 F (240 C)*
- Max. Belt Speed 5 ft/min (1.5 m/min)
- Power Supply 12 kW/ 13kW
- Motor 1/4 H.P
- Air Supply 100 PSI 0.5CFM
- Weight 2000 lb (900 kg) 2400 lb (1089 kg)
