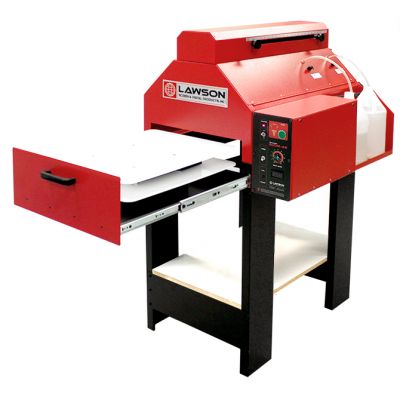

Lawson Zoom-AE Pre-Treatment Sprayer (715-330-2E)

Lawson Zoom-AE Pre-Treatment Sprayer (715-330-2E)

In Stock


Regular price $5,790.00
Regular price $0.00 Sale price $5,790.00
Sale Sold out
View full details
Customers Have Asked

Important Shipping Information: Price includes crate for protection. Please call 214-342-9290 for availability and estimated ship times.

The Lawson Zoom-AE is the direct to garment (DTG) industry leading pre-treat sprayer. The Zoom-AE is the best pretreat sprayer for anyone who is serious about quality DTG printing. As an all-electric, industrial, state-of-the-art pretreat application sprayer, the Zoom AE can pretreat garments quickly, easily and consistently at the touch of a button.

Lawson's Zoom-AE features the easiest maintenance on an industrial pretreat machine. It features the unique Instant Twist On/Off spray nozzle that can be changed in seconds. The spray tip is automatically aligned, saving you time and frustration.
This pre-treat unit saves space with free floor legs and castors/wheels that come standard with every unit. In addition, the length of spray is easy to adjust and maintenance is very simple. The Lawson Zoom-AE features a 1 year parts warranty and 24/7/365 Technical and DTG print support for life.
The Lawson Zoom-AE is an all electric operated unit. It is ideal for basic to sophisticated spraying of pre-treat solution. Just pull out the drawer, load the shirt and push the start button.
Standard Features
  • All-Electric, Space-Saving Design
  • Floor Leg Design with Casters for easy portability
  • (legs may be removed if desired)
  • Large Spray Area: up to 17" x 20"
  • Zero Out-Spray Design
  • Manual Easy-Slide Drawer (Auto-Drawer Available)
  • Garment Tuck Tray - large enough to accommodate t-shirts and large hoodies
  • Digital Spray Speed Display
  • Adjustable Spray Area Length - sliding front and rear sensors
  • Quick-Change Twist On/Off Spray Nozzle (self-aligning, no tools and instant)
  • Extra Large, Angled Viewing Window
  • Extra Large Chamber Access Panel
  • DC Motor-Drive - Easily Accessible - mounted on top, outside the spray chamber
  • Two (2) Gallon Size Solution Containers, Mounted on Side of Unit, and Easily Visible
  • Ultra Quiet Operation
  • Rugged All Metal Construction
  • One-Year Limited Parts Warranty
  • 24/7/365 Technical and DTG Print Support for Life
Optional Features
  • Floor Legs: (now standard)
  • Storage Shelf: (now standard)
  • Left Chest Spray Package
  • Quick Exchange Cap
  • Floor Casters: (now standard)
  • Extra Spray Tips/Nozzles
  • Folding Front Drawer Panel
  • Digital Gram Scale (Primo)
  • European Union Compliance Package
  • Export Crating
  • DTG Specific Conveyor Dryers

Finance Options

Pre-Treat Zoom-AE #1620


Number of Spray Heads
1 (optional 2nd Left/Right Chest Head)

Spray Path Width

Spray Path Length
adjustable up to 20"

Max. Image Size
17" x 20"

Standard Platen Size
16" x 20"

Length, Width, Height
34" x 27" x 24" (without floor legs)
34" x 27" x 52" (with floor legs)
total length with Drawer Extened is 60"

Electrical Requirements
120 volts, standard plug-in wiring

Air Requirements

Solution Containers
2, 1-Gallon Containers

Unit Weight
150 lbs.

Leg Kit Weight
30 lbs.

Est. Crate Size (W x L x H)
32" x 58 " x 32" (60" with legs assembled)

Est. Crated Weight
280 lbs.
