Lawson

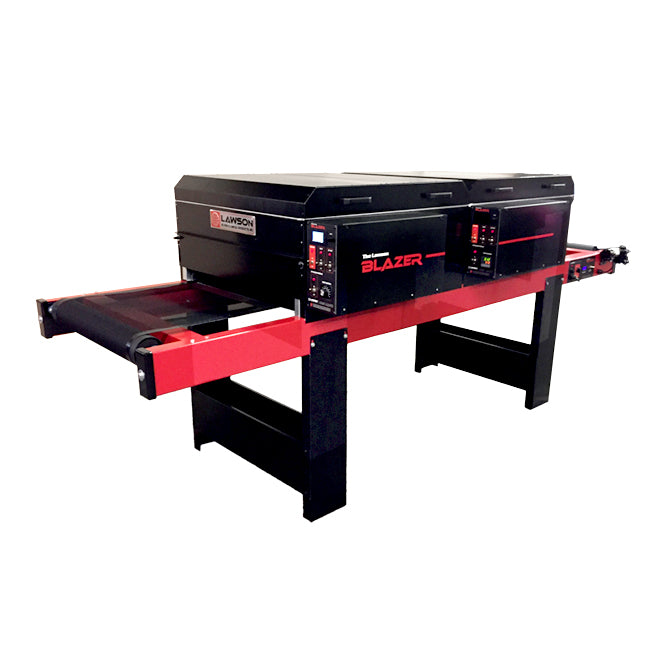

Lawson Blazer Textile Conveyor Dryer

Lawson Blazer Textile Conveyor Dryer

Please Call for Availability

SKUSKU7871

Regular price $7,490.00
Regular price $0.00 Sale price $7,490.00
Sale Sold out
View full details
Description
Specifications
Reviews
Customers Have Asked

Crating fees will apply for protection during shipping ($495 for 8' models, $650 for 12' models). Please call 214-342-9290 to receive a full quote and to place an order

Available Models

  • 24" x 8' Single I.R./ Jet-Air Chamber - $7,995
  • 24" x 12' Double I.R./ Jet-Air Chamber - $12,776
  • 36" x 8' Single I.R./ Jet-Air Chamber - $9,250
  • 36" x 12' Double I.R./ Jet-Air Chamber - $14,200
  • 48" x 12' Double I.R./ Jet-Air Chamber - $17,600

The Lawson Blazer screen printing conveyor dryer is designed for complete flexibility and maximum versatility. The Blazer features a fully modular design and can be easily customized and expanded whenever your needs may change. This custom screen printing machine is the ideal dryer to maximize your investment dollars.

Blaze Your Own Path

It is designed for curing both plastisol and water-based inks. The basic conveyor is only 8' long, and includes one 3' heat chamber/curing module of your choosing.You can add any amount of heat chambers/curing modules at any time, even years later.

Select a standard belt width and standard length conveyor belt, or create a custom width and length that fits your specific needs. You can always increase the in-feed or out-feed of the Blaze anytime you want - this is a totally modular dryer!

1) Start by selecting the Width Conveyor Belt that you want:
Standard Belt Widths: 24", 36", 48", 60"

2) Then select how Long you want your dryer to be:
Standard Belt Lengths: 8', 12', 16', 19'

The Lawson Blazer allows you to select from a variety of curing options and heat modules.

3) Now select one of the following 3' Heat Chamber Modules:
A) I.R. with Jet-Air (most popular module)
B) Quartz with Jet-Air (includes an energy saving photo garment sensor for instant on/off and is a great production booster)
C) Gas I.R. with Jet-Air (ideal for those with limited power availability and who want a small gas I.R. dryer)
D) Jet-Air Cooling Modules
E) Split Belt Designs (2 or 3 belt designs available)

All heat chambers are specifically designed to maximize energy efficiency and are double insulated. If you are looking for a conveyor dryer that saves space and energy, and still provides maximum production,then the Blazer is an ideal companion to manual or automatic presses.

Custom lengths are easily accommodated

Standard Features

  • Up-Front, Side-Mounted Digital Control Panel
  • Diagnostic Digital Control/Monitor System
  • Arrow Belt™ Tracking System
  • Solid-State Electronic Temperature Controller
  • Adjustable Temperature Up To 395oF
  • Complete-Wrap Insulation Package
  • Triple-Wall Construction
  • Conveyor Belt Supports

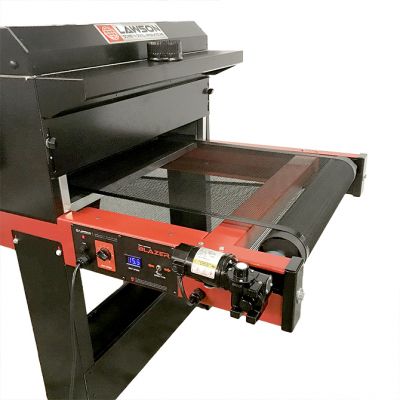

  • Direct-Drive Conveyor System
  • Moveable Heat Chamber
  • Solid-State Digital Belt Speed Controller
  • Four (4)-Point Belt-Tracking
  • Heat Reflective "S & S Memory Belt"
  • Reflective Heat "Booster Lining"
  • Rugged, Solid-Steel Construction
  • Adjustable Entrance and Exit Door Opening

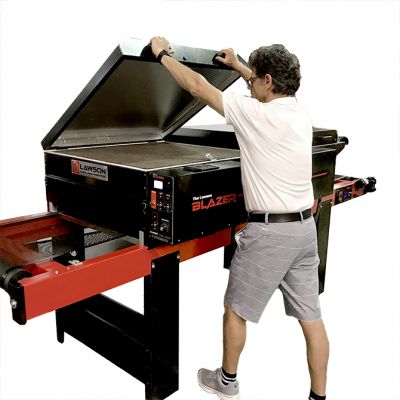

  • Hinged Top For Easy Access
  • Exit Exhaust Hood
  • 15 Year I.R. Heater Warranty
  • 3 Year Defective Parts Warranty
  • 24/7/365 Technical Support

Optional Features

  • Additional In-Feed or Out-Feed Belt Extensions...add as much length as desired to customize your dryer.
  • Quartz Chamber/Jet-Air with Electric-Eye Sensor
  • Additional I.R./Jet-Air 3' Module
  • Turbo-Cooler 3' Module
  • Gas I.R./Jet-Air 3' Module
  • Split Belt Options
  • Custom Belt-to-Heater Clearance Height
  • Custom Design Features for Special Needs/Applications
  • Export Electrics

Finance Options

  24" 36" 48" 60"
Heater Elements Warranty 15 Years 15 Years 15 Years 15 Years
Defective Parts Warranty 3 Years 3 Years 3 Years 3 Years
Belt Width 24" 36" 48" 60"
Overall Width 38" 50" 62" 74"
Overall Length #08 8' 8' 8' 8'
Overall Length #12 12' 12' 12' 12'
Overall Length #16 16' 16' 16' 16'
Floor-to-Belt Height 33" 33" 33" 33"
Heat Chamber Height 18" 18" 18" 18"
I.R./Jet-Air: 230, 1-Phase Amps 28 42 54 68
Heater Size 24" 36" 48" 60"
Heater Wattage (Per 3' I.R. Heat Chamber) 6000 9000 12000 15000
Estimated Cost/hr to Operate (Based on 10 cents/kwh) $0.60 $0.90 $1.20 $1.50
Air-Zone - High-Pressure Hot Air Jet Plenum 1 1 1 1
Estimated Max. Production - Plastisol 270+ 325 480 570
Estimated Max. Production - DTG/Digital 72 144 200 250
Quartz/Jet-Air, 220, 1-Phase, Amps 27 39 51 63
Quartz/Jet-Air, 220, 3-Phase, Amps 21 30 39 48
Air-Knives 6 6 6 6
Estimated Max. Production 240 325 480 570
I.R. Gas/Jet-Air, 120, 1-Phase, Amps 3 3 5 5
Air-Zones 1 1 1 1
