WORK SMARTER, NOT HARDER

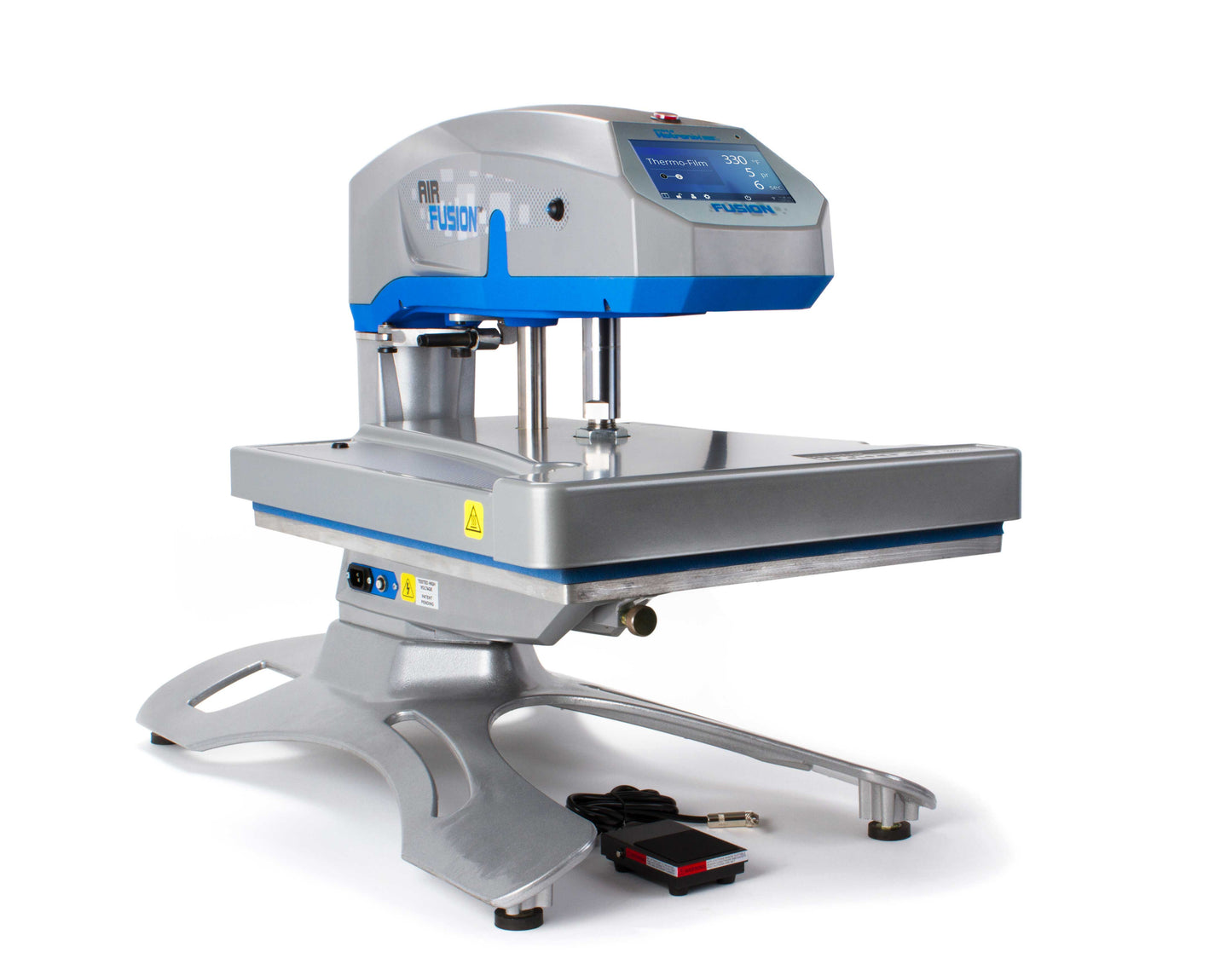

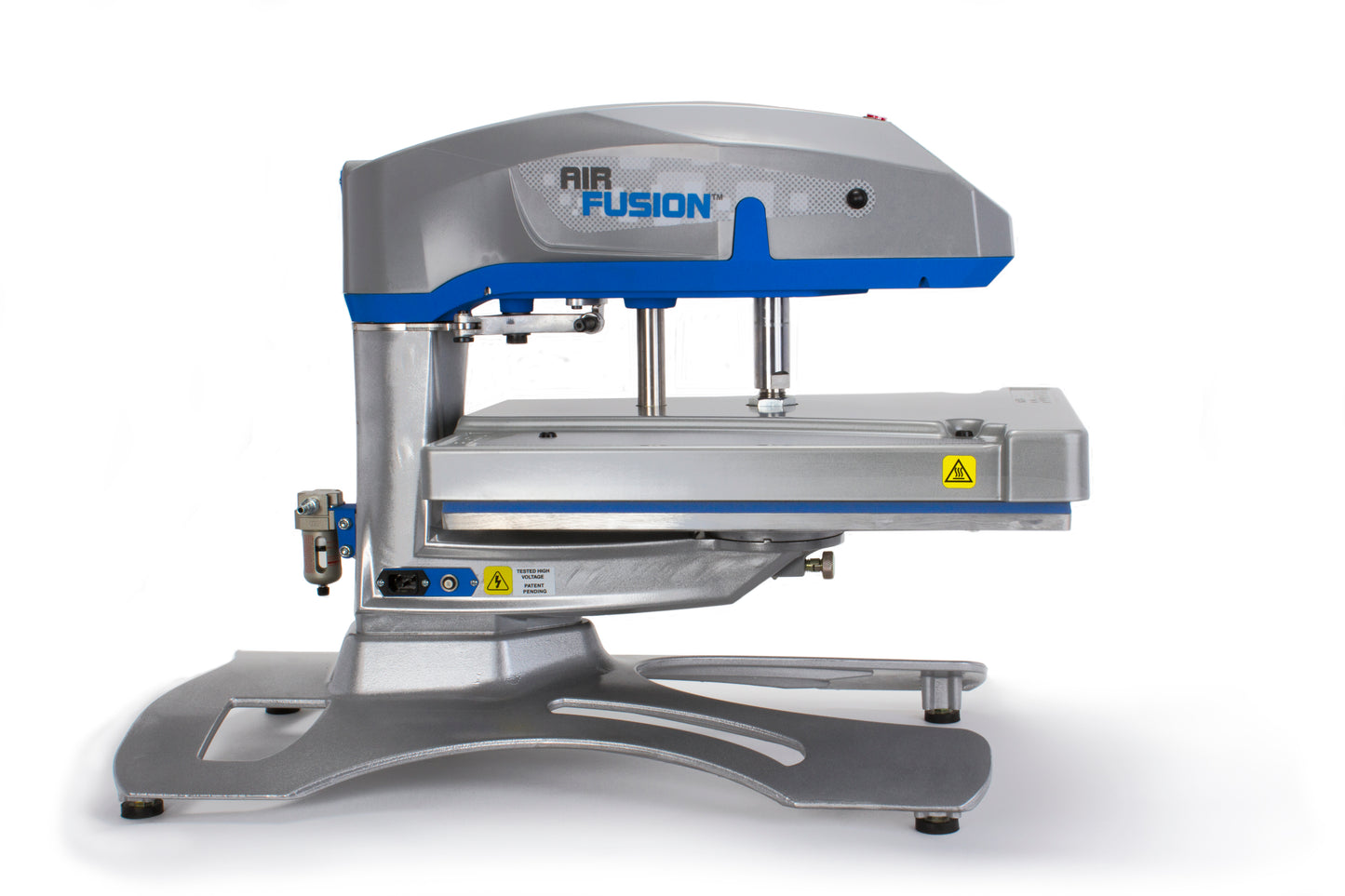

The Hotronix Air Fusion IQ Table Top 16x20 Swing-Away Press at 34” in length and 18” in width can fit on most standard tables or work benches. The Hotronix® Air Fusion IQ® combines the simplicity of an automatic heat press with the most technologically advanced product on the market. The patented Auto Adjust Pressure™ automatically adjusts to the thickness of the item you’re printing, and you can program your time to change from pre-heating to final application. With up to four time and pressure settings, it’s not just possible, it’s automatic.
The Fusion IQ® controller gives you insight into your business you’ve never had. Check your job and operator performance, make proactive data-driven decisions in real time, and interact with your press any time, any where with its web-based portal. Its stored application instructions and self-diagnostic capabilities helps you work smarter not harder.
Features
-
A 30% increase in screen size with a sharper, brighter resolution
-
A pop-out controller to make replacement a breeze
-
Ultra-responsive touch screen - no more swiping!
-
One-click software updates
-
Pressure measurements - PSI, bar, ATM or MPa and are interchangeable for accuracy.
-
Remote diagnostic capabilities
-
Access to the Fusion IQ® portal – access reports and manage your business online from anywhere in the world.
Electrical Options
120 Volts; 15 Amps; 1800 Watts
240 Volts; 7.5 Amps; 1800 Watts
*Requires air compressor (not included) with minimum:
1/2 horsepower and 2.5 gallon hold tank. Uses 2.3 CFM
Air Fusion Table Top Actual Dimension and Weight:
34” x 18” x 24” at 126lbs
Shipping Dimensions and Weight:
37” x 24” x 24” at 150lbs
Warranty
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
