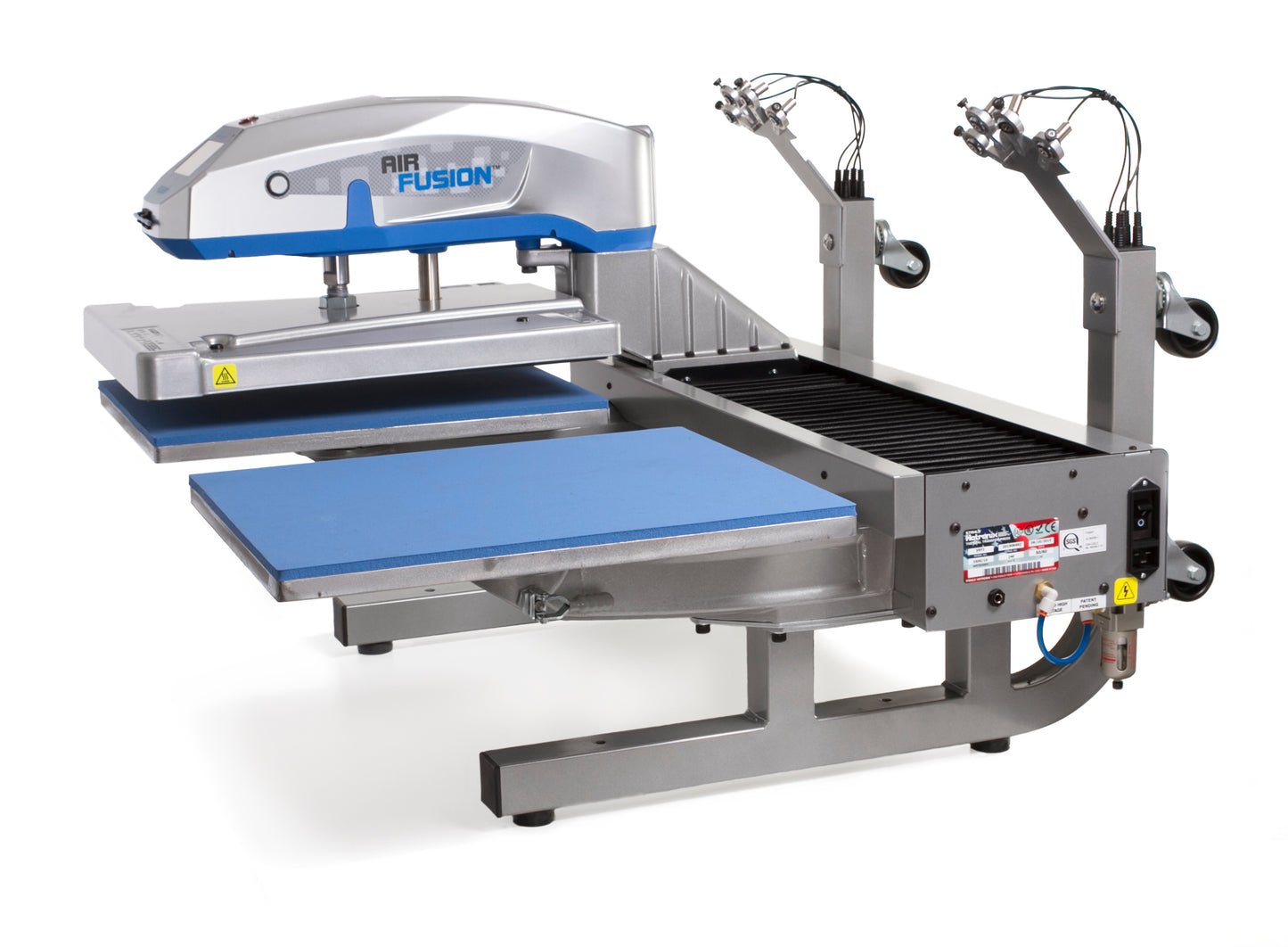

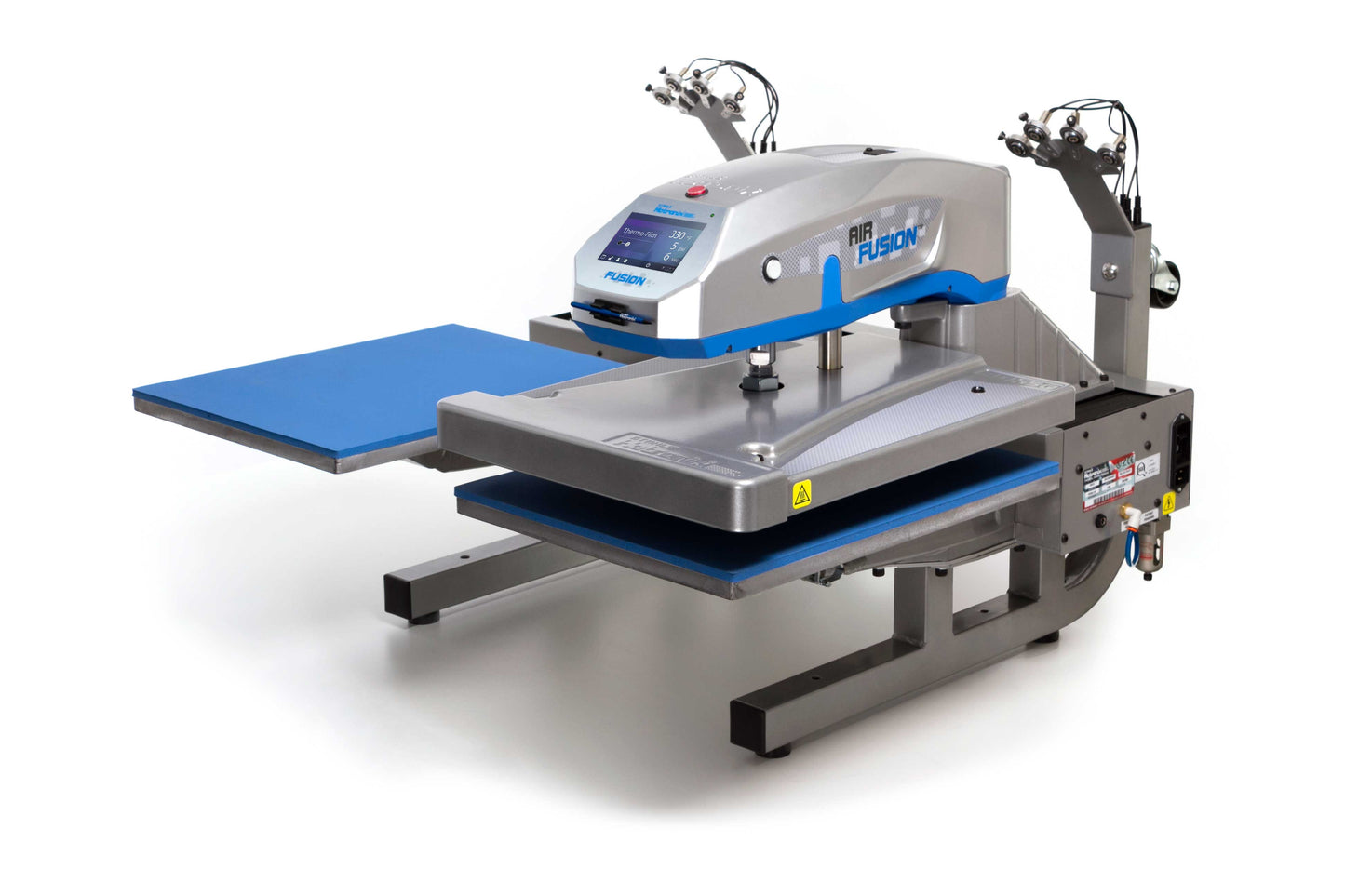

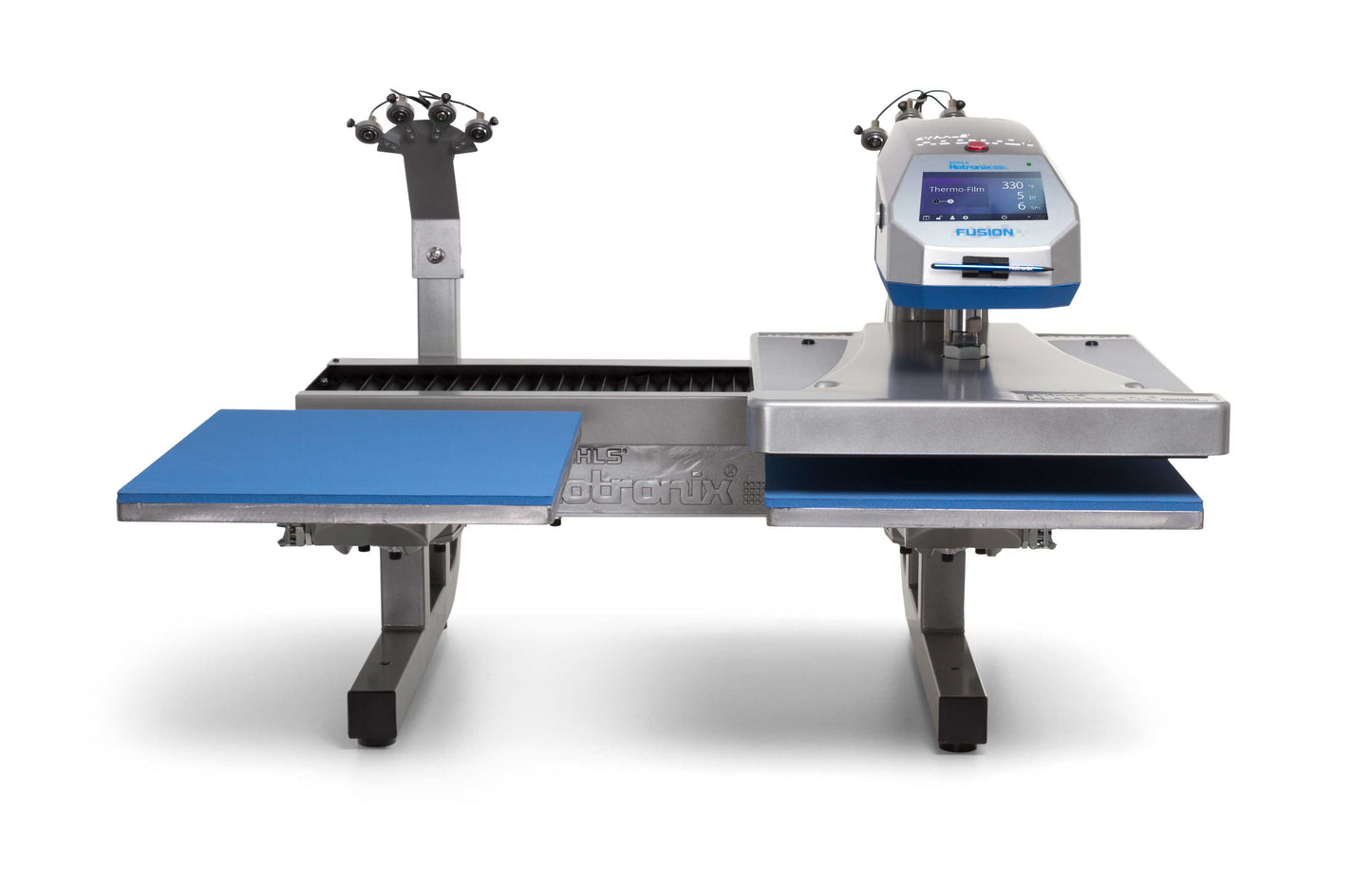

Hotronix Dual Air Fusion IQ Heat Press w/ PRO PLACE IQ 120 Volt Version

This item requires freight charges. A shipping surcharge of $200 will be added at checkout.

Options are available for this product. Please see below

• Hotronix Dual Air Fusion IQ Heat Press 120 Volt Version
• Hotronix Dual Air Fusion IQ Heat Press 240 Volt Version

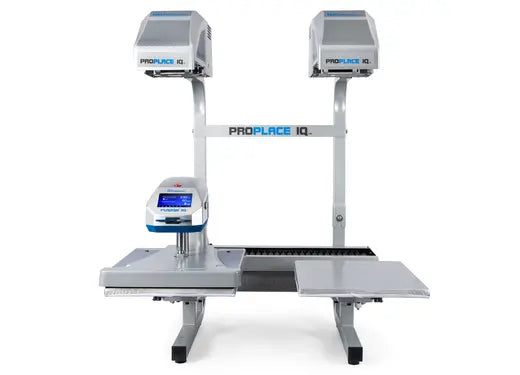

• Hotronix Dual Air Fusion IQ Heat Press w/ PRO PLACE IQ 120 Volt Version
• Hotronix Dual Air Fusion IQ Heat Press w/ PRO PLACE IQ 240 Volt Version

WORK SMARTER, NOT HARDER

Built for ultimate heat printing efficiency, the Dual Air Fusion IQ® provides the functionality of two presses with dual 16" x 20" workstations. Program the press to preheat on station A and complete final application on station B. The press automatically adjusts time and pressure as it shuttles between workstations. It’s a smooth, quiet, effortless operation controlled by the push of a button and tap of the foot pedal. Simply power on and choose between dual or independent operation.

Features

• New Fusion IQ™ controller with larger, higher-resolution screen, plus troubleshooting and self-diagnostic capabilities
• Generate performance reports and manage users online with the new Hotronix Online Portal Program each station to work independently or in unison with Position-Based Recipe printing
• Dual Quick Change 16" 20" lower platens (additional platens available separately)
• Full Threadability™ on lower platens: position the garment, rotate, and decorate any area
• Auto Adjust Pressure™: Set four different time and pressure settings that adjust automatically for your recipe
• Digital time, temperature, and pressure readouts
• Operates in full-auto, semi-auto, or manual modes
• Smooth, quiet rodless transmission
• Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
• 120 PSI for heavy-pressure application
• Die pressure cast, corrosion-free base and assemblies
• Recommended table size: 24" x 36" x 28" with 30" height
• Proudly made in the USA

Warranty

• Heating Element – Lifetime
• Framework – 5 years
• Circuit Board – 2 years
• Parts & Labor – 1 year

Power
120v: 15 amps, 1800 watts (For XRF2-120)

Air Compressor Requirements
Requires an air compressor (not included) with minimum 1 horsepower and 8-gallon hold tank, 120 PSI. Uses 3.8 CFM

Shipping
Shipping:  45”x 45”x 30” at 410lbs
Actual:  38”x 38” x 26” at 260lbs
