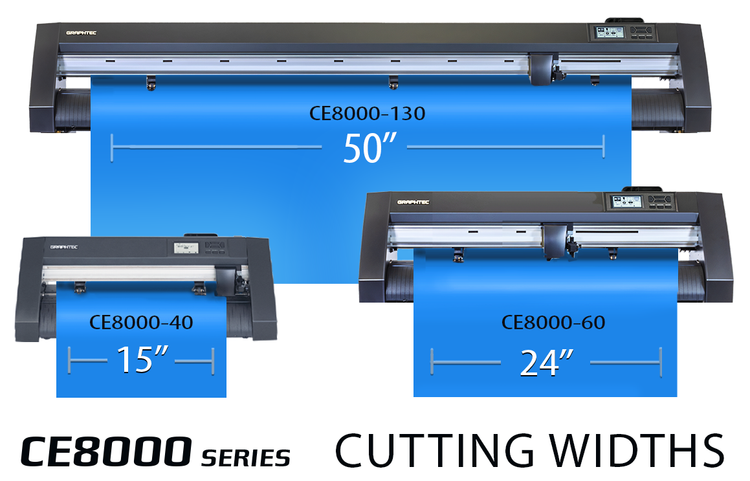

Graphtec CE8000 15in Wide E-Class Desktop Cutter
BOOST YOUR PRODUCTION EFFICIENCY
Introducing the NEW Graphtec CE8000 Series, the go-to solution for boosting production efficiency for Signage and Vinyl Graphics, DTF Apparel, PRINT & CUT, POP & Packaging, Automotive Markets, and more.
Compared to its predecessor, the CE7000, the CE8000 boasts Enhanced Rigidity for better feeding and cutting performance
NEW FEATURE HIGHLIGHTS
- NEW CONTROL PANEL
- NEW WIRELESS LAN Module
- NEW TOOL HOLDER
A NEW TOUCH PANEL with MECHANICAL KEYS
gives users more flexibility with it’s Blind Touch Operation enabling the operator to continually keep eyes on media while feeding.
NEW Wireless LAN:
The CE8000 includes a wireless LAN connection option which improves flexibility of installation locations.
NEW Tool Holder:
Improved design makes it easier to change tools and blade position by sliding the stopper forward and back.
Pressure Adjustable Push Rollers along with newly developed Media Set Assist Function help to hold your media stable and prevent feeding problems.
EMAIL NOTIFICATION:
Completion and Error Notifications can be sent to to users by e-mail
NEW FAN MEDIA ASSIST
The CE8000 internal fan automatically turns on as sensors recognize media to support feeding
CE8000-40
Configuration
Grit roller with digital servo drive system
Maximum cutting area (W x L)
15" x 164'
Cutting area of guaranteed accuracy
14" x 79"
Mountable media width
2" Core, 19"
Number of push rollers
2 rollers
Maximum cutting speed
24"/s, in all directions
Maximum acceleration
Max. 21.2 m/s2 (2.2G) at 45º direction
Maximum cutting force
4.41 N (450 gf)
Minimum character size
Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media)
Programmable resolution
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Repeat-ability
Max. 0.1 mm in plot up to 2 m (*1)
Mountable number of tools
1 tool
Blade type
Supersteel
Pen type
Oil-based ballpoint, Water-based fiber-tip pen
Media type
Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material
Interface
USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX
Buffer memory
2 MB
Command sets
GP-GL / HP-GL™ (Set by command or auto-detect)
Display
Touch Panel Screen (240-dot x 128-dot), supports 10 languages
Registration Mark Sensing System
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection
Alignment accuracy
Maximum 0.3 mm with printed image (when reading specified registration marks)
Power source
100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz
Power consumption
120 VA
Operating environment
10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment
16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W x D x H)
Approx. 26.65" x 17.76" x 10.5"
Weight (Approx.)
24.25 lbs (11kg)
Compatible OS (*2)
- Windows 11 /10 / 8.1 / 64-bit editions
- Mac OS 10.2 (Sierra) to 13 (Ventura)
Included software (download)
- Graphtec Studio 2
- Cutting Master 5 for Windows, and Mac
Compatibility Standards
Safety - PSE, UL/cUL, CE mark
EMC - VCCI Class A, FCC Class A, CE mark
- 1x Cutting blade holder (PHP33-CB09N-HS)
- 1x Cutting Blade (CB09UB)
- 1x Stand (Parts kit)
- 1x Roll Media Tray (Only for CE8000-40)
- 1x Software Download (Graphtec Studio 2 & Cutting Master 5 for Mac and PC)
- 1x Printed Documents (Setup Manual, Cutting Blade Manual, and Safety Manual)
- 1x Power cord (The type of cord is different by destination)
