Available for $5,695.00. Reserve yours now at 214-342-9290 and we'll ship as soon as it's in stock.
The Graphtec High Performance FC9000 series Large Format Cutters are re-engineered to include an improved feeding system, tool head a new ARMS Sensor for barcode reading. The ARMS 8.0 features the introduction of the Datalink Barcode Systems which detects the barcode-linked data from the PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically to process multiple jobs at the touch of a button. This is driven by the newly improved Cutting Master 4 and Graphtec Pro Studio software, or supported in any combination RIP software and printer. An optional take-up reel is now featured to boost production efficiency by automatically winding rolls of media up to 65 feet long with equipped infrared sensor (Compatible with FC9000-140 and FC9000-160).
Datalink Barcode
Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software. The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.
Unrivaled Print/Cut Accuracy
Graphtec’s Advanced Registration Mark Sensing technology delivers precise Print / Cut results in addition to efficiency boosting features. The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.
Heavy Duty Cutting
No flatbed? no problem. A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types. Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.
Contour & Die Cut
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
Take-Up Reel
The optional take-up reel boosts production efficiency by automatically winding rolls of media up to 65 feet long with equipped infrared sensor. Compatible with the FC9000-140 and FC9000-160.
Applications
- Stickers and Decals
- Window Signage
- Highway Signage
- Heat Treansfer Apparel
- Window Tint Film
- Paint Protection Film
- Magnet
- Sandblast Rubber Stencil

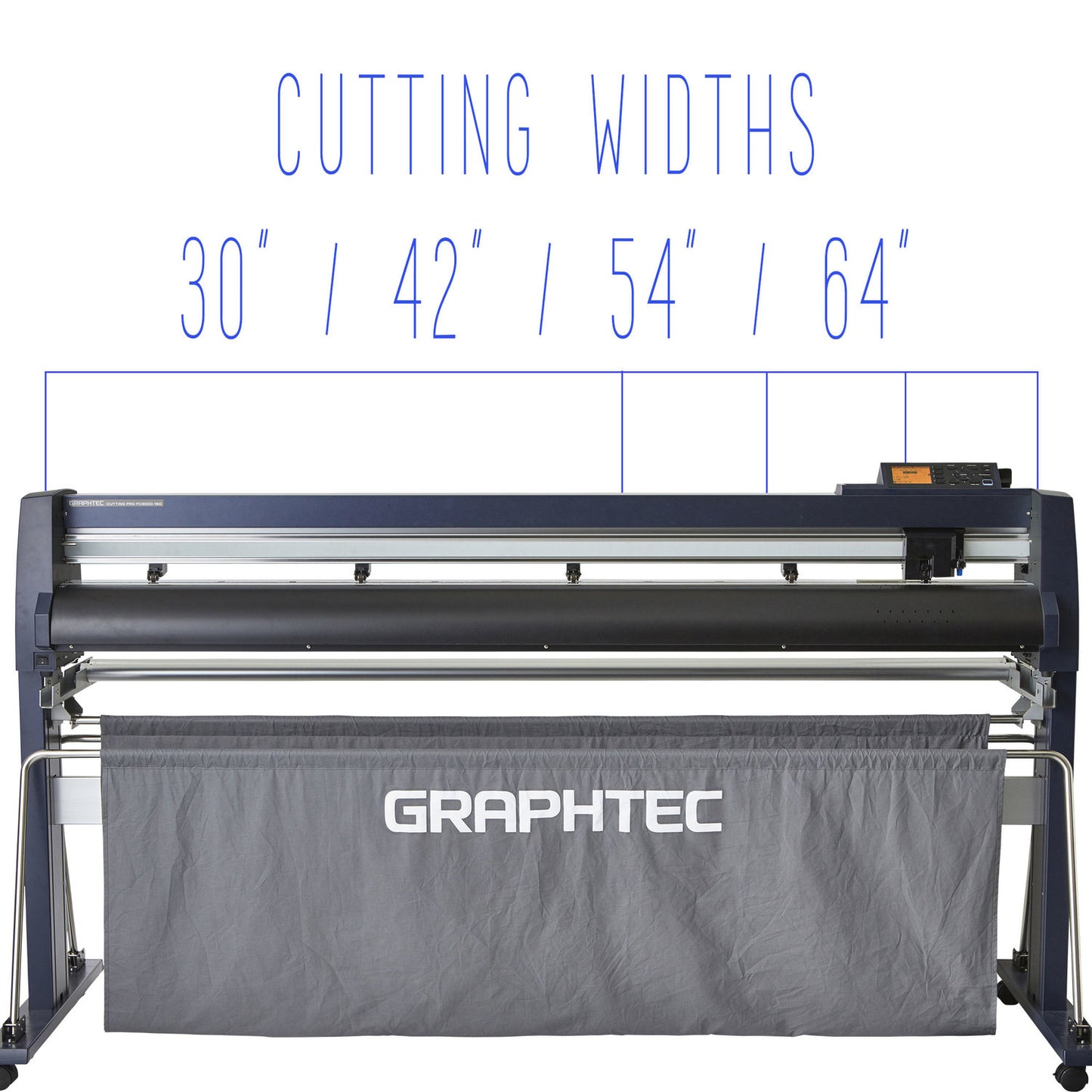

Maximum Cutting Area
42 in x 164 ft
1067 mm x 50 m
Guaranteed Precision Cutting Area
41 in x 32 ft
35.2 in x 50 ft
Mountable Media Width
Min. 1.96 in
Max. 48.19 in
Maximum Cross Cut Width
42 in
Number of Push Rollers
3 rollers
External Dimensions (W x D x H)
61.8" x 28" x 48"
1570 x 715 x 1219 mm
Weight
123 lbs.
CPU
32-bit CPU
Configuration
Grit rolling plotter
Drive method
Digital servo drive
Max. cutting speed
58.5 inches per second (45 degree direction) 41.3 (axis direction)
Cutting force
Max. 600 gf in 48 steps
Axial acceleration
Max. 39.2 m/s2 (4 G) in 8 steps
Compatible roll media diameter
Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed)
Mechanical resolution
0.005 mm
Programmable resolution
GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm
Distance accuracy
Max. 0.1 mm or 0.1 % of plotted length
Repeatability
Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media)
Minimum character size
Approx. 5 mm alphanumeric (varies depending on character font and media)
Mountable number of tools
1 tool (cutting blade, plotting pen or pouncing tool) in standard;
2 tools (cutting blade and plotting pen) when second penholder (optional) is installed
Blade types
Supersteel (0.9 mm or 1.5 mm diameter)
Pen types
Water-based fiber-tip pen, Oil-based ballpoint pen
Pouncing tool type
Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12)
Media types
Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick,Automotive protection and window tinting film, Sandblast resist rubber up to 1 mm thick
Compatible paper for pouncing
Regular paper from 0.06 to 0.13 mm thick
Cross-cutter
Built into the tool carriage
Perforation cutting
Supported (performed by force control)
Interface
USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory
2 MB
Command sets
GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select)
Condition settings
Dual configuration (save two (2) user settings with eight (8) separate condition settings per user)
Display
Graphic type LCD (3.7-inch, backlight)
Power source
100 V to 240 V AC, 50 / 60 Hz
Power consumption
AC100-240 V, 50/60 Hz
Operating environment
50 to 95 ºF, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment
60 to 89 ºF, 35 to 70 % R.H. (non-condensing)
Included Software
Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Compatible OS
Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 13 (Ventura)
Warranty
3 YEAR WARRANTY
Safety
PSE, UL/cUL, CE mark)
EMC
VCCI Class A, FCC Class A, CE mark
