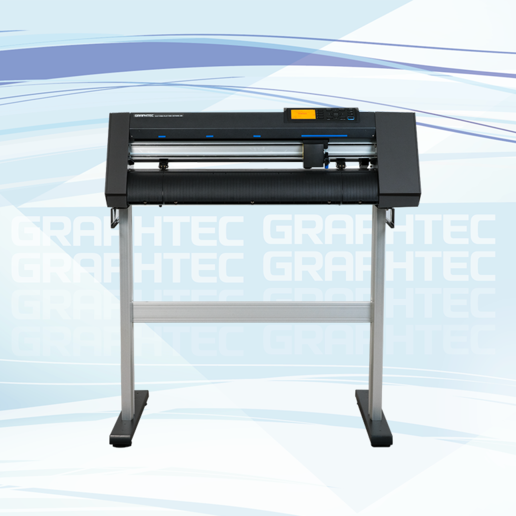

NEW CE7000 Features Include
- New 8.0 ARMS for fast and accurate print and cut applications with XY compensation feature
- Data Link Bar Code feature for maximum productivity
- NEW easy to use USB Thumb Drive connectivity so NO computer needed!
The New CE7000 Series boasts our Popular Cutting Channel to allow easy perforated cut or through cut operations. The NEW CE7000 Series comes complete with our full complement of Graphtec Software along with our NEWLY ADDED Ethernet Connectivity. Cutting Master 4 plug in for Adobe and Corel Users and our ever-Popular Graphtec Pro Studio software for design and cut graphics. The CE7000 series works with both PC and MAC platforms or use the handy new USB Thumb Drive Port if needed. Graphtec makes it easy so contact an Authorized Reseller today!
A BROAD-BASED CUTTER FOR MANY APPLICATIONS
- Stickers and Decals
- Window Signage
- Window Tint Film
- Heat Transfer Apparel
Features
Data Link Barcode - Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button. DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software. The CE7000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.
Contour & Die Cut - Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
Arms 8.0 - A new and improved Advanced Registration Mark Sensing System, or ARMS, for print and cut applications. The DataLink Barcode system is the new addition to ARMS. Barcodes may now be generated and printed as part of the design which creates a hand’s free operation. The reading of Registration marks is faster increasing productivity.
Network Connection - A network connection is now possible through a network interface enabling the use of TCP/IP protocols to transfer cut data.
USB Offline Operation - A new secondary USB port has been added for placing thumb drives so jobs can be uploaded and cut without the need of a computer. Select barcode function or select file directly from the thumb drive.
Configuration
Grit Roller with Digital Servo Drive System
Maximum Cutting Area
24" x 164'
Number of Push Rollers
2 Rollers
Blade Type
Supersteel
Pen Type
Oil-based ballpoint, Water-based fiber-tip pen
Interface
USB 2.0 (Full Speed)
Ethernet
10BASE-T/100BASE-TX
Display
Graphic Type LCD with back-light (240 x 128)
Supports 10 Languages
External Dimensions (W x D x H)
Approx. 39.6" x 23" x 43"
Approx. 39.6" x 36.9" x 43" with Basket
Weight with Basket
51 lbs
55.6 lbs with Basket
Compatible OS
Windows 10 / 8.1 / 7
Mac OSX 10.6 - 10.11 - 10.12 - 10.15
Included Software
Cutting Master 4
Graphtec Pro Studio (For Windows)
Graphtec Studio (For Mac)
Windows Driver
