Price Includes $500 instant rebate. Offer is valid through December 31, 2024.

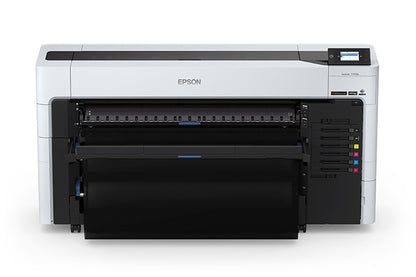

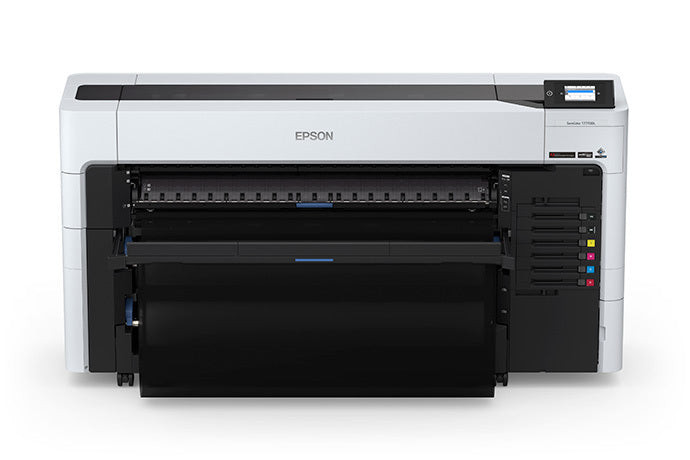

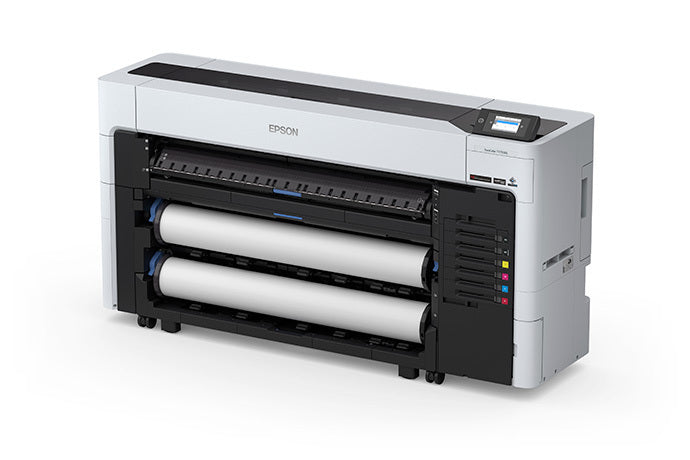

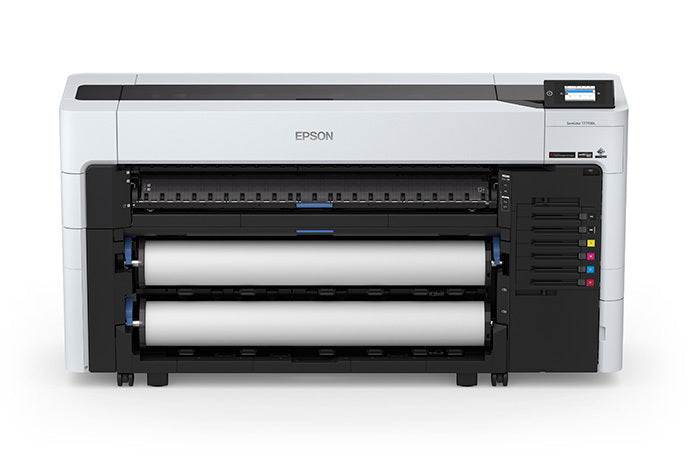

Epson delivers a first-of-its-kind design that redefines speed, versatility and efficiency for its class: the SureColor® T7770DL.
Having the smallest footprint in its class1—up to 25% smaller than its competition1—and full-front operation means the T7770DL fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, generating technical drawings at production-class speeds over 1,400 ft2/hr2, A1/D-size prints in as little as 16 seconds2, and graphics at speeds up to 300 ft2/hr2. Its innovative UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. Built with a 1.6-liter bulk ink pack system (ink sold separately), this high-quality printer provides over double the ink capacity of previous generations for a remarkably low ink cost per milliliter, as well as helps minimize waste when compared to Epson® SureColor T-Series cartridge systems. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer: it’s the new benchmark in high-speed CAD and graphics.
T7770DL Features
- Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
- Reduce total cost of ownership — 1.6 L bulk ink pack system (ink sold separately) more than doubles the ink capacity of previous generations for improved efficiency
- Innovative design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take-up reel integrated
- Stunning image quality and precise line detail — vivid UltraChrome XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
- Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty media, and rigid posterboard up to 1.5 mm thick
- Seamless, dual-roll productivity — accommodate two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production
- Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
- No assembly required — be up and printing in as little as 30 minutes
- Versatile connectivity — SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
- IT and security features — over 28 IT and security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
- Maximize productivity with included Epson Software Suite and Epson Cloud Solution PORT — remotely manage and monitor your printer fleet from the convenience of your laptop or smart device
Printing Technology
PrecisionCore MicroTFP 6-channel drop on demand
Ink Type
UltraChrome XD3 Pigment Ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
Nozzle Configuration
9,600 nozzles (1,600 x 6 channels)
Droplet Technology
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
Maximum Resolution
2400 x 1200 dpi
Real-Time Black Ink Selection
Dedicated Photo and Matte Black Ink Channels selected automatically based on media type
Print Speed
CAD (B0 Size Plain Paper): Over 1,400 ft2/hr
A1/D Size (Plain Paper): 16 sec
Poster (Glossy): Over 300 sq ft2/hr
Printer Language/Drivers
Epson Professional Print Drivers (Included), Epson ESC/P® raster, HP-GL/2, HP RTL, Adobe® PostScript® 3™, Adobe PDF 1.7, Adobe Embedded Print Engine (Included)
Memory (Built-In)
4GB
Epson Replacement Ink Packs
Ink packs are not included with this printer.
Starter Ink Set (T52YM20) is needed to initialize printer and sold separately.
Retail Ink Pack Fill Volume
Colors (C, M, Y, R): 1.6 L
Black (MK, PK): 1.6 L
Roll Media Handling
Number of Input Rolls
2 (Input Roll #1 can be used optionally as a take-up reel)
Take-Up Reel
Included
Take-Up Reel Configuration
Roll Print-Side in or Print-Side out (Selectable)
Minimum Roll Width
Minimum 10"
Maximum Roll Width
Up to 44"
2" or 3" Core Diameter
User-adjustable roll media spindles
Roll Cutting
High-speed internal rotary cutter; auto or manual (replaceable)
Maximum Roll Diameter
Up to 6.69"
Maximum Roll Weight
27 lb
Roll Media Thickness
0.07 mm to 0.8 mm
Roll Paper Remaining
Printable barcode tracking - the amount of remaining paper can be controlled and monitored automatically from the control panel.
Sheet Media Handling
Single Sheet, Front or Rear Loading
Up to 44" wide
Minimum Sheet Width
8"
Minimum Sheet Length
8"
Sheet Media Maximum Thickness
Up to 1.5 mm (Rigid Posterboard)
Printable Area and Accuracy
Line Accuracy
±0.1% or ±0.26 mm (whichever is greater)
Margin:
Left/Right
3 mm per side (Standard), or 0 mm at BorderFree widths
Top/Bottom:
Roll Paper Minimum: 3 mm top/bottom
Cut Sheet Minimum: 3 mm top and 12.7 mm bottom
BorderFree Sizes
10", 13", 16", 17", 20", 24", 36" or 44" wide
Maximum Printable Length
298 feet
Minimum Line Width
0.08 mm
Interfaces
Articulating LCD Display
4.3" Touchscreen
USB Expansion Port
Optional RFID Card Reader
Printer Interfaces
SuperSpeed USB 3.0, 100BASE-TX /1000BASE-T/IEEE
802.11b/g/n/ac, USB memory stick, 960GB SSD (optional)
Operating Systems Supported
Mac® OS X® 10.9.5 or later, macOS® 11 or later
Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP (32-bit/64-bit), Windows Server® 2019/2016/2012, R2/2012/2008, R2/2008/2003, R2/2003 SP2 or later
General
Dimensions (W x D x H)
73" x 19.6" x 38.4" (Storage and Operating)
Dimensions (W x D x H)
73" x 32.6" x 38.4" (Paper Basket Extended)
Weight
364 lb
Acoustic Noise Level
Operating: 49.6 db(A)
Sleep: 6.6 db(A)
Temperature
Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 C˚ to 40 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Storage: 5% – 85% (no condensation)
Safety Standards
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with FCC Class B Requirements
Electrical Requirements
Voltage: AC 110 V – 240 V
Frequency: 50 Hz – 60 Hz
Current: 3.4 A
Power Consumption
Printing: Approx. 75 W
Ready: Approx. 32 W
Sleep: 2 W
Power Off (Standby): 0.3 W
Limited Warranty and Service
Standard 1-year usually next-business-day on-site repair with included phone support Monday through Friday
Country of Origin
Indonesia
- SureColor T7770DL Printer
- Maintenance Box (Pre-Installed)
- Borderless Maintenance Box
- Two Roll Media Adapters (Pre-Installed)
- Start Here Poster
- AC Power Cable
