Price includes $500 instant rebate. Offer is valid through December 31, 2024.
This design changes everything

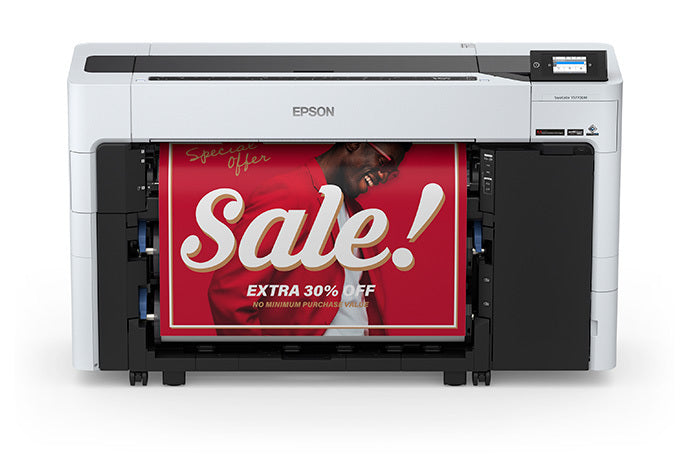

Epson delivers a first-of-its-kind design that redefines innovation, speed and versatility for its class: the all-in-one SureColor® T5770DM. This multifunction printer features an integrated 36" wide dual-light scanner that enables both high-speed scanning, at up to 10 inches per second (black-and-white) and 4.5 inches per second (color), and copying for documents up to 36" wide. What’s more, there is no additional footprint vs. single-function T5770 Series printers. The scanner’s dual light source reduces the appearance of wrinkles on the original document, and predefined modes help optimize scan quality based on image type. With a compact design that includes full front operation, the T5770DM fits where other printers don’t.
The T5770DM delivers A1/D-size prints in as fast as 16 seconds and features integrated wireless connectivity, so you can easily print from virtually anywhere in your home or office as well as scan a variety of file formats to your mobile device using the Epson Smart Panel® app. Additionally, the printer’s vibrant UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership. Add it all up, and the T5770DM is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
Epson Print Automate - Make printing easy with one click
Print beautiful posters on-demand, every time with this free easy-to-use software.
SureColor T-Series Product Comparison Guide
Find your ideal printer by exploring our SureColor T-Series printer comparison guide.
SureColor T-Series Plotters - Beyond Brilliant
SureColor T-Series printers offer fast, precise and reliable printing solutions for creative professionals from architects, engineers, and construction sites to graphic artists and product designers.
Features
- Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
- Innovative design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take-up reel integrated
- Compact design with integrated 36" wide dual-light scanner — scan and copy documents up to 36" wide with no additional footprint vs. single-function T7770 Series printers; dual light source reduces the appearance of wrinkles
- Versatile high-speed scanning options — scan files to USB, mobile devices, PCs, network folders and more at speeds up to 10 inches per second (black-and-white) and 4.5 inches per second (color)1; file formats include PDF, JPEG and TIFF; line drawing, blueprint and rendering enhancement predefined modes available based on image type
- Stunning image quality and precise line detail — vivid UltraChrome XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
- Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty media, and rigid posterboard up to 1.5 mm thick

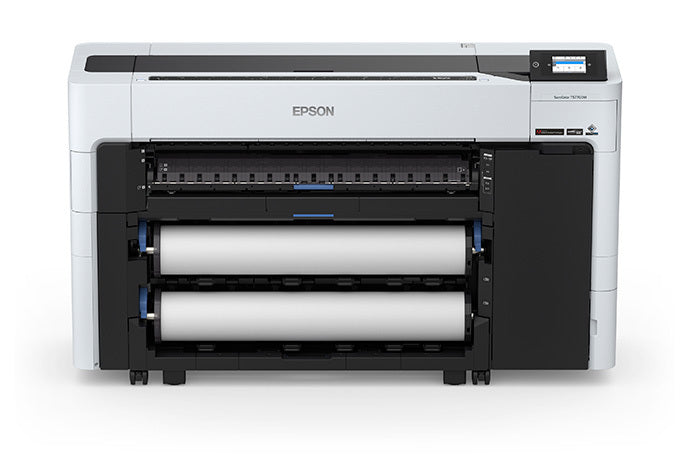

- Seamless, dual-roll productivity — accommodate two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production
- Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
- No assembly required — be up and printing in as little as 30 minutes
- Versatile connectivity — SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
- Included Epson® Software Suite and Epson Cloud Solution PORT4 help maximize productivity — remotely manage and monitor your printer fleet from the convenience of your laptop or smart device
Printing Technology
PrecisionCore MicroTFP 6-channel drop on demand
Ink Type
UltraChrome XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
Nozzle Configuration
9,600 nozzles (1,600 x 6 channels)
Droplet Technology
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
Maximum Resolution
2400 x 1200 dpi
Real-Time Black Ink Selection
Dedicated Photo and Matte Black Ink channels selected automatically based on media type
Print Speed
A1/D-Size (Plain Paper): 16 sec
A0-Size (Plain Paper): 32 sec (Speed Mode)
A0-Size (Glossy): 108 sec (Speed Mode)
Printer Language/Drivers
Epson Professional Print Drivers (included), Epson ESC/P® raster, Adobe® PostScript® 3™, Adobe PDF 1.7, Adobe Embedded Print Engine (included)
Memory (Built-In):
6GB Printer + 3GB Scanner
Ink
In-Box Cartridge Fill Volume
Colors (C, M, Y, R): 240 mL each
Black (MK, PK): 240 mL each
Retail Cartridge Fill Volume
Colors (C, M, Y, K, R): 110 mL, 350 mL or 700 mL
Black (MK, PK): 110 mL, 350 mL or 700 mL
Printer is designed for use with Epson cartridges only, not thirdparty cartridges or ink*.
Copy
Maximum Copies
Up to 99
Reduction/Enlargement
25% – 755%
Scan
Scanner Type
RGB Color Filter CIS
Scan/Copy Resolution
Up to 600 dpi, reprint 2400 x 2100 dpi
Scan Speed
Up to 4.5 ips (color)
Up to 10 ips (monochrome)
Maximum Scan Width
Up to 36"
Maximum Scan Length
Up to 120" (300 dpi)
Scan Media Type
Plain Paper, Recycled Paper, Coated Paper, Glossy Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper, Newspaper, Flyer, Drafting Paper, Carrier Sheet
Maximum Copies
Up to 99
Reduction/Enlargement
25% – 755%
File Type Support
JPEG, PDF (Single Page), PDF (Multi-Page), PDF/A, Encrypted PDF, TIFF
Printer Interfaces
SuperSpeed USB 3.0, 100Base-TX/1000Base-T, IEEE 802.11 b/g/n/ac, USB memory stick, 960GB (SSD), Adobe Embedded Print Engine, Articulating LCD Display, 4.3" touchscreen and Optional RFID card reader (USB Expansion Port)
Connectivity
Standard Connectivity
SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® connectivity (2.4 GHz and 5 GHz)
Operating Systems Supported
Mac® OS X® 10.9.5 or later, macOS® 11 or later
Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later
Paper Handling
Roll Media Handling
Number of Input Rolls: 2 (Input Roll #1 can be used optionally as a take-up reel)
Take-Up Reel: Included
Take-Up Reel Configuration: Roll print-side in or print-side out (selectable)
Minimum Roll Width: Minimum 10"
Maximum Roll Width: Up to 36"
2" or 3" Core Diameter: User-adjustable roll media spindles
Roll Cutting: High-speed internal rotary cutter; auto or manual (replaceable)
Maximum Roll Diameter: Up to 6.69"
Maximum Roll Weight: 27 lb
Roll Media Thickness: 0.07 mm to 0.8 mm
Roll Paper Remaining: Printable barcode tracking; the amount of remaining paper can be controlled and monitored automatically from the control panel
Sheet Media Handling
Single Sheet, Front- or Rear-Loading: Up to 36" wide
Minimum Sheet Width: 8"
Minimum Sheet Length: 8"
Sheet Media Maximum Thickness:
Up to 0.8 mm
Posterboard:
0.8 mm – 1.5 mm (rigid posterboard only)
Printable Area and Accuracy
Line Accuracy: ±0.1% or ±0.26 mm (whichever is greater)6
Margins:
Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths
Top/Bottom:
Roll Paper: Minimum 3 mm top and 3 mm bottom
Cut Sheet: Minimum 3 mm top and 12.7 mm bottom
BorderFree Sizes: 10", 13", 16", 17", 20", 24" and 36" wide
Maximum Printable Length: Up to 298 ft
Minimum Line Width: 0.08 mm
General
Temperature
Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Storage: 5% – 85% (no condensation)
Acoustic Noise Level
Operating: 49.6 dBA
Sleep: 6.6 dBA
Power Requirements
Voltage: AC 110 V – 240 V
Frequency: 50 Hz – 60 Hz
Current: 3.4 A
Power Consumption
Printing: Approx. 90 W
Ready: Approx. 44 W
Sleep: 2 W
Power Off (Standby): 0.3 W
Safety Approvals
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with FCC Class B Requirements
Dimensions (W x D x H)
65" x 20" x 39" (storage and operating)
65" x 33" x 39" (paper basket extended)
Weight: 331 lb
Country of Origin
Indonesia
- SureColor T5770DM Printer
- Full Set of Initial Ink Cartridges (240 mL each: C, M, Y, MK, PK, R)
- Maintenance Box (Pre-Installed)
- Borderless Maintenance Box
- Two Roll Media Adapters (Pre-Installed)
- Start Here Poster
- AC Power Cable
