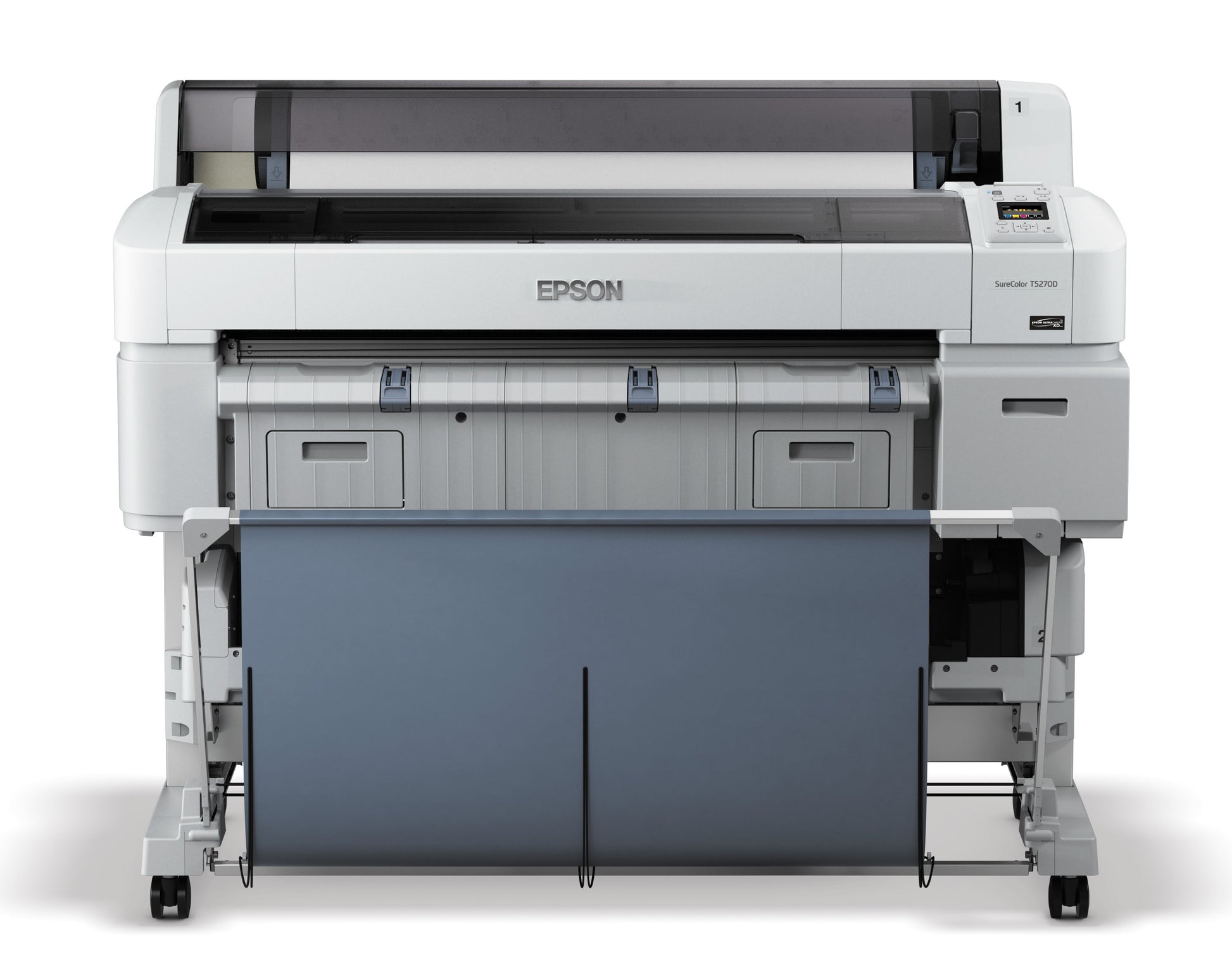

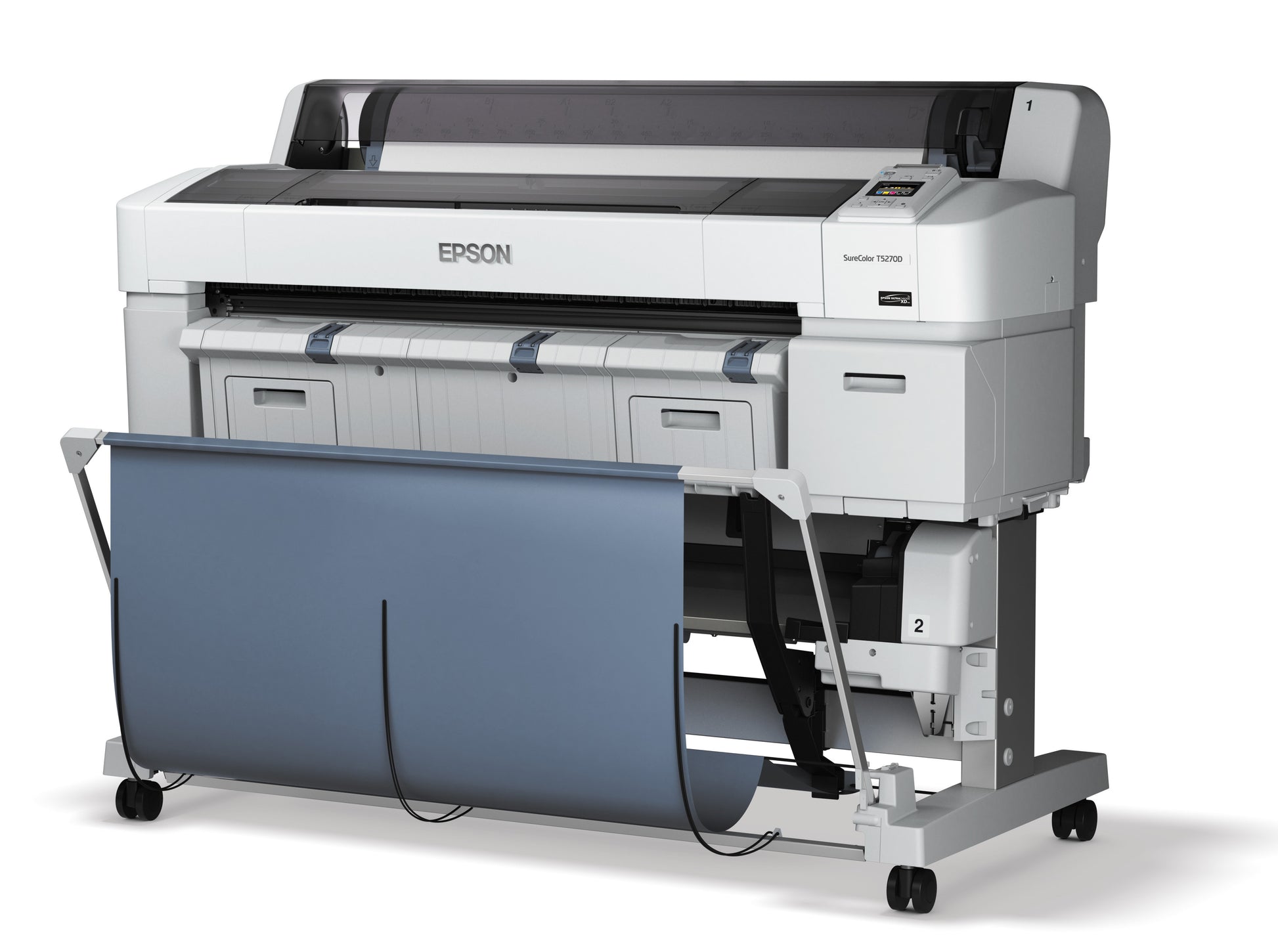

Epson SureColor T5270 36" Dual Roll Printer (SCT5270DR)

The Epson T-Series SCT5270DR provides a 36” technical wide print solution built with a dual roll to minimize downtime and keep workflow moving in a multiple print job environment. The SCT5270DR provides maximum speed output along with print results at the highest detail backed behind Epson’s advanced UltraCrhome XD ink technology and latest PrecisionCore® TFP® print head.

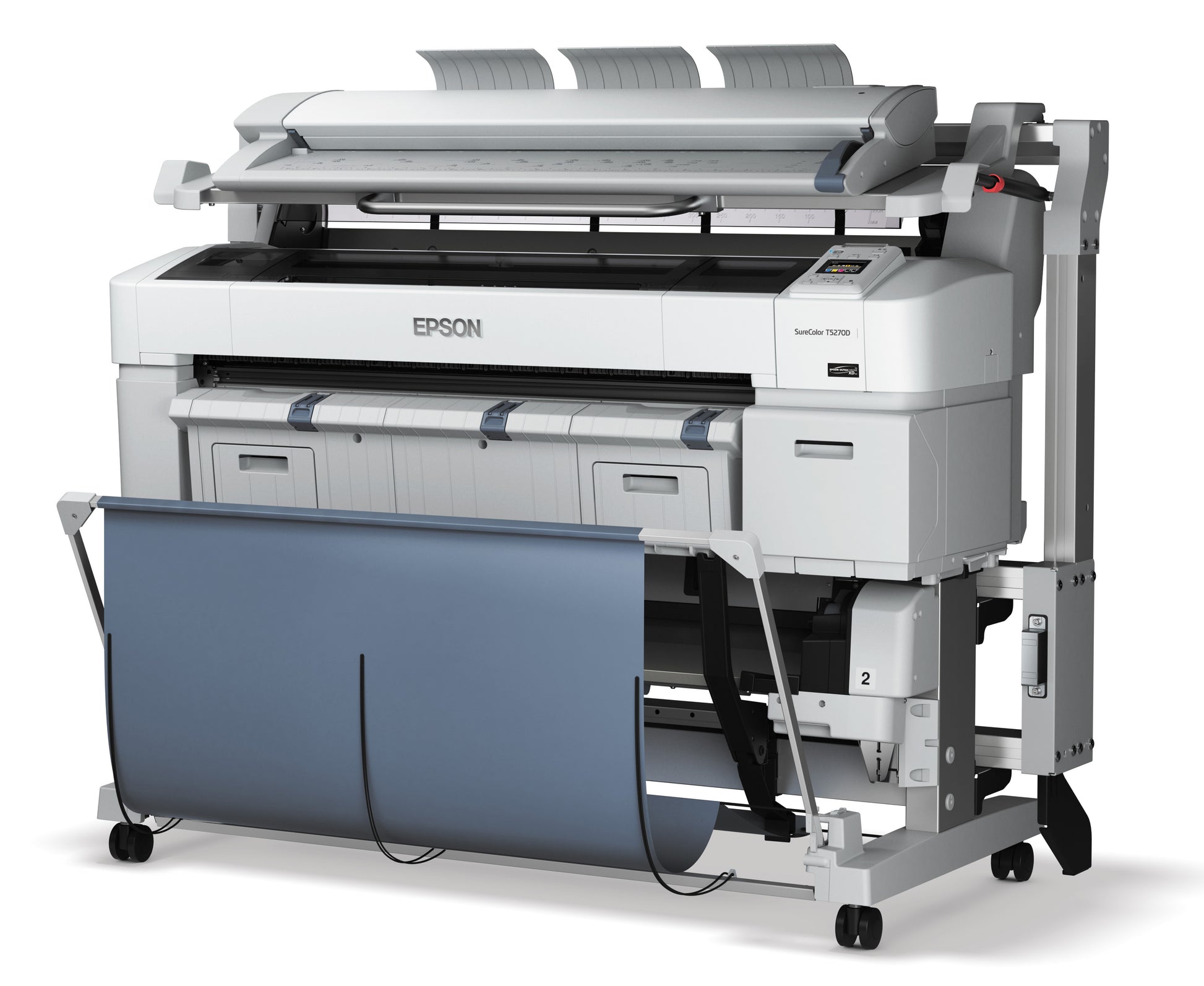

This is an excellent plotter in the fields of Engineering, Architecture, Mapping, Retail, Education, Real Estate and Offices of Government that are looking for a printer to produce detailed maps, blueprints, posters, graphic images and several other technical print applications. And with the option to add a multi-function system that can copy and scan files remotely or on a shared network, the Epson SCT5270DR 36” printer is the ultimate printing solution for your business.

For even higher performance, the SCT5270DR has options to include an Adobe® Postscript® 3 Hardware Module and 320GB Internal Server to increase overall workflow and reach full potential on all print jobs.

Printer Overview

• Fastest Print Speeds in its class at only 25 seconds for a presentation quality D-size plot, print speeds up to 780 ft2 per hour, and color scan speeds up to 6-inches per second1
• Modular design options, including Multifunction copy and scan, Adobe® PostScript® , and a Internal Printer server to be added in the future as your needs grow
• Revolutionary EPSON PrecisionCore, TFP® print head
• Professional media handling from plain paper up to 1.5 mm thick posterboard
• Horizontal Catch Basket for neatly stacked printed output of different sizes and paper types
• High-Capacity ink system for low printing costs
• Free one-year of coverage under the Epson Preferred Protection Plan

Epson Precision Core

• Maximum resolution of 2880 x 1440 dpi for incredibly sharp text and fine detail
• Precise ink drop control with variable-sized droplets as small as 3.5 picoliters for outstanding clarity and sharpness
• Utilizes Micro-Electro-Mechanical Systems (MEMS) Technology for unparalleled Dot Placement accuracy and high speeds
• Developed for use with Epson UltraChrome XD inks for high reliability with very little downtime for maintenance

Epson Resources

Specification Sheet for T-Series Printers PDF

View SureColor T-Series Comparison Guide PDF

Finance Options

Base Printing Technology

• PrecisionCore TFP Print Head
• 10-channel, drop-on-demand, inkjet print head
• 5-cartridge (Cyan, Magenta, Yellow, Photo Black, Matte Black)
• Epson UltraChrome XD ink
• Professional-level pigment-based ink technology

Printer Nozzle Configuration

Color and Monochrome 720 nozzles per Color
Enhanced Variable Droplet Technology as small as 3.5 picoliters

Resolution

2880 x 1440 dpi; 1440 x 1440 dpi; 1440 x 720 dpi;
720 x 720 dpi; 720 x 360 dpi

Dimensions

• Dimension: 56in (W) x 30in (D) x 45in (H)
• Weight: 261 lbs

Print Engine Speeds

Typical Color CAD Plot Speeds

Multifunction Scanning Module

Operating Systems Supported

• Macintosh: Mavericks 10.9, Mountain Lion 10.8, Lion 10.7 (Intel based)
• Windows: Windows 8, Windows 7, Windows Server 2012, Windows Server 2008 R2

Printer Interfaces & Language

• One Hi-Speed USB 2.0 port
• One Gigabit Ethernet port (10/100/1000 Base-T) with support for TCP/IP IPv4, IPv6, Apple® Bonjour®, FTP, WSD, RAW IP, LPD, IPSec, SSL/TLS, and IEEE802.1X authentication protocols
• Epson Precision XD and HPGL/2 & HP-RTL
• Optional Adobe Postscript 3 module supports PS, EPS, PDF, JPEG, TIFF and CALS-G4 file formats

Acoustic Noise Level

Approximately 50 dB(A) according to ISO 7779

Limited Warranty and Service

Standard one-year on-site next business day service with toll-free phone support Monday thru Friday.

Optional Epson SureColor T-Series Extended service plans available for purchase.

Epson Intelligent Ink Cartridge^C

Media Handling

Printable Area

Maximum printable length limited by software
application, OS, media length, and RIP

BorderFree^® Printing

Left and right borderless "bleed" printing for the following roll media widths:

Top and bottom edges can be automatically cut to any length when printing on roll media.

Electrical Requirements

Fully ENERGY STAR Complaint

Environmental Characteristics

Epson T5270 Inks

Epson T5270 Accessories
