Price includes $300 instant rebate. Offer is valid through December 31, 2024.

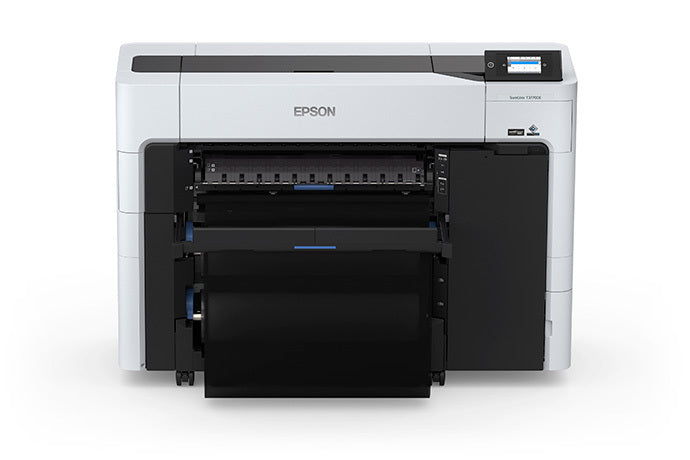

Epson delivers a first-of-its-kind design that shatters expectations and redefines capability, versatility and efficiency for its class: the SureColor® T3770DE.
With a compact footprint and all-front operation, the T3770DE fits where other printers don’t. It’s designed for outstanding quality, sharpness and speed, producing technical drawings at production-class speeds with A1/D-size prints in as little as 16 seconds1. Its innovative six-ink set with dedicated Red Ink opens the door to an extraordinary color gamut for a production printer as well as rich red branding colors. And simple, carefree operation combined with new levels of media flexibility helps users do more using less space—all with a low total cost of ownership (TCO). Add it all up, and this is not just a one-of-a-kind printer—it’s the new benchmark in high-speed CAD and graphics.
SCT3770EDR Features
- Incredible speed and performance — delivers crisp, detailed, colorful prints using a reliable 2.64" PrecisionCore® MicroTFP printhead, producing remarkable A1/D-size prints in as little as 16 seconds
- Innovative design fits any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take up reel integrated
- Stunning image quality and precise line detail — vivid UltraChrome® XD3 Ink with Red Ink produces crisp lines and vibrant colors for graphics, signage, blueprints, documents and more
- Print on a wide range of media for various applications — print on a variety of media, including glossy, technical, bond, matte and specialty medias, and rigid posterboard up to 1.5 mm thick
- Seamless, dual-roll productivity — accommodates two media types or sizes, or use second roll as a take-up reel for roll-to-roll production
- Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
- No assembly required — be up and printing in as little as 30 minutes
- Versatile connectivity — high-speed USB 3.0, Gigabit Ethernet or Wi-Fi® connectivity (2.4 GHz and 5 GHz) options to fit virtually any production workflow
- IT and security features — over 28 IT security features for office or remote office locations, including IC card option for user control and tracking, SSD Encryption and IEEE 802.1x
- Maximize productivity with included Epson® Software Suite and Epson Cloud Solution PORT — remotely manage and monitor your printer fleet from the convenience of your laptop or smart device
Printing Technology
PrecisionCore MicroTFP 6-channel drop on demand
Ink Type UltraChrome
XD3 pigment ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
Nozzle Configuration
9,600 nozzles (1,600 x 6 channels)
Droplet Technology
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to 3 different sizes per nozzle
Maximum Resolution
2400 x 1200 dpi
Real-Time Black Ink Selection
Dedicated Photo and Matte Black Ink channels selected automatically based on media type
Print Speed
A1/D Size (Plain Paper): 16 sec
A1/D-Size (Glossy): 65 sec (Speed Mode)
Printer Language/Drivers
Epson Professional Print Drivers (included), Epson ESC/P® raster, HP-GL/2, HP RTL)
Memory (Built-In)
4 GB
Epson Intelligent Ink Cartridges
In-Box Cartridge Fill Volume
Colors (C, M, Y, R) 240 mL each
Black (MK, PK) 240 mL each
Retail Cartridge Fill Volume
Colors (C, M, Y, K, R) 110 mL, 350 mL or 700 mL
Black (MK, PK) 110 mL, 350 mL or 700 mL
Ink Cartridge Shelf Life
2 years from printed production date or 6 months after opened
Printer is designed for use with Epson cartridges only, not third-party cartridges or ink*.
Roll Media Handling
Number of Input Rolls
2 (Input Roll #1 can be used optionally as a take-up reel)
Take-Up Reel
Included
Take-Up Reel Configuration
Roll print-side in or print-side out (selectable)
Minimum Roll Width
Minimum 10"
Maximum Roll Width
Up to 24"
2" or 3" Core Diameter
User-adjustable roll media spindles
Roll Cutting
High-speed internal rotary cutter; auto or manual (replaceable)
Maximum Roll Diameter
Up to 6.69"
Maximum Roll Weight
27 lb
Roll Media Thickness
0.07 mm to 0.8 mm
Roll Paper Remaining
Printable barcode tracking The amount of remaining paper can be controlled and monitored automatically from the control panel.
Sheet Media Handling
Single Sheet, Front or Rear Loading
Up to 24" wide
Minimum Sheet Width
8"
Minimum Sheet Length
8"
Sheet Media Max. Thickness
Up to 1.5 mm (rigid posterboard)
Printable Area and Accuracy
Line Accuracy
±0.1% or ±0.26 mm (whichever is greater)
Margin
Left/Right:
3 mm per side (standard) or 0 mm at BorderFree® widths
Top/Bottom:
Roll Paper: Min. 3 mm top/ 3mm bottom or 0 mm using BorderFree
Cut Sheet: Min. 3 mm top/ 12.7 mm bottom
BorderFree Sizes
10", 13", 16", 17", 20" or 24" wide
Maximum Printable Length
298 ft
Minimum Line Width
0.08 mm
Interfaces
Articulating LCD Display
4.3" touchscreen
USB Expansion Port
Optional RFID card reader
Printer Interfaces
SuperSpeed USB 3.0, 100BASE-TX/1000BASE-T/IEEE
802.11b/g/n/ac, USB memory stick, 960 GB (SSD) optional
Operating Systems Supported
Mac® OS X® 10.9.5 or later, macOS® 11 or later
Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/2012/2008 R2/2008/2003 R2/2003 SP2 or later
General
Dimensions (W x D x H)
54" x 20" x 39" (storage and operating)
Dimensions (W x D x H)
54" x 32" x 39" (paper basket extended)
Weight
261 lb
Acoustic Noise Level
Operating: 49.6 dBA
Sleep: 6.6 dBA
Temperature
Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
Relative Humidity
Operating: 20%–80% (no condensation)
Storage: 5%–85% (no condensation)
Safety Standards
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with FCC Class B Requirements
Electrical Requirements
Voltage: AC 110 V–240 V
Frequency: 50 Hz–60 Hz
Current: 3.4 A
Power Consumption
Printing: Approx. 75 W
Ready: Approx. 32 W
Sleep: 2 W
Power Off (Stand By): 0.3 W
Limited Warranty and Service
Standard 1-year usually next-business-day on-site repair with included phone support Monday through Friday
Country of Origin
Indonesia
- SureColor T3770DE Printer
- Full Set of Initial Ink Cartridges (240 mL C, M, Y, MK, PK, R)
- Maintenance Box (Pre-Installed)
- Borderless Maintenance Box
- 1 Roll Media Adapter (Pre-Installed)
- Start Here Poster
- AC Power Cable
Note: Media is not included with the printer
