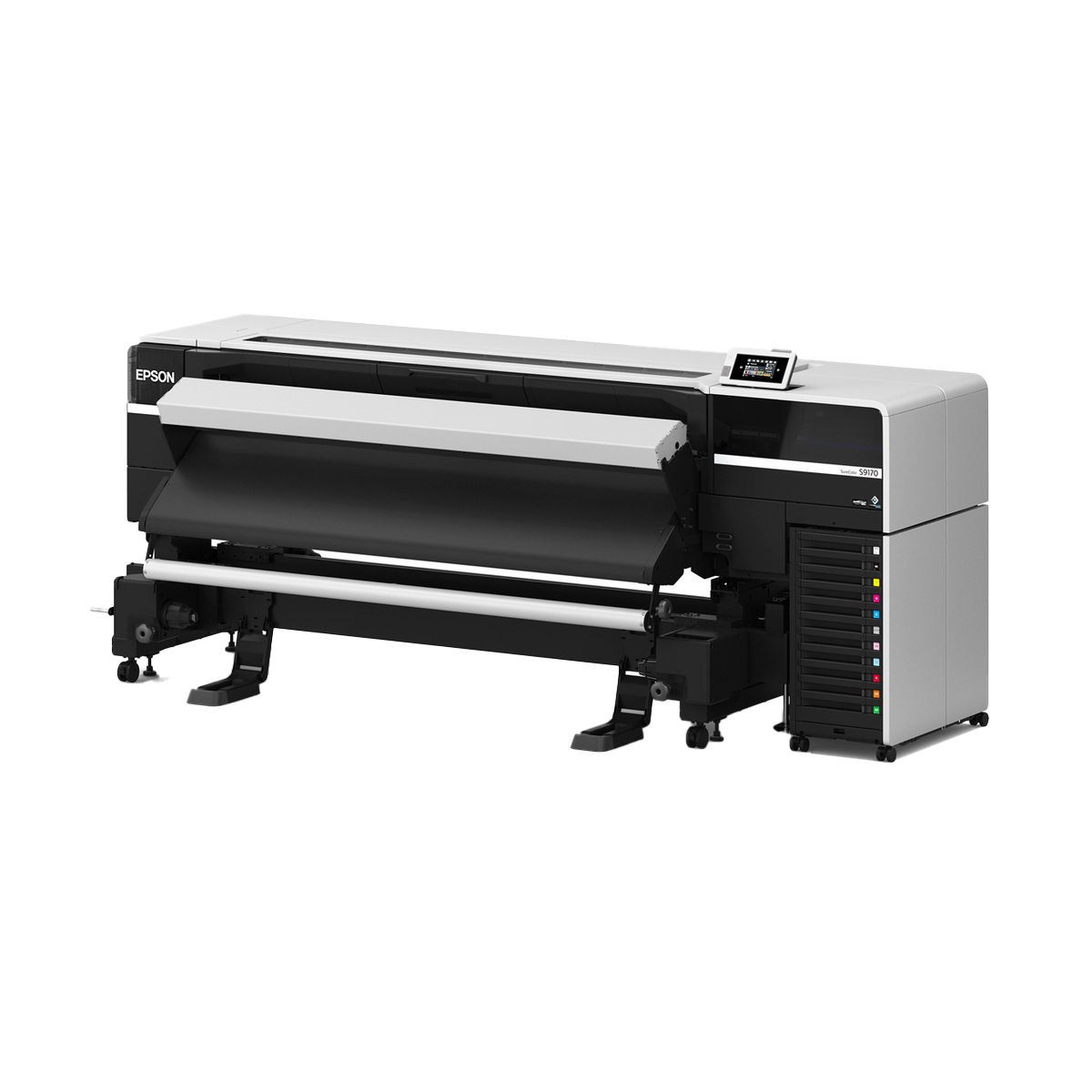

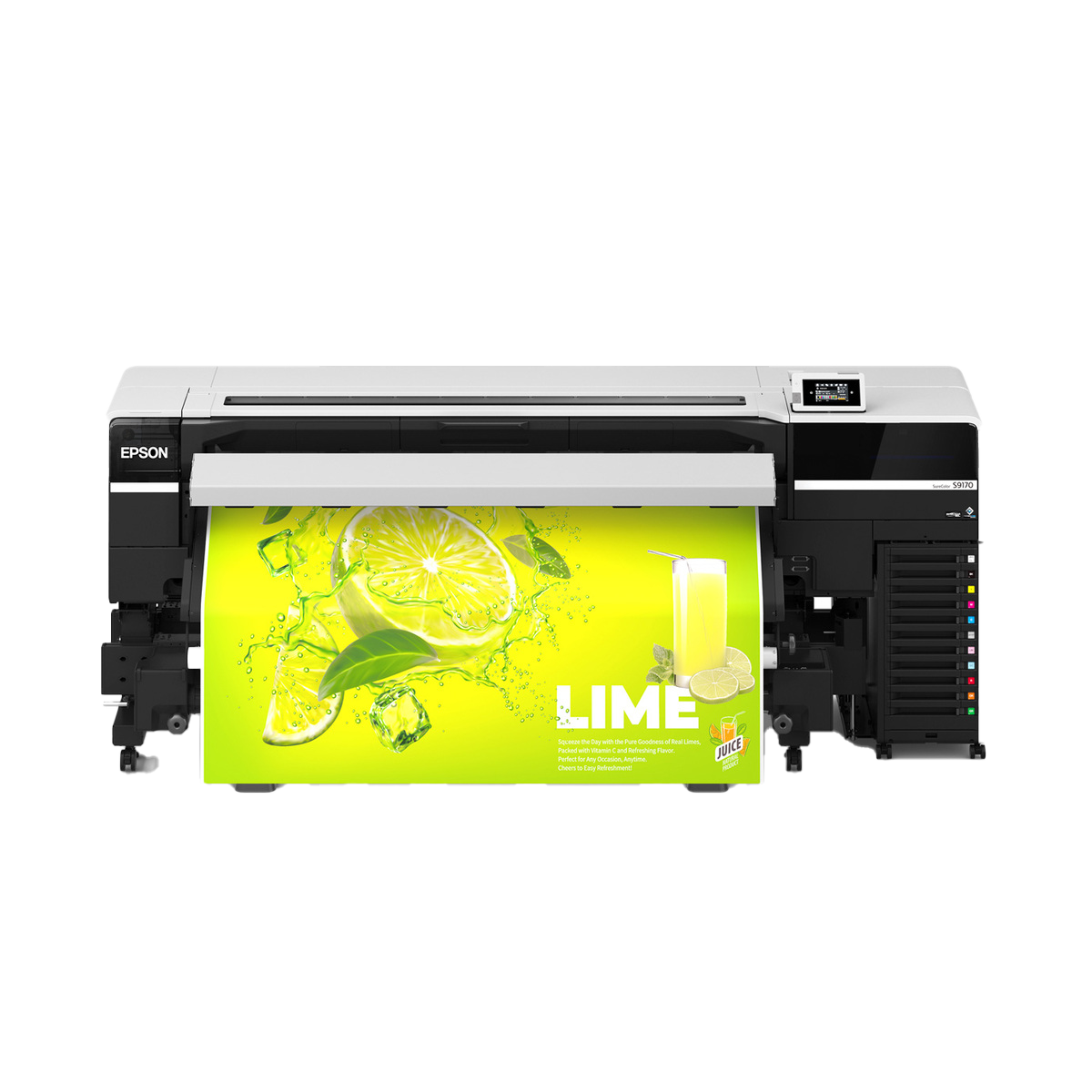

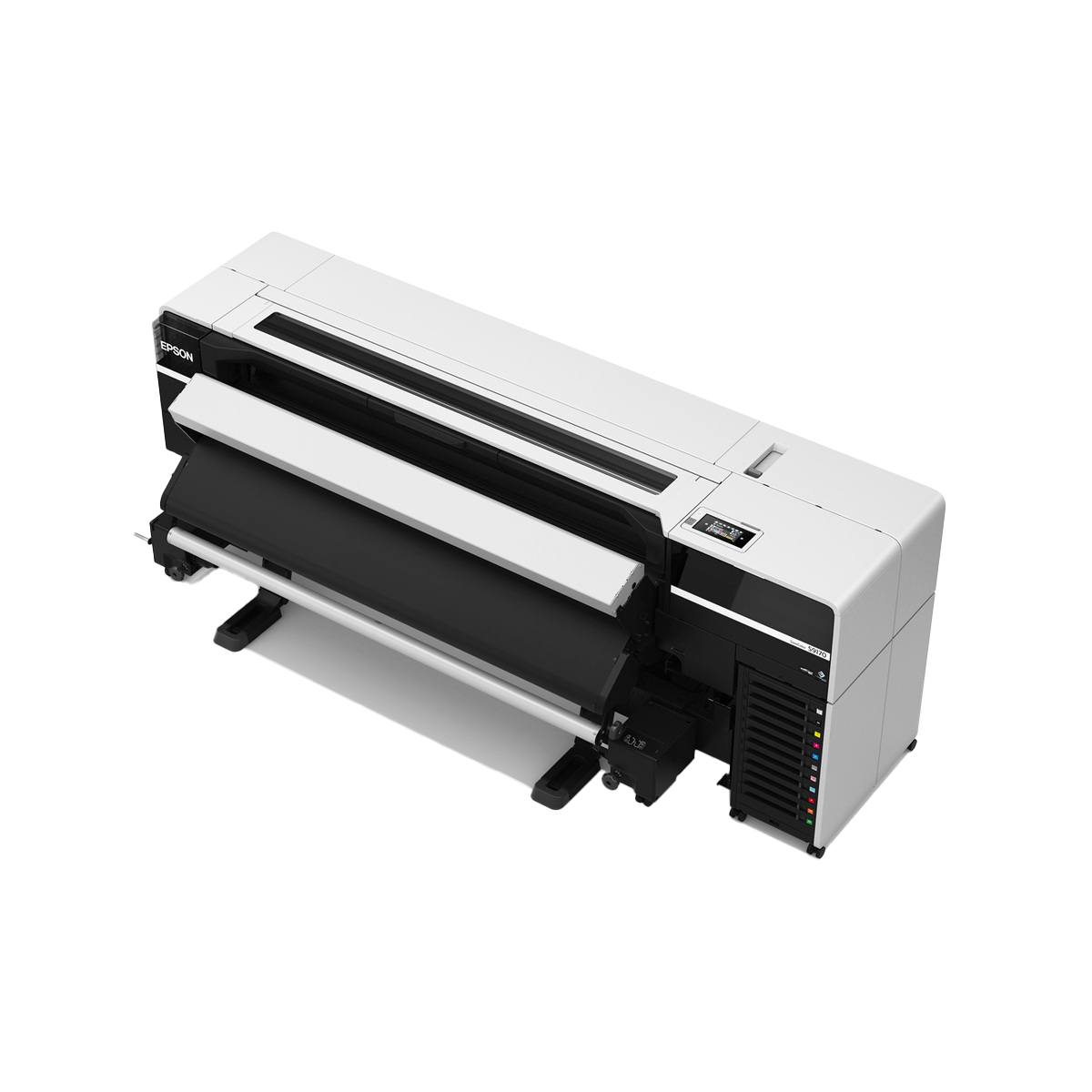

Epson SureColor S9170 64-Inch Solvent Printer
Product Highlights
- Up to 99.5% of PMS Formula Guide Solid Coated 2022 Full
- 11-color ink set includes Red, Orange and all-new Green
- All-new space-saving design
- Latest generation PrecisionCore TFP printhead
- First-ever user-replaceable solvent printhead in its class
Our most popular solvent printer just got better.
Expand your perception of what a solvent printer can be. Offering the same extreme color gamut Epson is known for, the SureColor® S9170 delivers up to 99.5% of PMS Formula Guide Solid Coated (2022 Edition) Full1. With an 11-color ink set including Red, Orange and an all-new Green, you’ll be able to faithfully reproduce virtually any color for your customers. Plus, these inks provide extremely fast dry times, allowing for same-day lamination2. The SureColor S9170 features a PrecisionCore® TFP® printhead with an integrated temperature sensor control for reliable image quality and consistent color—job to job, panel to panel. Showcasing the latest generation of innovative Epson technology, it’s the first—ever—user-replaceable printhead in its class3, saving you time and hassle. Created to shift expectations, the SureColor S9170’s sleek, compact, modern design sets it apart—it’s like nothing we've built before.
The Epson SureColor® S9170 is engineered for precision and reliability, featuring a PrecisionCore® TFP® printhead with integrated temperature sensor control to ensure consistent image quality and color accuracy across every job, from panel to panel. Powered by cutting-edge Epson technology, it's the first in its class to offer a user-replaceable printhead, saving you time and reducing maintenance hassles. Designed to exceed expectations, the SureColor S9170 boasts a sleek, compact, and modern design—unlike anything Epson has ever created before. Experience a new era of solvent printing innovation with the SureColor S9170.
SureColor S9170 Features
- Unmatched Image Quality – Delivers Epson’s renowned extreme color gamut with up to 99% PANTONE® coverage.
- Innovative UltraChrome® GS3 Ink Set – Features an expanded color range with Red, Orange, and a new Green ink, offering fast dry times for same-day lamination.
- Sleek, Compact Design – Engineered with a precise and space-efficient footprint to fit any workspace.
- Breakthrough PrecisionCore® TFP® Printhead – Equipped with the latest generation technology for superior performance.
- User-Replaceable Printhead – First in its class to offer a user-replaceable solvent printhead, reducing downtime and maintenance.
- Enhanced Versatility with White Ink – Opaque White Ink is perfect for printing on clear or dark substrates, adding depth and vibrancy to colors.
- Flexible Ink Sizes – Choose between 800 mL and 1,500 mL ink cartridges for better cost efficiency and workflow flexibility.
- Low Maintenance – Automatic daily printhead cleaning ensures consistent quality and reliable performance.
- Advanced Software Integration – Seamlessly connects to Epson Cloud Solution PORT® for real-time printer monitoring and management.
- Outstanding Service and Support – Comes with a 1-year limited warranty, ensuring reliable Epson service and peace of mind.
Printing Technology
PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control
Ink Type
UltraChrome® GS3 eco-solvent ink
Ink Colors
C, M, Y, K, Lc, Lm, Lk, Or, R, G, W or Cl
Nozzle Configuration
9,600 Nozzles: 800 nozzles x 10 colors; 1,600 nozzles x 1 color (White)
Maximum Resolution
1200 x 1200 dpi
Minimum Ink Droplet Volume
Smallest Droplet Size: 4.3 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Left/Right Margin (Roll Paper):
5 mm
Printer Language/Drivers
ESC/P® raster
Memory
4GB
Ink
Ink Pack Fill Volume
800 mL or 1.5 L
Ink Case
Ink Supply Unit
Printer is designed for use with Epson ink packs only, not thirdparty ink systems*.
Media Handling
Paper Path
Single Roll
Paper Feed Method
Friction Feed
Maximum Roll Diameter
9.84" (250 mm)
Maximum Roll Weight
99.21 lb (45 kg)
Maximum Reel Diameter
9.84" (250 mm)
Paper Width (Roll)
11.81" to 64" (300 mm to 1,625.6 mm)
Paper Thickness (Roll)
Less than 1 mm
Printer Interfaces
SuperSpeed USB 3.0 (1 port)
100Base-TX/1000Base-T Ethernet (1 port)
Operating Systems Supported
Windows® 8.1 x64 or later, macOS® 10.7 or later
Epson Edge® Print Pro Minimum PC Requirements:
Intel Core® i3 3.0 GHz CPU or faster, 8GB RAM or more, 50GB HDD or more (available during installation), DVD-ROM or Internet connection
General
Control Panel
4.3" Optical Touch Color LCD
Weight and Dimensions (W x D x H)
Dimensions (Printing): 102.2" x 39.2" x 102.2" (2,620 mm x 1,004 mm x 1,021 mm)
Dimensions (Stowed): 107.9" x 29.9" x 45.1" (2,620 mm x 925 mm x 1,021 mm)
Weight: 754 lb (342 kg)
Acoustic Noise Level
Sound Power Level: Not greater than 7.9 B(A)
Sound Pressure Level: Not greater than 60.5 dB(A)
Temperature
Operating: 59 ˚F to 95 ˚F (15 ˚C to 35 ˚C)
Operating (recommended): 68 ˚F to 89 ˚F (20 ˚C to 32 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Operating (recommended): 40% – 60% (no condensation)
Storage: 5% – 85% (no condensation)
Safety Standards
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with Class A requirements USA (FCC),
Canada (ICES-003)
Electrical Requirements
Printer requires two 110 V outlets
Voltage:
#1 AC 100 - 120 V/200 - 240 V (50/60 Hz)
#2 AC 100 - 120 V/200 - 240 V (50/60 Hz)
Rated Current:
#1 12 A/10 A
#2 12 A/10 A
Power Consumption
Operating: Approximately 1190 W
Ready: Approximately 500 W
Sleep: Approximately 3.4 W
Power Off (Stand by): Approximately 0.3 W
Country of Origin
China
Standards and Approvals
NRTL Certified CSA/UL 62368-1 (U.S. and Canada)
- SureColor S9170 Printer
- Set of Ink: C, M, Y, K, Lc, Lm, Lk, Or, R, G, Cl (800 mL/ each)4
- Epson Edge Print Pro RIP
- Power Cord (x2)
- Maintenance Parts Kit: Wiper Unit, Flushing Pad, Air Filter (x2)
- Waste Ink Bottle
- Ink Cleaner
- Cleaning Stick
- Media Cleaning Brush
- User Guide Kit
