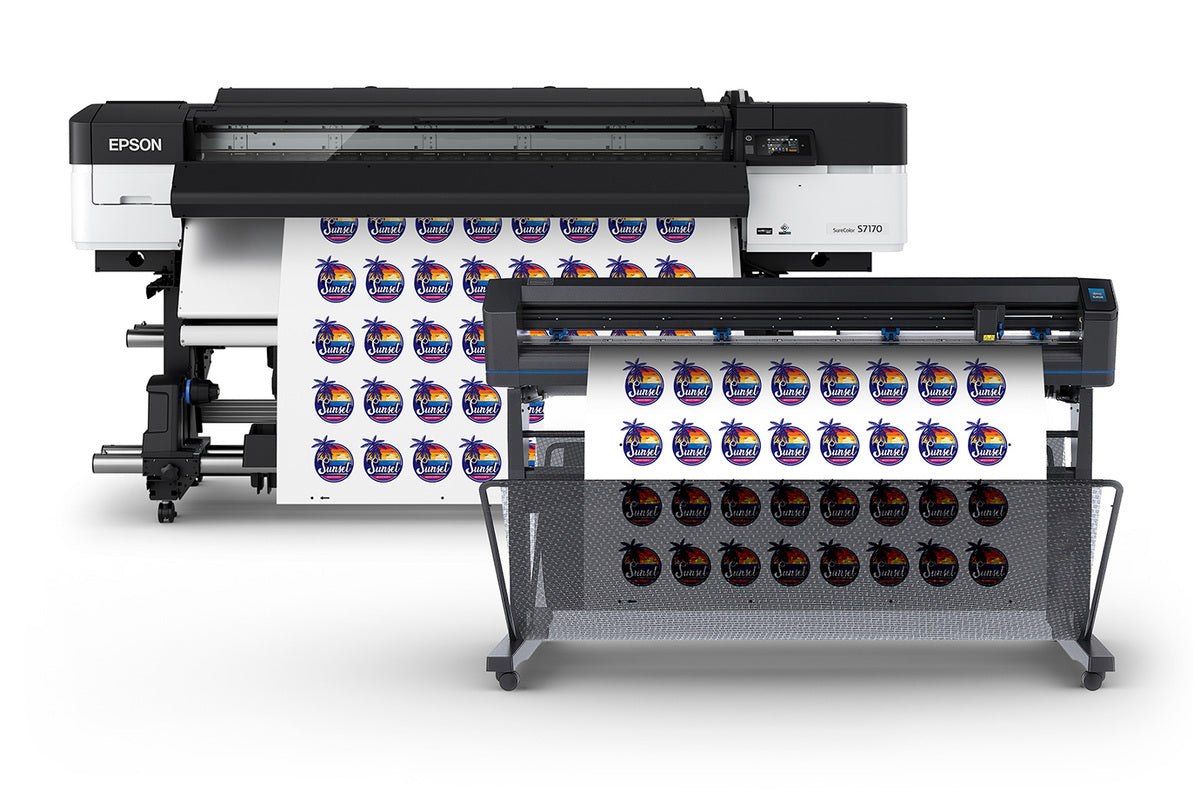

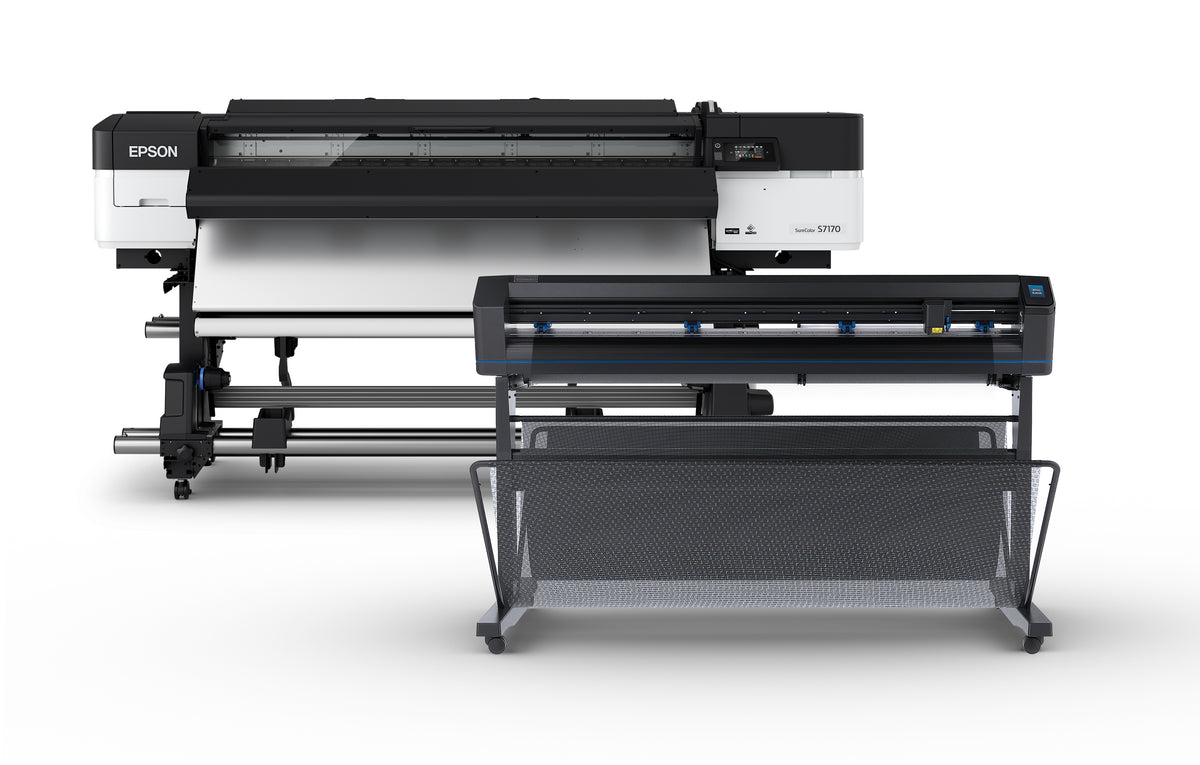

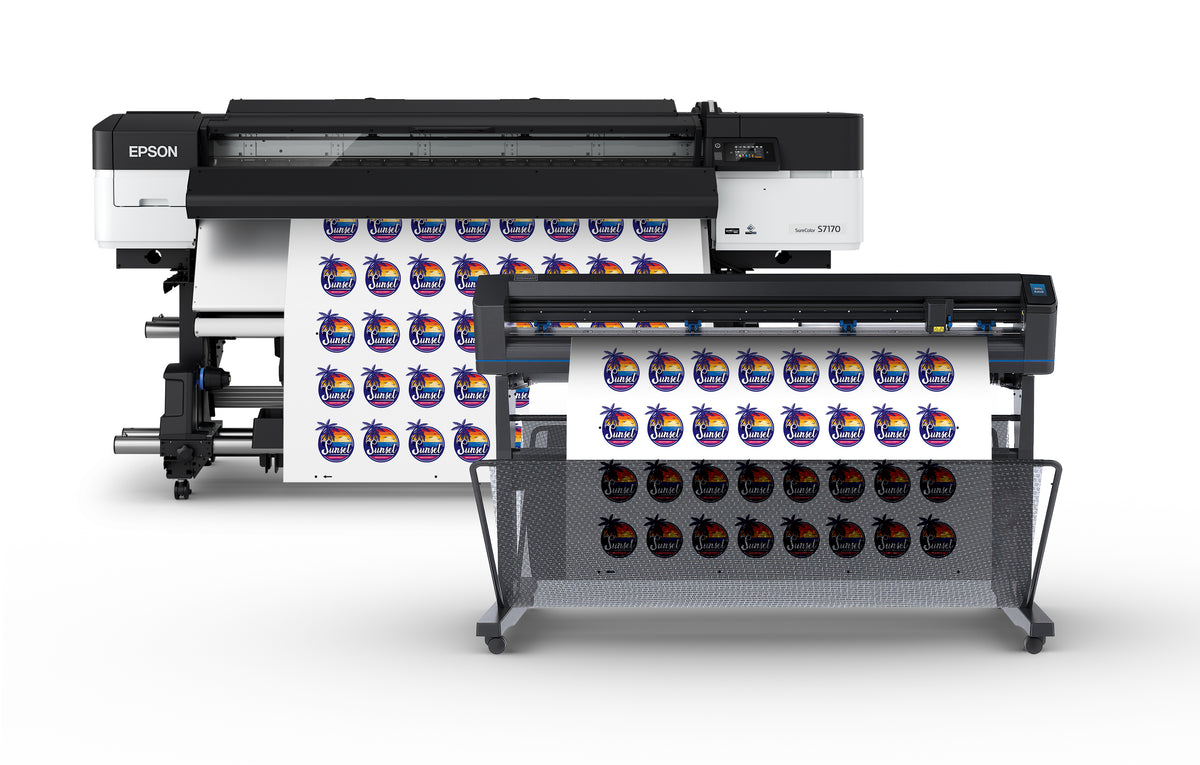

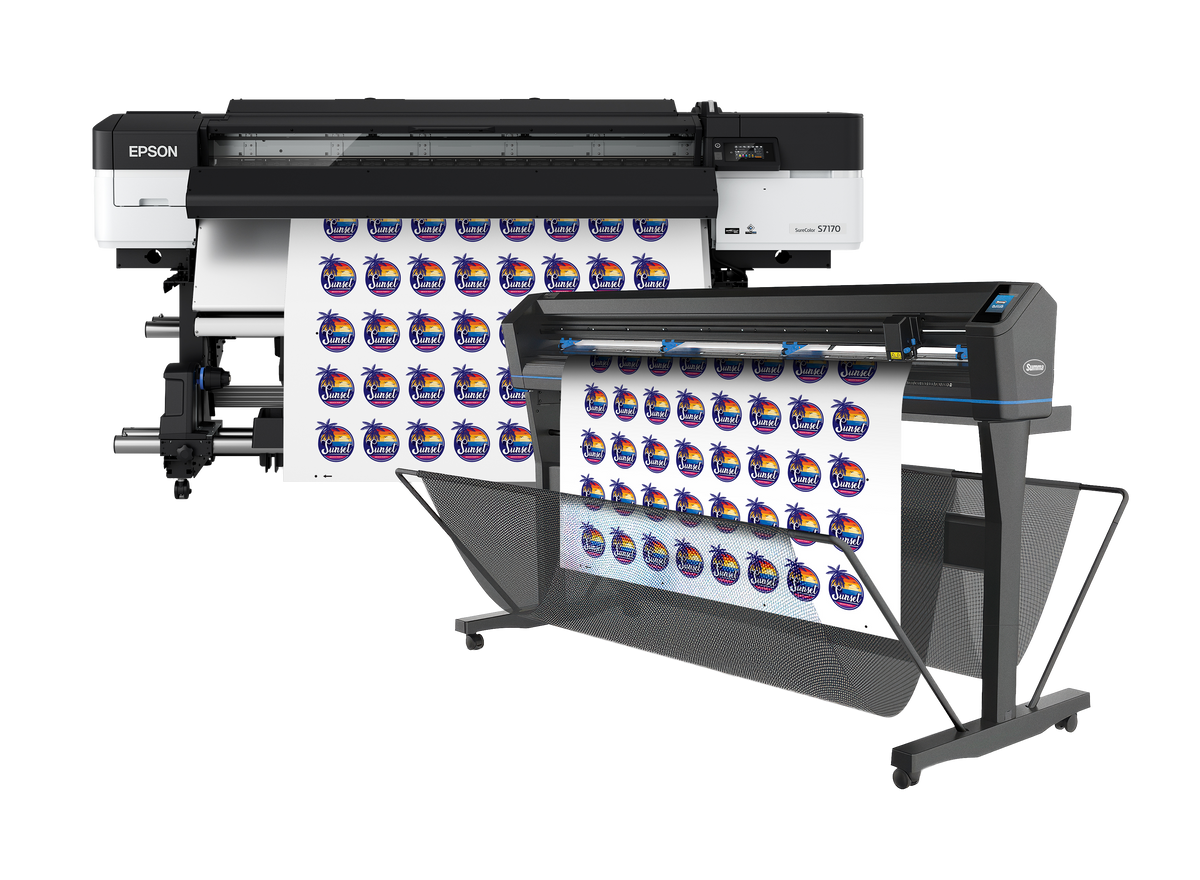

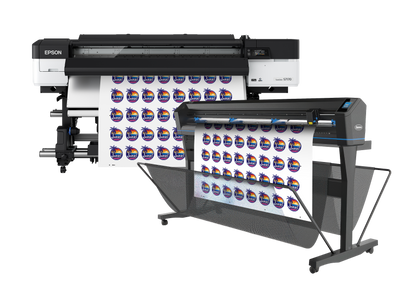

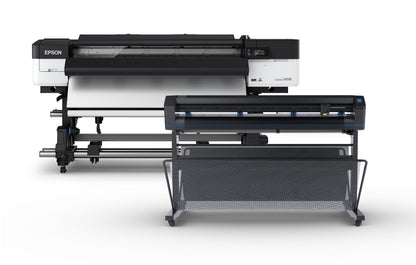

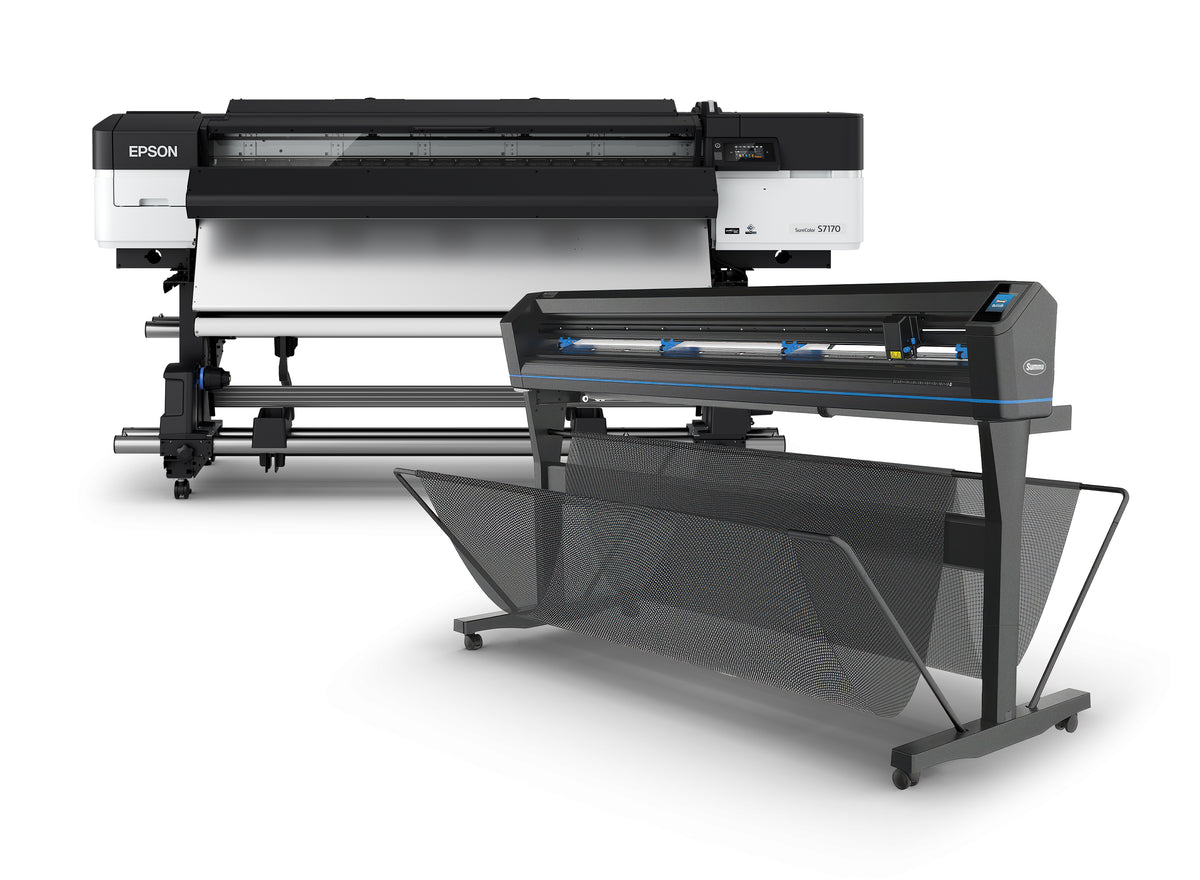

Epson SureColor S7170 Print Cut Edition 64-Inch Solvent Printer

Price includes $4,000 instant rebate. Offer is valid through September 30, 2026.

Bring printing and cutting together in one streamlined workflow with the SureColor® S7170 Print Cut Edition.

This bundle includes the SureColor S7170 64" roll-to-roll solvent printer, a high-performance Summa® S1 D140 cutter, and intuitive RIP software for enhanced productivity — together at an incredible value.

Featuring a 4-color UltraChrome® GS3 solvent ink set (CMYK) and a 1.33" PrecisionCore® Micro TFP® printhead, the S7170 delivers renowned detail, vivid color, and faster print speeds. A newly developed Ink Supply System uses high-volume 800 mL ink packs to reduce plastic waste and minimize ink changeovers.

• Includes printer, Summa S1 D140 cutter, and workflow software (Epson Edge Print PRO + ONYX GoPlus, 1-yr prepaid)
• 4-color UltraChrome GS3 Eco-Solvent ink set (CMYK), 800 mL ink packs
• Nozzle Verification Technology for stable, consistent print quality
• Same-day lamination — only 6 hours between printing and laminating
• Ideal for signage, stickers, banners, canvas prints, vehicle wraps, and more

Designed for use exclusively with genuine Epson ink packs.

Print

Printing Technology
PrecisionCore Micro TFP printhead featuring Nozzle Verification Technology and variable-sized droplet control

Ink Type
UltraChrome GS3 eco-solvent ink

Ink Colors
C, M, Y, K

Nozzle Configuration

3,200 nozzles: 800 nozzles x 4 colors

Maximum Resolution

1200 x 1200 dpi

Minimum Ink Droplet Volume

Smallest Droplet Size: 4.3 picoliters; Variable Droplet Technology can produce up to three
different sizes per line

Left/Right Margin (Roll Paper)

5 mm

Printer Language/Drivers

Epson ESC/P™ raster

Memory

1GB

Ink

Ink Pack Fill Volume2

800 mL

Ink Case

Ink Supply Unit
This printer is designed for use with genuine Epson packs only,
not third-party packs or ink*.

Media Handling

Paper Path

Single roll

Paper Feed Method

Friction feed

Maximum Roll Diameter

9.84" (250 mm)

Maximum Roll Weight

99.21 lb (45 kg)

Maximum Reel Diameter

7.87" (200 mm)

Paper Width (Roll)

11.81" to 64" (300 mm to 1,625.6 mm)

Paper Thickness (Roll)

Less than 1 mm

Printer Interfaces

SuperSpeed USB 3.0 (1 port)
100Base-TX/1000Base-T Ethernet (1 port)

Operating Systems Supported5

Windows® 8.1 x64 or later, macOS® 10.7 or later

Epson Edge Print PRO Minimum PC Requirements

Intel Core® i3 3.0 GHz CPU or faster, 8GB RAM or more, 50GB HDD or more (available during installation), DVD-ROM or Internet connection

ONYX Go Plus Minimum PC Requirements

Windows 10 Pro x64 or Windows 11 Pro x64, Intel® or AMD multi-core CPU, 16GB RAM or more (32GB – 64GB recommended), 1280 x 1024 minimum display, 250GB HDD or more, Internet connection

Printer General

Control Panel

4.3" Optical Touch Color LCD

Weight and Dimensions (W x D x H)

103.15" x 38.94" x 52.68"

(2,620 mm x 989 mm x 1,338 mm)

Weight: 633 lb (287 kg)

Acoustic Noise Level

Sound Power Level: Less than 7.9 B(A)

Sound Pressure Level: Less than 61 dB(A)

Temperature

Operating: 59 ˚F to 95 ˚F (15 ˚C to 35 ˚C)

Operating (Recommended): 68 ˚F to 89 ˚F (20 ˚C to 32 ˚C)

Storage: -4 ˚F to 140 ˚F (-20 ˚C to 60 ˚C)

Relative Humidity

Operating: 20% – 80% (no condensation)

Operating (Recommended): 40% – 60% (no condensation)

Storage: 5% – 85% (no condensation)

Safety Standards

U.S.A. and Canada (NRTL Certified, CSA/UL 62368-1)

Compliant with Class A requirements U.S.A. (FCC),Canada (ICES-003)

Electrical Requirements

Voltage:
AC 100 V – 120 V/200 V – 240 V (50 Hz/60 Hz)

Rated Current:
Main Unit 12 A/10 A; Drying Fan 1 A/0.5 A

Power Consumption

Operating:
Main Unit ~1100 W
Drying Fan ~45 W
Ready:
Main Unit ~520 W
Drying Fan ~1 W
Sleep:
Main Unit ~3 W
Drying Fan ~1 W
Power Off (Standby):
Main Unit ~0.3 W
Drying Fan ~0.3 W

Country of Origin

China

Cutter Specifications

Cutter Model

Summa S1 D140

Cutting Technology

Drag knife

Cutter Dimensions (L x W x H)

69.5" x 27.7" x 43.8"

Supported Media Width

7.4" to 59"

Maximum Working Width (Oversized Mode**)

54.5" x 164' (56.9" x 164')

** In Oversized Mode, tracking performance is no longer guaranteed

Pinch Rollers

4

Alignment Type

Up to 2 x 64 marks on the X-line; Y-Line compensation

Tracking Performance

26' maximum (<30" media); 13' maximum (>30" media)

Media Thickness

0.002" to 0.010" (0.010" to 0.030" with optional sandblast drag knife)

Accuracy

0.2% of move or 0.010", whichever is greater

Speed

Up to 44 ips diagonal

Acceleration

Up to 3 G diagonal

Knife Pressure

0 to 600 gr

Connectivity

Ethernet, USB, Wi-Fi®

Power Requirements

AC 100 V – 240 V (50 Hz/60 Hz)

Included Software

Summa GoSign Software; Summa Cutter Control

• SureColor S7170 Printer
• Summa S1 D140 Cutter
• Drying Fan
• Epson Edge Print PRO RIP
• ONYX Go Plus RIP (1-yr prepaid)
• Power Cord (x2)
• Maintenance Parts Kit (Wiper Unit, Flushing Pad, Air Filter x2)
• Waste Ink Bottle
• Ink Cleaner
• Cleaning Sticks
• User Guide Kit.
