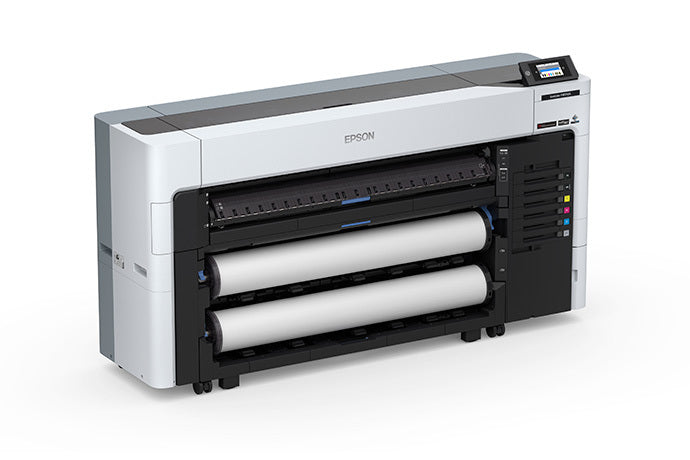

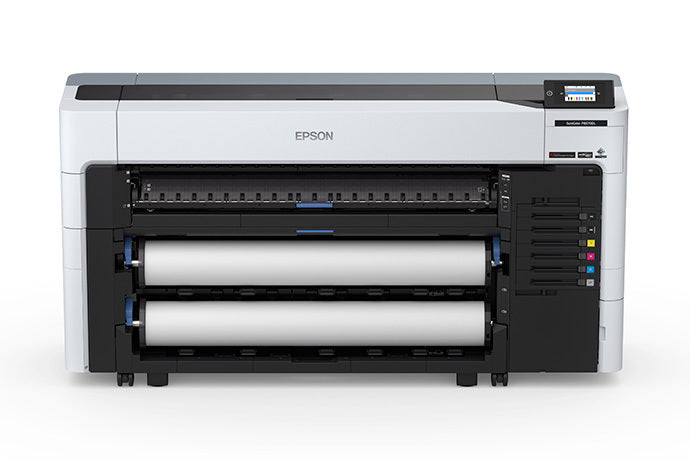

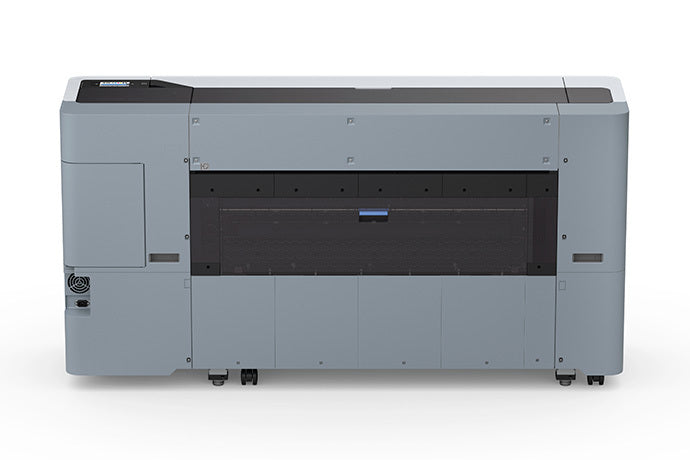

Epson SureColor P8570DL 44-Inch Wide-Format Dual-Roll Printer with High-Capacity 1.6 L Ink Pack System (SCP8570DL)

Epson SureColor P8570DL 44-Inch Wide-Format Dual-Roll Printer with High-Capacity 1.6 L Ink Pack System (SCP8570DL)

In Stock


Regular price $7,245.00
Regular price $9,445.00 Sale price $7,245.00
Sale Sold out
View full details
In The Box
Customers Have Asked

Price includes $2,200 instant rebate. Offer is valid through June 30, 2024.

This design changes everything

Epson® professional photo and graphics printers built around our revolutionary PrecisionCore® MicroTFP printhead technology have set the benchmark for high-end print quality. With the SureColor® P8570DL, Epson brings that same technology to high-speed production, photo and graphic art printing—with an equally extraordinary design. Featuring the smallest footprint in its class and all-front-operation, this high-performance printer fits where other printers can’t. Its innovative 6-color aqueous-pigment ink set delivers the widest color gamut in its class.

This printer pairs simple, carefree operation with new levels of versatility and media flexibility, as well as a dual-roll configuration, to help you do more with less—all with a low total cost of ownership. Add it all up, and this is not just a one-of-a-kind printer—it’s a powerful option for high-volume shops and fleets. The SureColor P8570DL uses 6-color UltraChrome® PRO6 Ink with Gray and a high-capacity 1.6-liter ink pack system to produce vivid, beautiful output that rivals comparable 8-color printers.


  • Incredible performance without compromise — produces sharp, detailed and colorful photographic prints using a reliable 2.64" PrecisionCore MicroTFP printhead, delivering remarkable photo production print speeds up to 195 ft2/hr3
  • Innovative compact design fits almost any workflow — unique flattop design with complete front operation, simple automatic roll loading and dual roll/take-up reel integrated
  • Outstanding image quality with six colors — UltraChrome PRO6 Ink with Gray (ink sold separately) produces vibrant, rich colorful prints with smooth gradations and neutral black-and-white images that rival comparable 8-color printers
  • Print on a wide range of media for various photo applications — print on a wide range of media, including photo, fine art, canvas and rigid posterboard up to 1.5 mm thick
  • Seamless, dual-roll productivity — automatically switch between two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production; included high-capacity 1.6 L ink pack system helps reduce cartridge changes
  • Easy to use and maintain — configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance and convenient user self-service for long-term operation
  • No assembly required — be up and printing in as little as 30 minutes; SuperSpeed USB 3.0, Gigabit Ethernet and Wi-Fi® (2.4 GHz and 5 GHz) options to fit virtually any workflow
  • Security features and IT tools — over 28 security features for office or remote office locations, including hardware encryption, IC card option for user control and tracking, and a host of IT management tools
  • Small footprint — compact design fits into small spaces
  • Includes Adobe® Embedded Print Engine as a standard option — natively process PDF and PostScript® files for fast and reliable printing
  • Maximize productivity with included Epson Software Suite and Epson Cloud Solution PORT — remotely manage and monitor your printer fleet from the convenience of your laptop or smart device


Printing Technology
PrecisionCore MicroTFP 6-channel drop on-demand printhead

Ink Type
UltraChrome PRO6 pigment ink; 6-ink, 6-color ink configuration: Cyan, Magenta, Yellow, Matte Black, Photo Black, and Gray

Nozzle Configuration
9,600 nozzles
(400 nozzles x 24 channels)

Droplet Technology
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per line

Maximum Resolution
2400 x 1200 dpi
Real-Time Black Ink Switching / Dedicated Photo and Matte Black channels selected automatically

Production Print Speed
Premium Glossy Photo Paper 170 gsm
Speed: 361 ft2/hr
Quality: 195 ft2/hr
Max. Quality: 89 ft2/hr
Plain Paper
Draft: 1,571 ft2/hr
Speed: 1,200 ft2/hr
High Quality: 213 ft2/hr

Printer Language/Drivers
Epson ESC/P®, Adobe PostScript 3™, Adobe PDF 1.7

Memory/Built In

Epson Replacement Ink Packs

Ink packs are not included with this printer.
1.6 L per color x 6 colors total (ink sold separately)

Ink Pack Fill Volume
1.6 L per color available x 6 colors total
This printer is designed for use with Epson genuine packs and ink only, not third-party packs or ink. For more information, see*.

Roll Media Handling

Dual Front-Loading Rolls
2 rolls: 10" to 44" wide

2" or 3" Core Diameter
User-adjustable roll media spindles

Roll Cutting
High-speed internal rotary cutter; auto or manual

Minimum Auto Cut Length

Maximum Roll Diameter
Up to 6.69"

Maximum Roll Weight
27 lb

Media Thickness
0.07 mm to 0.80 mm (roll and sheet media)

Roll Paper Remaining
Printable barcode tracking system – the amount of remaining media can be controlled and monitored from the front panel

Top/Bottom Margins (mm)
Normal: 20/15 (Premium Luster Photo Paper); Option: Top – 3, 15, 20, 45 / Bottom – 3, 15

Left/Right Margins
3 mm each side; 0.24" total; or 0" at BorderFree® width

Integrated Take-Up Reel
Auto forward and backward; lightbased media sensor with inner and outer winding options

BorderFree Print Widths
10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44"

Sheet Media Handling

Single Sheet, Front or Rear Loading
Up to 44" wide
Minimum Sheet Width: 8"
Maximum Sheet Width: 44"

Media Thickness
0.07 mm to 0.08 mm

0.8 mm to 1.5 mm

Top/Bottom Margins
3 mm/15 mm

Top/Bottom Margins with Centering On
15 mm/15 mm

Left/Right Margins
3 mm each side; 6 mm or 0.24" total; or 0" at BorderFree sizes

BorderFree Print Widths
10", 11.8", 13", 16", 17", 20", 20.3", 23.4", 24", 28.7", 33.1", 36", 40.6", 44"

Printable Area and Accuracy

Line Accuracy
±0.1% of specified length (±0.26 mm min.)

Minimum Sheet Size (Single Sheet)
8.5" x 11"

Maximum Printable Length

Minimum Paper Width
Roll: 10"/Sheet: 8"

User Control Panel

Articulating LCD Display
4.3" Touchscreen

Printer Interfaces

SuperSpeed USB 3.0, 100BASE-TX / 1000BASE-T / IEEE
802.11b/g/n/ac, USB memory stick, 960GB SSD Optional

Operating Systems Supported

Mac® OS X® 10.9.5 or later, macOS® 11 or later,
Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®, Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/ 2012/2008 R2/2008/2003 R2/2003 SP2 or later


Dimensions (W x D x H)
73" x 19.6" x 38.4" (Storage and Operating)

Dimensions (W x D x H)
73" x 32.6" x 38.4" (Paper Basket Extended)

364 lb

Acoustic Noise Level
Operating: 49.6 dBA according to ISO 7779

Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Operating (Recommended): 65 ˚F to 75 ˚F (18 ˚C to 24 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)

Relative Humidity
Operating: 20% – 80% (no condensation)
Operating (Recommended): 45% – 60% (no condensation)
Storage: 5% – 85% (no condensation)

Safety Standards
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with FCC Class B Requirements

Electrical Requirements
Voltage: AC 110 V – 240 V
Frequency: 50 Hz – 60 Hz
Current: 3.4 A – 1.6 A

Power Consumption
Printing: Approx. 70 W
Ready: Approx. 32 W
Sleep: 2 W (1000BASE-T Ethernet in Standby)
Power Off (Standby): 0.3 W

Limited Warranty and Service
Standard 1-year usually nextbusiness day on-site repair with toll-free phone support Monday through Friday; Business Hours 8 a.m. – 5 p.m. PST

Country of Origin

  • SureColor P8570DL Printer with Adobe Embedded Print Engine
  • 2 Roll Media Adapters Installed
  • Maintenance Boxes (Preinstalled)
  • Start Here Poster
  • AC Power Cable
