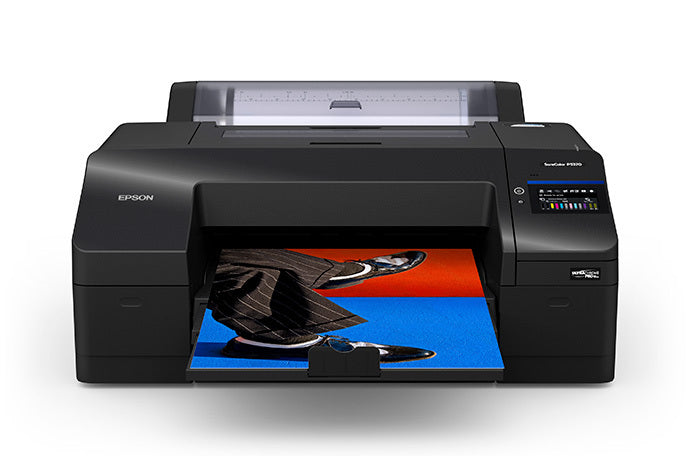

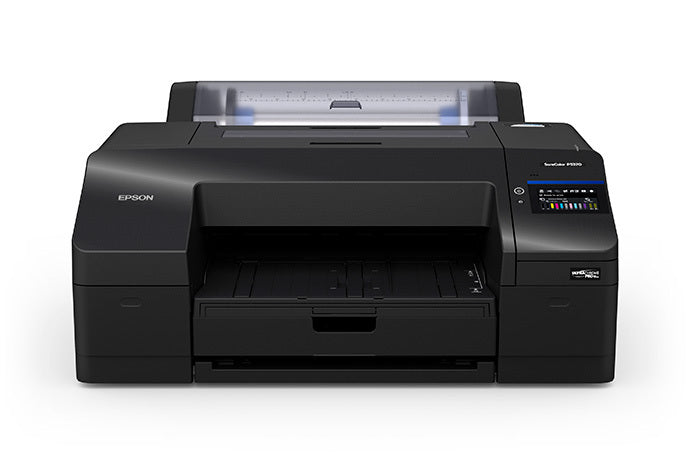

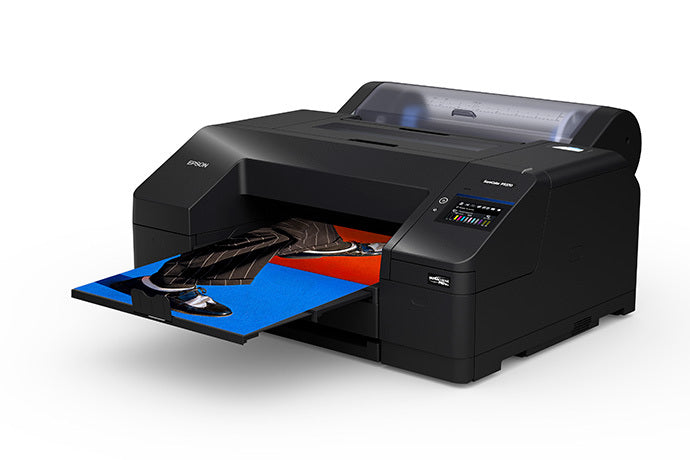

Introducing the NEW Epson SureColor P5370 17” Printer!
Get ready to take your photography game to the next level with the Epson® SureColor® P5370 17" printer! This powerhouse is not just any printer – it's your partner in crime for creating prints that will make your art pop. Packed with cutting-edge technology, including a 10-channel MicroPiezo® AMC™ printhead and Epson Precision Dot screening, this printer is on a mission: to bring your artistic vision to life. Say hello to smooth tonal renditions and impeccable detail reproduction, making your high-resolution camera shots truly shine!
The SureColor P5370 features a 10-color UltraChrome® PRO10 Ink set in high-capacity 200 mL cartridges, including Violet for an extensive range of blue hues and wider color gamut1. And with dedicated channels for Photo and Matte Black Inks, there’s no ink switching, helping to save time and reduce ink waste. Moreover, the printer’s built-in Carbon Black Mode increases Dmax, allowing for rich blacks and exceptional contrast on glossy paper. The SureColor P5370 offers flexibility and increased productivity with a built-in roll feeder, an auto cutter and a high-capacity cassette that accommodates up to 100 cut sheets from 8.5" x 11" to 17" x 22"2. With its advanced technology and design, the SureColor P5370 empowers photographers to produce the finest exhibition-quality prints.
- Includes 10-channel MicroPiezo AMC printhead
- UltraChrome PRO10 Ink with Violet expands the blue color gamut
- Industry-leading print permanence3
- No switching between Photo and Matte Black Inks
Epson SureColor P5370 17” Printer Features
- Refined printer design — combines our advanced 10-Channel MicroPiezo AMC printhead, extensive media support and brilliant UltraChrome PRO10 Ink set to consistently deliver the finest exhibition-quality prints
- Extended color gamut — UltraChrome PRO10 Ink with Violet delivers an extended range of blue hues
- Industry-leading print permanence — creates prints that last up to 200 years in color and 400 years in black-and-white (currently in testing)3
- No Photo and Matte Black Ink switching — dedicated channels for Photo Black and Matte Black Inks eliminate the need to switch between inks, helping to improve efficiency and minimize ink waste
- Extensive media handling — includes built-in roll support with auto cutter for efficient roll production, as well as a high-capacity 17" x 22"2 sheet cassette
- Intuitive operation — large 4.3" color LCD touchscreen allows for easy setup, control and maintenance
- Expanded connectivity — includes Ethernet, USB and Wi-Fi® connectivity
- Carbon Black Mode — provides deep black density with an exceptional contrast on glossy paper
- Advanced software support for enhanced productivity — includes Epson® Cloud Solution PORT4 for fleet management and Epson Print Layout software for simple print production
- Production ink — large high-capacity 200 mL ink cartridges for increased productivity
Print
Print Method
Advanced MicroPiezo AMC 10-channel, drop-ondemand printhead with ink-repelling coating technology
Ink Type
UltraChrome PRO10 pigment ink; 10-color ink set
Ink Configuration
C, VM, Y, LC, VLM, PK, MK, G, LG, V
Fade Resistance/Print Longevity
Color: Up to 200 years;
Black-and-White: Up to 400 years
Nozzle Configuration
Color and monochrome heads;
180 nozzles x 10 channels
Droplet Technology
Smallest droplet size: 1.5 picoliters;
Variable-Sized Droplet Technology can produce up to 3 different sizes per line
Maximum Resolution
5760 x 1440 dpi
Printer Speed
16.5" x 23.4" prints from 2:58 to 13:00, normal is 4:41
Printer Language/Drivers
Epson ESC/P® raster photographic drivers standard
Ink
In-Box Cartridge Fill Volume
80 mL each color x 10 colors total
Replacement Cartridge Fill Volume
200 mL each color x 10 colors total
This printer is designed for use with genuine Epson cartridges only, not third-party cartridges or ink*.
Sheet Media Handling
Maximum Sheet Size
17" x 22"
Minimum Sheet Size
8" x 10"
Left/Right Margins
3 mm each side; 6 mm (0.24") total
Top/Bottom Margins, Normal
3 mm/15 mm
Top/Bottom Margins, Maximum Selected
3 mm each side
Paper Cassette
Multiple sheets up to 0.35 mm (0.014") thick, capacity varies by media, 100-sheet maximum on luster paper
Front Top-Loading
Single sheet up to 0.48 mm (0.019") thick
Front Media Path
Single sheet up to 1.50 mm (0.059") thick
Roll Media Handling
Single Top-Loading Roll
8" wide up to 17" wide
17" Wide Media Spindle
2" standard core, 3" adapters
Roll Paper Thickness Range
0.08 mm – 0.5 mm (0.02") thick
Roll Cutting
High-speed internal rotary cutter; auto or manual
Minimum Auto Cut Length
5.0" plus top/bottom margin
Top/Bottom Margin (mm)
Varies by media; 3, 15, 20, 35; or 0 when using borderless cut
Left/Right Margins
3 mm each side; 0.24" total; or 0" at supported BorderFree® widths
BorderFree on 2" and 3" Cores
10", 13", 14", 16", 17"
BorderFree on 2" Core Only with Spacer
8", 11", 16.5"
Roll Paper Remaining
Printable barcode tracking system
Printable Area
Maximum Paper Width
17"
Minimum Cut-Sheet Size
8" x 10" less margins
Maximum Printable Roll Length
529"
Line Accuracy
±0.2% of specified length (±0.26 mm min.)
Printer Interfaces
SuperSpeed USB 3.0 (1 port)
Ethernet (1000Base-T; 100Base-TX; 10Base-T) (1 port)
2.4 GHz (8-2.11n) and 5 GHz Wireless (IEEE 802.11 b/g/n/ac)
Wi-Fi Direct®, AirPrint®, Epson Print Layout for iOS® and iPadOS®
Operating Systems Supported
Windows® 11, Windows 10, Windows 8.1, Windows 8, Windows 7,
Windows Server®
Mac® OS X® 10.9.5 or later
General
Weight and Dimensions (W x D x H)
34" x 30" x 16" (Storage and Operating)
34" x 45" x 16" (Paper Basket Extended)
Weight: 117 lb
Acoustic Noise Level
Less than 47 dB(A), according to ISO 7779
Temperature
Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Operating (Recommended): 65 ˚F to 75 ˚F (18 ˚C to 24 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Operating (Recommended): 45% – 60% (no condensation)
Storage: 5% – 85% (no condensation)
Electrical Requirements
Voltage: AC 110 V – 240 V
Frequency: 50 Hz – 60 Hz
Current: 0.7 A
Power Consumption
Printing: Approx. 52 W
Ready: Approx. 20 W
Sleep Mode: Approx. 5.0 W (1000Base-T Ethernet in Standby)
Power Off: Less than 0.5 W (ENERGY STAR® qualified)
Standards and Approvals
FCC Part 15, Subpart B, Class B (United States)
CAN ICES-3(B)/NMB-3(B) (Canada)
AS/NZS CISPR 32 Class B (Australia)
Country of Origin
China
- Set of initial ink cartridges (10 x 80 mL): Photo Black, Cyan, Vivid Magenta, Yellow, Light Cyan, Vivid Light Magenta, Gray, Matte Black, Light Gray and Violet
- User Guide Kit (documentation and 1-year limited warranty statement)
- Roll media spindle
- 3" core adapters
- Borderless spacer
- Power cord
