This item has been discontinued by manufacturer. Please see Epson SureColor F9570 64" Sublimation Printer.

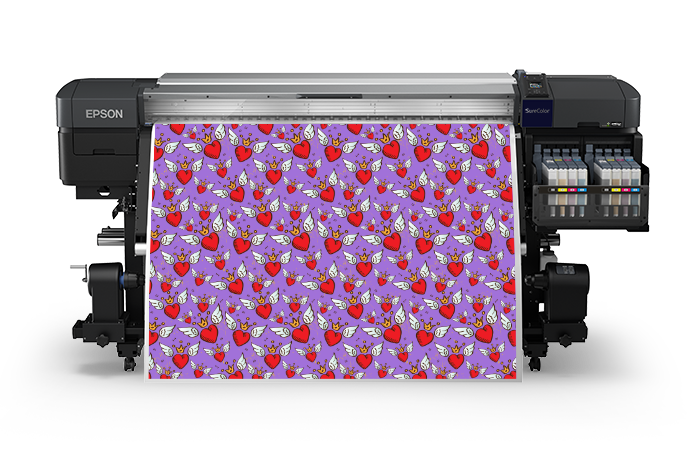

Built from the ground up, the high-performance SureColor F9470 64-inch printer is a reliable, turnkey solution for dye-sublimation applications.
Designed to meet the unique needs of high-volume, factory environments, the F9470 includes dual PrecisionCore® TFP® printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour1. Featuring UltraChrome® DS ink technology with High-Density Black ink, the F9470 delivers exceptional colour saturation and contrast for professional-quality apparel, soft signage, décor and more. Plus, with Epson Edge® workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks, the F9470 supports seamless 24/7 production.
Epson PrecisionCore TFP Print Heads
Commercial Grade Reliability
- The PrecisionCore print chips have been co-developed with Epson UltraChrome DS ink technology for extreme reliability
- Capable of high-production, with little downtime for maintenance
Fast Print Speeds
- True 1,440 nozzles per inch dedicated to each CMYK channel and 720 nozzles for each Fluorescent Yellow and Pink channel
- One of the fastest dye-sublimation transfer printers in its class
Extreme Print Quality
- Print resolutions up to 1,440 x 720 dpi for amazing image quality
- Precision dot control for outstanding clarity and sharpness for garment imaging
Finance Options
Print:
Printing Technology:
Dual advanced PrecisionCore® TFP® 8-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology
Minimum Ink Droplet Size:
Variable Droplet Technology
Maximum Print Resolution:
1440 x 720 dpi
Print Speed:
Speed: up to 1,169 sq ft/hr1
Sports apparel: up to 568 sq ft/hr1
Fashion/signage: up to 1,004 sq ft/hr1
Ink:
Ink Type:
UltraChrome DS with High-Density Black ink; 4-colour
Ink Configuration:
C, M, Y, HDK
Replacement Ink:
UltraChrome DS Ink
High Density Black Ink Packs (T46C820)
Cyan Ink Packs (T46C220)
Magenta Ink Packs (T46C320)
Yellow Ink Packs (T46C420)
General:
Operating Systems:
Windows® 10 and 8.1
System Requirements:
Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection
Temperature:
Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C)
Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C)
Humidity:
Operating (recommended): 40 – 60% (no condensation)
Operating: 20 – 80% (no condensation)
Sound Level:
Less than 59 dB(A) according to ISO 7779
Dimensions:
103" x 37" x 53" (2,620 mm x 934 mm x 1,332 mm) (W x D x H)
Weight:
639 lb (290 kg)
Country of Origin:
China
Warranty:
Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage.
Ink Supply System:
Ink Supply Fill Volume:
3,000 mL each color x 4 colours total2
In-box Ink Fill Volume:
2,000 mL each color x 4 colors total2
Ink Shelf Life:
2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*.
Printable Area and Accuracy:
Maximum Paper Width:
64"
Minimum Paper Width:
11.8"
Maximum Printable Width:
Up to 63.6"
Sheet Media Handling:
Left/Right Margins:
0.20" (0.40" total)
Roll Media Handling:
Single Roll-to-Roll / Top-loading Roll:
64" wide
Media Core:
2" or 3" core diameter
Maximum Roll Diameter:
Up to 9.8"
Maximum Roll Weight:
Up to 100 lb
Media Thickness:
From 45 gsm to 1 mm thick
Take-up Reel:
Fully automatic “wind in” or “wind out” with tension control
Printer Details:
Printer Language:
Epson ESC/P® raster
Interfaces:
1000Base-T Ethernet (1 port)
Hi-Speed USB 2.0 (1 port)
Power:
Rated Voltage:
AC 100 – 120 V; 200 – 240 V
Rated Frequency:
50 / 60Hz
Power Consumption:
Printing: approx. 570 W or less
Power Off: approx 1.0 W
Sleep Mode: approx 17 W
Standby Heaters On: 340 W
Power Requirements:
Requires two outlets
Rated Current:
10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V
