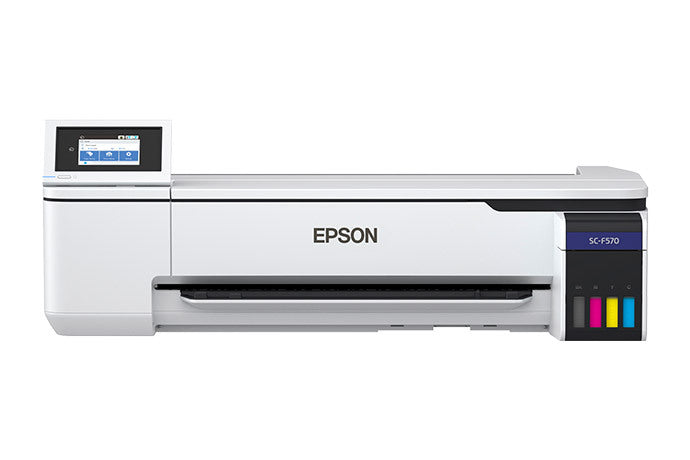

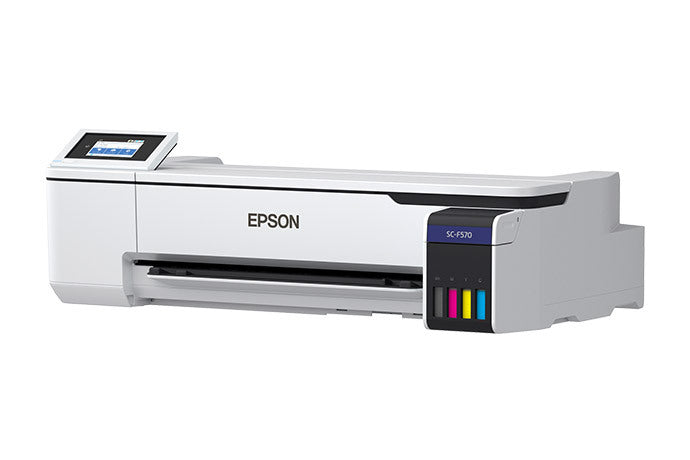

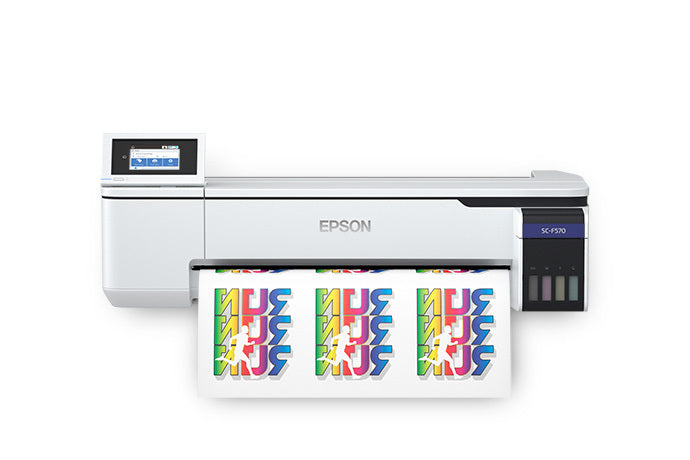

Epson SureColor F570 24" Dye-Sublimation Printer

Liftgate May Be Required

This product ships by freight. The freight charge is free but if shipping to a residential address or a place of business without a loading dock, there is a $75 charge for a liftgate so it can be taken safely off the truck. To add a liftgate service to your order, please select “Add Liftgate Service (+$75)” in Delivery Options under the price and $75 will be added to your order. If you have any question, please call us at 214-342-9290.

Please Note

The F570 works best on apparel and textile garments that are made of 100% white polyester. For dark garments or other type of material, we have the POLI-TAPE Subli-Flock Transfer Vinyl available in sheets. We recommend you call us to consult with an inkjet specialist at 214-342-9290 so we can answer all your questions before purchasing to make sure you are getting the right product for your specific needs.

The Epson F570 can only accept roll paper that has a 2” core.

The complete, 24" solution for fast, efficient dye-sublimation printing.

Get fast, reliable dye-sub printing right out of the box with the 24" SureColor F570. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F570 arrives with a host of convenient features to streamline workflow, including specialized transfer paper for both rigid and soft media, a 50-sheet auto-feed tray and built-in cutter, and drivers for both Windows® and Mac®. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.

Astounding print quality
PrecisionCore MicroTFP printhead offers Precision Droplet Control for outstanding clarity, plus commercial-grade reliability with Nozzle Verification Technology.

Get bright, brilliant images
Vibrant ink delivers extraordinary colour saturation and high contrast.

Versatile media support
Accommodates rolls and sheets up to 24" wide; includes a 50-sheet auto-feed tray and built-in cutter for added efficiency.

Replace ink less often
High-capacity ink bottles with auto-stop for easy, mess-free filling.

Tackle a variety of print jobs
General-purpose transfer paper produces amazing images on both soft and rigid materials.

Reliable performance
Backed by Epson® world-class service and support1.

• Compact, clean design — ultra small2, sleek, minimal design; easily fits on a desktop, or on its own with optional stand (sold separately)
• Easy printing right out of the box — comes equipped with software optimized for dye-sublimation, including specialized drivers for both Mac and Windows
• Intuitive operation — large 4.3" LCD colour touchscreen simplifies print tasks
• Flexible connectivity — easily connect to the printer via USB, Ethernet or integrated wireless
  Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.*

Print:

Printing Technology:
PrecisionCore MicroTFP 4-channel, drop-on-demand printhead

Maximum Print Resolution:
2400 x 1200 dpi

Minimum Ink Droplet Size:
Variable Droplet Technology can produce up to three different sizes per line

Nozzle Configuration:
Color and monochrome heads; 800 nozzles x 4 channels

Ink:

Ink Type:
Ink Bottles 140mL

Replacement Ink:
Black Ink Bottle T49M120
Cyan Ink Bottle T49M220
Magenta Ink Bottle T49M320
Yellow Ink Bottle T49M420

General:

Operating Systems:
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP8

Temperature:
Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)

Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)

Sound Level:
Operating: Approx 50 dB(A)
Sleep: Approx 32 dB(A)

Dimensions:
Without Stand: 38.2" x 20.7" x 9.6" (970 x 505 x 230 mm)

Weight:
Without Stand: 84 lb (38 kg)

Eco Features:
ENERGY STAR® qualified
RoHS compliant
Recyclable product9
Epson America, Inc. is a SmartWay® Transport Partner10

Safety Approvals:
UL (MET), FCC (Class A), CSA, CE, EMC

Country of Origin:
Indonesia

Warranty:
Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday

Printable Area and Accuracy:

Maximum Paper Width:
24.4"

Minimum Cut-sheet Size:
8.27 x 11 (1 sheet and ASF)

Minimum Paper Width:
Roll: 13"/Sheet: 8.27"

Maximum Printable Length:
Limited by application, OS and driver/RIP used7

Sheet Media Handling:

Sheet Loading:
Auto Sheet Feeder, up to 11.7" wide

Single Sheet, Top-loading:
Up to 24.4" wide

Left/Right Margins:
3 mm each (0.24" total)

Roll Media Handling:

Single Roll-to-Roll / Top-loading Roll:
Up to 24.4" wide

Media Core:
2” User-adjustable roll media adapters

Maximum Roll Diameter:
Up to 4.3"

Media Thickness:
Up to 8.6 mil

Roll Cutting:
High-speed internal rotary cutter; auto or manual6

Roll Paper Remaining:
The amount of remaining paper can be controlled from the control panel

Printer Details:

Display:
4.3" Touchscreen

Printer Language:
ESC/P raster

Interfaces:
SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)4, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct4

Power:

Rated Voltage:
AC 110–240 V

Rated Frequency:
50–60 Hz

Rated Current:
1.4 A

Power Consumption:
Printing: Approx. 22 W
Ready: Approx. 8 W
Sleep: approx. 1.6 W
Power Off (Stand By): 0.2 W

What's in the box:

• SureColor F570 Printer
• Start Here Poster
• User Guide
• AC Power Cable
