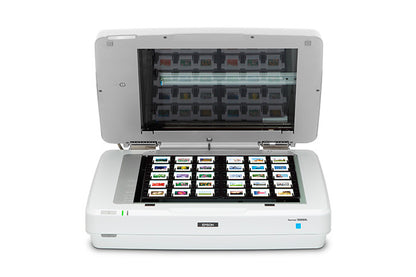

Epson Expression 13000XL Archival Scanner

Professional-quality large-format scanning.

Take large-format photo and graphics scanning to a new level with the Epson Expression® 13000XL. Engineered for demanding applications such as photo archiving and graphic arts, this powerful scanner uses the latest technology to truly capture your originals—a 2400 x 4800 dpi resolution and optical density of 3.8 Dmax allow for clean, sharp images; additionally, Epson MatrixCCD® and ReadyScan® LED technologies plus 48-bit color depth deliver brilliant, vibrant colors with incredible accuracy. The Epson Expression 13000XL brings exceptional versatility to the table, accommodating reflective and other media types up to 12.2" x 17.2". Add on Epson’s optional Transparency Unit (sold separately) to easily scan film and other transparent materials up to 12" x 16.5". One-touch color restoration using Easy Photo Fix® technology, batch scanning, and powerful LaserSoft Imaging SilverFast Ai scanning and image processing software help enhance your productivity and expand the limits of what a professional scanner can do.

Professional large-format scanning - accommodates reflective media up to 12.2" x 17.2"
Exceptional image quality - 2400 x 4800 dpi resolution, Epson® Micro Step Drive™ technology and a 3.8 Dmax provide brilliant clarity and detail
Extraordinary color accuracy - Epson MatrixCCD and ReadyScan LED technologies deliver bold, vibrant scans that are true to the originals
One-touch color restoration - Epson’s exclusive Easy Photo Fix technology restores faded color photos in a snap and offers automatic dust removal; easily restore color and detail to old and faded photos with one touch
Optional transparency scanning - pair with the optional Transparency Unit (sold separately) to scan film up to 12" x 16.5"
Batch scanning for increased productivity - scan multiple images at one time and save files to a PC or Mac®

Powerful software included — LaserSoft Imaging SilverFast Ai with calibration targets
Seamlessly integrates with virtually any imaging software — TWAIN driver included

Specifications

Type

Flatbed color image scanner

Optical Sensor

Color Epson MatrixCCD line sensor

Maximum Scan Area

12.2" x 17.2"

Light Source

ReadyScan LED technology

Optical Resolution

2400 dpi

Hardware Resolution

2400 x 4800 dpi with Micro Step Drive technology

Image Data

Color Bit Depth: 48-bit internal/external

Grayscale Bit Depth: 16-bit internal/external

Optical Density

3.8 Dmax

Focus Control

Auto and Manual

Software Included

Epson Scan with Easy Photo Fix technology, LaserSoft Imaging
SilverFast Ai and IT8 targets

System Requirements

Windows® 7 (32-bit, 64-bit), Windows 8/8.1 (32-bit, 64-bit),
Windows 10 (32-bit, 64-bit), Windows 11
Mac® OS X® 10.9.x – macOS® 15

General

Control Panel

1-Button Start

Interface

Hi-Speed USB 2.0

Environmental Conditions

Temperature (Operating): 41 °F to 95 °F (5 °C to 35 °C)

Humidity: 10% – 80% without condensation (operating),

10% – 85% without condensation (storage)

Power Requirement

Voltage: AC 120 V – 220 V

Frequency: 50 Hz – 60 Hz

Power Consumption
Operating: 20 W (without optional Transparency Unit), 27 W (with optional Transparency Unit)
Ready Mode: 6 W (without optional Transparency Unit), 12 W (with optional Transparency Unit)
Sleep Mode: 1 W
Power Off: 0.2 W

Dimensions (W x D x H)

Without Packaging: 25.8" x 18.0" x 6.2"

With Packaging: 30.4" x 23.8" x 10.9"

Weight
Without Packaging: 31.5 lb
With Packaging: 43.4 lb

• Epson Expression 13000XL color scanner
• LaserSoft Imaging SilverFast Ai and 2x IT8 targets
• Hi-Speed USB 2.0 cable
• Power cable
• Start Here poster
