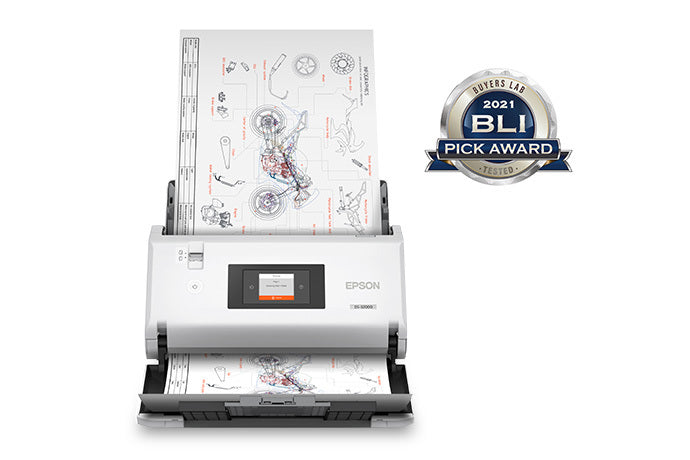

Epson DS-32000 Large-format Document Scanner

Ultra fast, versatile and compact scanner for high-volume business needs.

Designed for busy offices, the DS-32000 large-format document scanner makes it easy to take on any project. It offers speeds up to 90 ppm1 and includes a host of productivity features, such as a 120-sheet Auto Document Feeder, dual-sided scanning, a programmable 2.7" touchscreen and a paper-protection function — all in a flexible design. With versatile paper support, it provides vertical and horizontal feed options. Accommodating sheets up to 12" x 17", it can also scan folded pages, plastic cards, sealed envelopes, passports and more. The compact DS-32000 fits your workspace and makes storage easy. Plus, it delivers a 40,000-page peak daily duty cycle3 and is backed by a 3-year limited warranty.

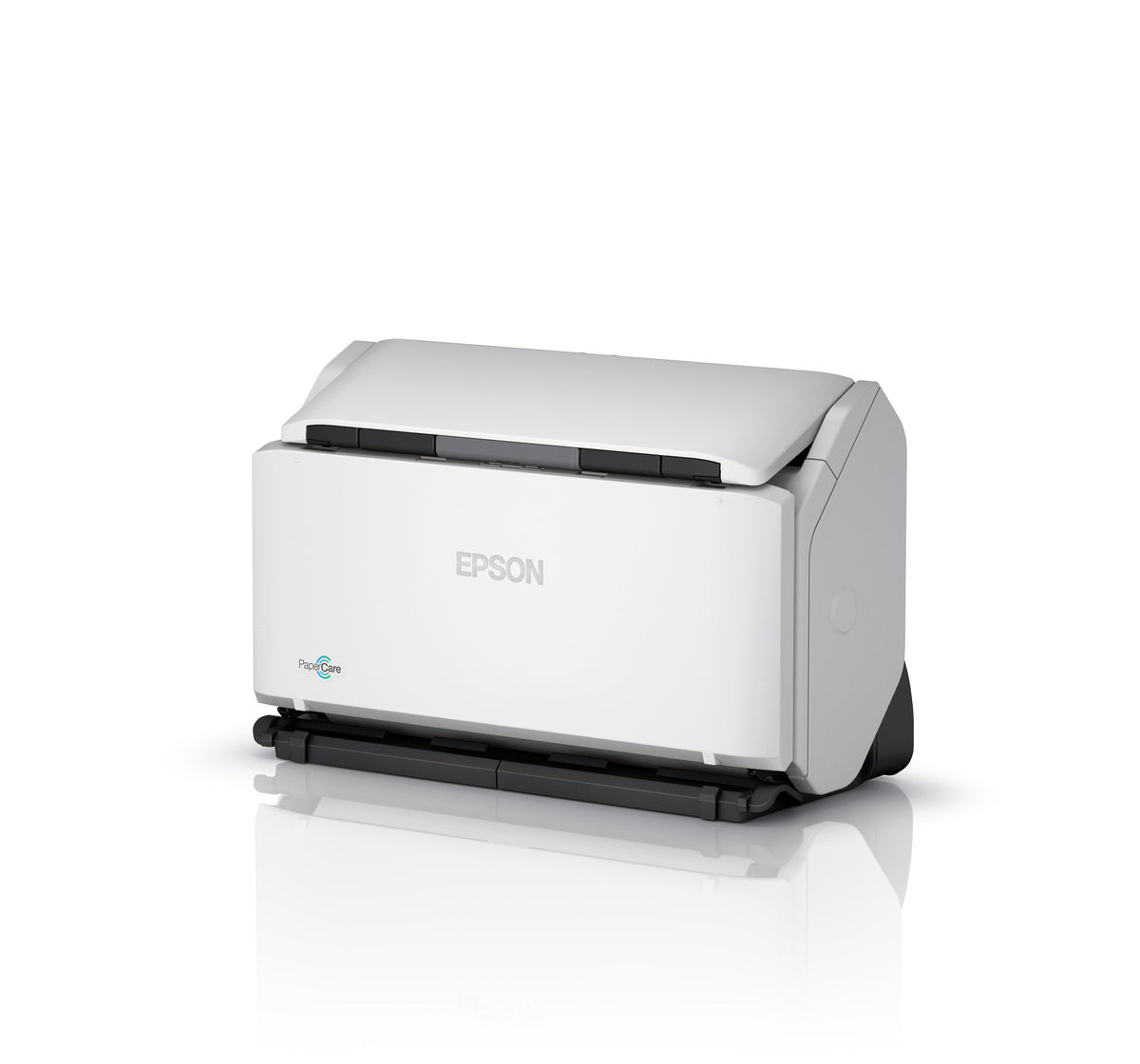

Compact — flexible design fits your workspace and makes storage easy
Seamless compatibility with document management systems — TWAIN and ISIS® drivers included
Advanced paper feeding system — Slow Mode for delicate sheets; Double-feed Detection to prevent missing pages; also features Paper Protection function, Power Separation Mode and more
Powerful software with OCR — use the included Epson Document Capture software to create searchable PDFs or scan to online storage accounts

Specifications Scanner:

Scanner Type:
Sheet-fed, 1-pass, duplex color scanner

Sensor:
Dual Color CIS

Optical Resolution:
600 dpi

Maximum Resolution:
1200 dpi

Color and Grayscale Scan Mode (Bit Depth):
30-bit internal/24-bit external

Monochrome Bit Depth:
1-bit

Consumables:
(pick up and separation roller each): 300,000 pages

Output Resolution:
50 to 1200 dpi

Paper Sizes:
Minimum: 2" x 2"; Maximum: 12" x 220" at 200 dpi;
Maximum: 12" x 215" at 300 dpi, 12" x 53" at 600 dpi

Paper Weight:
20 − 413 g/m2, A8 size or less: 127 – 413 g/m2

Card Thickness:
Maximum: 1.24 mm or less with emboss, 1.1 mm or less without emboss

Carrier Sheet:
0.3 mm or less (not including carrier sheet thickness)

Passport:
6 mm or less (including passport carrier sheet)

Controls:
2.7" front panel touchscreen

Light Source:
White LED

Scanning Speed:

• Landscape (A4 Size): 90 ppm/180 ipm: 200 and 300 dpi Black-and-white, Color, Gray; 26 ppm/52 ipm: 600 dpi Black-and-white, Gray, Color1
• Portrait (A4/Letter Size): 70 ppm/140 ipm: 300 dpi Black-and-White, Color, Gray

Automatic Document Feeder:

Capacity:

• A4/Letter: 120 sheets
• A3: 60 sheets
• Plastic Card (embossed): 1 card
• Plastic Card (without emboss): 5 cards
• Business Card: 30 cards
• Postcard: 40 sheets
• Long Paper: 1
• Envelope: 10 envelopes
• Carrier Sheet: 10 carrier sheets
• Passport: 1 passport with passport carrier sheet

General:

Operating Systems:

• Windows® 10
• Windows 8/8.1
• Windows 7
• Mac OS® X 10.9.x, 10.15.x, 10.7.x, 10.8.x

Humidity:
15 – 80% (no condensation)

Operating Temperature:
41° to 95° F (5° to 35° C)

Dimensions:
14.6" x 6.6" x 9.6" (W x D x H)

Weight:
15.2 lb

Warranty:
3-year limited warranty in the U.S. and Canada4

Scan Features:

Other:
Rigid plastic ID card scanning (including embossed cards), business card scanning, passport scanning with optional carrier sheet, Ultrasonic double-feed detection, Paper Protection, unit security lock (Kensington type)

Scanner Details:

Included Software:
EPSON Scan 2
Document Capture Pro Software

Interfaces:
SuperSpeed USB 3.0, backward compatible with 1.1/2.0

Daily Duty Cycle:
40,000 sheets

Power:

Rated Voltage:
100 – 240 V AC

Rated Frequency:
50 – 60 Hz

Rated Current:
2A

Power Consumption:
Operating: 20 W
Standby: 9.5 W
Sleep: 1.4 W
Off: 0.1 W

Output Voltage of AC Power Adapter:
24 V DC

• Epson DS-32000
• Start Here poster
• SuperSpeed USB 3.0 cable
• AC adapter with power cable
