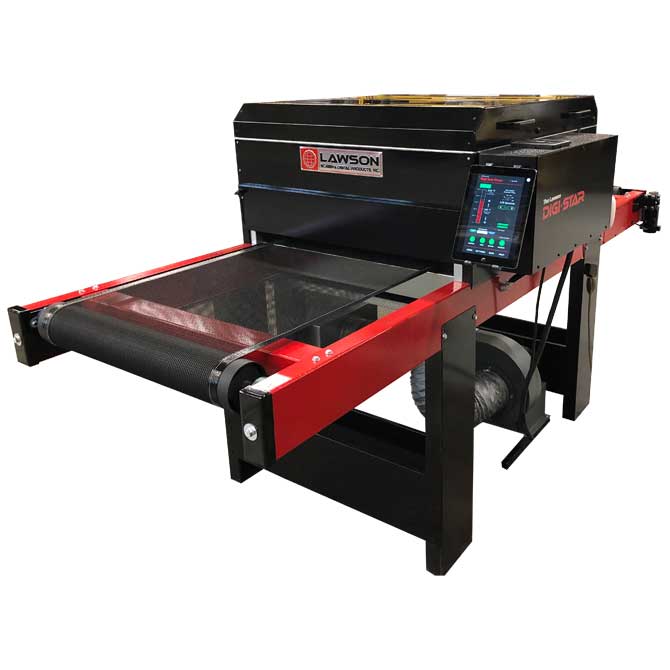

Digi-Star Elite Conveyor Dryer

Digi-Star Elite Conveyor Dryer

Please Call for Availability

SKUDigi-Star Elite

Regular price $10,995.00
Regular price $0.00 Sale price $10,995.00
Sale Sold out
View full details
Description
Specifications
In The Box
Reviews
Customers Have Asked

Important Shipping Information: Price includes crate for protection. Please call 214-342-9290 for availability and estimated ship times.

Freight Charges will be applied – Please call for a quote

Crating fees will apply for protection during shipping:

  • $395 for 24x08,
  • $495 for 21x12,
  • $525 for 24x16,
  • $495 for 36x08 and 36x12,
  • $495 for 36x16
  • $695 for 48x08, 48x12, and 48x16
  • $795 for 60x08, 60x12, 60x16

The Best Dryers Are SCR Controlled

The Digi-Star Elite is the only industry dryer utilizing true SCR electronic controls that regulate electric current flow for absolute temperature control in the most precise manner. In addition, our Elite Dryer with its SCR control system saves a minimum of 25% on your electricity bill - as you are controlling the voltage and reducing the amperage requried to maintain your curing temperature.

Having an SCR controlled dryer means there is no “dead time” when heating panels are turning on and off, leading to reduced power consumption, and no "demand" surcharges. Other garment dryers without SCR controls have heat fluctuations and spikes inside their heating chamber, a primary reason sensitive garments like polyester might scorch and burn.

A Programmable Touch Screen for Smart Controls

What might be the industry’s most advanced and intuitive color touch screen, this user interface comes standard with the Digi-Star Elite. Engineered and designed to mimic the movements and gestures of an I-phone and Android, the touch screen control pad can be used by anyone to visually monitor the status of the dryer, including chamber temperature, belt speed and the actual time garments are inside the chamber (down to the 100th of a second). Monitor your dryer operation and change dryer settings remotely from your I-phone, Android, I-pad or tablet.

Program virtually unlimited amounts of “recipes” or job settings for every type of printing you do. This is a popular feature for shops that might be switching between different types of shirts, inks and printing methods. For example, program automatic setting when screen printing plastisol on 50/50 shirts, have a pre-set for DTG printing on hoodies and a programmed setting for screen printing water-based on cotton. Having programmed the dryer temperature and time in the heat chamber, operators can instantly recall all of your settings each time a job is switched. For quality control and accountability, the program tracks all changes so owners and managers can see who made changes and when.

The Digi-Star Elite is ideally suited for curing digital inkjet DTG prints for the textile industry. It can handle DTG prints from any brand of direct to garment printer including: Epson F2000, Epson F2100, Brother GTX, Brother GT-3, Anajet, Kornit, M&R Maverick and more. Many DTG printers utilize a split belt, or multiple belts, chamber to increase production and vary the drying time depending on variable factors, such as shirt color, ink deposit, garment type and pre-treat deposit.

The Digi-Star Elite may also be used with plastisol, water-based and all direct-to-garment inks. No matter what type of screen printing or direct to garment printing you do, the Lawson Digi-Star Elite provides great production applications, especially where space is at a premium and true convection air is beneficial.

Engineered for simplicity, the heat chamber is totally accessible without tools or having to undo any wires. Making the maintenance easy and hassle free means it is more likely to be performed and extends the life of your dryer.

As with all Lawson equipment, the Digi-Star Elite is part of Lawson's unique Trade-In, Trade-Up program, so you never have to worry about out-growing your dryer. This unit will provide the professional results your customers demand for properly cured DTG garments and all types of plastisol and water base ink.

Standard Features

  • Color Touch Screen Control System
  • Wi-Fi Enabled PLC
  • SCR Electronic Control System
  • Multiple User Control via Smart Phone or Tablet
  • Temperature and Belt Speed Change Tracking
  • Programmable Curing Recipes
  • Job Tracking and Recall
  • 24", 36", 48" & 60" Belt Width
  • 3', 6' and 9' Long Heat Chamber (depending on size/model)
  • 8', 12' or 16' Overall Length
  • Digital Temperature Control
  • Digital Heat Chamber Retention Time
  • 2', 3' or 4' In-Feed (depending on size/model)
  • 2', 3' or 4' Out-Feed (depending on size/model)
  • Combo I.R. and Pressurized Jet-Air
  • Vacuumized Belt with Powered Bottom Exhaust
  • Hinged Top for Easy Chamber Access
  • Easy, No Tool Lint Trap Filter(s)
  • Double-Insulated Heat/Air Chamber
  • "Cool-Touch" Full-Wrap Insulation
  • Direct Drive Conveyor Motor
  • Easy Belt Tracking with Arrow Belt™ and Bullseye Conveyor Belt Tracking™
  • Heat-Reflective, Memory Belt
  • Reflective Infrared Booster Lining
  • Intuitive, Easy-to-Use Tablet Touch Screen Controls
  • 120/230 Volts; 1-Phase or 3-Phase (depending on size)
  • National Safety Code Compliant/CE Compliant
  • 1-Year Parts Warranty

Optional Features

  • Custom Belt Widths
  • Custom Belt Lengths (In-Feed & Out-Feed)
  • Custom Heat Chamber Lengths
  • Cap Side-Mounted I.R. panel (6" x 24")
  • Phase Change (1 to 3; or 3 to 1)
  • Export Electrics
  • Crating
Estimated Cure/Cycle Times for Water-Base/DTG Ink 30 - 120 sec. 30 - 120 sec.  30 - 120 sec. 30 - 120 sec. 30 - 120 sec. 30 - 120 sec. 30 - 120 sec.
Color Tablet Control System Yes  Yes Yes Yes Yes Yes Yes
Overall Length 8'  12' 16' 12' 16' 16' 16'
Overall Width 40"  40" 40" 52" 52" 62" 76"
Belt Width 24"  24" 24" 36" 36" 48" 60"
Overall Height 47"  47" 47" 47" 47" 47" 47"
Heat Chamber Length 3'  6' 9' 6' 9' 9' 9'
In-Feed 3'  3' 4' 3' 4' 4' 4'
Out-Feed 2'  3'' 3' 3' 3' 3' 3'
Belt Height 34"  34" 34" 34" 34" 34" 34"
Split Belt Available No  No Yes Yes Yes Yes Yes
Blower(s) CFM 595 (1 blower)  1190 (2 blower) 1785 (3 blowers) 1190 (2 blowers) 1785 (3 blowers) 1785 (3 blowers) 1785 (3 blowers)
Infra-Red Zones  2 4 6 4 6 4 4
Air Zones  1 continuous 1 continuous 1 continuous 1 continuous 1 continuous 1 continuous 1 continuous
Flue Size (1) 3" (powered exhaust) (2) 3" (powered exhaust) (3) 3" (powered exhaust) (2) 3" (powered exhaust) (3) 3" (powered exhaust) (3) 3" (powered exhaust) (3) 3" (powered exhaust)
I.R. + Convection Air Yes  Yes Yes Yes Yes Yes Yes
Heater Wattage 6,000  12,000 18,000 18,000 27,000 24,000 36,000
AMPS (230 volts) 1/3 Phase
 (3 wires + ground)
 30 (1-phase) 56 (1-phase) 78 (1-phase) 78/43 (1-phase standard) 120/85 (1-phase standard 110/92 (3-phase standard) 156/104 (3-phase standard)
Approximate Crated Weight 730 lbs  1,300 lbs 1,600 lbs 1,600 lbs 2,400 lbs 2,700 lbs 3,000 lbs
Approximate Crate Size (W x L x H) 57x108x59 57x160x59 57x210x59 67x160x59 74x160x59 78x190x67
  2408 2412 2416 3612 3616 4816 6016
