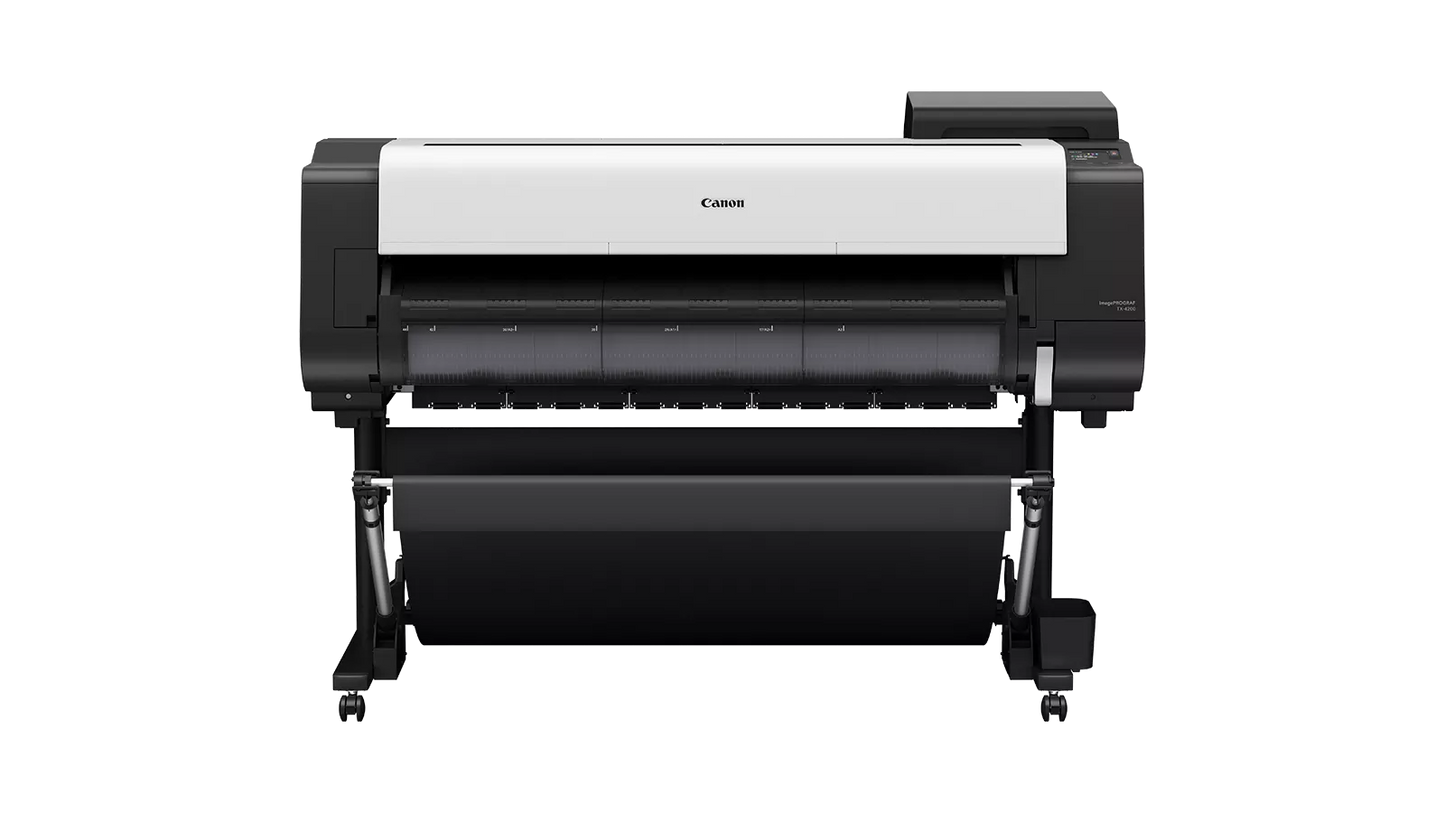

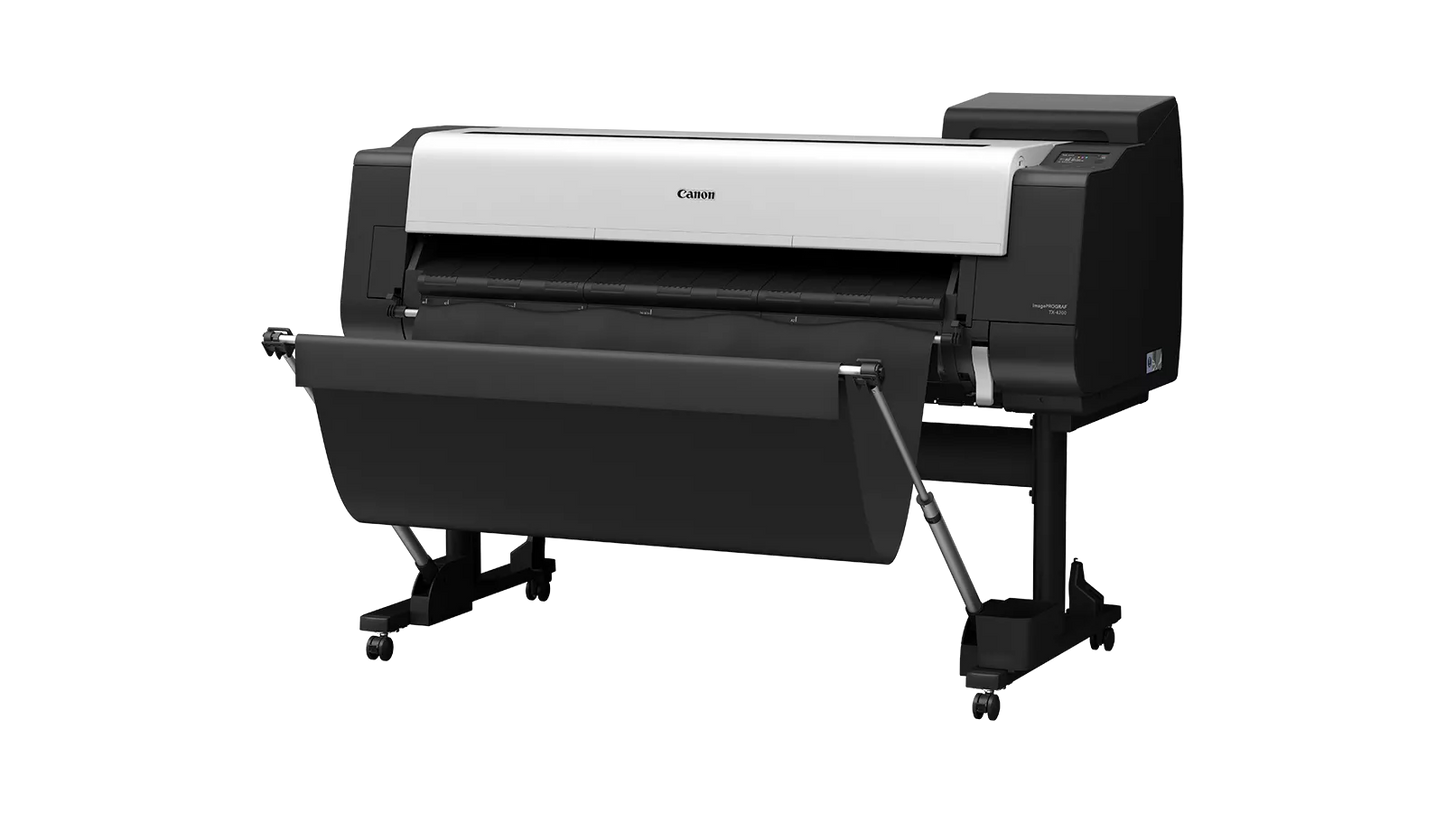

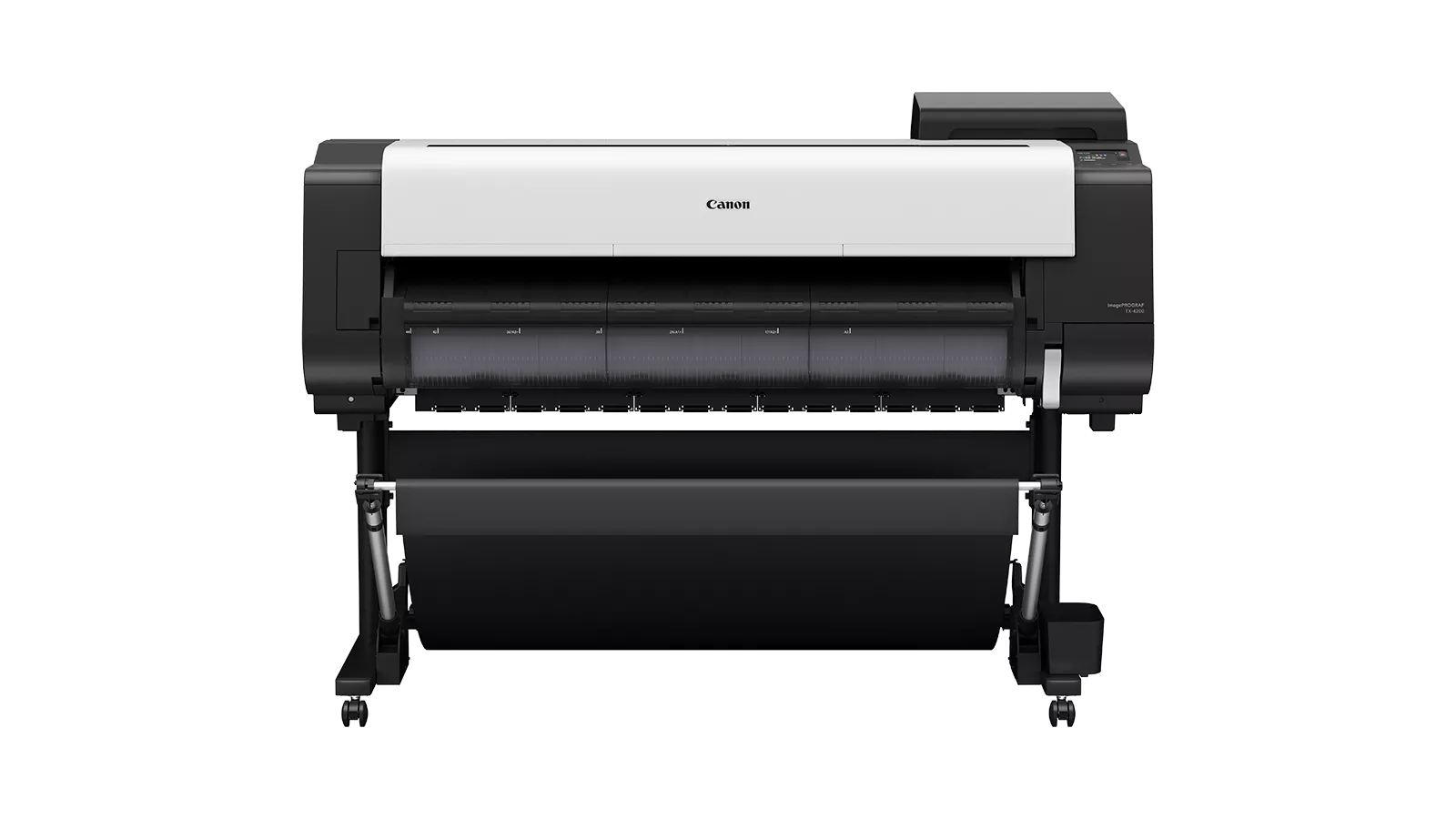

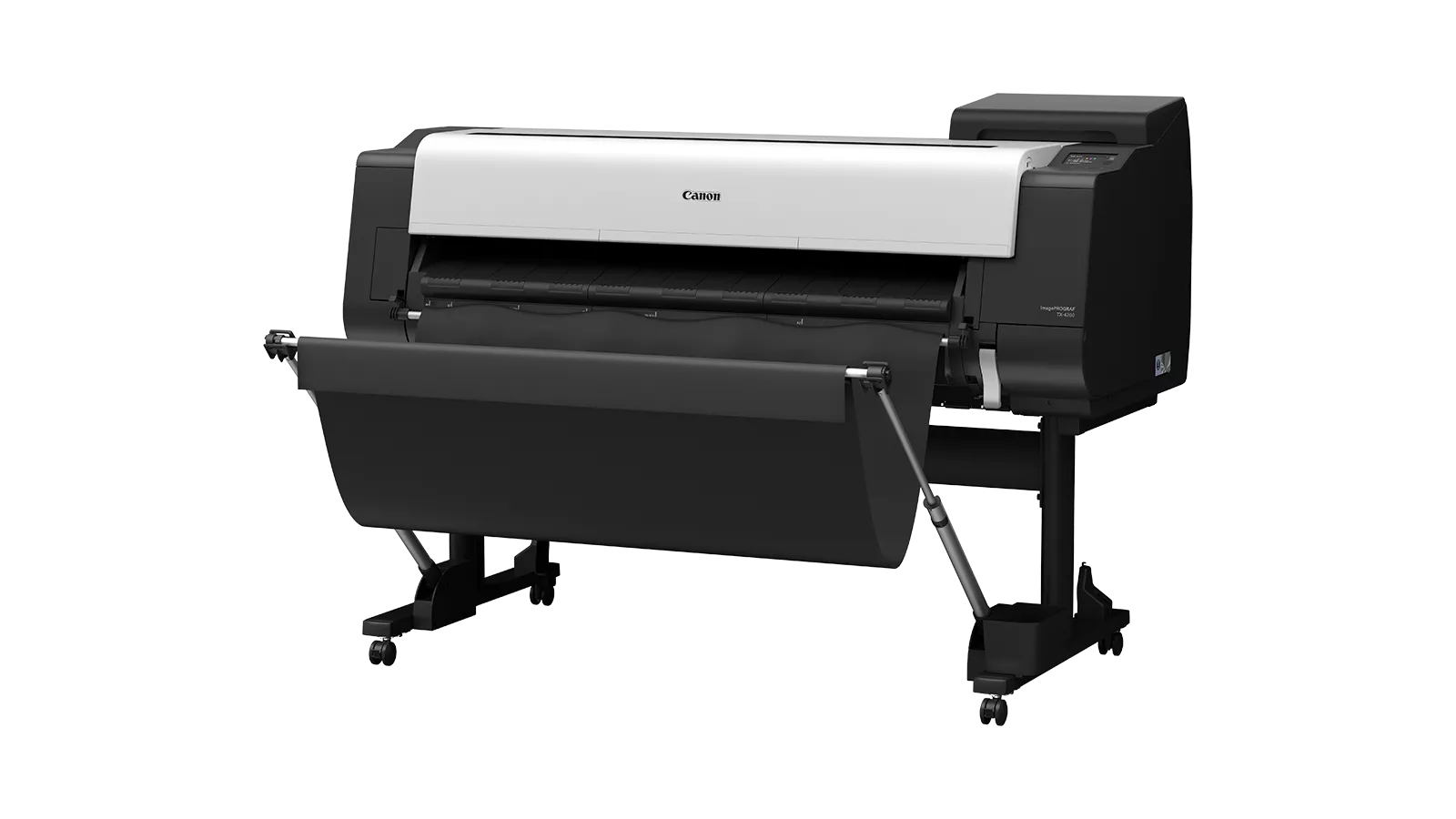

Canon imagePROGRAF TX-4200 44" Large Format Printer w/ Stand & TX Stacker
The Canon imagePROGRAF TX-4200 is a professional-grade 44-inch large-format printer engineered to meet the needs of architects, engineers, designers, and other professionals requiring precise and efficient printing solutions. With its advanced features, robust design, and included TX Stacker, the TX-4200 is perfect for managing high-volume technical documents, CAD drawings, GIS maps, and vibrant posters.
Key Features:
- Exceptional Print Quality: Canon’s LUCIA TD pigment ink technology ensures sharp lines, rich colors, and outstanding durability on a wide range of media, including uncoated paper.
- Large 44” Printing Width: Accommodates oversized prints and high-volume jobs with ease, delivering consistent quality and performance.
- Efficient Paper Handling: The included TX Stacker organizes up to 100 sheets of various media sizes, helping you maintain a clean and efficient workspace.
- User-Friendly Interface: The intuitive 4.3-inch color touchscreen simplifies setup, operation, and troubleshooting, making it accessible for any user.
- Enhanced Productivity: Optional dual-roll functionality and fast print speeds ensure seamless operation, even under tight deadlines.
- Seamless Connectivity: Supports Wi-Fi, Ethernet, USB, and cloud-based workflows for modern, flexible printing options.
- Space-Saving Design: Compact for its capabilities, the TX-4200 includes a sturdy stand and integrated TX Stacker, ensuring a tidy and efficient workspace.
Why Choose the Canon imagePROGRAF TX-4200 with TX Stacker?
The TX-4200 is the ultimate solution for professionals who demand speed, accuracy, and reliability in large-format printing. Whether producing detailed technical plans or high-impact graphics, this printer delivers exceptional results with ease.
Streamline your workflow and elevate your projects with the Canon imagePROGRAF TX-4200—a powerful, efficient, and reliable printing solution designed for professionals.
Main Unit Specs
Printer Type
5-Color 44-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy
±0.1% or Less
Minimum Line Weight
0.02 mm
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with Printer:
MBK/BK/C/Y/M: 330 ml
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Ink Supply Method
Tubing System with Sub Tanks for Continuous Ink Supply
Printer Controller
L-COA PRO
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Droplet Size
5 picoliter
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet:
6”-44” (152 mm - 1118 mm)
Roll Feed:
6”-44” (152 mm - 1118 mm)
Printable Margins
Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless
Maximum Print Length (Single Page)
Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m)
Borderless Printing Widths (Roll Media Only)
Custom Roll Width 6” - 44” with Micro Margin Technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 - 0.8 mm
Media Core Sizes
2” with 3” Core Adapters Included
Maximum Roll Outer Diameter
6.7" (170 mm)
Media Output Options
TX Stacker or Multipositional Catch Basket
Media Method
Roll Feed:One Roll, Front-loading, Front Output
Front Loading Manual Feed:One Roll, Front Output
Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 14
Print Languages
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Interface
USB B Port
Type: Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)
USB A Port: Direct USB Thumb Drive Printing
Gigabit Ethernet
Type: Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Acoustic Noise
Operation: 51 dB (A) or Less
Standby: 35 dB (A) or Less
Acoustic Power: Approx 6.9Bels
Power Supply
AC 100 - 240 V (50 - 60 Hz)
Power Consumption
Maximum: Approx. 115 W
Standby: Approx. 2.0 W
Power Off: Approx. 0.3 W
Certifications
Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide) & EPEAT Gold
Operational Environment
Temperature: 59° F - 86° F (15° C - 30° C)
Relative Humidity: 10 - 80% (No Condensation)
Printer Dimensions (W x D x H) and Weight
With Basket Open: 54.7” x 38.7” x 46”; 231.5 lb. (Approx.)
With Basket Closed: 54.7” x 30.2” x 46”; 231.5 lb. (Approx.)
With Stacker Opened: 54.7” x 46.8” x 46”; 258 lb. (Approx.)
With Stacker Closed: 54.7” x 44.2” x 46”; 258 lb. (Approx.)
Package Dimensions (W x D x H) and Weight
Printer (Main Unit with Stand and Pallet): 64” x 35.6” x 40.7”; 337 lb. (Approx.)
Basket: 56” x 21.9” x 8.4”; 20 lb. (Approx.)
Stacker: 49.2” x 35.7” x 11.5”; 60 lb. (Approx.)
Roll Unit: 60” x 22.1” x 18.1”; 68.3 lb. (Approx.)
- Includes Main Unit
- TX Stacker, Stand
- Printhead
- Starter Ink Tank Set
- Maintenance Cartridge (Installed)
- 2” Roll Holder with 3” Adapters
- Installation Guide
- User Registration Card
- Printer Warranty Statement
- Printhead Warranty Statement
- Call Center Notice
- Media Compatibility Flyer
- PosterArtist Web Notice Flyer
- iWR Service Terms Leaflet
- Safety and Environmental Information
- USB port (High Speed)
- Power Cable & Screw
- Gigabit Ethernet (Built-In)
