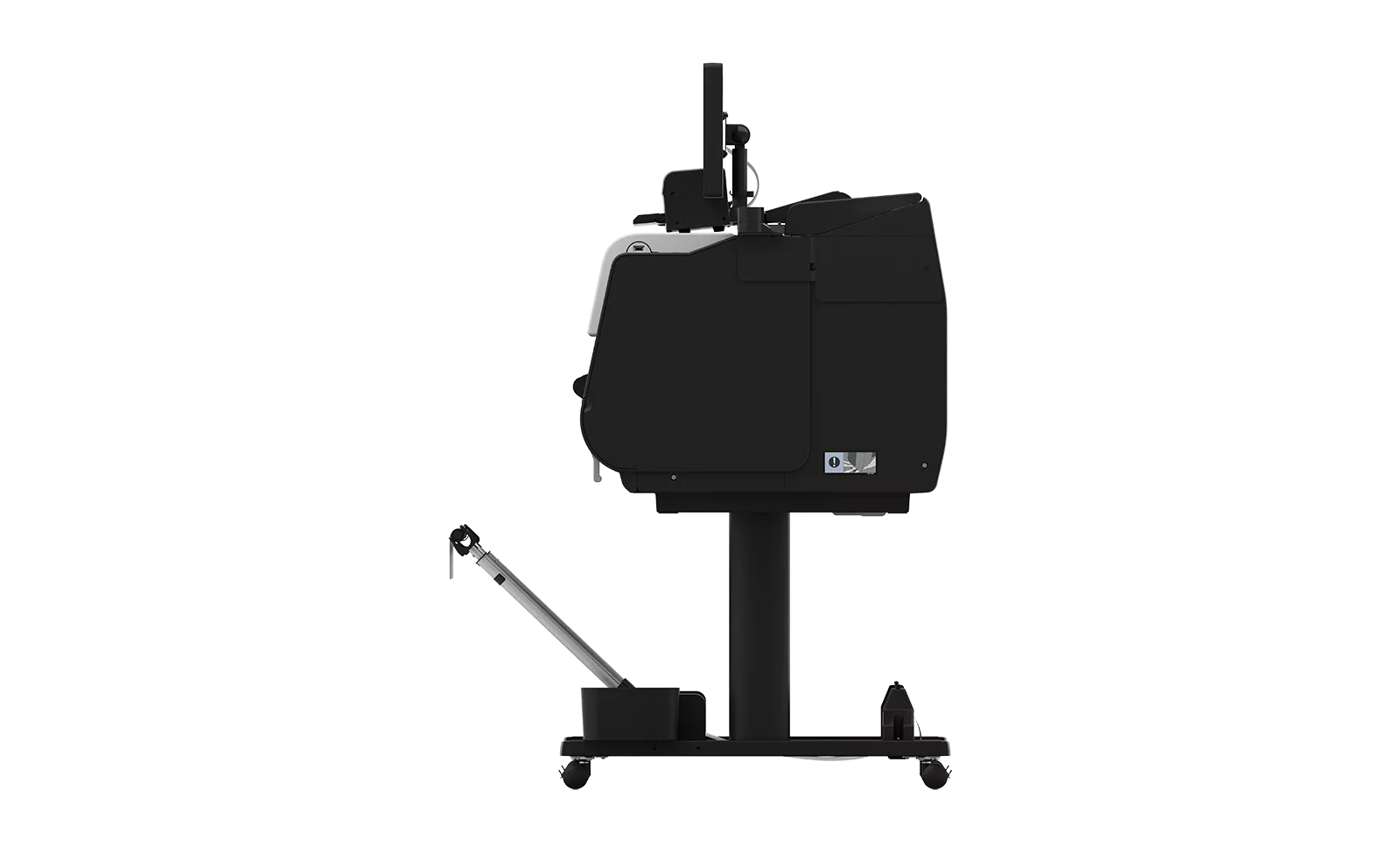

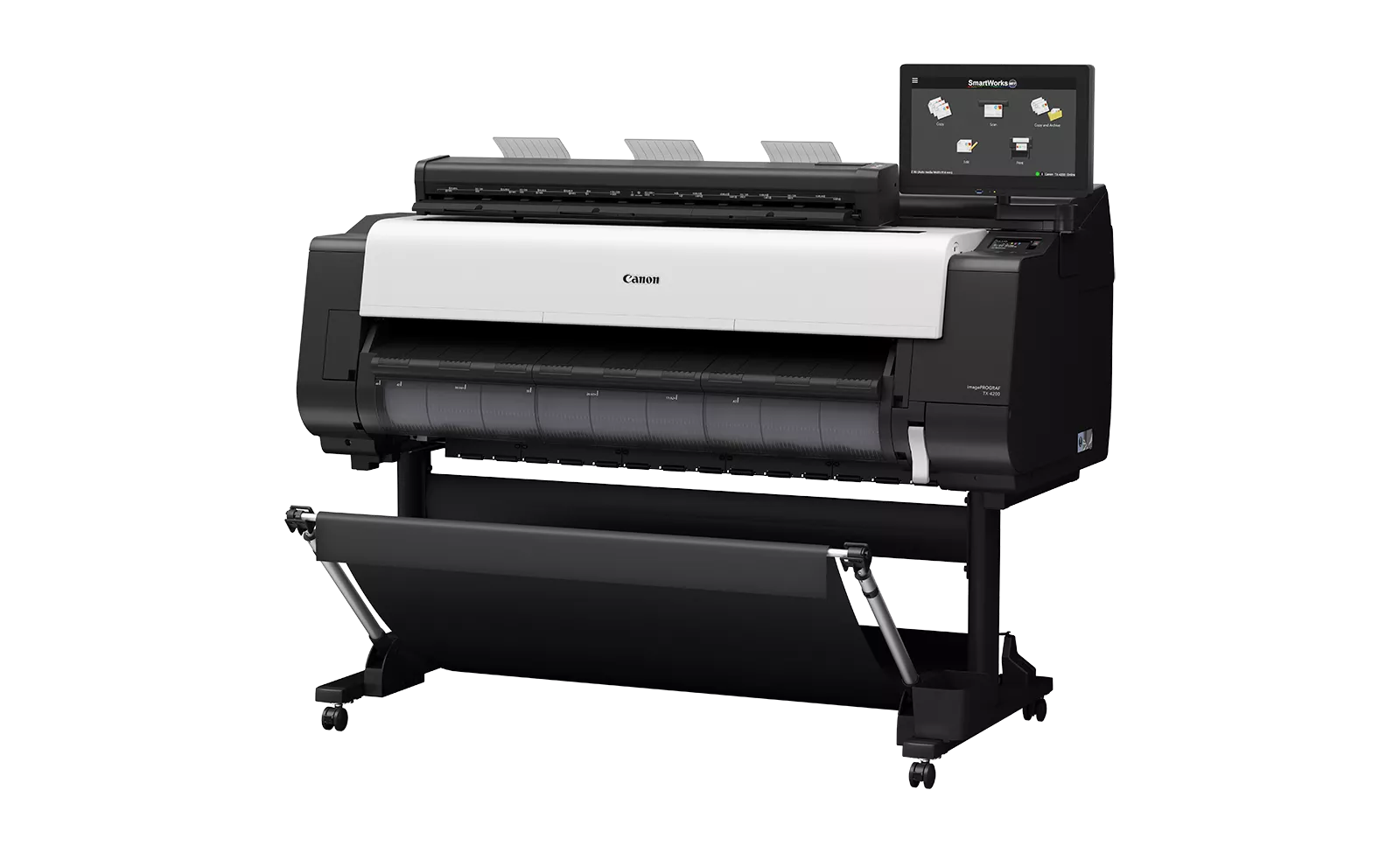

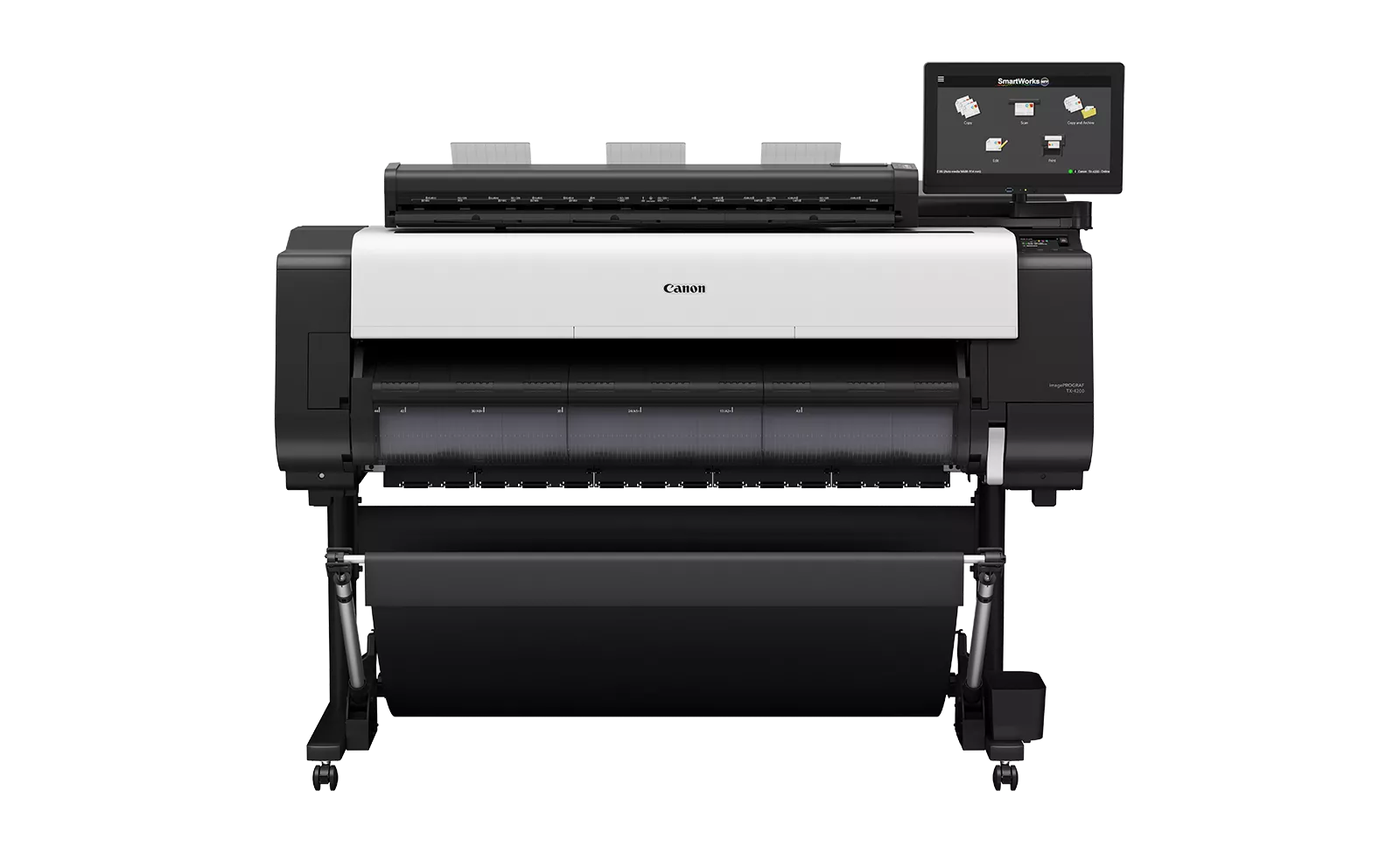

Canon imagePROGRAF TX-4200 44” Large Format Printer MFP w/ Z36 Scanner, Stand and Catch Basket
The Canon imagePROGRAF TX-4200 redefines multifunctional large-format printing with its robust 44-inch printing capability, integrated Z36 scanner, and practical stand and catch basket. Designed for professionals in architecture, engineering, construction, and design, this MFP offers precision, productivity, and convenience for large-scale projects.
Key Features:
- Exceptional Print Quality: Powered by Canon’s LUCIA TD pigment ink system, the TX-4200 delivers sharp lines, vibrant colors, and water-resistant prints on various media, including economical uncoated paper.
- Integrated Z36 Scanner: The Z36 scanner ensures accurate and high-speed scanning and copying of large-format documents, such as blueprints, maps, and posters, for seamless digitization.
- 44” Printing Capability: Ideal for oversized technical drawings, CAD plans, and impactful graphics, the TX-4200 excels in handling high-volume and large-scale tasks.
- Organized Workflow: The included catch basket keeps finished prints neat and prevents damage, ensuring your workspace stays tidy and efficient.
- Fast and Reliable Performance: Achieve quick turnaround times without compromising quality, perfect for demanding project deadlines.
- Intuitive Operation: The 4.3-inch color touchscreen provides an easy-to-use interface, simplifying navigation and operation for all users.
- Versatile Connectivity: Supports Wi-Fi, Ethernet, USB, and cloud-based workflows, allowing seamless integration into modern, connected environments.
Why Choose the Canon imagePROGRAF TX-4200 MFP with Z36 Scanner and Catch Basket?
This multifunction printer and scanner combination delivers everything professionals need for high-precision, large-format printing and document management. Whether producing intricate technical drawings or vibrant marketing materials, the TX-4200 offers consistent performance and superior results.
Elevate your workflow with the Canon imagePROGRAF TX-4200 MFP—a complete, reliable, and efficient solution for all your large-format printing and scanning needs.
Main Unit Specs
Printer Type
5-Color 44-inch Printer
Technology
FINE (Photolithography Inkjet Nozzle Engineering)
Print Resolution (Max.)
2400 x 1200 dpi
Line Accuracy
±0.1% or Less
Minimum Line Weight
0.02 mm
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)
Ink Tank
Shipped with Printer:
MBK/BK/C/Y/M: 330 ml
Replacement:
M: PFI-111(160ml)/PFI-311(330ml)/PFI-711(700ml)
MBK/BK/C/Y: PFI-110(160ml)/PFI-310(330ml)/PFI-710(700ml)
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Ink Supply Method
Tubing System with Sub Tanks for Continuous Ink Supply
Printer Controller
L-COA PRO
Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows
Ink Droplet Size
5 picoliter
Printer RAM
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet:
6”-44” (152 mm - 1118 mm)
Roll Feed:
6”-44” (152 mm - 1118 mm)
Printable Margins
Roll Feed: All Sides: 0.12" (3 mm) or 0" for Borderless
Maximum Print Length (Single Page)
Roll Feed: 59' (18 m)Cut Sheet: 63" (1.6 m)
Borderless Printing Widths (Roll Media Only)
Custom Roll Width 6” - 44” with Micro Margin Technology
Media Cutter
Automatic horizontal rotary cutter
Media Thickness
0.07 - 0.8 mm
Media Core Sizes
2” with 3” Core Adapters Included
Maximum Roll Outer Diameter
6.7" (170 mm)
Media Output Options
TX Stacker or Multipositional Catch Basket
Media Method
Roll Feed:One Roll, Front-loading, Front Output
Front Loading Manual Feed:One Roll, Front Output
Printing Software Utilities
Accounting Manager, Canon Print Service, Canon Production Printing (CPP) Driver Select, Canon Production Printing (CPP) PRISMA Tech Suite, Device Management Console, Direct Print Plus, Free Layout Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist, Optimized Driver for AutoCAD, Quick Utility Toolbox
Operating System
Windows 7 (32/64-bit), Windows 8.1 (32/64-bit), Windows 10 (32/64-bit),
Windows 11 (64-bit), Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022 (64-bit), MacOS v10.15.7- MacOS 14
Print Languages
SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Interface
USB B Port
Type: Built-in (Hi-speed USB)
Mode: Full Speed (12-Mbit/sec.), High Speed (480-Mbit/sec.), Bulk Transfer Connector Type: Series B (4 Pins)
USB A Port: Direct USB Thumb Drive Printing
Gigabit Ethernet
Type: Built-in
Standard: IEEE 802.3u 100Base-TX/Auto-Negotiation, IEEE 802.3ab 1000Base-T/Auto-Negotiation, IEEE 802.3x Full Duplex
Protocol: SNMP, HTTP, TCP/IP (IPv4/IPv6), FTP
Wireless LAN
Standard: IEEE802.11n/IEEE802.11g/IEEE802.11b4
Security: WEP (64/128-bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Acoustic Noise
Operation: 51 dB (A) or Less
Standby: 35 dB (A) or Less
Acoustic Power: Approx 6.9Bels
Power Supply
AC 100 - 240 V (50 - 60 Hz)
Power Consumption
Maximum: Approx. 115 W
Standby: Approx. 2.0 W
Power Off: Approx. 0.3 W
Certifications
Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide) & EPEAT Gold
Operational Environment
Temperature: 59° F - 86° F (15° C - 30° C)
Relative Humidity: 10 - 80% (No Condensation)
Printer Dimensions (W x D x H) and Weight
With Basket Open: 54.7” x 38.7” x 46”; 231.5 lb. (Approx.)
With Basket Closed: 54.7” x 30.2” x 46”; 231.5 lb. (Approx.)
With Stacker Opened: 54.7” x 46.8” x 46”; 258 lb. (Approx.)
With Stacker Closed: 54.7” x 44.2” x 46”; 258 lb. (Approx.)
Package Dimensions (W x D x H) and Weight
Printer (Main Unit with Stand and Pallet): 64” x 35.6” x 40.7”; 337 lb. (Approx.)
Basket: 56” x 21.9” x 8.4”; 20 lb. (Approx.)
Stacker: 49.2” x 35.7” x 11.5”; 60 lb. (Approx.)
Roll Unit: 60” x 22.1” x 18.1”; 68.3 lb. (Approx.)
MFP Z36 Scanner
Scan Speed
24-bit Color @ 200 dpi: Up to 3” per second
8-bit Grayscale and Monochrome @ 200 dpi: Up to 13” per second
Copy Speed
24-bit Color @ 200 dpi: Up to 6” per second
Color Space
sRGB
Maximum Resolution
1200 dpi (Optical)
Scan Accuracy
±0.1% : ±1 pixel
Maximum Scan Width/Maximum Media Width
36”/38”
Maximum Scan Length
164’ (PDF); 315” (JPEG); 598” (TIFF)
Maximum Media Thickness
0.003” - 0.04” (0.07 mm - 1.0 mm)
Digital Imaging Technology
Contact Image Sensor (CIS) Technology
(SingleSensor Assembly)
24-bit RGB
16-bit grayscale image capture
Panchromatic monochrome and black and white
Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability
Included Software
SmartWorks MFP Scan-to-Copy/File/Email with Real-time Image Viewer; supports TIFF, JPEG, and PDF
Scanner Interface Kit
3x USB 3.2 and 1x USB 2.0 rear and 1x USB 3.2 front, all type A
Operating Environments
10°C - 35°C, 10 - 90% RH, Non-condensing
External Power Supply
100 - 240 VAC Autosensing +/- 10%, 50 - 60 Hz
Scanner Power Consumption
Sleep: 0.2 W
Idle: 12.4 W
Scanning Color/Grayscale at 200 dpi: 22.7 W/23.3 W
Controller: 35 W
Compliances
ENERGY STAR®, CB(62368-1), CE, FCC(EMC), Cul/UL, CCC, NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL AR, WEEE, REACH, RoHS, EU - Tier 3 of Lot 6
MFP Package Dimensions (W x D x H) and Weight
(With Stand, Pallet, and Scanner)
50" x 17" x 19.5", 75 lb. (Approx.)
Main Unit
- Includes Main Unit
- Multi-Positional Catch Backet
- Stand, (1) Printhead
- Starter Ink Tank Set
- Maintenance Cartridge (Installed)
- 2” Roll Holder with 3” Adapters
- Installation Guide
- User Registration Card
- Printer Warranty Statement
- Printhead Warranty Statement
- Call Center Notice, Media Compatibility Flyer
- PosterArtist Web Notice Flyer
- iWR Service Terms Leaflet
- Safety and Environmental Information
- USB port (High Speed)
- Power Cable & Screw
- Gigabit Ethernet (Built-In)
MFP Z36 Scanner
- Z36 Scanner with Power Cord
- USB 3.0 Cable (2 m)
- 15.6” System Controller
- 3:1 Trident Power Cord
- Power Supply
- Mount for Printer and System Controller
- Paper Edge Guides
- Document Return Guides
- Calibration Target
- Assembly and Startup Guide
