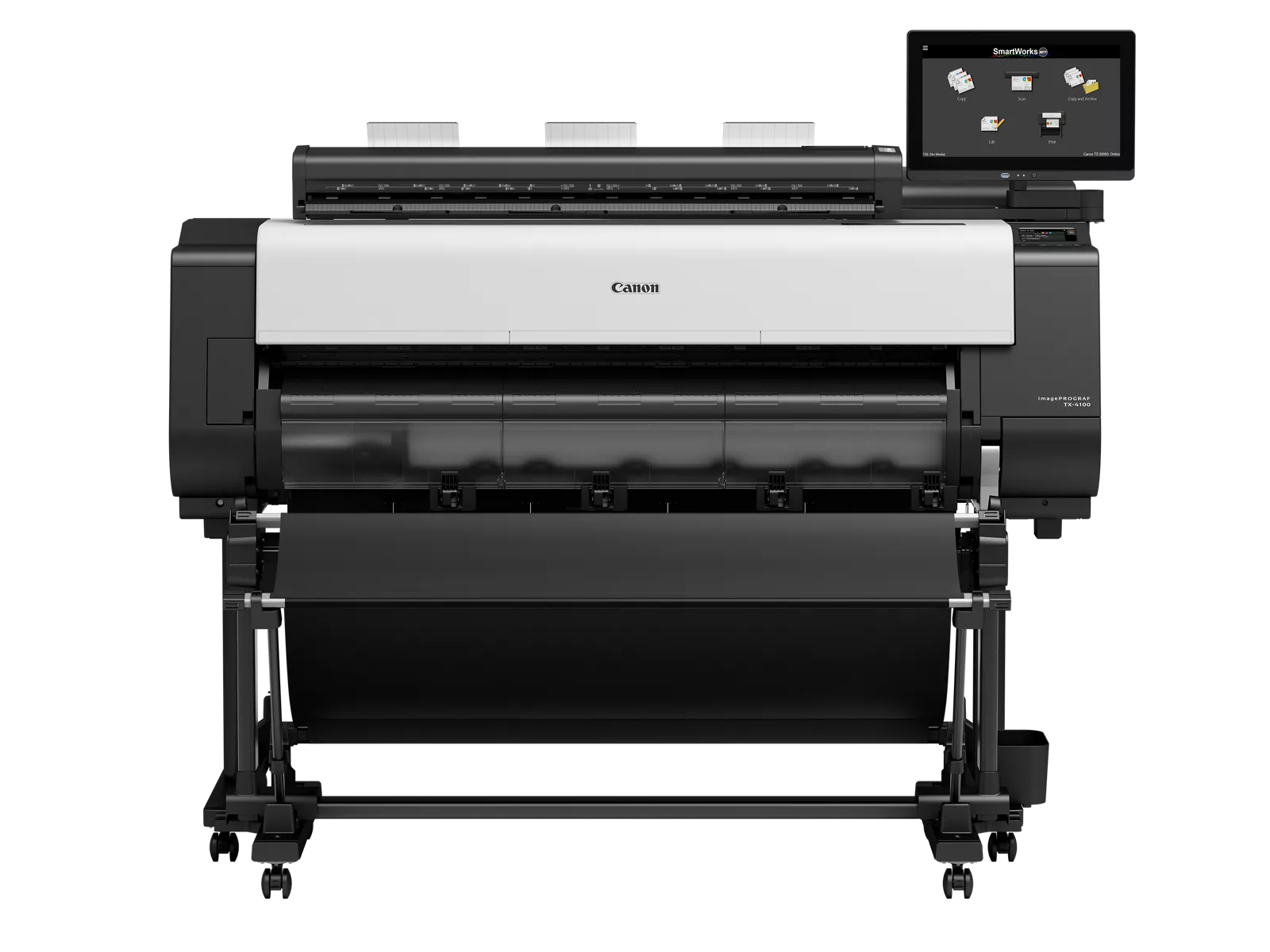

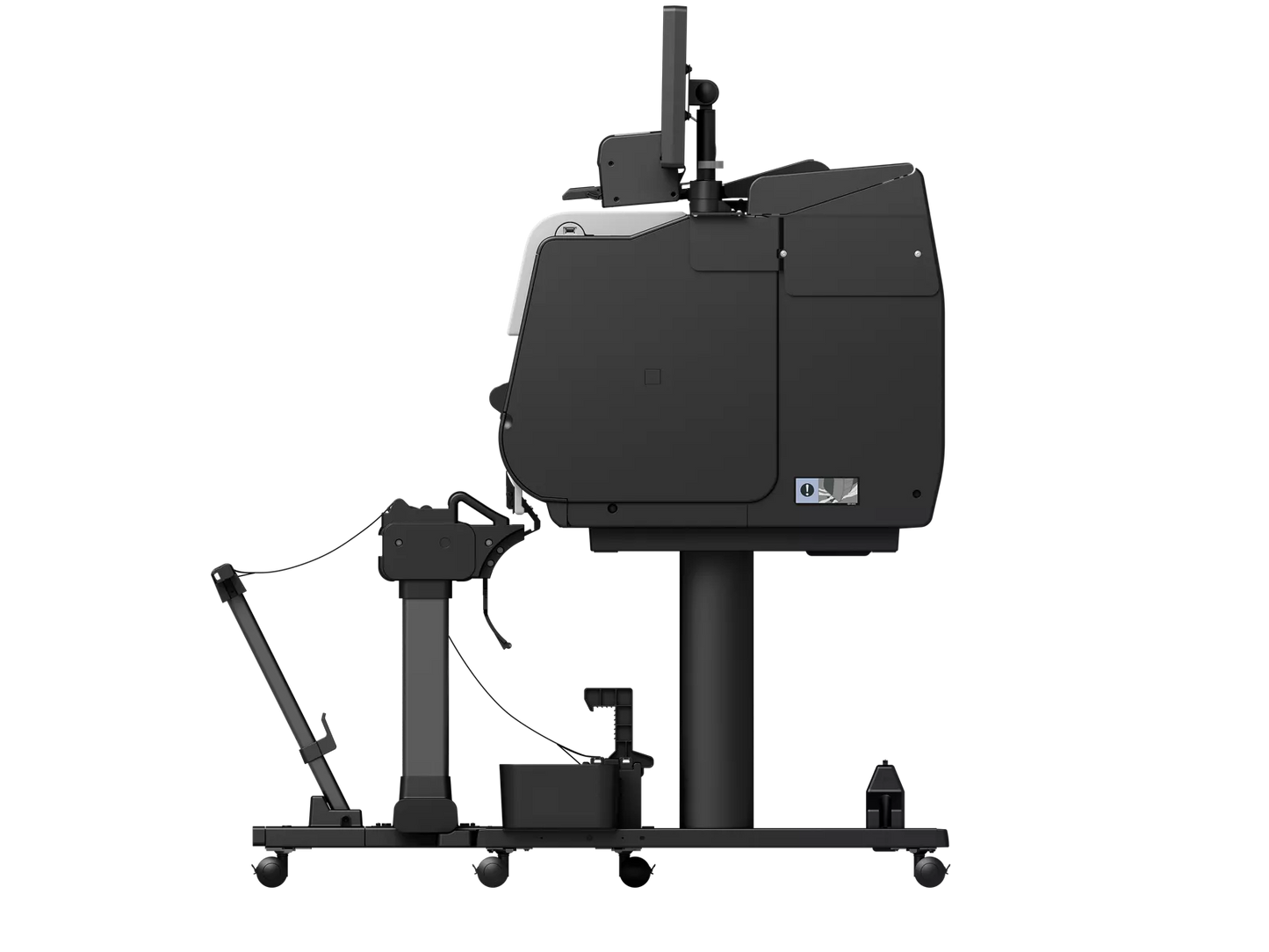

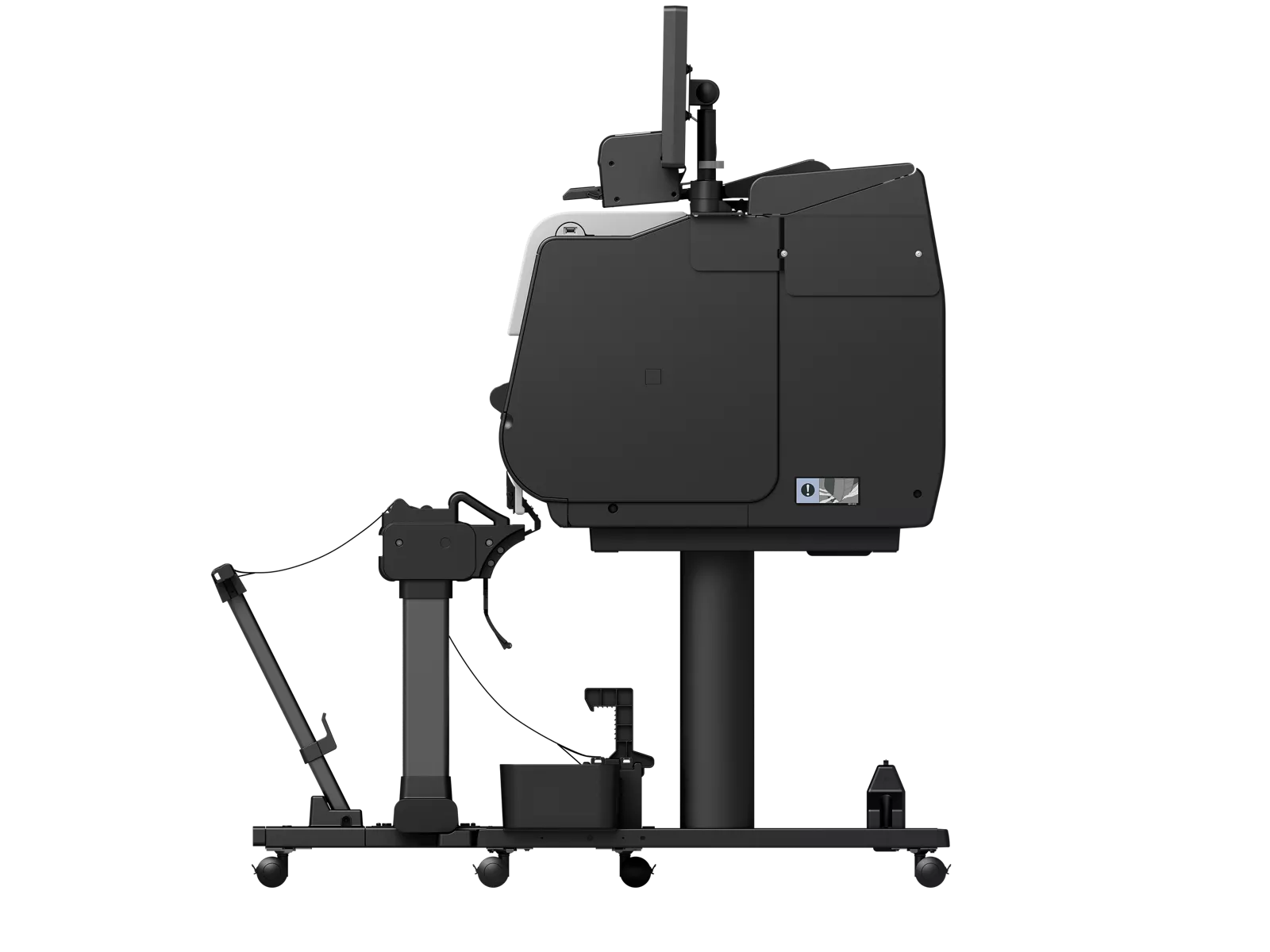

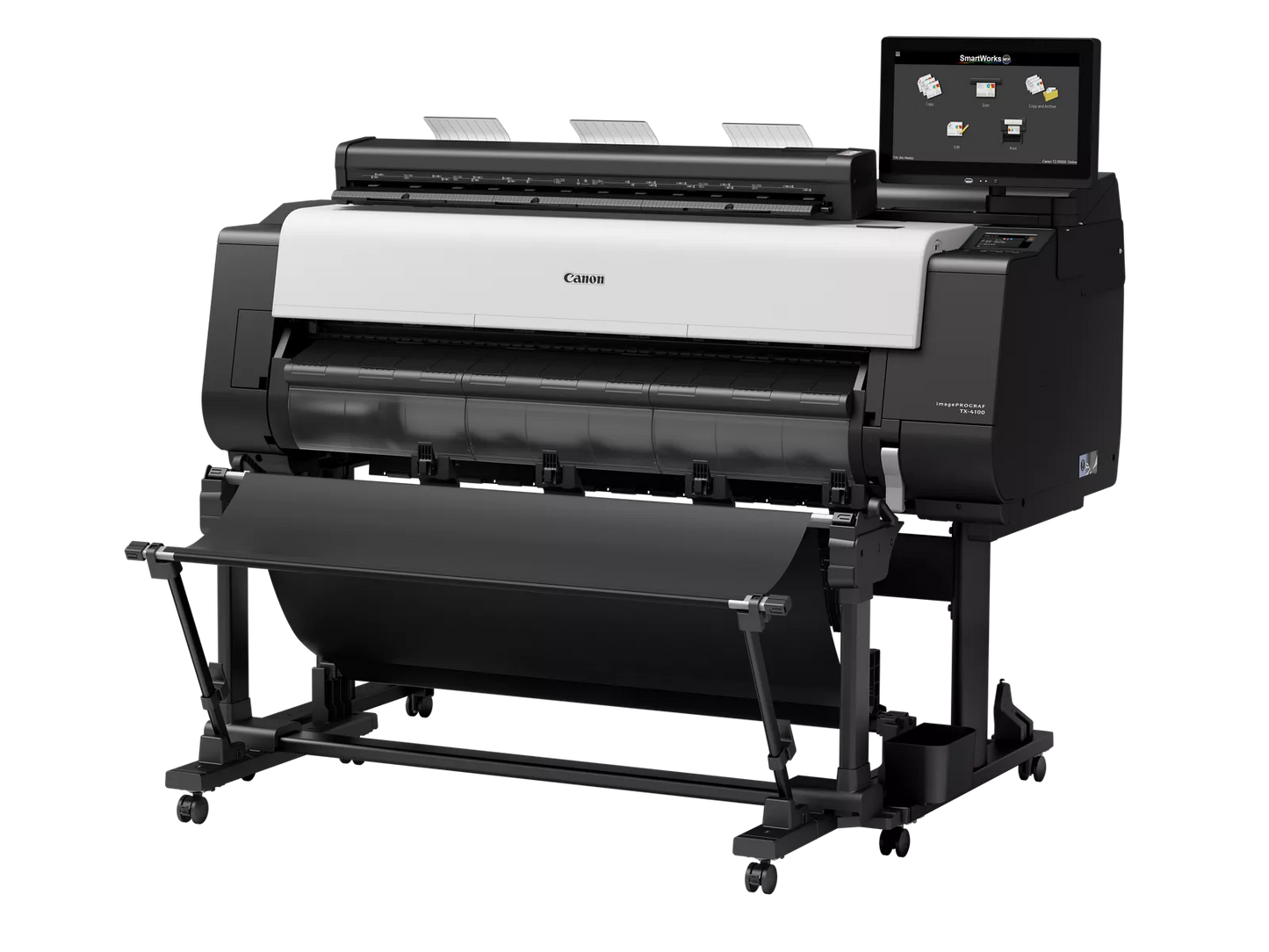

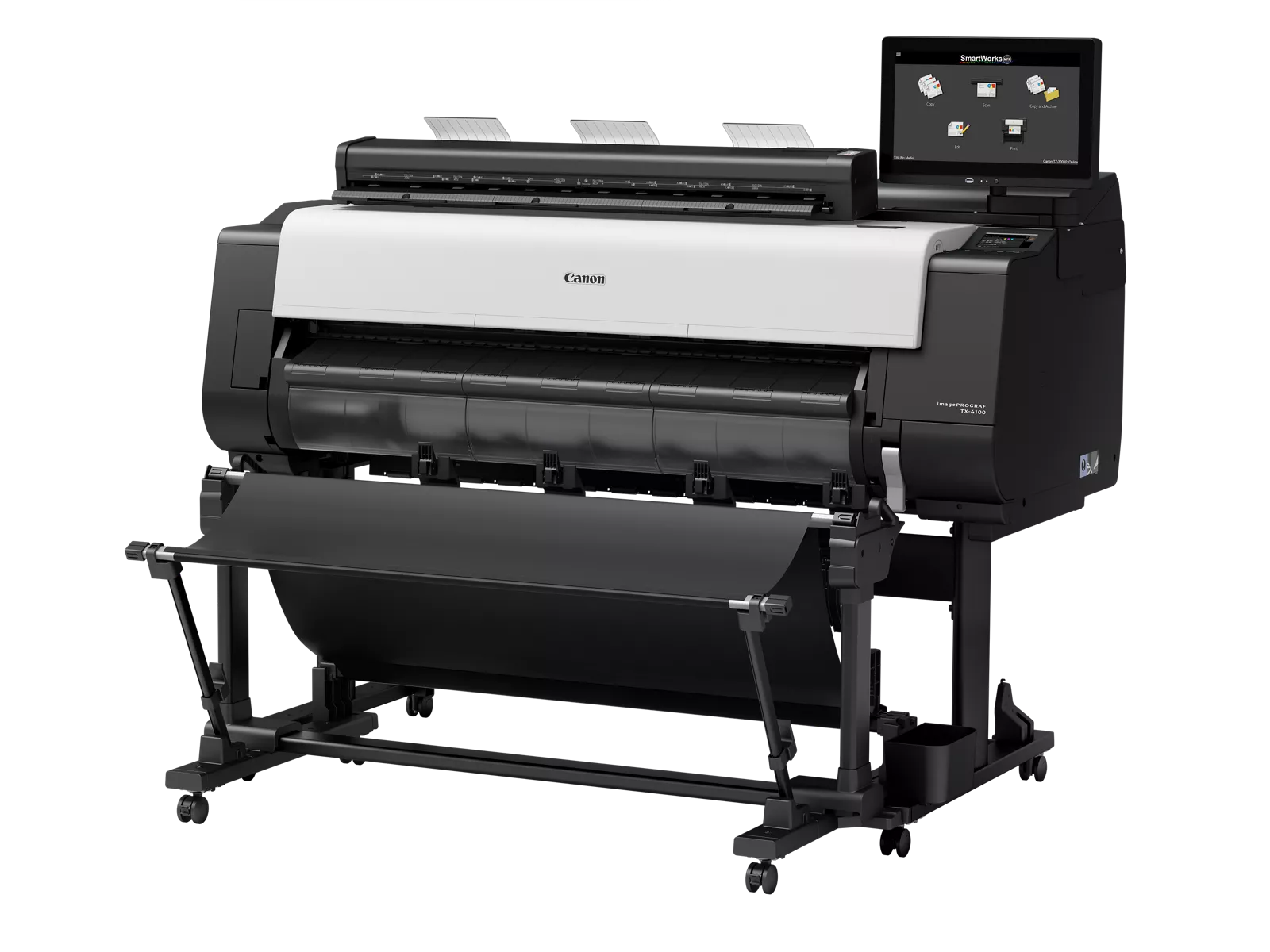

Canon imagePROGRAF TX-4100 44" MFP with Z36 Scanner, Stand & Stacker: Complete Large-Format Printing and Scanning Solution
Elevate your large-format operations with the Canon imagePROGRAF TX-4100 44" Multifunction Printer (MFP) with Z36 Scanner, Stand, and Stacker. This all-in-one system combines cutting-edge printing technology with high-resolution scanning and essential accessories, providing an unbeatable solution for professionals in architecture, engineering, and graphic design.
This model includes a Z36 Scanner, Stand & Stacker
Key Features:
- 44" Large-Format Printing: The TX-4100 MFP delivers exceptional print quality up to 44 inches wide, perfect for detailed CAD drawings, GIS maps, technical plans, and vibrant posters.
- Rapid Printing Speeds: Benefit from high-speed printing of up to 3.2 pages per minute (ppm) for plain paper and intricate drawings, thanks to advanced preprocessing technology and an optimized cutter speed.
- Precision Z36 Scanner: The integrated Z36 Scanner offers high-resolution scanning, capturing detailed digital copies of maps, designs, and renderings with remarkable clarity and accuracy.
- Convenient Stand & Stacker: The included stand provides a stable and ergonomic workspace, while the stacker efficiently organizes and stores printed documents, ensuring that your workflow remains smooth and organized.
- Enhanced Automatic Roll Loading: Streamline your printing process with the upgraded automatic roll loading function, which simplifies media handling and reduces manual effort.
- Free-Size Borderless Printing: Achieve edge-to-edge prints without trimming, thanks to the free-size borderless printing feature, maximizing media usage and enhancing print presentation.
Optimize Your Large-Format Workflow:
The Canon imagePROGRAF TX-4100 44" MFP with Z36 Scanner, Stand, and Stacker offers a comprehensive solution for high-volume printing and scanning tasks. Designed to meet the rigorous demands of professionals, this system combines speed, precision, and convenience, making it an essential tool for achieving outstanding results in every project.
Discover the Canon imagePROGRAF TX-4100 44" MFP with Z36 Scanner, Stand, and Stacker – where advanced technology meets unmatched efficiency and productivity.
Main Unit
Printer Type
5-Color 44-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
Macintosh® OS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
160 ml, 330ml or 700ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet - 6” - 44”
Roll Feed - 6” - 44”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59 (18 meters)
Maximum Media Roll Diameter
6.7” (170m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: Cut Sheet, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less
Physical Dimensions
46” x 63” x 47” (Main unit and TX Stacker)
46” x 63” x 39” (Main unit and Catch Basket Opened)
Weight
approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 252 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 116W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
Scanner
Scanner Type
Contact Image Sensor (CIS) technology
Scan Accuracy
+/- 0.1%
Speed
13 ips monochrome, 6 ips color
Optical Resolutions
1200dpi (Adjustable from 100 dpi to 2,400 dpi)
Max. Resolutions
9600dpi interpolated
Max. Document Size
Width: 38 inch document width (36 inch image width)
Length
315" (JPG or PDF)
598" (TIFF)
Thickness
0.04in (1mm)
Standard Interface
USB 3.0 (PC connector compatible with USB 2.0 and USB 3.0 sockets)
- Printer
- TX Stacker or Multipositional Catch Basket
- Stand, 2”/3” Core Media Spool (Adapters Included)
- Power Cord
- Tools and Screws
- Print Head
- Maintenance Cartridge (Installed)
- 5 Ink Tanks (MBK/C/M/Y/BK)
- Ethernet Card (built-in)
- USB 2.0 High-speed Interface
- USB Connection Sheet
- iWR Service Terms Leaflet
- User Manual
- Quick Setup Guide
- User Software CD for Windows (Printer Driver Utilities)
- PosterArtist Lite CD
- User Registration Card
- Warranty Statement
- Z36 Scanner with Power Cord, USB 3.0 Cable (2 meter)
- 15.6" System Controller
- 3:1 Trident Power Cord
- Power Supply
- Mount for Printer and System Controller
- 2 Paper Edge Guides
- Document Return Guides
- Calibration Target
- Assembly and Startup Guide
