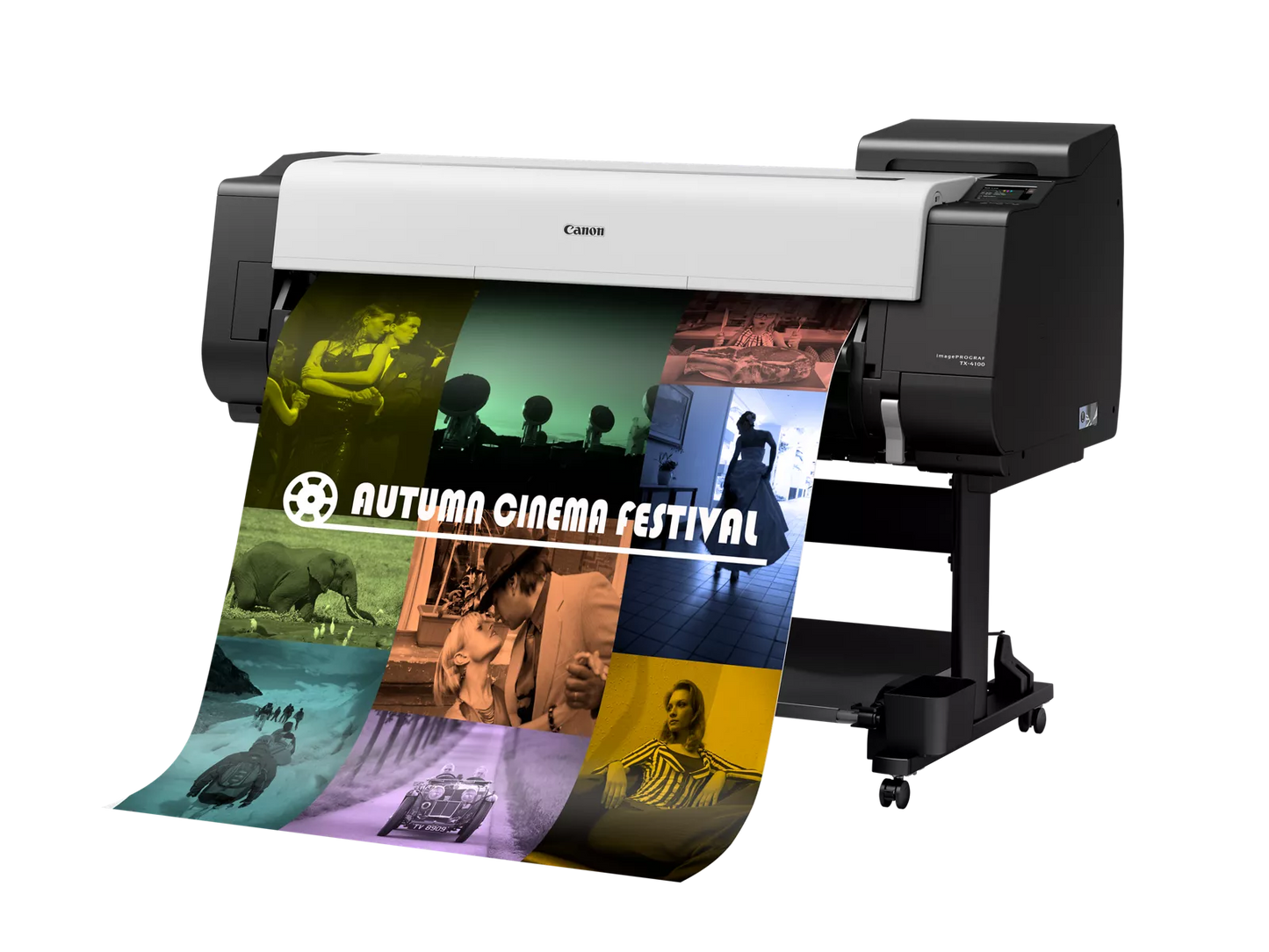

Canon imagePROGRAF TX-4100: Advanced Large-Format Printing for Ultimate Productivity
The Canon imagePROGRAF TX-4100, the latest 44-inch large-format printer, is engineered to elevate your printing efficiency and productivity. Upgraded with cutting-edge features, this printer delivers faster printing speeds, an enhanced automatic roll loading function, and free-size borderless printing, making it the ideal choice for high-volume printing tasks.

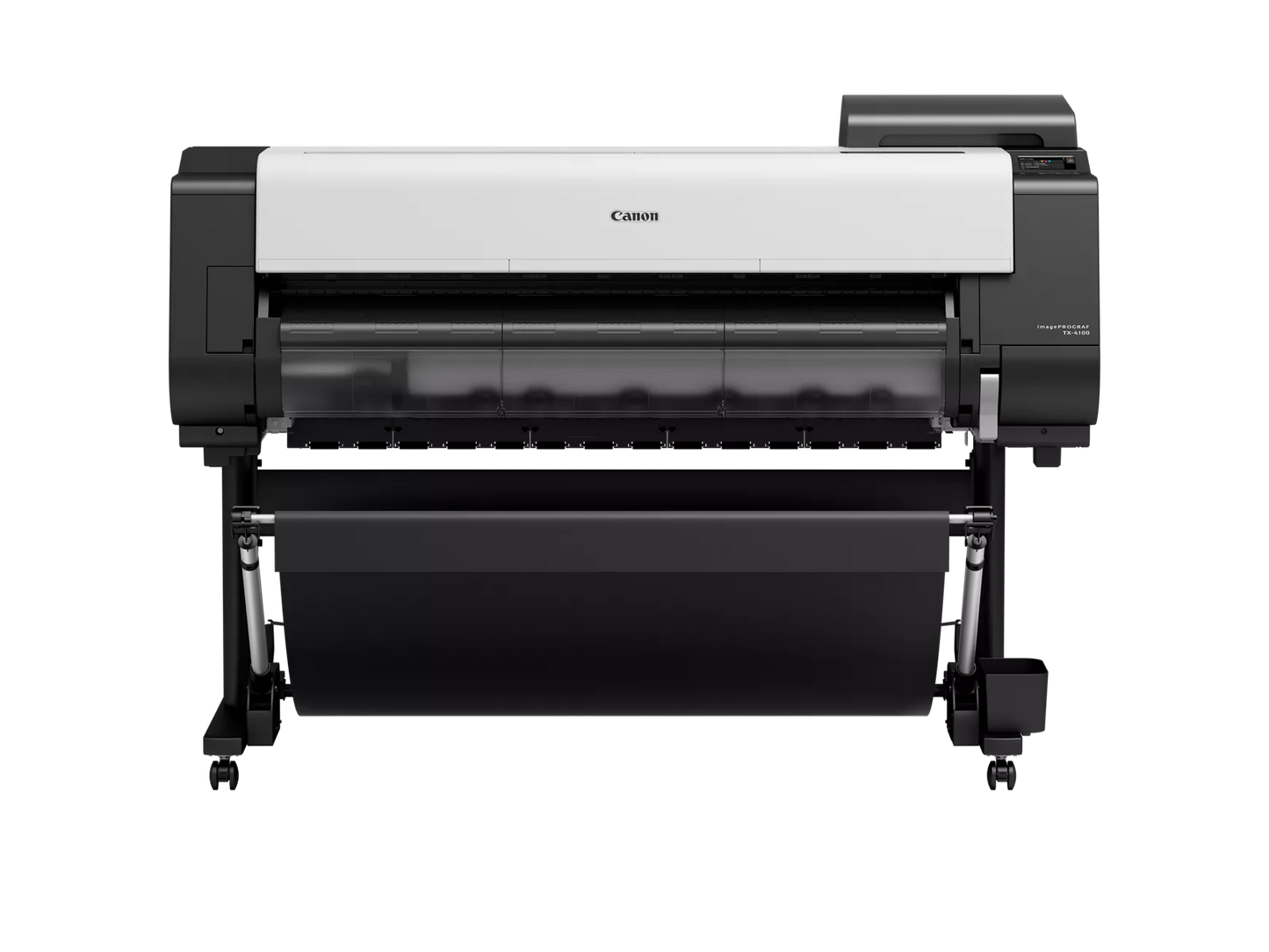

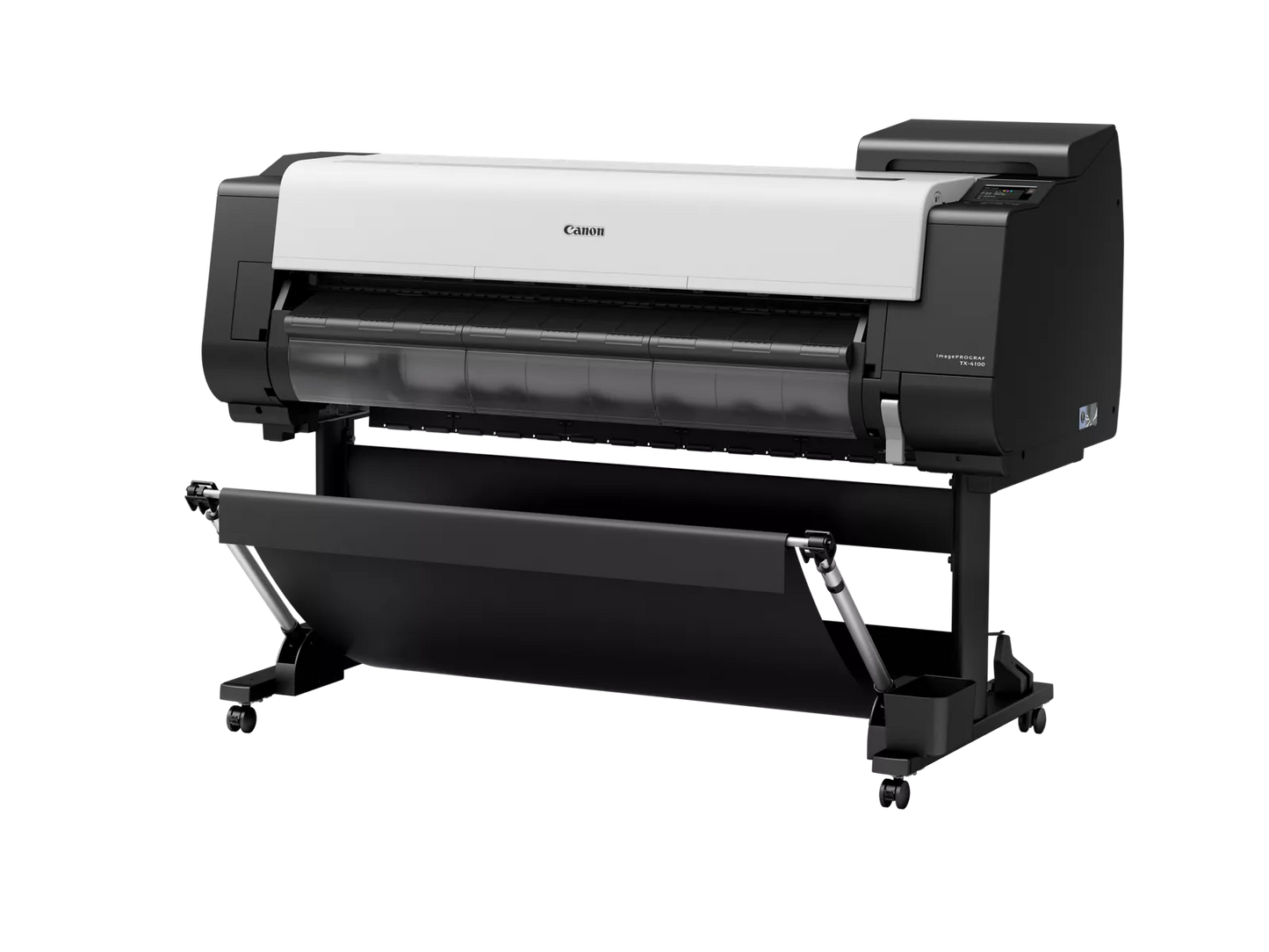

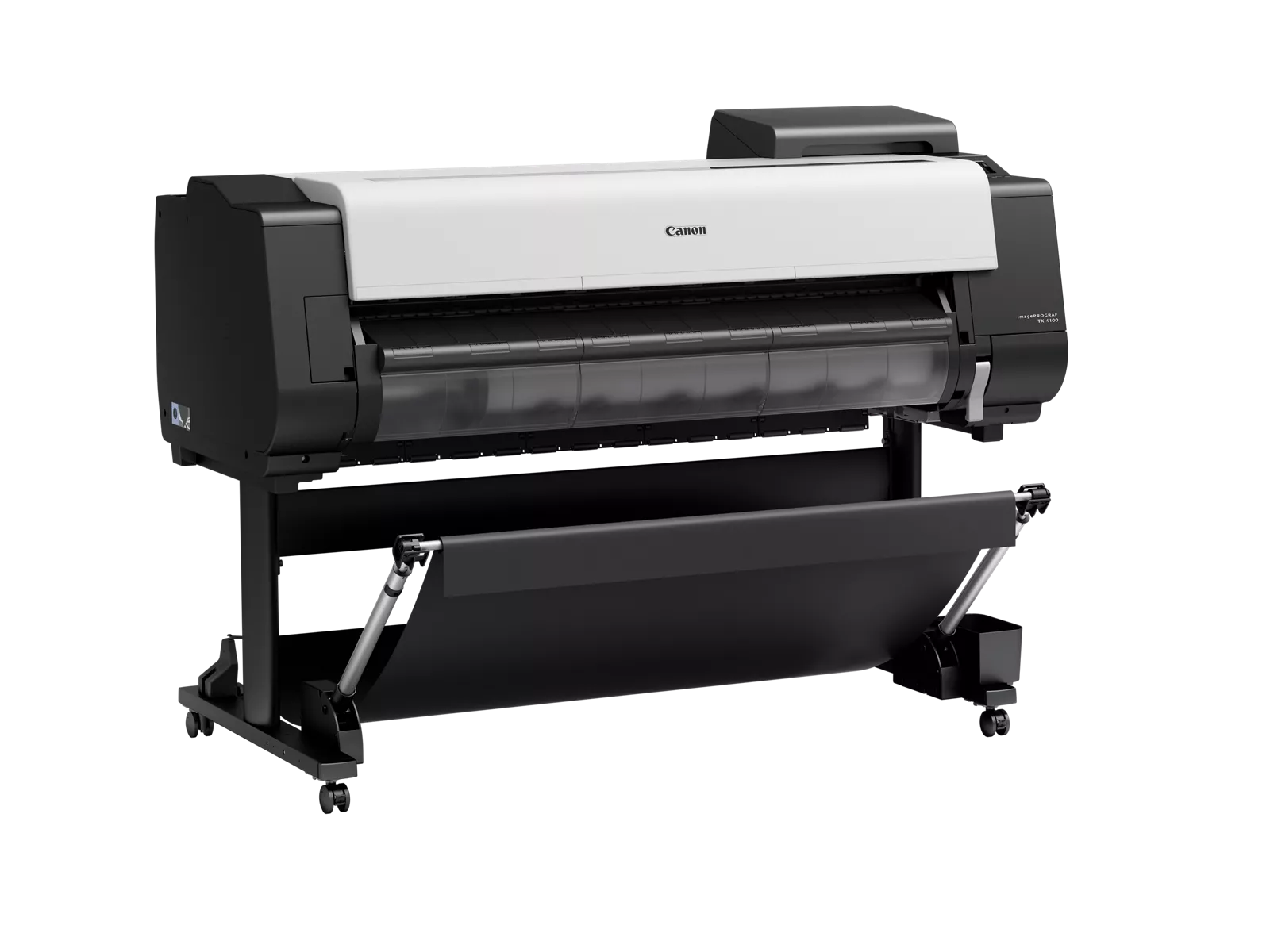

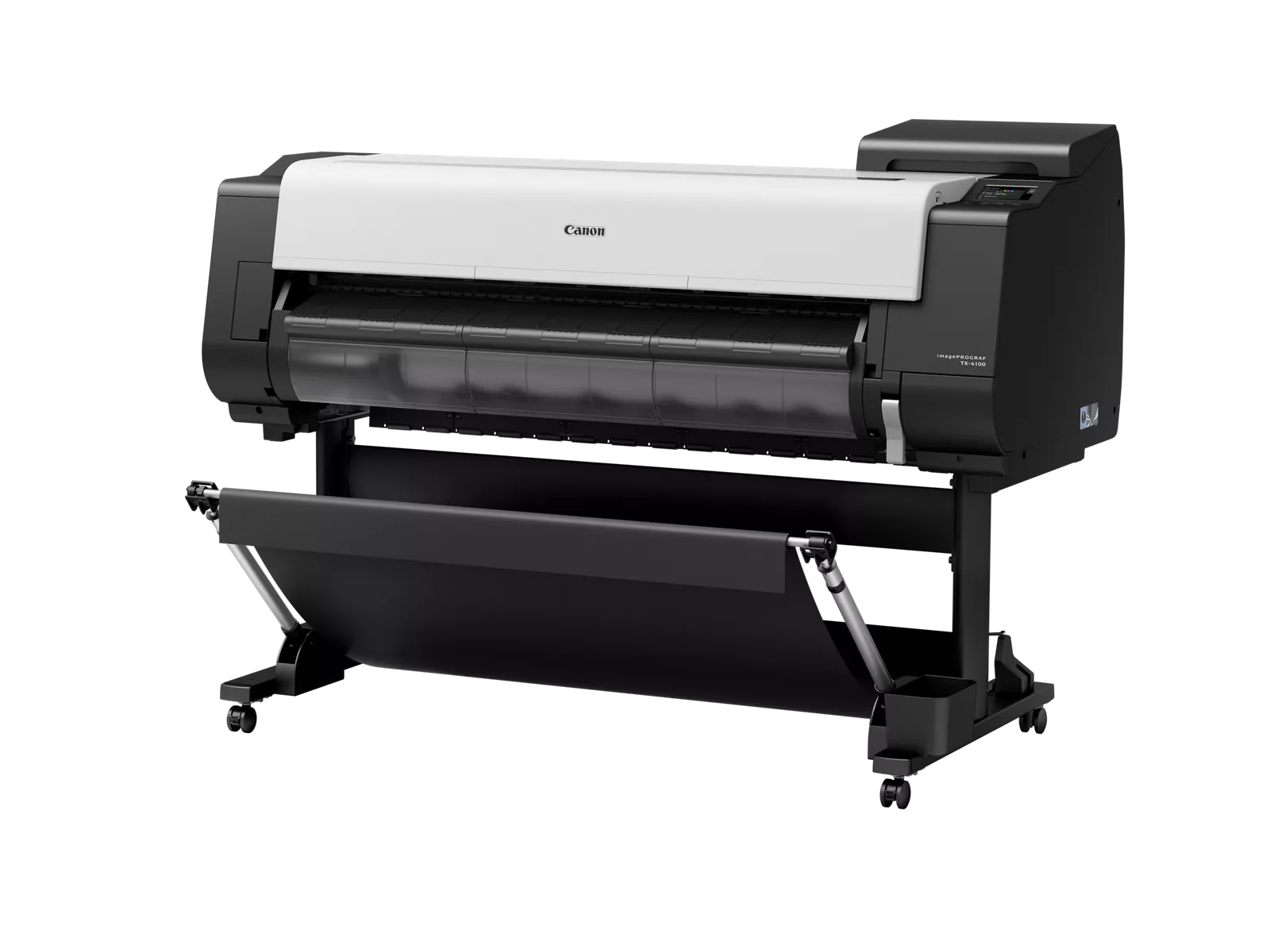

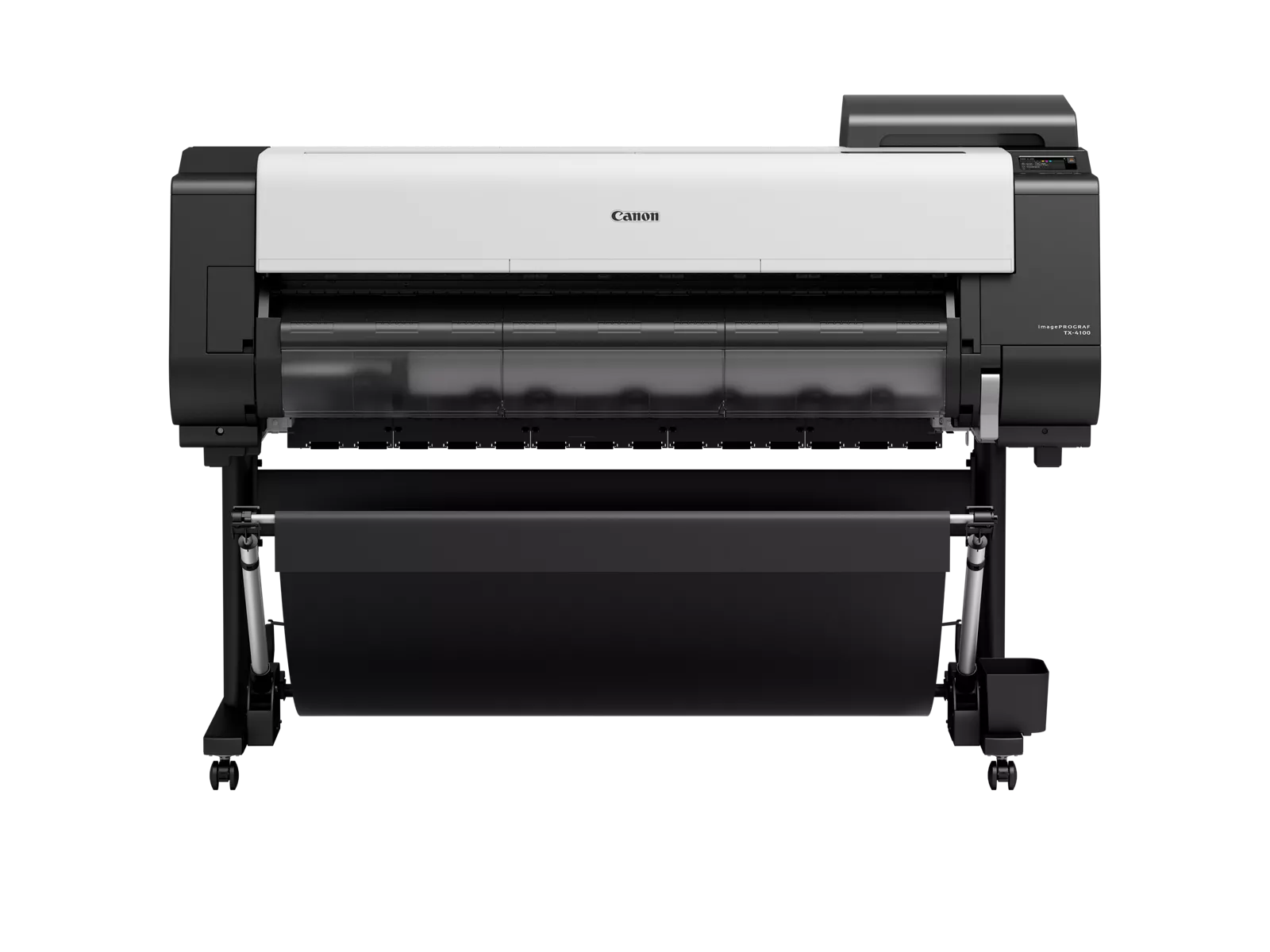

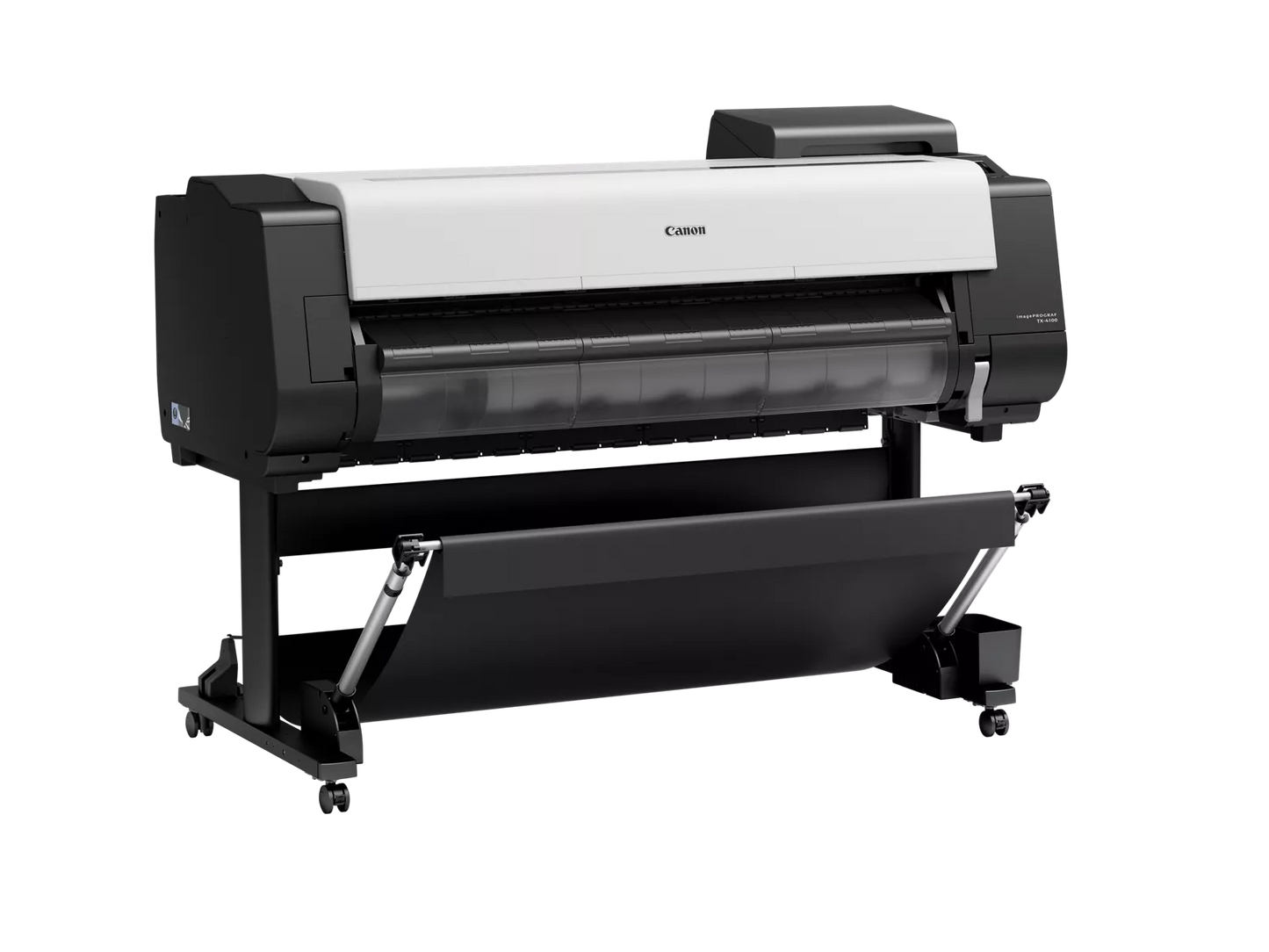

This model includes a Stand & Catch Basket
Key Features:
-
Rapid Printing Speeds: The TX-4100 achieves impressive printing speeds of up to 3.2 pages per minute (ppm) for plain paper drawings, thanks to advanced preprocessing technology between pages and a faster cutter speed.
-
Enhanced Automatic Roll Loading: Simplify your workflow with the upgraded automatic roll loading function, which ensures seamless media handling for various print jobs.
-
Free-Size Borderless Printing: Maximize your media usage with free-size borderless printing, allowing for edge-to-edge prints without the need for trimming.
The Canon imagePROGRAF TX-4100 is designed to meet the demands of professionals in architecture, engineering, and graphic design, delivering exceptional quality and performance for every project.
Optimize your large-format printing with the Canon imagePROGRAF TX-4100 – where advanced technology meets unparalleled efficiency.
Printer Type
5-Color 44-inch Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
Macintosh® OS 10.12.6 and later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size
5 picoliter
Ink Capacity
160 ml, 330ml or 700ml per color
Ink Types
Pigment Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow
Buffer Ram
128 GB (Virtual) 2 GB (Physical)
Hard Drive
500 GB
Media Width
Cut Sheet - 6” - 44”
Roll Feed - 6” - 44”
Media Thickness
0.07-0.8mm (2.8-31.4mil)
Maximum Roll Print Length
Roll Feed - 59 (18 meters)
Maximum Media Roll Diameter
6.7” (170m)
Borderless Printing Width
All sizes
Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output
Front Loading Manual Feed: Cut Sheet, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG
Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less
Physical Dimensions
46” x 63” x 47” (Main unit and TX Stacker)
46” x 63” x 39” (Main unit and Catch Basket Opened)
Weight
approx. 278 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 252 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)
Power Source
AC-100-240V (50-60Hz)
Power Consumption
Maximum: 116W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-06), Maintenance Cartridge (MC-30), Ink Tanks (PFI-110/PFI-310/PFI-710)
Software Available
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select
- Printer
- TX Stacker or Multipositional Catch Basket
- Stand
- 2”/3” Core Media Spool (Adapters Included)
- Power Cord
- Tools and Screws
- Print Head
- Maintenance Cartridge (Installed)
- 5 Ink Tanks (MBK/C/M/Y/BK)
- Ethernet Card (built-in)
- USB 2.0 High-speed Interface
- USB Connection Sheet
- iWR Service Terms Leaflet
- User Manual
- Quick Setup Guide
- User Software CD for Windows (Printer Driver Utilities)
- PosterArtist Lite CD
- User Registration Card
- Warranty Statement
