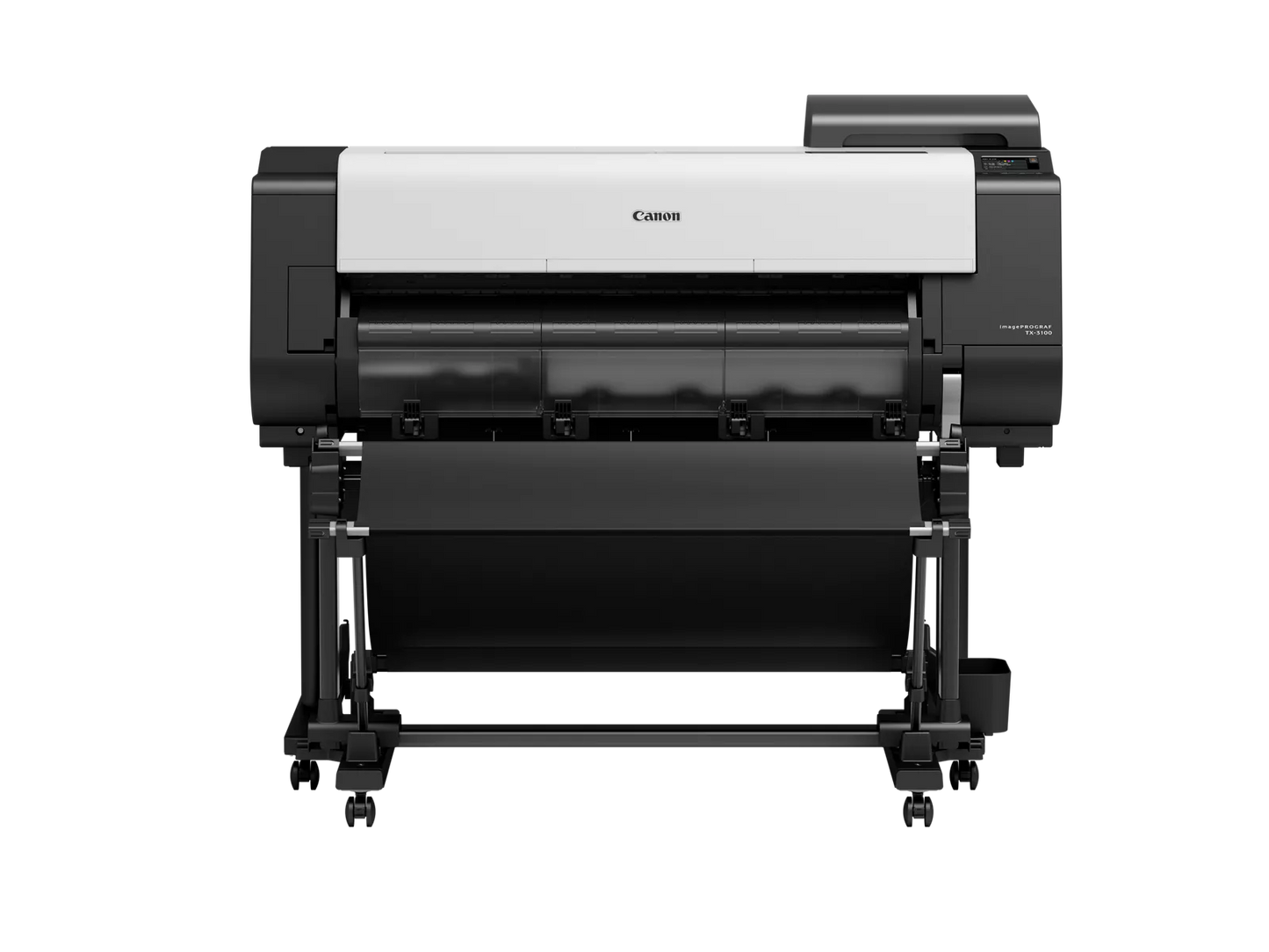

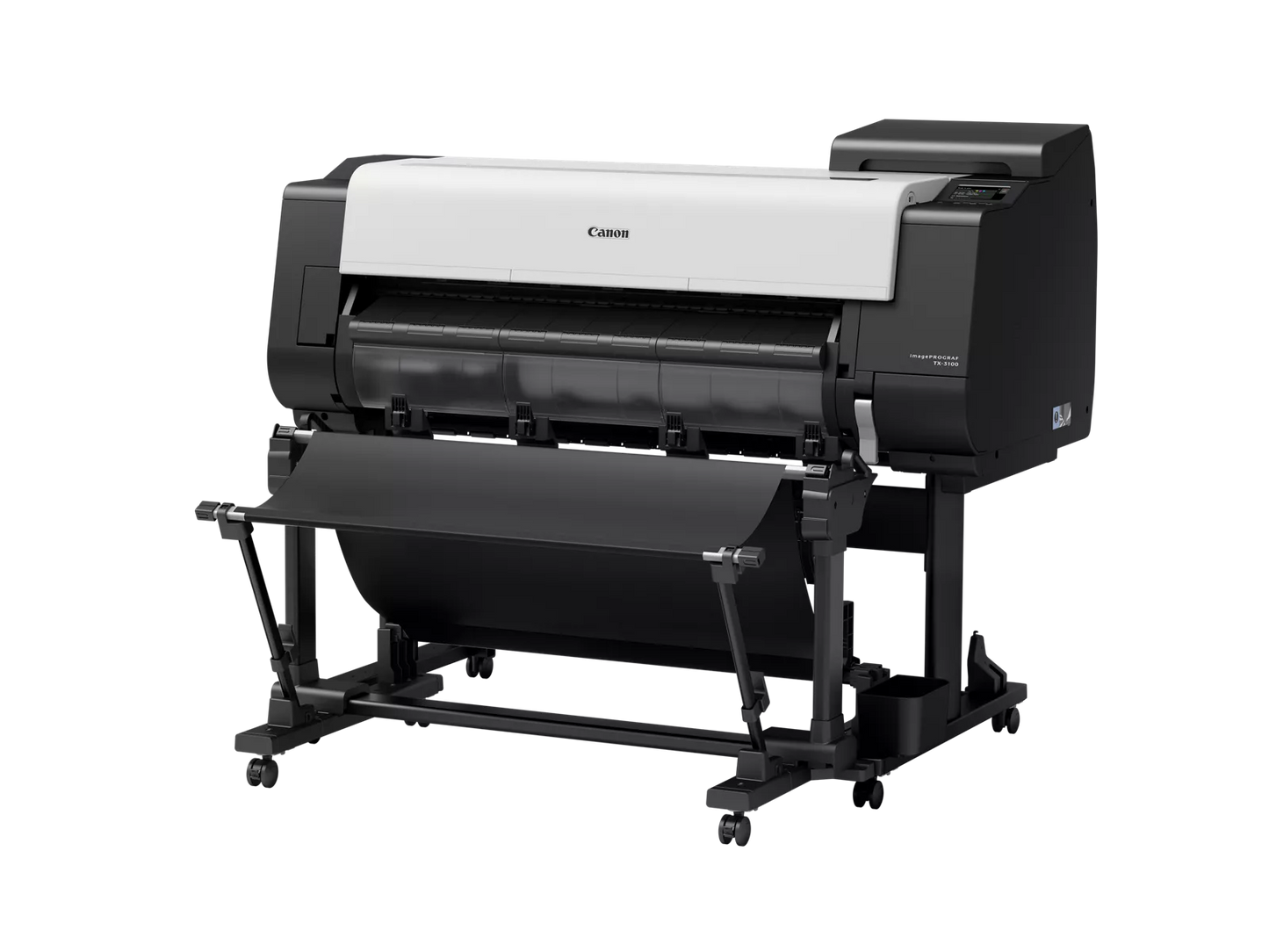

Canon imagePROGRAF TX-3100 36" Large Format Printer w/ Stand & Stacker (5515C001AA)

Canon imagePROGRAF TX-3100 36" Large Format Printer w/ Stand & Stacker (5515C001AA)

In Stock

SKU5515C001AA

Regular price $6,510.00
Regular price $6,785.00 Sale price $6,510.00
Sale Sold out
View full details
Description
Specifications
In The Box
Related products
Reviews
Customers Have Asked

Price includes $275 instant rebate. Offer is valid through November 30, 2024.


Canon imagePROGRAF TX-3100: Precision, Performance, and Power

Transform your large format printing with the Canon imagePROGRAF TX-3100. Designed for superior quality and speed, this cutting-edge printer is ideal for CAD, GIS, and poster production. With a 36-inch wide carriage and advanced printing technology, the TX-3100 ensures crisp, vibrant prints every time.

This model includes a Stand & Stacker

Key Features:

  • High Precision Printing: Featuring Canon's innovative LUCIA TD pigment ink system, the TX-3100 delivers water-resistant, high-precision prints perfect for technical drawings and posters.
  • Enhanced Productivity: With an impressive print speed of up to 3.2 pages per minute for A1 CAD drawings, the TX-3100 helps you meet tight deadlines without sacrificing quality.
  • Versatile Media Handling: Compatible with a variety of media types, the TX-3100 supports rolls up to 170 gsm and cutsheets, providing flexibility for different projects.
  • User-Friendly Operation: Equipped with a large, intuitive touchscreen and easy-to-navigate interface, the TX-3100 simplifies print management and reduces downtime.
  • Secure and Reliable: Advanced security features, including secure PIN printing and encrypted data transmission, protect your sensitive information.
  • Eco-Friendly Design: The TX-3100 is ENERGY STAR® certified and designed with sustainability in mind, minimizing environmental impact while delivering top performance.

Applications:

  • CAD and Technical Drawings: Achieve precise line accuracy and sharp detail for architectural and engineering plans.
  • GIS Mapping: Produce high-quality, large-scale maps with excellent color fidelity and fine detail.

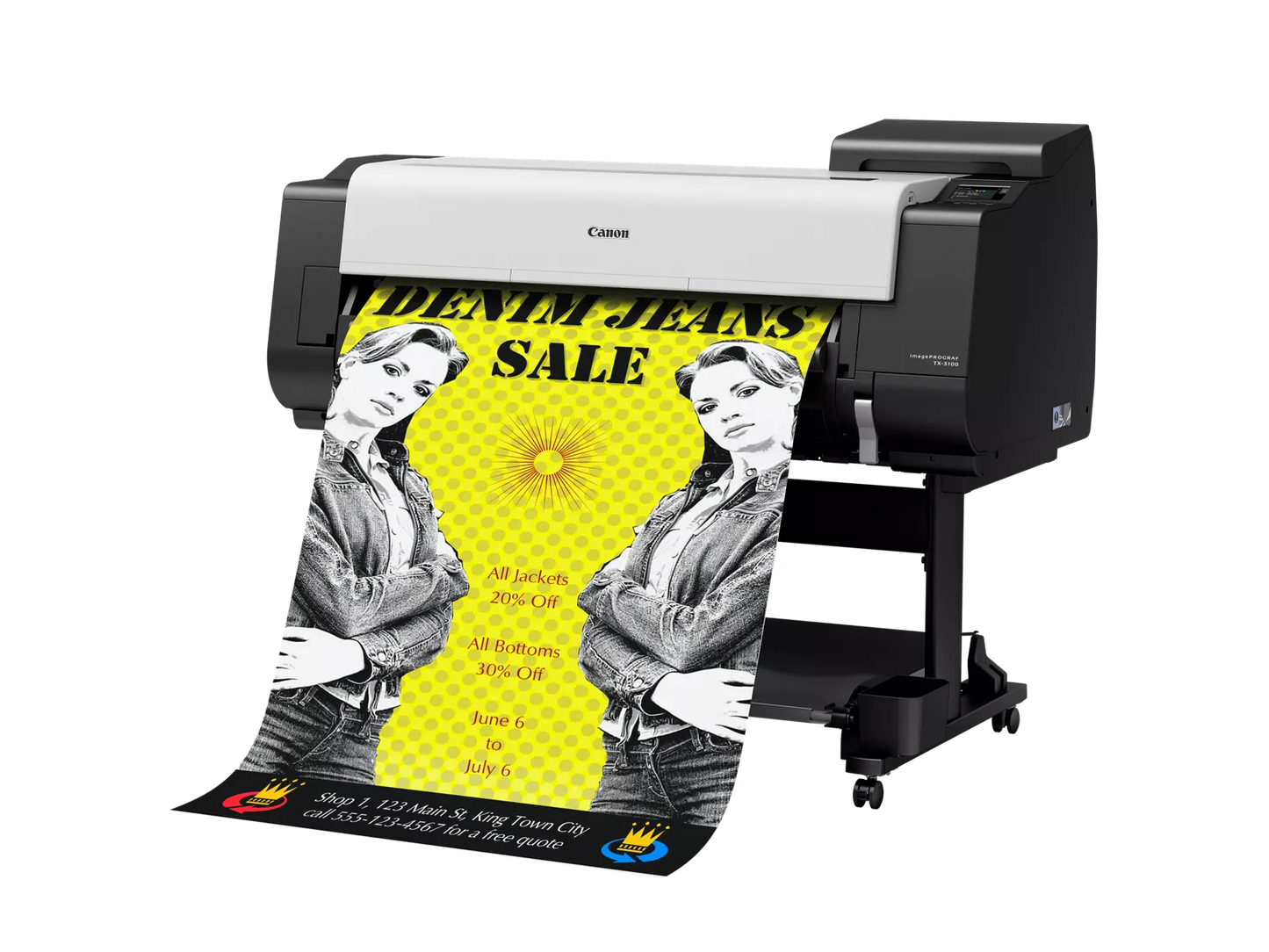

  • Posters and Graphics: Create vibrant, eye-catching posters perfect for advertising and promotional materials.

Elevate your printing capabilities with the Canon imagePROGRAF TX-3100. Whether you're an architect, engineer, graphic designer, or print shop owner, this printer offers the performance and reliability you need to excel.

Discover the Canon imagePROGRAF TX-3100 today and transform your printing experience with unmatched precision and efficiency.

Printer Type
5-Color 36-inch Printer



Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each



Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation



Print Resolution (Up to)
2400×1200dpi (Max)



OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016, 2019 (64bit)
Macintosh® OS 10.12.6 and later



Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX



Ink Droplet Size
5 picoliter



Ink Capacity
160 ml, 330ml or 700ml per color



Ink Droplet Size
Pigment Ink



Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow



Buffer Ram
128 GB (Virtual)
2 GB (Physical)



Hard Drive
500 GB



Media Width
Cut Sheet - 6"- 36"
Roll Feed - 6" - 36"



Media Thickness
Roll: 0.07 - 0.8 mm (2.8 - 31.4mil)



Maximum Roll Print Length
Roll Feed - 59' (18 meters)



Maximum Media Roll Diameter
6.7" (170mm)



Borderless Printing Width
All sizes



Paper Feed Method
Roll Feed: One Roll, Front-loading, Front Output Front Loading
Manual Feed: One Roll, Front Output



Languages
SGRaster, HPGL/2, HP-RTL, PDF, JPEG



Noise Level Approx
Operation: 51 dB (A) or less
Standby: 35 dB (A) or less
Acoustic Power: 6.9 Bels or less



Physical Dimensions
46 x 55 x 47 (Main unit and TX Stacker; roll holder included, no inks, no print heads)
46" x 55" x 39" (Main unit and TX Catch Basket Opened)



Weight
approx. 257 lbs (Main unit and TX Stacker; roll holder included, no inks, no print heads)
approx. 231 lbs (Main unit and Catch Basket roll holder included, no inks, no print heads)



Power Source
AC-100-240V (50-60Hz)



Power Consumption
Maximum: 115W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)



Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation) User-replaceable itemsPrint Head (PF-06)Maintenance Cartridge (MC-30)Ink Tanks (PFI-110/PFI-310/PFI-710)



Software Included
Accounting Manager, Canon Print Service, Device Management Console, Direct Print Plus, Printer Driver Extra Kit, Free Layout Plus, TX Unified Printer Driver, Media Configuration Tool, PosterArtist Lite for Windows, Optimized Driver for AutoCAD, CPP Publisher Select, CPP Driver Select


  • Printer
  • TX Stacker or Multipositional Catch Basket
  • Stand
  • 2”/3” Core Media Spool (Adapters Included)
  • Power Cord
  • Tools and Screws
  • Print Head
  • Maintenance Cartridge (Installed)
  • 5 Ink Tanks (MBK/C/M/Y/BK)
  • Ethernet Card (built-in)
  • USB 2.0 High-speed Interface
  • USB Connection Sheet
  • iWR Service Terms Leaflet
  • User Manual
  • Quick Setup Guide
  • User Software CD for Windows (Printer Driver Utilities)
  • PosterArtist Lite CD
  • User Registration Card
  • Warranty Statement
