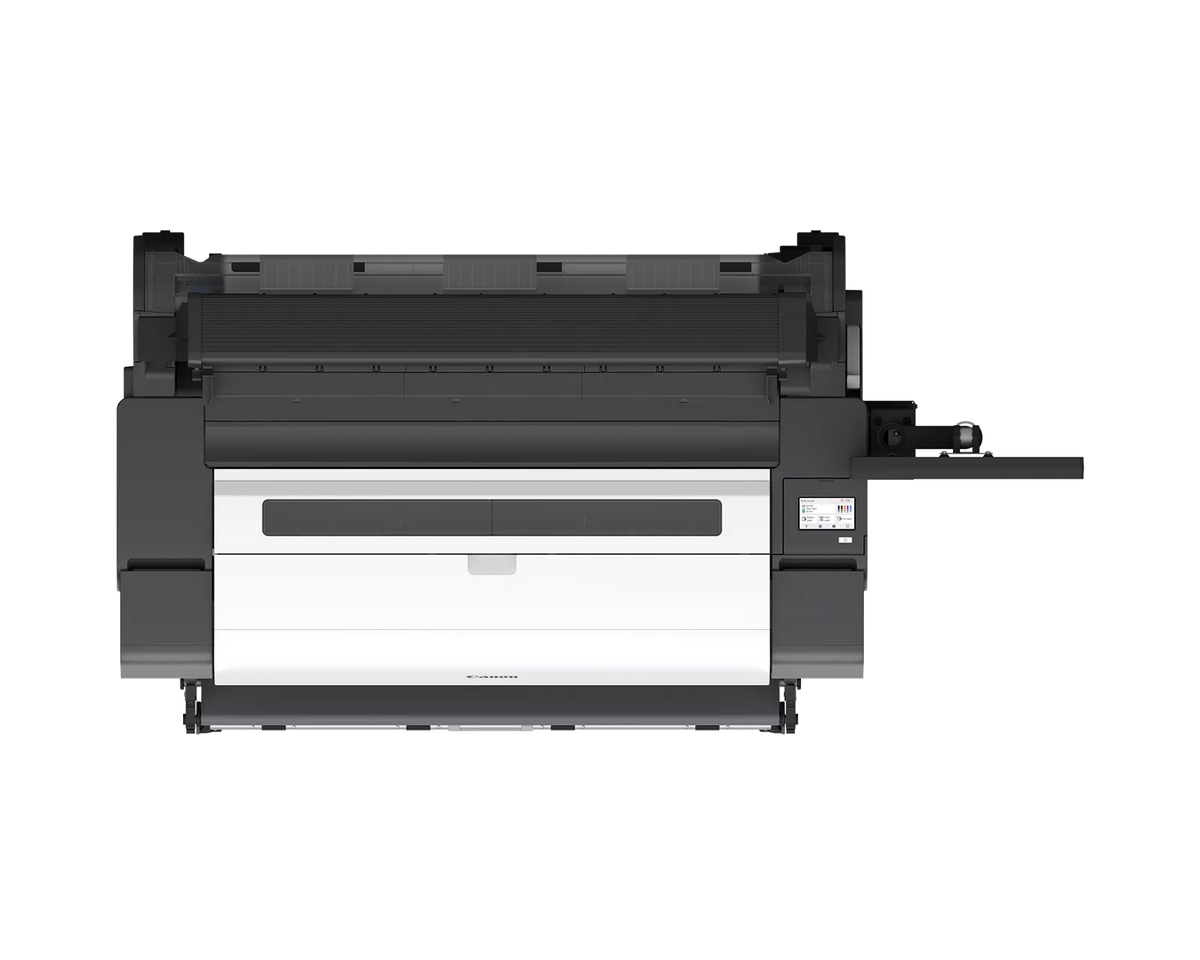

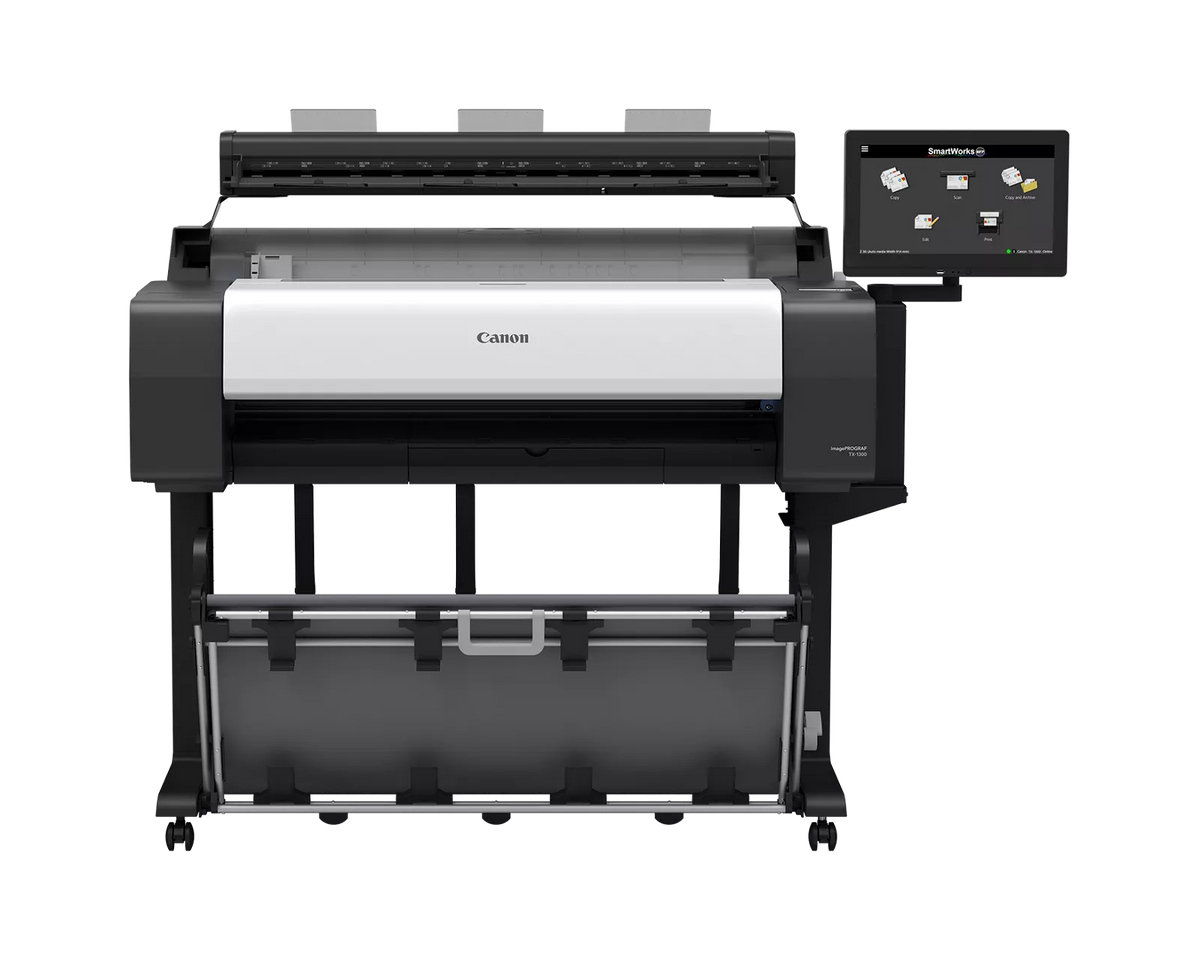

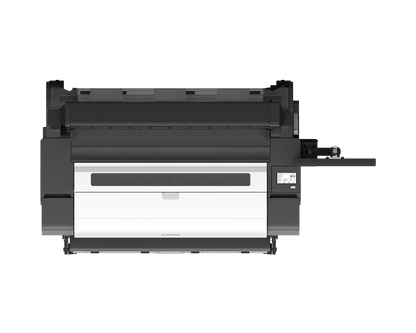

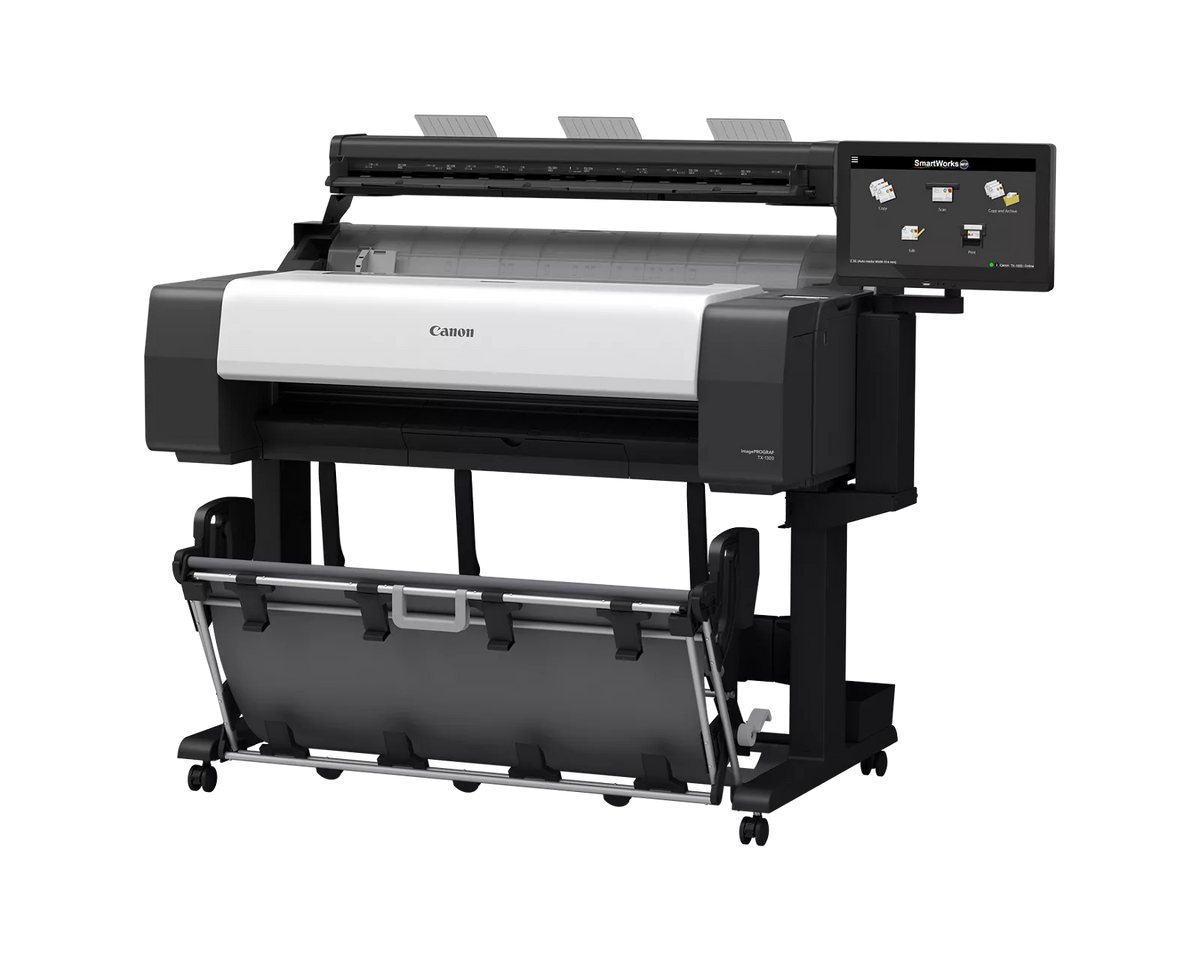

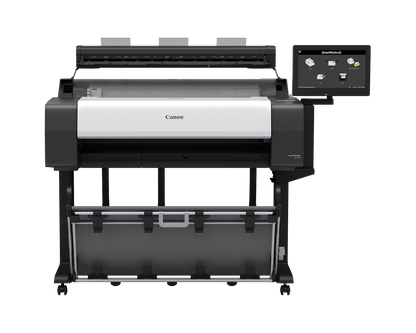

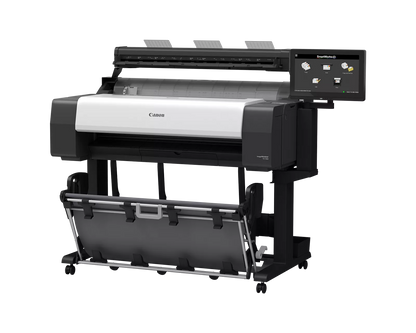

Canon imagePROGRAF TX-1300 MFP Z36 36" Large Format Technical Documents MFP Printer

Engineered for Productivity from the imagePROGRAF TX-1300 MFP Z36

This 36” technical documents large-format printer delivers enhanced productivity for compact spaces using 5-color LUCIA TD pigment ink and print speeds of up to 3.2 ppm. It features deep black and line clarity reproduction with the newly re-formulated matte black ink, built-in color calibration, and automatic paper detection. Designed for optimal comfort, the space-saving flat-top body includes a 4.3” tilt touchscreen for full-frontal operation. The 36” Z36 scanner allows for high volume scanning with intuitive editing capabilities from SmartWorks without sacrificing additional space. In addition to being EPEAT 1.0 Gold registered and ENERGY STAR certified, the TX Series has eliminated EPS packaging and increased the recycled material in the chassis. This printer comes standard with free powerful creative workflow software such as Direct Print Plus, Poster Artist, and Free Layout Plus.

Key Features

• 5-color LUCIA TD pigment ink with reformulated matte black for deep blacks and crisp, fade-resistant output
• Improved line clarity for AEC drawings, CAD output and posters
• Built-in color calibration for consistent output across devices and over time
• Automatic media type, width and roll-amount detection
• Space-saving flat-top body with full front access to ink, media and cartridges
• Enhanced security to protect against unauthorized printing and network intrusion
• Z36 36" scanner with 15.6" touchscreen controller, independent scanner operation and real-time image editing (color, brightness, skew)
• Free Direct Print Plus, PosterArtist and Free Layout Plus software

Printhead
PF-06

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank
Shipped with printer: 130ml (MBK)/90ml (BK, C, M, Y)
Replacement:
MBK: PFI-323 (300ml)/PFI-123 (130ml)
BK, C, Y: PFI-320 (300ml)/PFI-120 (130ml)
M: PFI-321 (300ml)/PFI-121 (130ml)

Printer RAM
Standard Memory: 128 GB (2 GB Physical Memory)
Hard Disk: 256 GB

Media Feed
Roll Feed: One Roll, Top-loading, Front Output

Media Width
Roll Feed: 8”-36” (203.2 - 917 mm)
Cut Sheet: 8”-36” (203.2 - 917 mm)

Media Cutter
Automatic horizontal cutting (Rotary cutter): standard

Media Thickness
0” - 0.03” (0.07 mm - 0.8 mm)

Media Core Sizes
2” Core Standard. 2”/3” Core Roll Holder Set (RH2-35)
Included

Maximum Roll Outer Diameter
5.9” (150 mm)

Media Output
Flat Stacking Basket

Printing Software Utilities
Accounting Manager, Canon Print Service, Canon
Production Printing (CPP) Driver Select, Canon Production
Printing (CPP) PRISMA Tech Suite, Device Management
Console, Direct Print Plus, Free Layout Plus, Driver, Media
Configuration Tool, PosterArtist, Quick Utility Toolbox

Operating System
Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit),
Windows Server 2008R2, 2012, 2012R2, 2016, 2019,
2022 (64-bit), Macintosh OS v10.12.6-v13x

Print Language
Printer: SGRaster, HP-GL/2, HP RTL, JPEG, PDF, CALS G4

Interface
Standard (Built-in): USB 2.0 Hi-Speed,
Direct USB Thumb Drive, 10/100/ 1000Base-T/TX,
Wireless LAN (IEEE 802.11 b/g/n)1

Power Supply
AC 100 – 240V (50 – 60 Hz)

Power Consumption
Max: Approx. 69W
Standby: Approx. 1.6W
Power Off: Approx. 0.06W

Certifications
ENERGY STAR® certified, EPEAT Gold

Operational Environment
Temperature: 59 – 86°F (15 – 30°C)
Relative Humidity: 10 – 80% (Non Condensation)

Printer Dimensions (W x D x H) and Weight (Approx.)
(Basket Open) 50.6” x 34.8” x 41.7”
(Basket Closed) 50.6” x 30.7” x 41.7”
Weight: 149.9 lbs.

Printer Package Dimensions (W x D x H) and Weight (Approx.)
57.6” x 44.2” x 31.5” 255.7 lbs.

Options

• 2”/3” Roll Holder Set (RH2-35)
• User-Replaceable Items
  • Ink Tank (300ml: PFI-320/PFI-321/PFI-323, 130ml: PFI-120/PFI-121/PFI-123)
  • Printhead (PF-06)
  • Maintenance Cartridge (MC-31)
  • Cutter Blade (CT-08)

Z36 SCANNER

Scan Speed
24-bit Color @ 200 dpi: 3” (Per Second)
8-bit Grayscale and Monochrome @ 200 dpi: 13” (Per Second)

Copy Speed
24-bit Color @ 200 dpi: 6” (Per Second)

Color Space
sRGB

Maximum Resolution
1200 dpi

Scan Accuracy
+/- 0.1% : +/- 1 pixel

Maximum Scan Width
36”

Maximum Media Width
38”

Maximum Scan Length
315” (PDF/JPEG); 598” (TIFF)

Maximum Media Thickness
0.003” – 0.04” (0.07 mm – 1.0 mm)

Digital Imaging Technology
Contact Image Sensor (CIS) Technology (SingleSensor Assembly)
• Technology (SingleSensor Assembly)
• 24-bit RGB digital color image capture
• 16-bit grayscale image capture
• Panchromatic monochrome and black-and-white
• Bi-directional extra long-life LED light system for optimum object illumination and instant-on scanning capability

Included Software
SmartWorks MFP Scan-to-Copy/File/Email with
Realtime Image Viewer; supports TIFF, JPEG,
and Multi Page PDF

Operating Environment
10 - 35°C, 10 - 90% RH

Operating System
Windows 11 Enterprise LTSC (x64)

Scanner Interface Kit
Superspeed USB 3.0 (PC Connector Compatible with
USB 2.0 and USB 3.0 sockets)

External Power Supply
100 - 240 VAC +/- 10%, 50 - 60 Hz

Scanner Power Consumption
Sleep/Idle: 0.2W/12.4W
Scanning Color/Grayscale @ 200 dpi: 22.7W/23.3W

Compliance
ENERGY STAR®, CB (62368-1), CE, FCC (EMC), Cul/UL,
CCC, NOM-019, EAC, C-TICK, VCCI, BIS, EMC +LOA, UL
AR, WEEE, REACH, RoHS, EU—Tier 3 of Lot 6

Scanner Dimensions (W x D x H)
42” x 10” x 7”

Scanner Weight
17.3 lbs. (Approx.)

What’s In The Printer Box

• Printer
• Stand with Flat Stacking Basket
• Starter Ink Tanks BK/C/M/Y (90ml) MBK (130ml)
• 1 Printhead
• Maintenance Cartridge (Installed)
• 2” Roll Holder with 3” Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• Safety and Environmental Information
• iWR Service Terms Leaflet
• USB port (High Speed)
• Power Cable and Screw
• Gigabit Ethernet (Built-in)

What’s In The Scanner Box?

• Z36 Scanner with Power Cord, USB 3.0 Cable (2 meter
• 15.6” System Controller
• 3:1 Trident Power Cord
• Power Supply
• Mount for Printer and System Controller
• 2 Paper Edge Guides
• Document Return Guides
• Calibration Target
• Assembly and Startup Guide
