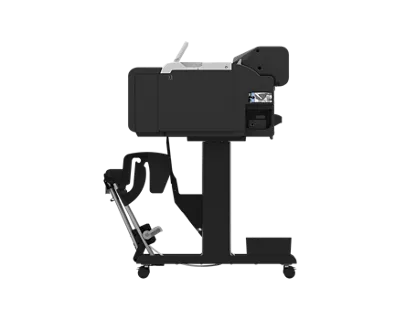

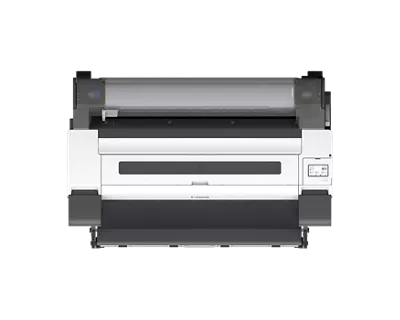

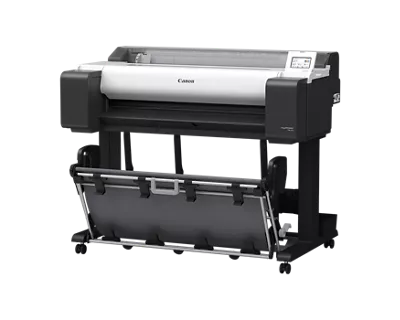

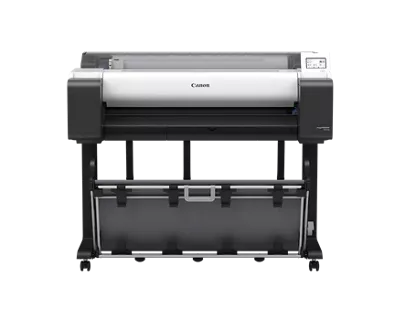

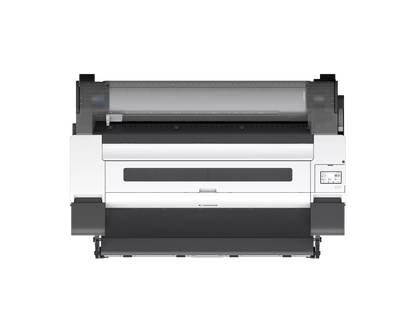

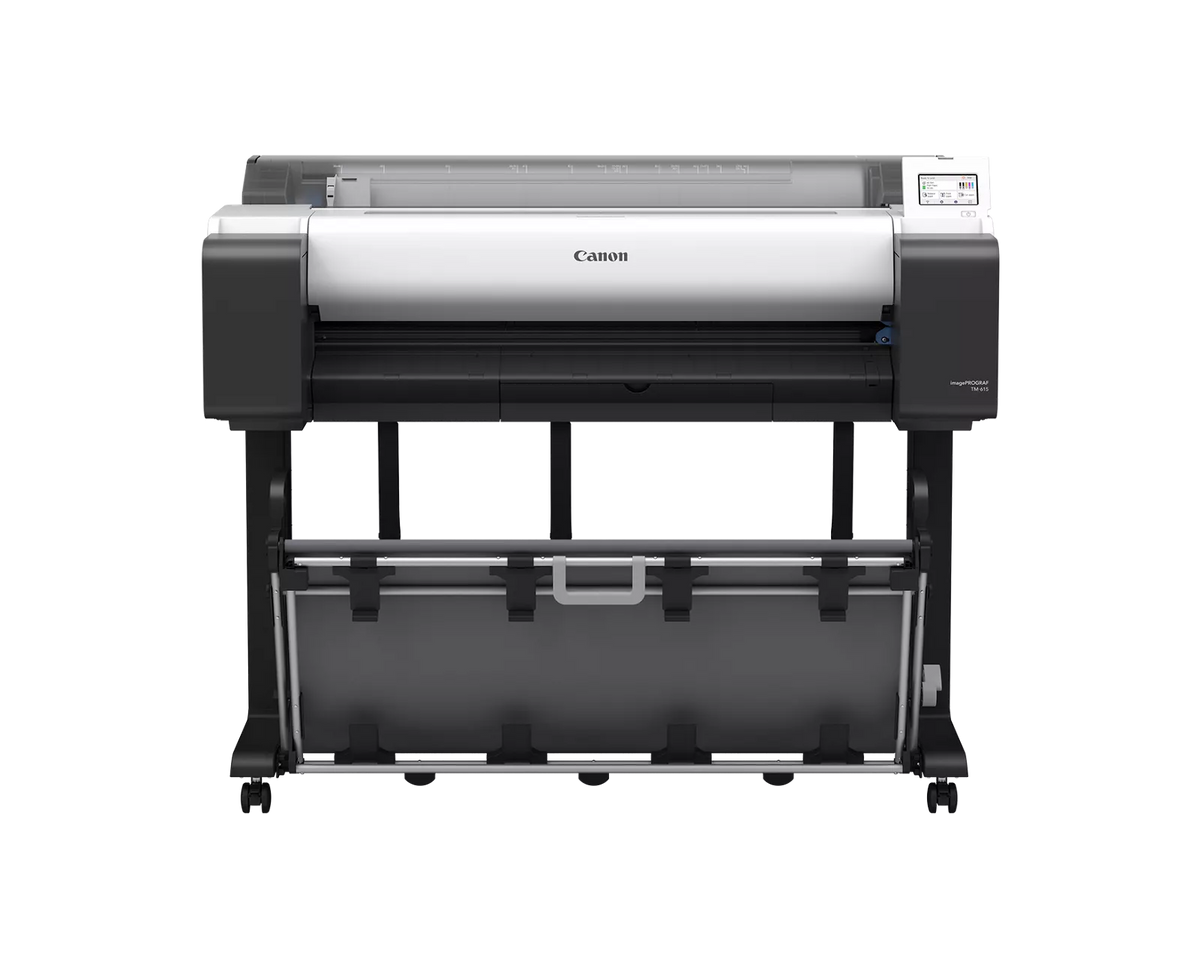

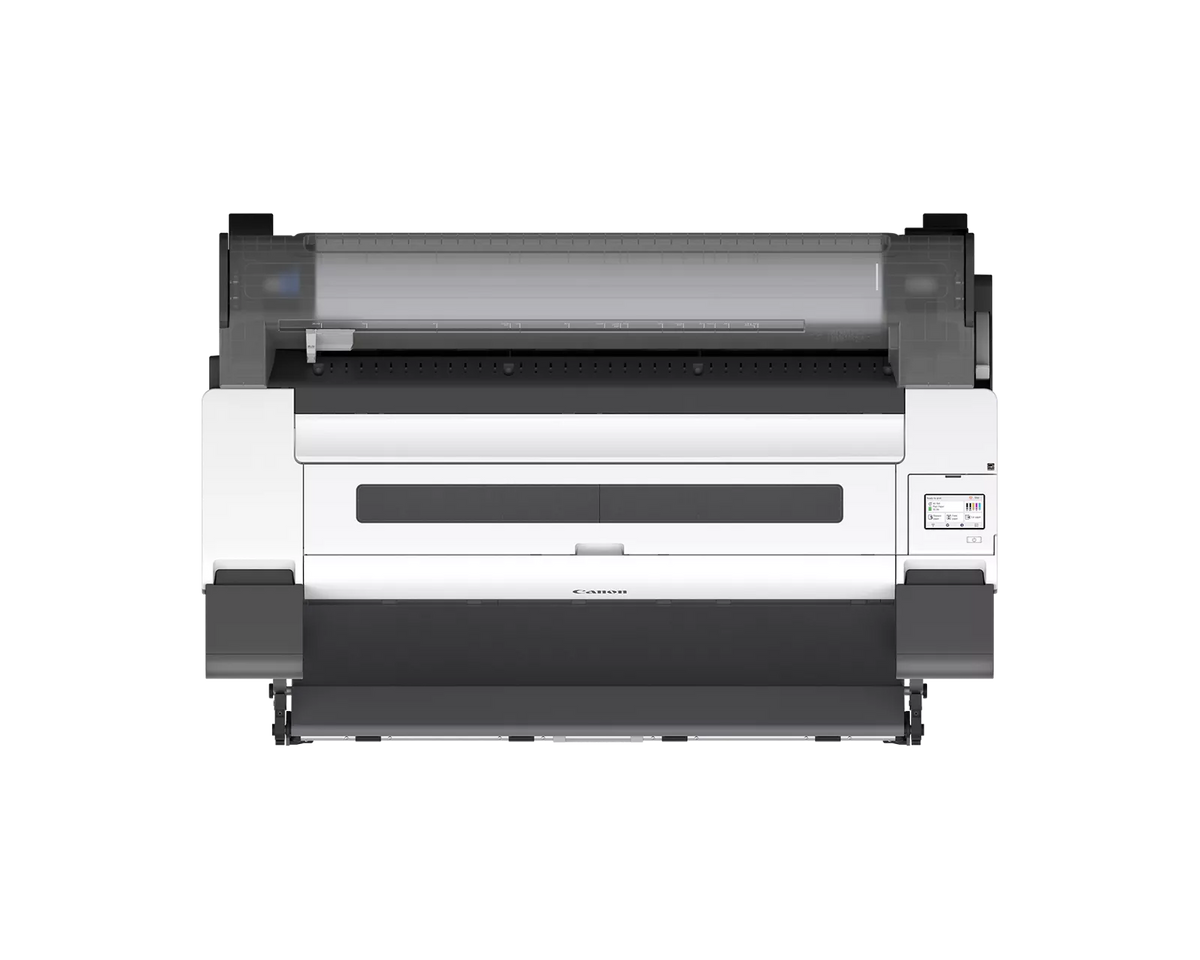

Canon imagePROGRAF TM-615 36" Large Format Technical Documents Printer

Exceptional Productivity from the imagePROGRAF TM-615

This 36” technical documents large-format printer delivers enhanced productivity for compact spaces using 5-color LUCIA TD pigment ink and print speeds of up to 3.2 ppm. It features deep black and line clarity reproduction with the newly re-formulated matte black ink, built-in color calibration, and automatic paper detection. Designed for optimal comfort, the space-saving flat-top body includes a 4.3” tilt touchscreen for full-frontal operation. EPEAT 1.0 Gold registered and ENERGY STAR certified. This printer comes standard with free powerful creative workflow software such as Direct Print Plus, PosterArtist, and Free Layout Plus.

Key Features

• 5-color LUCIA TD pigment ink with reformulated matte black for deep blacks and crisp, fade-resistant output
• Improved line clarity for AEC drawings, CAD output and posters
• Built-in color calibration for consistent output across devices and over time
• Automatic media type, width and roll-amount detection
• Space-saving flat-top body with full front access to ink, media and cartridges
• Enhanced security to protect against unauthorized printing and network intrusion
• Apple AirPrint and Mopria Print Service support; EPEAT Gold registered and ENERGY STAR certified
• Free Direct Print Plus, PosterArtist and Free Layout Plus software
• Stacking basket holds up to 20 D-size sheets

Printhead
PF-06

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Ink Tank
Shipped with printer: 130ml (MBK)/90ml (BK, C, M, Y)
Replacement:
MBK: PFI-323 (300ml)/PFI-123 (130ml)
BK, C, Y: PFI-320 (300ml)/PFI-120 (130ml)
M: PFI-321 (300ml)/PFI-121 (130ml)

Printer RAM
128 GB (Physical memory 2 GB)
Hard Drive: 256GB

Media Feed
Roll Feed: One Roll, Top-loading, Front Output

Maximum Print Length (Varies according to the OS and application)
Roll Media: 59’
Cut Sheet: 5.2’

Media Width
Roll Feed: 8” – 36” (203.2 mm – 917 mm)
Cut Sheet: 8” – 36” (203.2 mm – 917 mm)

Media Cutter
Automatic horizontal cutting (Rotary cutter): standard

Media Thickness
0” – 0.03” (0.07 mm – 0.8 mm)

Media Core Sizes
2” Core Standard. 2”/3” Core Roll Holder Set (RH2-35) Included

Maximum Roll Outer Diameter
5.9” (150 mm)

Media Output
Stackable Basket

Printing Software Utilities
Accounting Manager, Device Management Console, Direct Print Plus,
Free Layout Plus, Driver, Media Configuration Tool, PosterArtist, AirPrint®1,
Mopria® Print Service2

Operating System
Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012,
2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x

Print Language
Printer: SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4

Interface
Standard (Built-in): USB 2.0 Hi-Speed, 10/100/1000Base-T/TX, Wireless LAN (IEEE
802.11 b/g /n)3

Acoustic Noise
Operation Approx: 41 dB (A)
Standby Approx: 35 dB (A)
Acoustic Power: Approx 6.2 Bels

Power Supply
100–240 VAC +/- 10%, 50–60 Hz

Power Consumption
Max: Approx. 69W
Standby: Approx. 1.6W
Power Off: Approx. 0.06W

Certifications
ENERGY STAR® certified, EPEAT 1.0 Gold, Mopria® Certified

Operational Environment
Temperature: 59–86°F (15–30°C)
Relative Humidity: 10% – 80% (Non Condensation)

Printer Dimensions (WxDxH) and Weight (Approx)
(Basket Open) 50.6” x 34.8” x 41.0”. 143.3 lbs.
(Basket Closed) 50.6” x 29.8” x 41.0”

Package Dimensions (WxDxH) and Weight (Approx)
57.6” x 44.2” x 30.3”. 246.9 lbs.

Options

• 2”/3” Roll Holder Set (RH2-35)
• User-Replaceable Items
• Ink Tank (300ml: PFI-320/PFI-321/PFI-323, 130ml: PFI-120/PFI-121/PFI-123)
• Printhead (PF-06)
• Maintenance Cartridge (MC-31)
• Cutter Blade (CT-08)

What’s In The TM-615 Box

• Printer
• Stand with Stackable Basket
• Starter Ink Tanks BK/C/M/Y (90ml) MBK (130ml), 1 Printhead, Maintenance Cartridge (Installed)
• 2” Roll Holder with 3” Adapters
• Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• Safety and Environmental Information
• iWR Service Terms Leaflet
• USB port (High Speed)
• Power Cable & Screw
• Gigabit Ethernet (Built-in)
