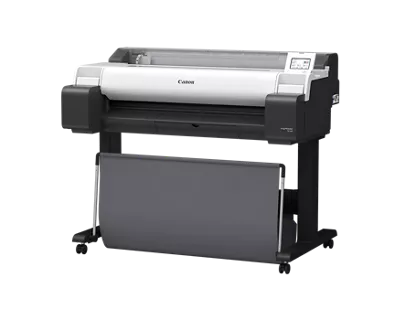

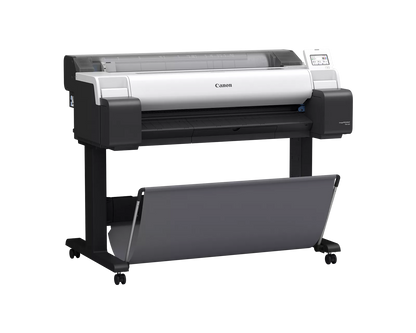

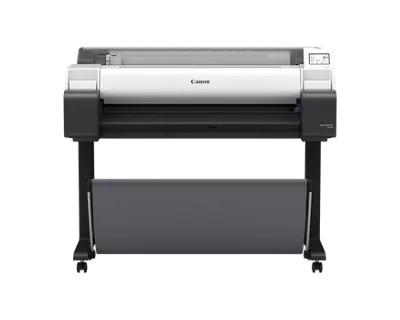

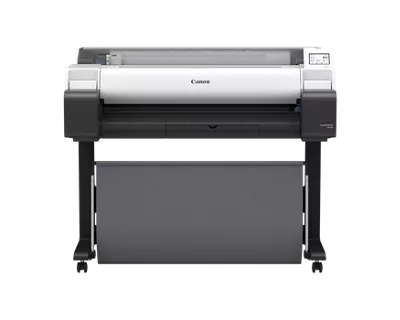

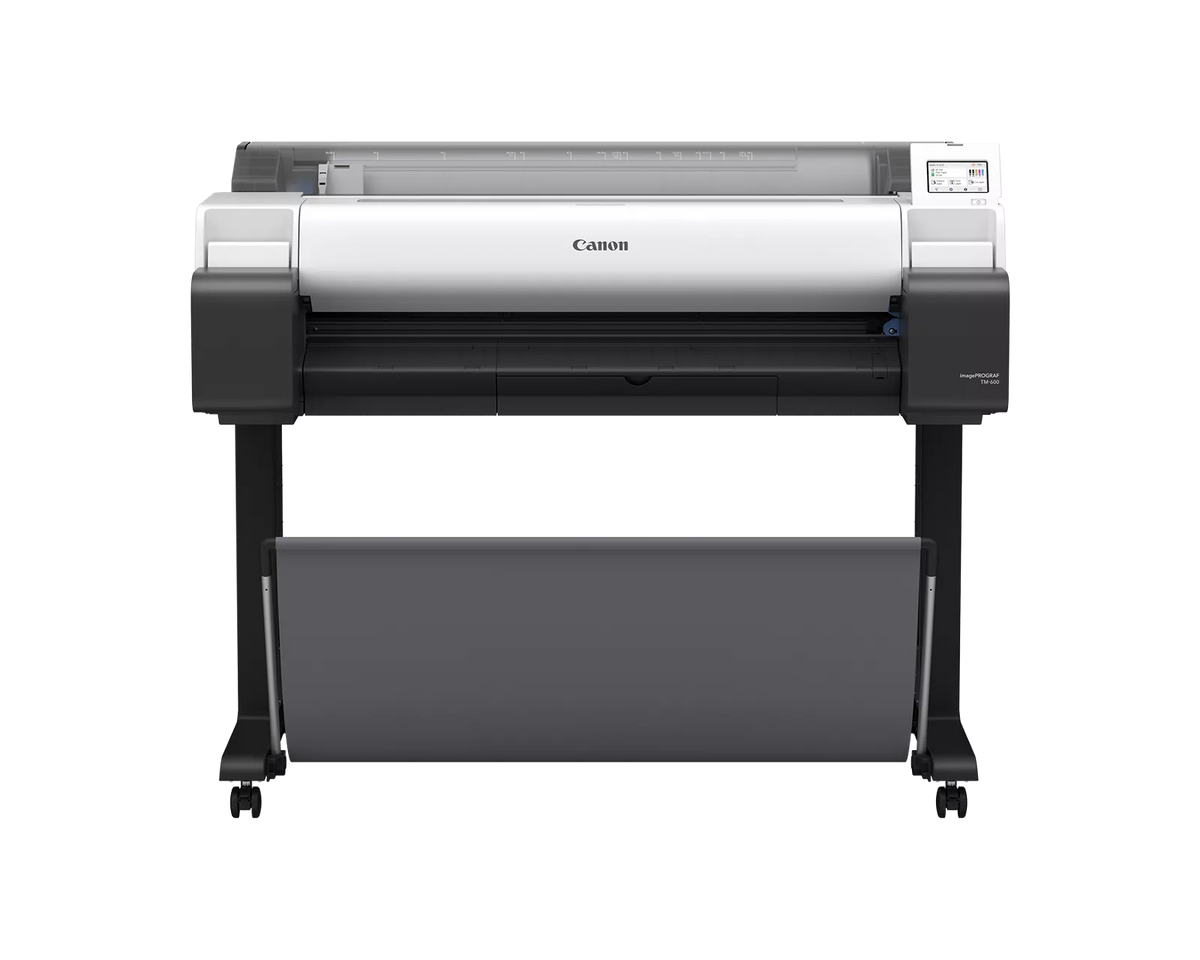

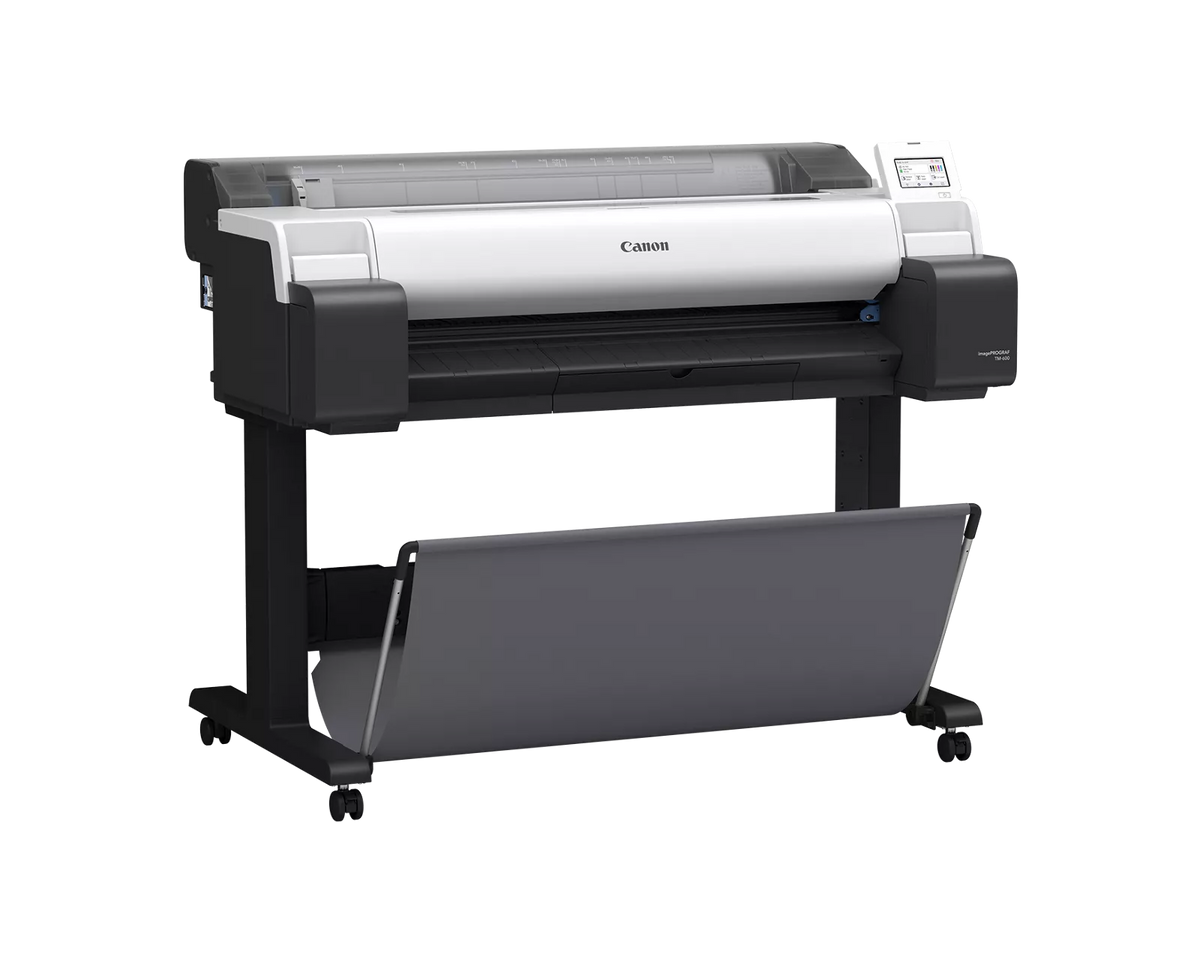

Canon imagePROGRAF TM-600 36" Large Format Technical Documents Printer

The Canon imagePROGRAF TM-600 is a 36" large format technical documents printer built for CAD, AEC and engineering workflows. It uses Canon's 5-color LUCIA TD pigment ink system with a reformulated matte black and delivers up to 2.7 D-size (24" × 36") prints per minute. Includes stand and catch basket.

Key Features

• 5-color LUCIA TD pigment ink with reformulated matte black for deep blacks and crisp, fade-resistant output
• Improved line clarity for AEC drawings, CAD output and posters
• Built-in color calibration for consistent output across devices and over time
• Automatic media type, width and roll-amount detection
• Space-saving flat-top body with full front access to ink, media and cartridges
• Enhanced security to protect against unauthorized printing and network intrusion
• Apple AirPrint and Mopria Print Service support; EPEAT Gold registered and ENERGY STAR certified
• Free Direct Print Plus, PosterArtist and Free Layout Plus software

Printhead
PF-06

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Ink Type
Shipped with printer: MBK (80ml), BK, C, M, Y (55ml)
Replacement (55ml):
MBK: PFI-033
BK, C, Y: PFI-030
M: PFI-031

Printer RAM
2 GB

Media Feed

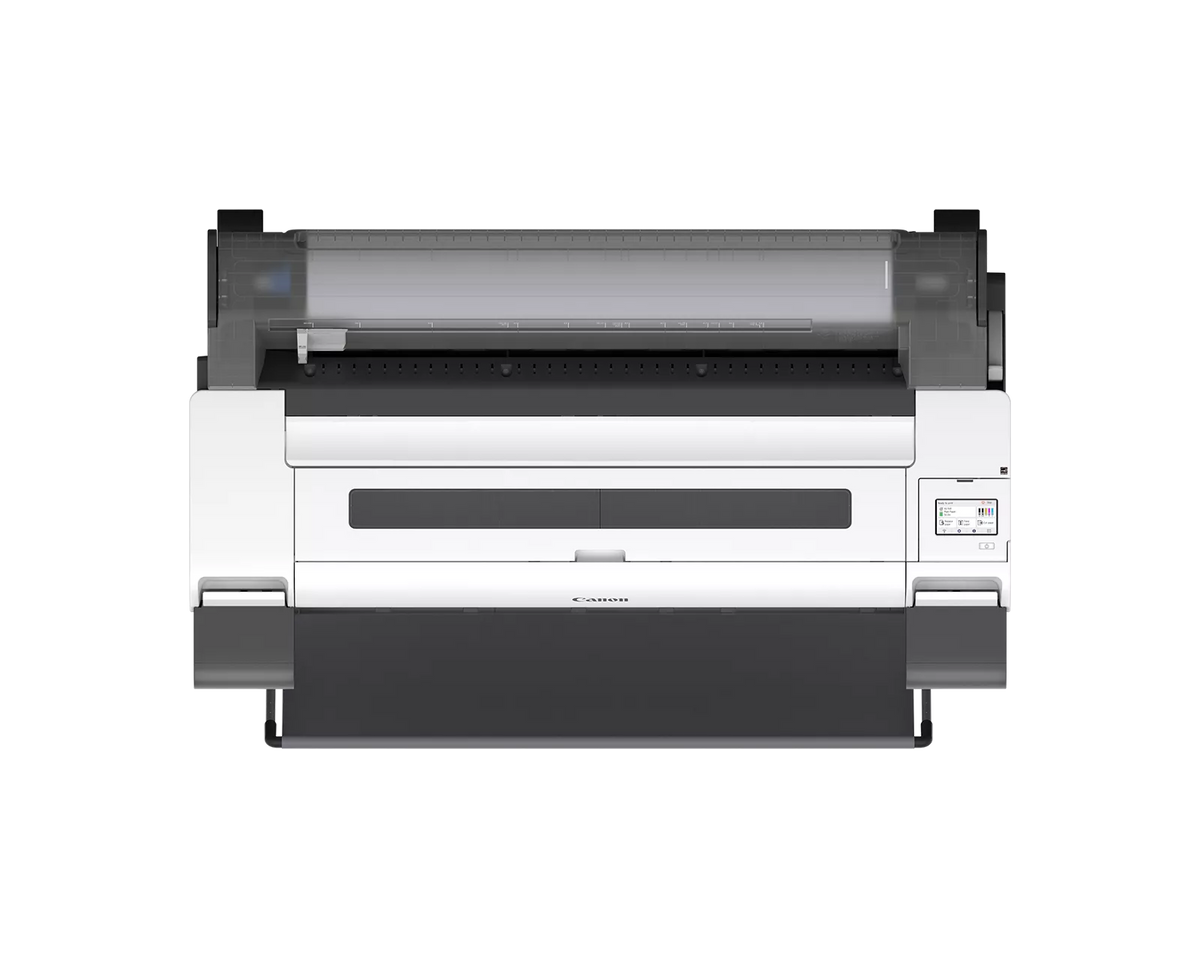

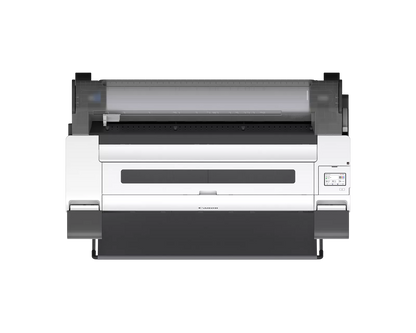

Roll Feed: One Roll, Top-loading, Front Output

Media Width
Roll Feed: 8” – 36” (203.2 mm – 917 mm)
Cut Sheet: 8” – 36” (203.2 mm – 917 mm)

Maximum Print Length (Varies according to the OS and application)
Roll Media: 59’
Cut Sheet: 5.2’

Media Cutter
Automatic horizontal cutting (Rotary cutter): standard

Media Thickness
0” – 0.03” (0.07 mm – 0.8 mm)

Media Core Sizes
2” Core Standard. 2”/3” Core Rolder Holder Set (RH2-35) Optional.

Maximum Roll Outer Diameter
5.9” (150 mm)

Media Output Options
Catch Basket

Printing Software Utilities
Accounting Manager, Device Management Console, Direct Print Plus, Free Layout Plus,
Driver, Media Configuration Tool, PosterArtist, AirPrint®1, Mopria® Print Service2

Operating System
Windows 7, 8.1, 10 (32/64-bit), Windows 11 (64-bit), Windows Server 2008R2, 2012,
2012R2, 2016, 2019, 2022 (64-bit), Macintosh OS v10.12.6-v13x

Print Language
Printer: SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4

Interface
Standard (Built-in): USB 2.0 Hi-Speed, 10/100/ 1000Base-T/TX, Wireless LAN
(IEEE 802.11 b/g/n)3

Acoustic Noise
Operation Approx: 39 dB (A)
Standby Approx: 35 dB (A)
Acoustic Power: Approx 6.0 Bels

Power Supply
AC 100–240V (50–60 Hz)

Power Consumption
Max: Approx. 65W
Standby: Approx. 1.6W
Power Off: Approx. 0.06W

Certifications
ENERGY STAR® certified, EPEAT 1.0 Gold, Mopria® Certified

Operational Environment
Temperature: 59°F – 86°F (15°C – 30°C)
Relative Humidity: 10% – 80% (No Condensation)

Printer Dimensions (W x D x H) and Weight (Approx.)
(With Basket opened) 50.6” x 34.2” x 41.0”, 132.3 lbs.

Package Dimensions (W x D x H) and Weight (Approx.)
(With stand basket and pallet) 57.6” x 35.9” x 30.3”; 222.7 lbs.

Options

• 2”/3” Roll Holder Set (RH2-35)
• User-Replaceable Items
  • Ink Tank (PFI-030/PFI-031/PFI-033)
  • Printhead (PF-06)
  • Maintenance Cartridge (MC-31)
  • Cutter Blade (CT-08)

What’s In The TM-600 Box

• Printer, Stand with Catch Basket
• Starter Ink Tanks BK/C/M/Y (55ml) MBK (80ml)
• 1 Printhead, Maintenance Cartridge (Installed)
• 2” Roll Holder, Installation Guide
• User Registration Card
• Printer Warranty Statement
• Printhead Warranty Statement
• Call Center Notice
• Media Compatibility Flyer
• PosterArtist Web Notice Flyer
• Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed)
• Power Cable and Screw
• Gigabit Ethernet (Built-in)
