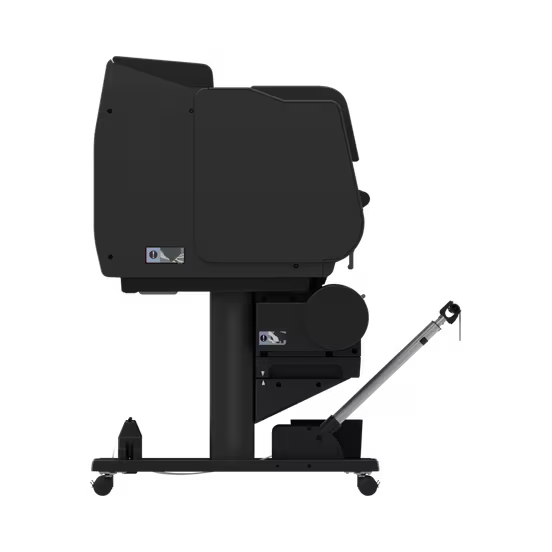

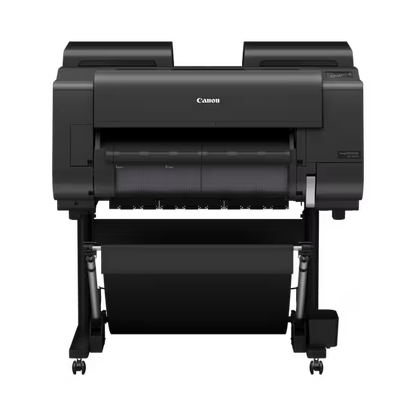

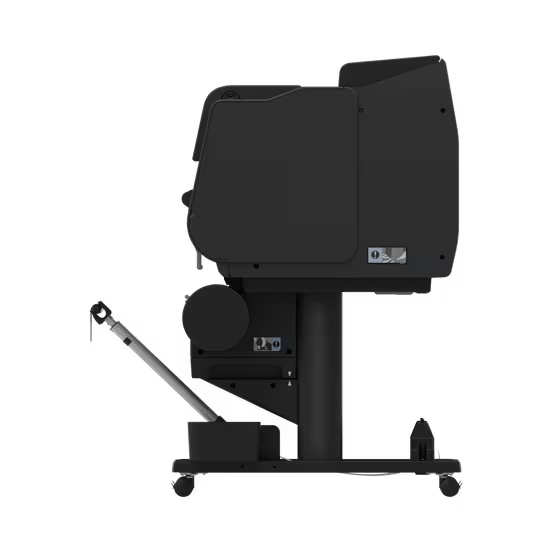

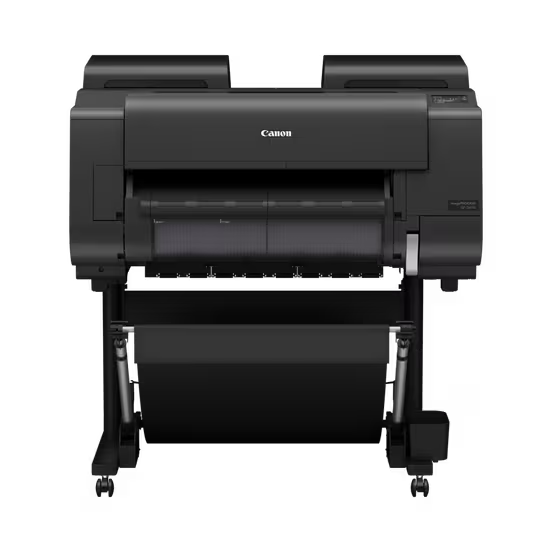

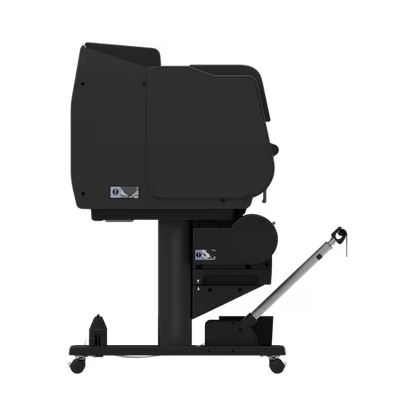

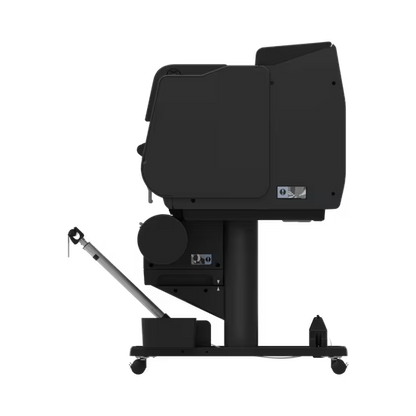

Canon imagePROGRAF GP-2600S 24" Large-Format Printer with Dual Roll

Experience accurate reproductions with perfect colour expressions and durability

Create stunning photographs and premium posters, ensuring precise colour replication and longevity. Redefine creative boundaries with a larger colour gamut, the sustainable 24" 7-colour printer is designed for chain retail & franchised stores, as well as small photo shops.

• 7-colour - New LUCIA PRO II pigment ink3
• Colour precision - High PANTONE™1 coverage2
• Durability - Improved light and abrasion resistance
• 2nd roll (optional) - Dual roll configuration

Professional image quality

Dive into a world of vivid and faithful colours that captivate, paired with enhanced black density that brings more depth to your photographs and posters. The imagePROGRAF GP-2600S goes beyond ink – it provides total colour accuracy, perfect colour gradation and highlights a wide PANTONE™ coverage 2 .

Increased durability

Preserve your photos and premium posters for 200 years4 with better light fastness using high light-resistance ink. Improve image robustness with high scratch resistant ink helps ensure your prints last a lifetime.

Enhanced productivity

Transform printing workflows with easier media handling and simplified settings. Enhance efficiency with dual rolls, auto media loading, mirrored ink arrangement with high speed printing. With new print head monitoring function and auto alignment adjustment, masterpieces are created with confidence without image deterioration.

Improved sustainability

Protect the environment by using less power during both operation and power-off. It is EPEAT Gold rated5 and its packaging Is free from expanded polystyrene.

Printer Technology

Printer Type
7 Colours 24"

Print Technology
Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)

Print Resolution
2,400 x 1,200 dpi

Number of Nozzles
18,432 nozzles (MBK/C/M/Y/O:1536nozzles x2, PBK/GY:1536nozzles x1）

Line Accuracy
±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.

Nozzle Pitch
600 dpi x 2 includes Non-firing nozzle detection and compensation system

Ink Droplet Size
minimum 4pl per colour

Ink Capacity
Bundled Starter Ink: 1970ml (160ml for PBK & Grey, 330ml for others)
Sales Ink: 160ml / 330ml / 700ml

Ink Type
Pigment inks : 7 colours (Matte Black, Photo Black, Cyan, Magenta, Yellow, Grey, Orange)

OS Compatibility
32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13

Other Supported Job Submission Protocols
Apple AirPrint

Printer Languages
PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

Standard Interfaces
USB A Port: USB Memory (Direct Print) for PDF/JPEG files
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN1: IEEE802.11n/IEEE802.11g/IEEE802.11b

Memory

Standard Memory
3GB
Expansion slot : No

Hard Drive
500 GB (Encrypted HDD)

Print Speed

Poster
Plain paper (A1):
0:29 (Level 5)

Coated paper (A1)
0:47 (Fast)
1:23 (Standard)

Glossy Photo Paper (A1)
1:42 (Fast)
2:43 (Standard)

Media Handling

Media Feed and Output
Upper Roll Paper : One Roll, Upper-loading, Front Output
Lower Roll Paper: One Roll, Front-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

Media Width
Roll paper: 152.4 - 610mm
Cut sheet: 152.4 - 610mm

Media Thickness
Roll/Cut : 0.07 - 0.8mm

Minimum Printable Length
Roll paper: 101.6mm (Cross and canvas paper: 200mm)
Cut sheet: 203.2mm

Maximum Printable Length
Roll paper : 18m (varies according to the OS and application)
Cut sheet : 1.6m

Maximum Media Roll Diameter
170mm

Media Core Size
Internal diameter of roll core: 2"/3"

Margins Recommended Area
Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet: Top: 20mm, Bottom:20mm, Side: 3mm
Cut sheet (Apple AirPrint) Top: 20mm, Bottom 31mm, Side: 3mm

Margins Printable Area
Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet: Top: 3mm, Bottom: 20mm, Side: 3mm
Cut sheet (Apple AirPrint) Top: 3mm, Bottom 12.7mm, Side: 3mm

Media Feed Capacity
Roll Paper: Two rolls. Automatic switching is possible
Roll Paper, Cut Sheet: Manual switching is possible
Cut Sheet: 1 sheet

Media Take-Up Roll Unit
Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll

Borderless Printing Width (Roll Only)
[Recommended] 515mm(JIS B2), 594mm(ISO A1), 10”, 14”, 17”, 24”
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 364mm(JIS B3/B4), 420mm(ISO A2), 6’’, 8”, 12’’, 15’’, 16”, 18’’, 20’’, 22’’, 300mm, 500mm, 600mm
Other than above, free size borderless printing is supported on only roll paper by user definition

Maximum Number of Delivered Prints
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10 sheets, coated paper less than 20 sheets
(excludes strong curled condition)

Power and Operating Requirements

Power Supply
AC 100-240V (50-60Hz)

Power Consumption
Operation: 91W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less

Operating Environment
Temperature: 15-30℃, Humidity: 10-80% RH (no dew condensation)

Acoustic Noise (Power/Pressure)
Operation: Approx. 48dB(A) (Measured based on ISO7779 Photo Glossy Paper HG/Standard/24")
Standby: 35 dB(A) or less
Operation: 6.5 Bels or less (Measured based on ISO7779 Photo Glossy Paper HG/Standard/24")

Regulations
CE mark, UKCA mark

Environment Certificates
CB certfication, EPEAT GOLD2

Dimensions and Weight

Physical Dimensions and Weight
W x D x H
Main unit + Stand
1110×984×1168 mm (Basket Opened）
1110×766×1168 mm (Basket Closed）
100kg (including Roll Holder Set, excluding ink and print head)

Packaged Dimensions and Weight
Printer (Main unit with pallet): 1338 x 912 x 1139 mm, 153kg
Roll unit: 1244 x 562 x 461 mm, 26kg

What's in the Box?

• Printer,
• Printer Stand,
• 1 Print head, Power Cable,
• 1 Set of starter ink tanks,
• 1 Roll holder (spool),
• 3” Paper Core Attachment,
• Installation Guide,
• Safety/Standard Environment leaflet,
• LFP Eur Address Sheet,
• Important Information Sheet,
• Stack Printer Stand Setup Guide,
• Notice for PosterArtist WEB
• Software available as Download from Web
