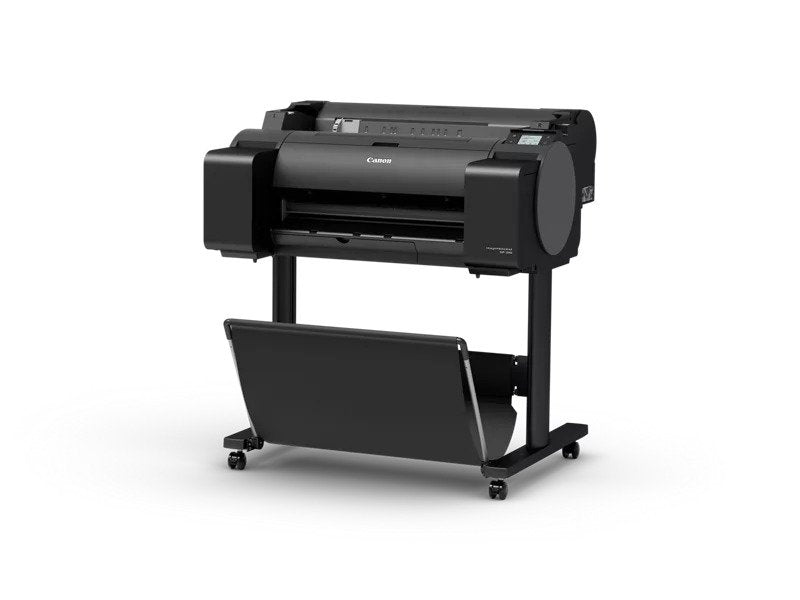

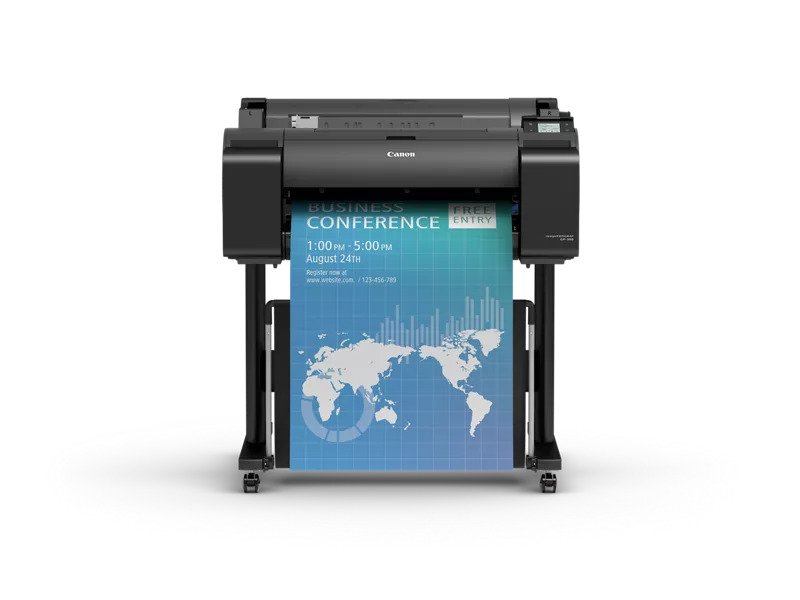

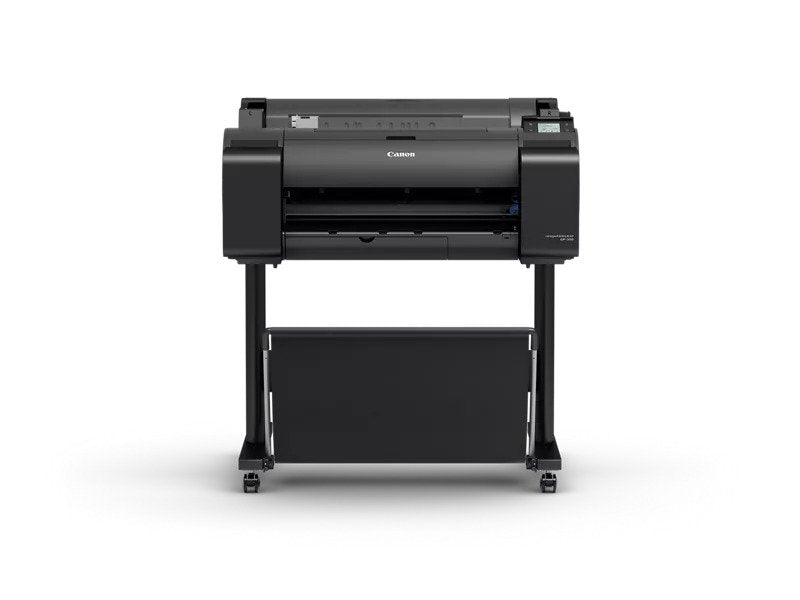

The GP Series is the world's first large format printer with aqueous pigment Fluorescent Pink Ink*. The 24" GP-200 is a 5-color (MBK, BK, C, M, Y) plus Fluorescent Pink Ink large format printer. Equipped with Canon's unique Radiant Infusion which layers the newly developed Fluorescent Pink Ink with other inks on the paper surface during printing creating bright and soft color reproduction.
This model is ideal for supporting in-house production of large format prints with increased appeal and visibility in various industries such as retail stores, restaurants, government offices, schools and general companies. The compact design of these printers allow them to easily fit in the small confinements of a classroom or company office without taking up valuable work space.
Other features include Secure Print, Direct USB Thumb Drive Printing, Borderless Printing, and Accounting Manager software. Bundled with Canon's poster creation software PosterArtist Lite, users are able to create posters in four easy steps with license free images and templates. These imagePROGRAF GP Series printers are the world's first "PANTONE Calibrated" Pantone licensed for1 "PANTONE PASTELS & NEONS GUIDE Coated"2, which includes fluorescent and pastel colors.
Features
- 24" Large Format printer
- 5-Color pigment based ink plus Fluorescent Pink ink
- World's first PANTONE calibrated printers for PANTONE PASTELS & NEONS GUIDE coated
- Built-in hard drive
- Direct USB thumb drive printing
- Secure printing
Printer Type
5-Color plus Fluorescent Pink Ink 24-inch Printer
Number of Nozzles
Total: 15,360
C, M, Y, BK, MBK, FP: 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, 2012 R2, 2016 (64bit), 2019
Macintosh OS X v10.10.5-v10.12x or later
Standard Interfaces
USB 2.0 High-Speed
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size
5 picoliter
Ink Capacity
130 ml or 300 ml per color
Ink Types
Pigment Ink Plus Fluorescent Pink Ink
Color Set
Pigment: Matte Black, Black, Cyan, Magenta, Yellow and Fluorescent Pink Ink
Buffer Ram
2 GB (Physical)
Media Width
Cut Sheet - 8”- 24”
Roll Feed - 8” - 24”
Media Thickness
0.07-0.8mm
Maximum Roll Print Length
Roll Feed - 59 (18 meters)
Maximum Media Roll Diameter
5.9”
Borderless Printing Width
8”, 10", 12”, 14", 16” 17", 20”, 24”
B4 (10.12"/257 mm), A3 (11.69"/297 mm), A3+ (12.95"/329 mm), A2 (16.54"/420 mm), B2 (20.28"/515 mm), A1 (23.39"/594 mm)
Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Languages
SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level Approx
Operation: 49 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.7 Bels
Physical Dimensions
42” (H) x 39” (W) x 35” (D) (Basket Open)
Weight
approx. 110 lbs (roll holder included, no inks, no print heads)
Power Source
AC100-240V (50-60Hz)
Power Consumption
Maximum: 71 W or less
Standby 2.0 W or less
Power Off: 0.3 W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-07)
Maintenance Cartridge (MC-31)
Ink Tanks (PFI-120/PFI-320)
Cutter Blade (CT-08)
Software Included
Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)
- imagePROGRAF GP-200
- Catch Basket
- Stand
- 2"/3" Core Media Spool (Adaptors Included)
- US AC Power Cable
- Tools and Screws
- Print Head PF-07
- Maintenance Cartridge (Installed)
- 6 Ink Tanks (90 ml: FP/C/M/Y/BK/MBK)
- iWR Service Terms Leaflet
- User Manual
- Quick Setup Guide
- User Software CD for Windows (Printer Driver Utilities)
- PosterArtist Lite CD
- User Registration Card
- Warranty Sheet
- Media Guide
